Restraints Control Module Connector - C310B

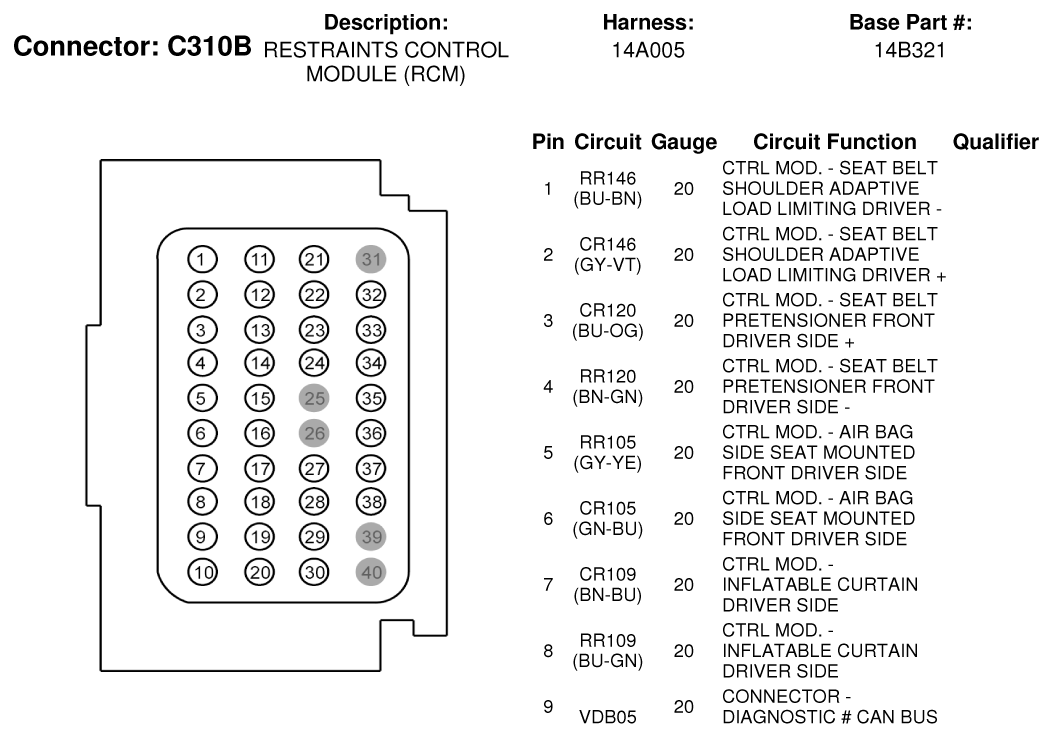

Fig 1: Restraints Control Module Connector End View (C310B) (1 Of 3)

Courtesy of FORD MOTOR CO.

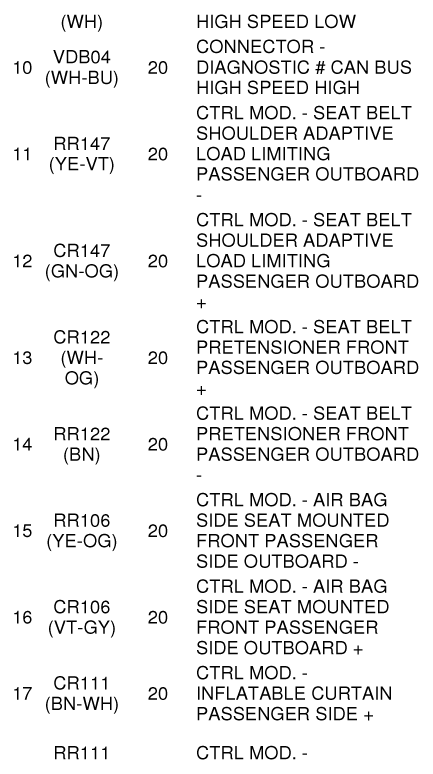

Fig 2: Restraints Control Module Connector End View (C310B) (2 Of 3)

Courtesy of FORD MOTOR CO.

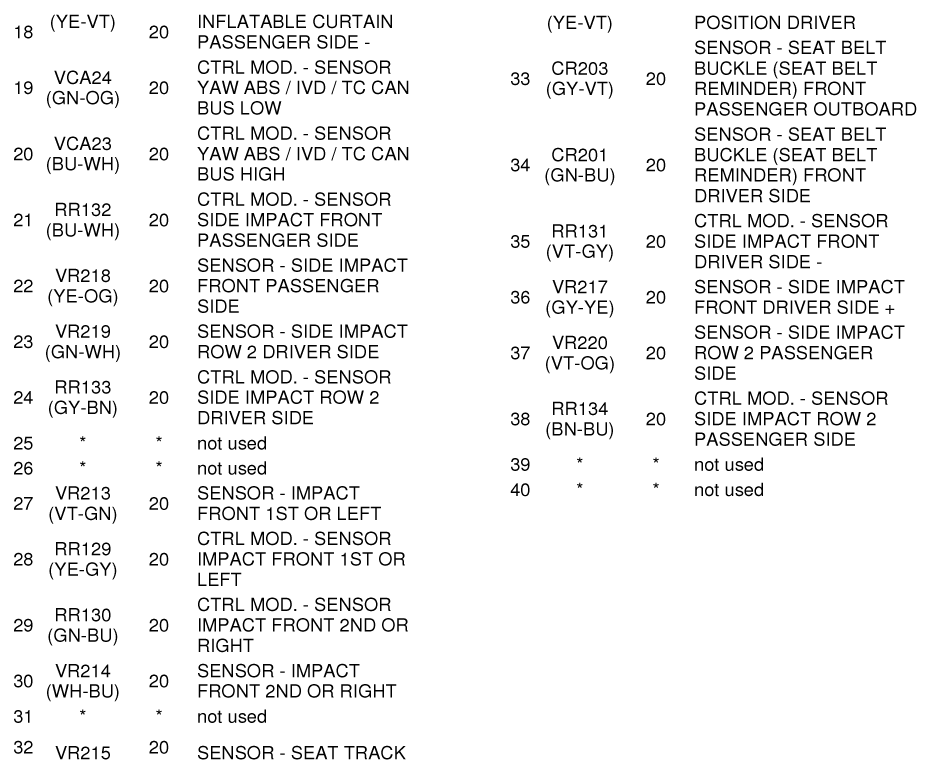

Fig 3: Restraints Control Module Connector End View (C310B) (3 Of 3)

Courtesy of FORD MOTOR CO.
