Component Location Views
Component Location Views

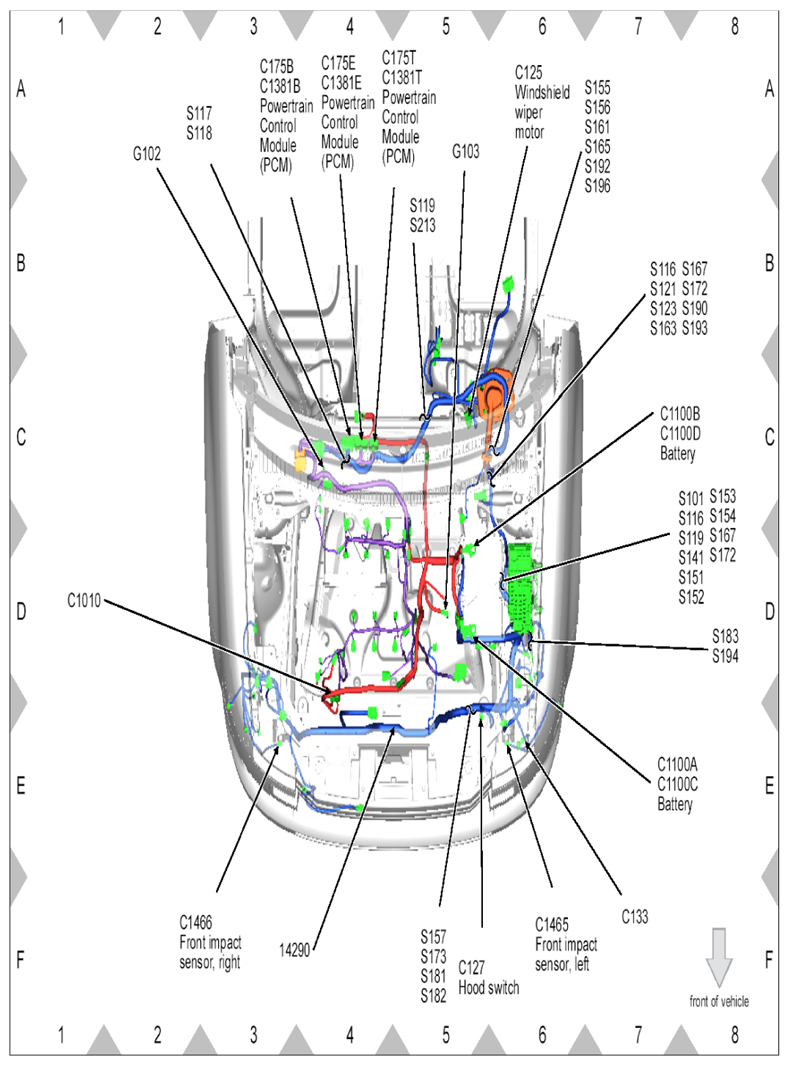

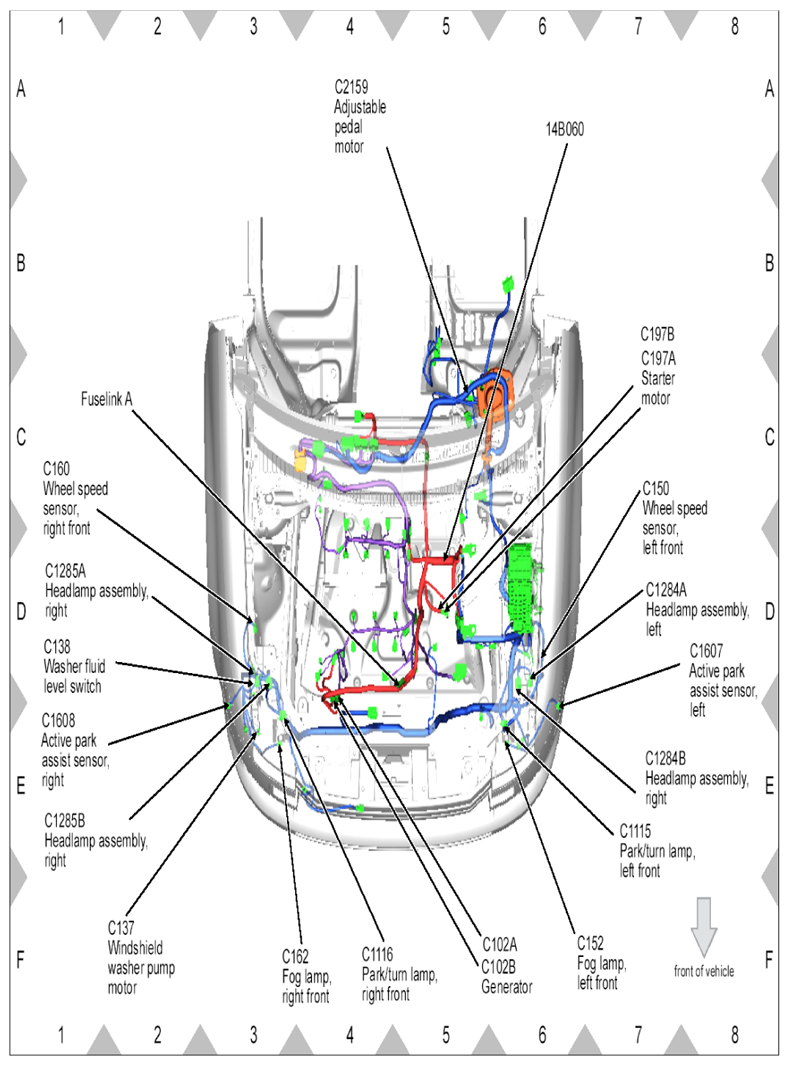

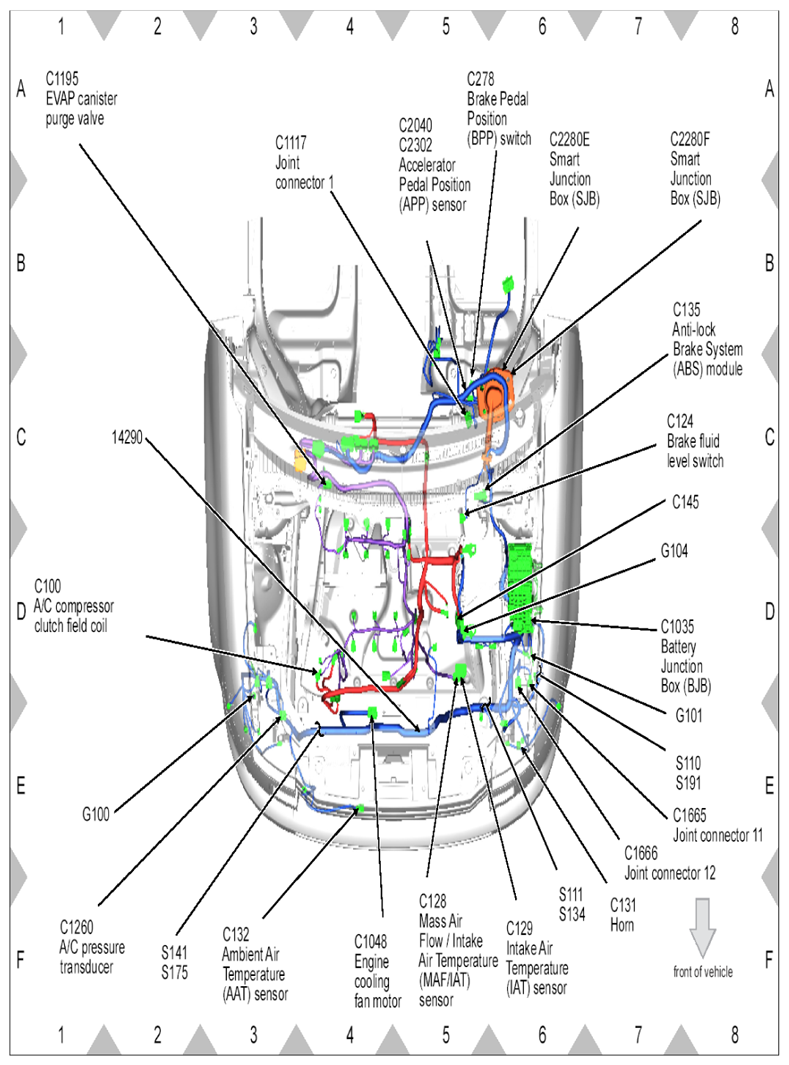

Fig 1: Engine Compartment Connectors Locations (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 2: Engine Compartment Connectors Locations (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Connectors Locations (3 Of 3)
Courtesy of FORD MOTOR CO.

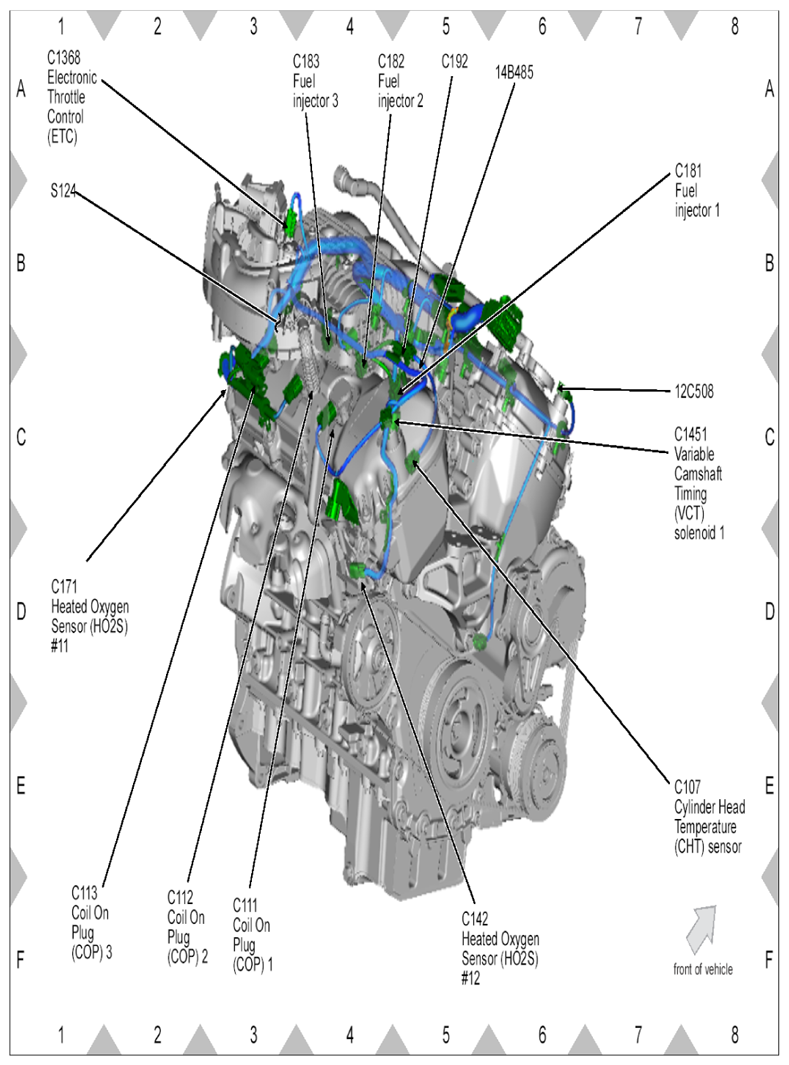

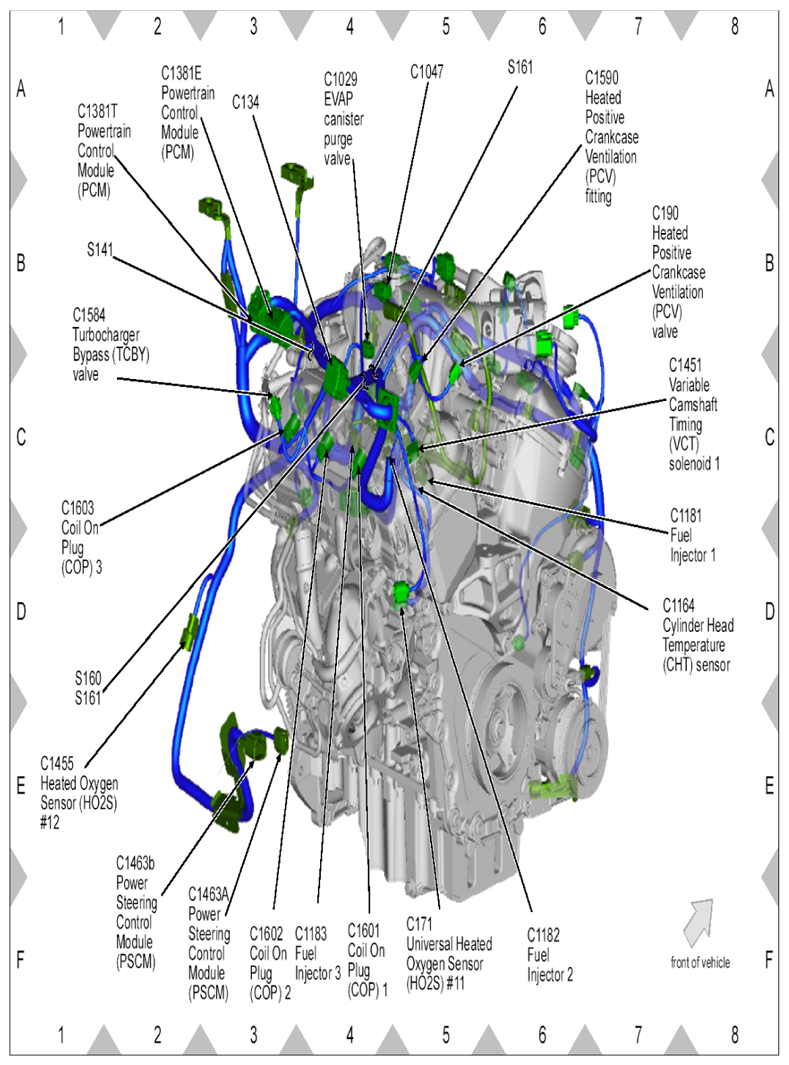

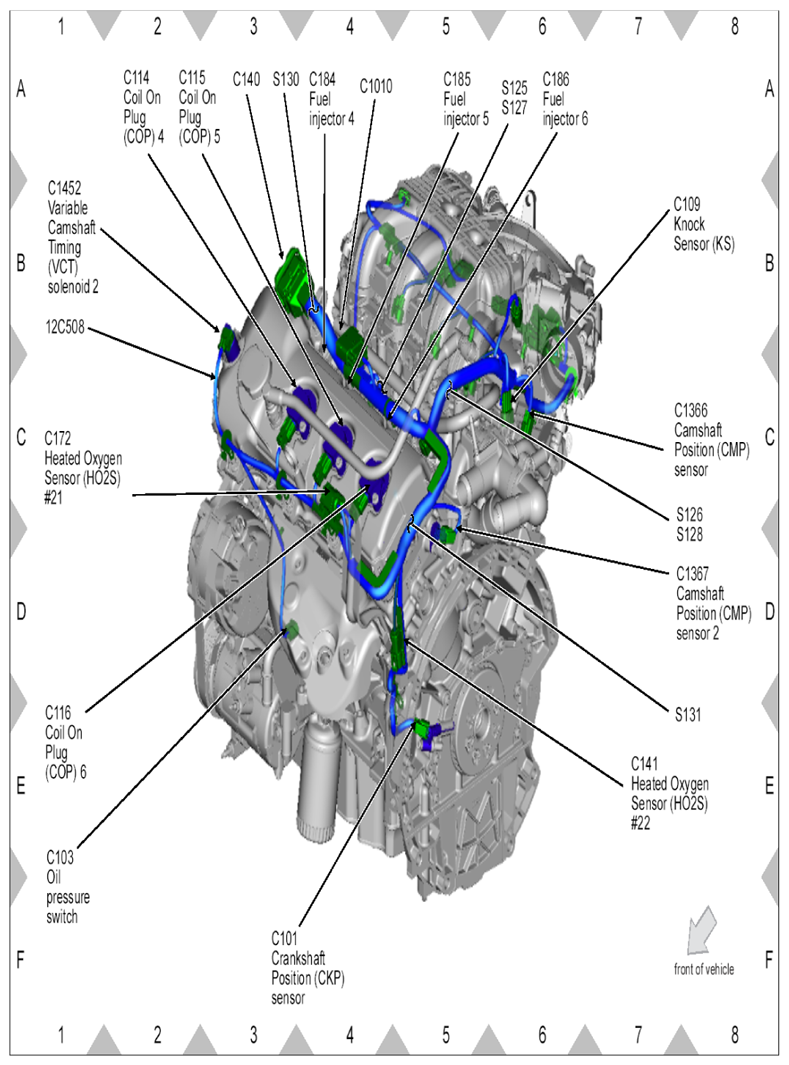

Fig 4: Engine Connectors Locations (1 Of 4)
Courtesy of FORD MOTOR CO.

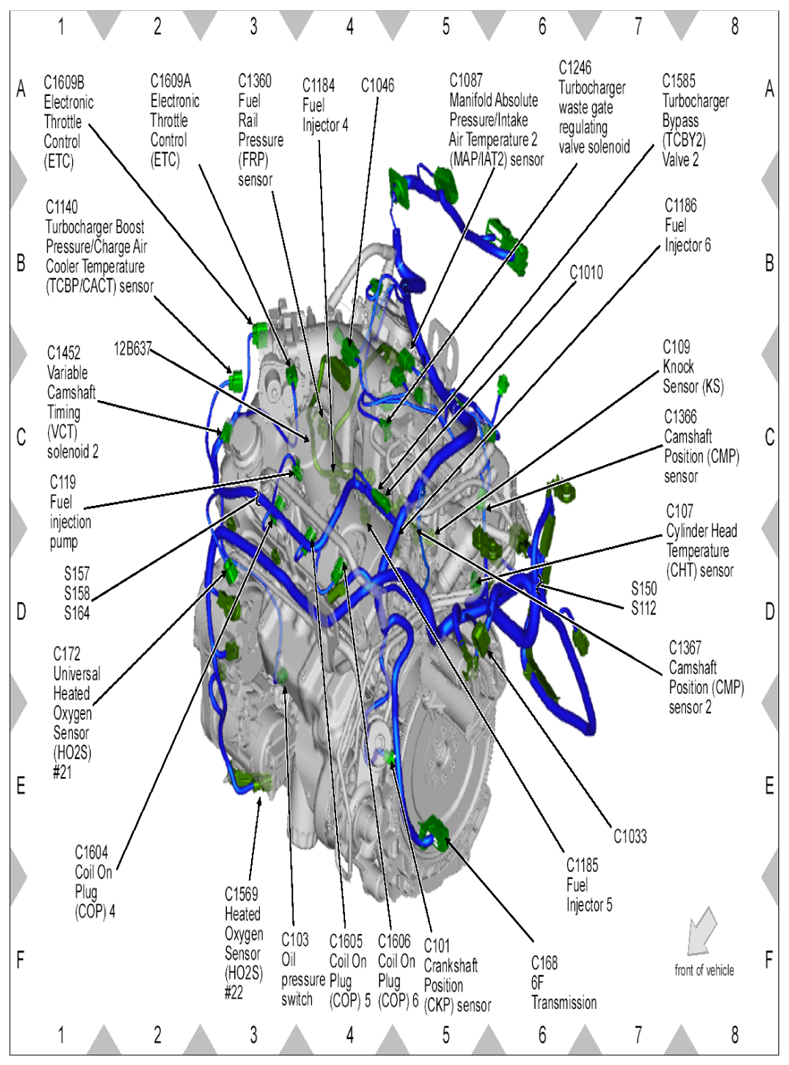

Fig 5: Engine Connectors Locations (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Connectors Locations (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 7: Engine Connectors Locations (4 Of 4)
Courtesy of FORD MOTOR CO.

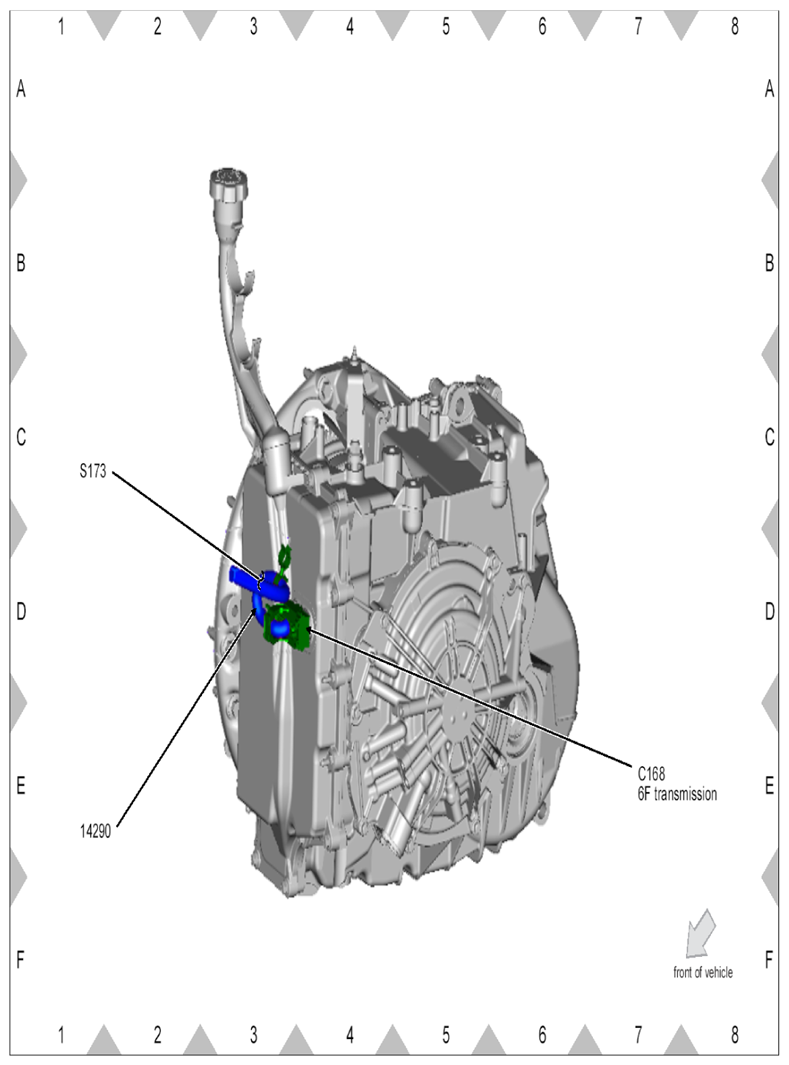

Fig 8: Transmission Connectors Locations
Courtesy of FORD MOTOR CO.

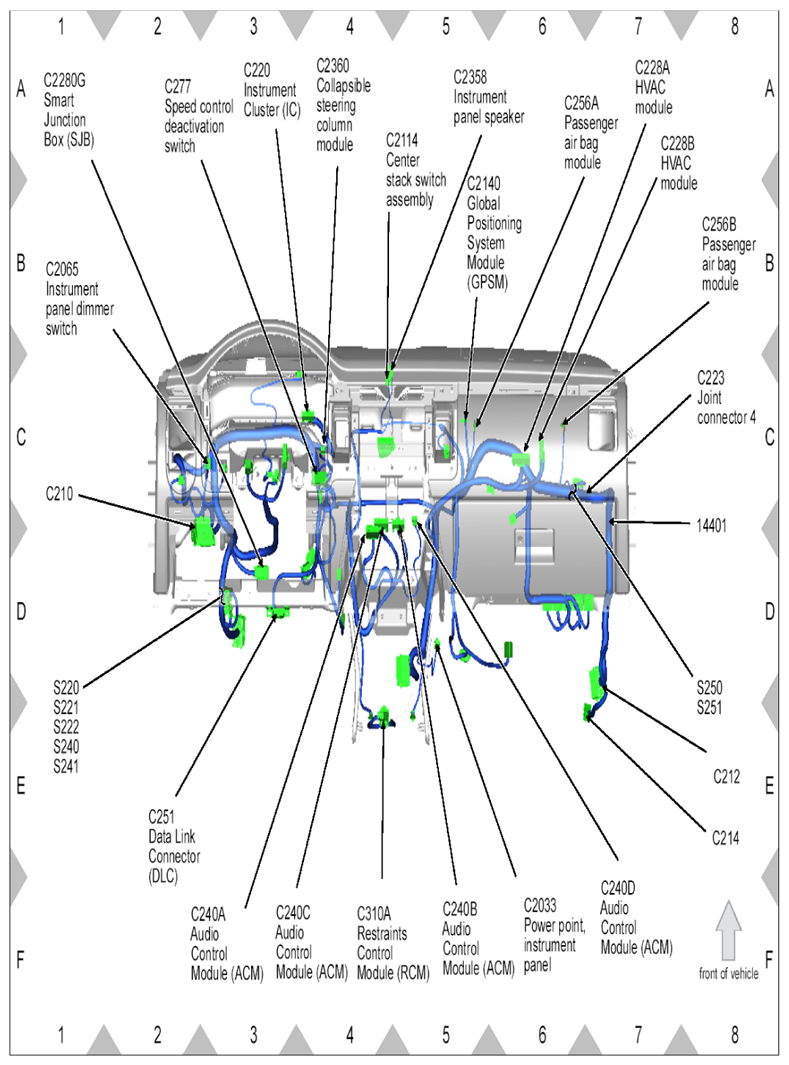

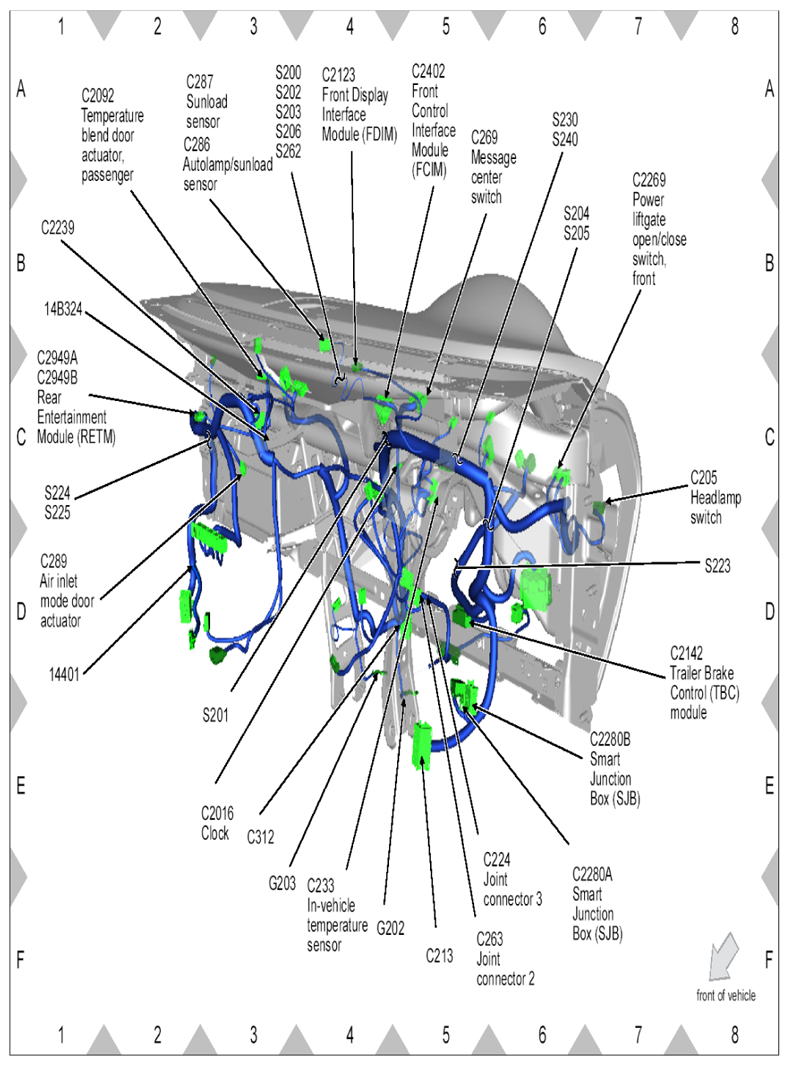

Fig 9: Dashboard Connectors Locations (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 10: Dashboard Connectors Locations (2 Of 2)
Courtesy of FORD MOTOR CO.

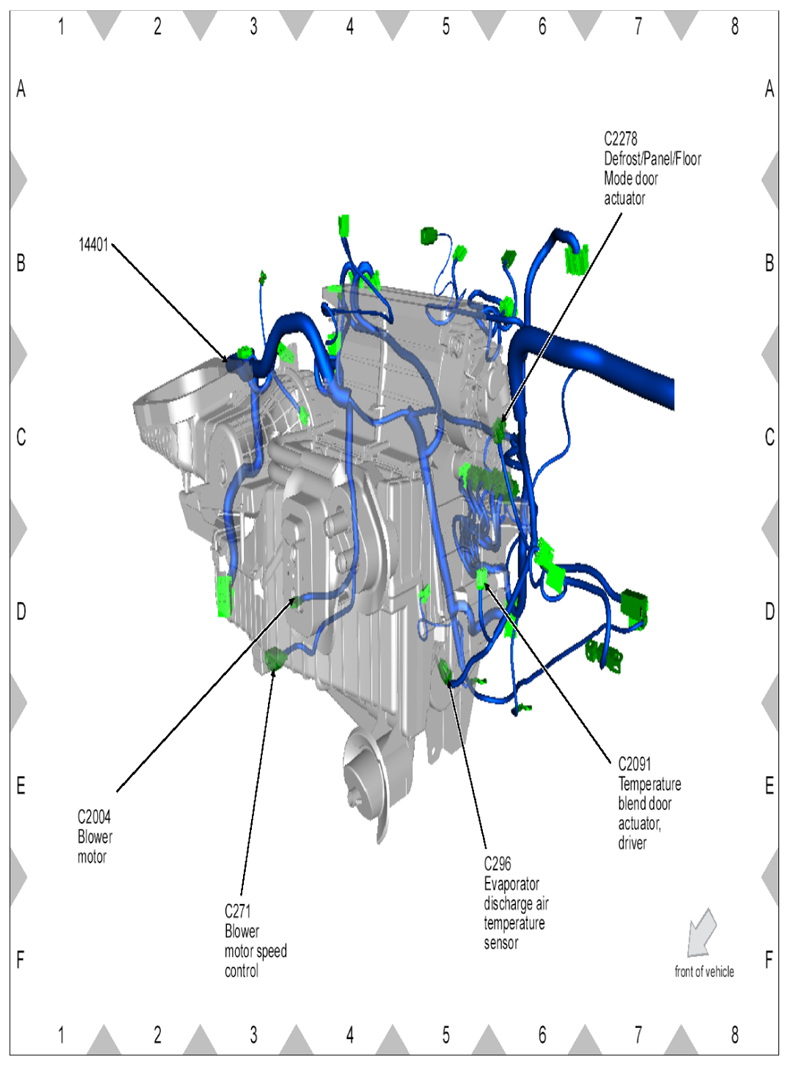

Fig 11: Blower Motor Assembly Connectors Locations
Courtesy of FORD MOTOR CO.

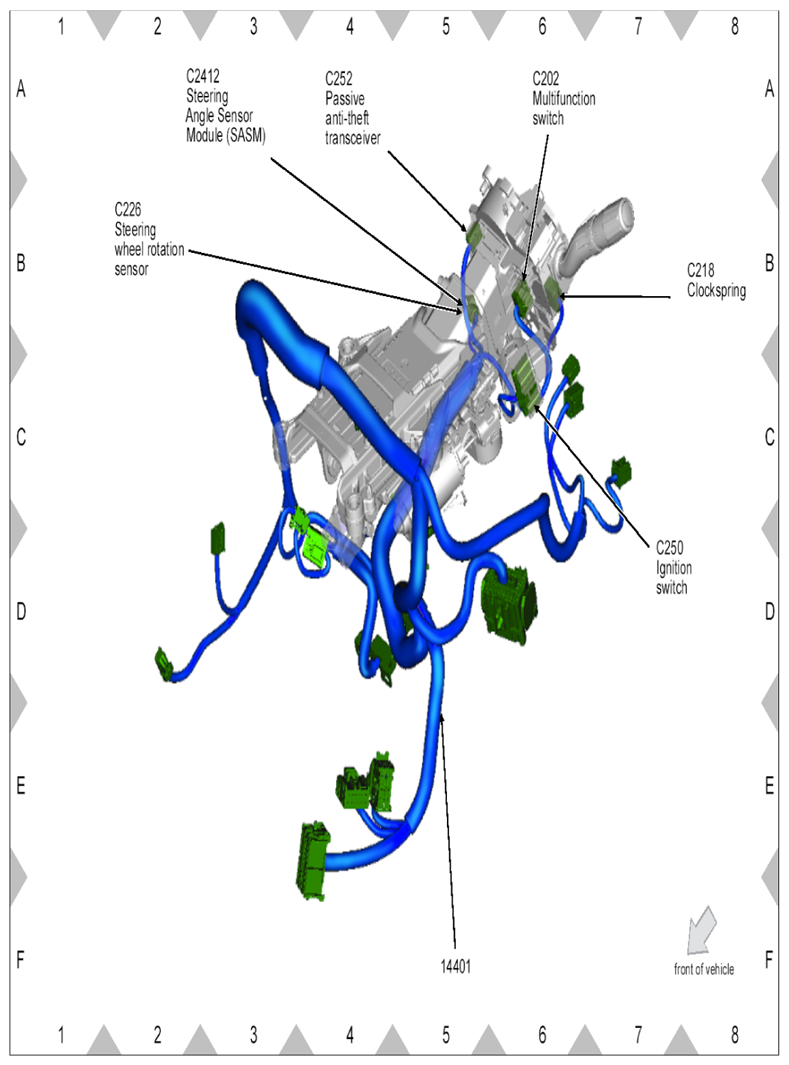

Fig 12: Steering System Connectors Locations
Courtesy of FORD MOTOR CO.

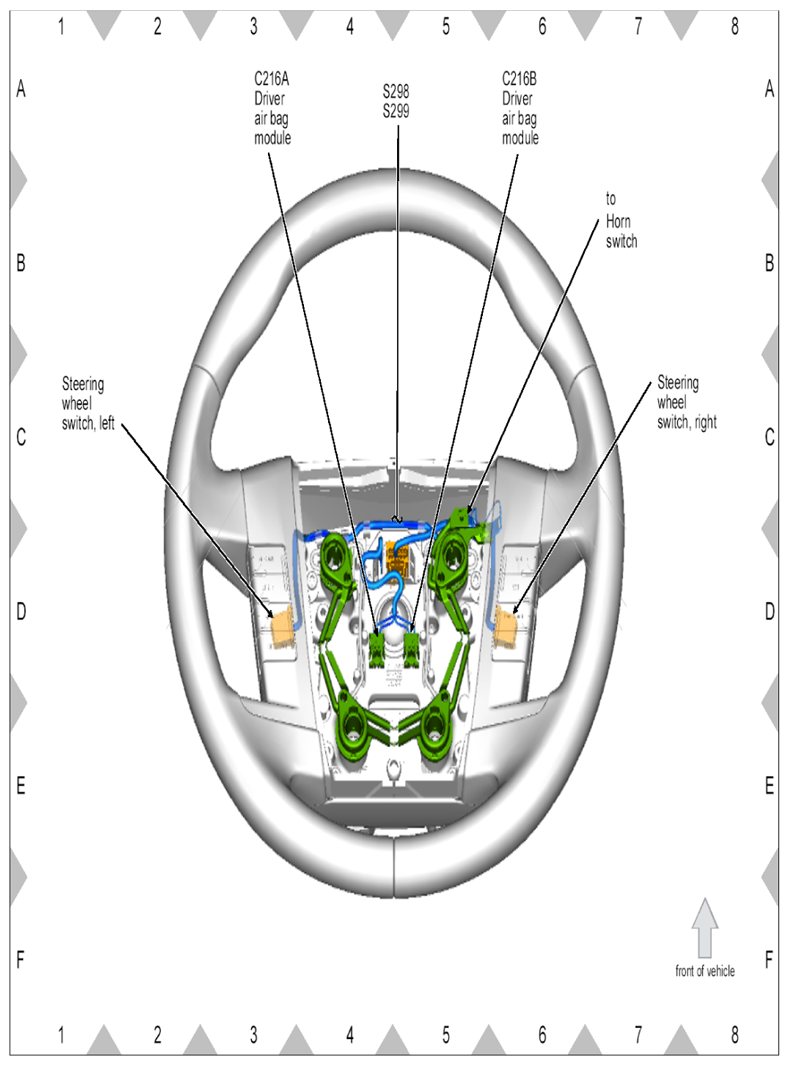

Fig 13: Steering Wheel Connectors Locations
Courtesy of FORD MOTOR CO.

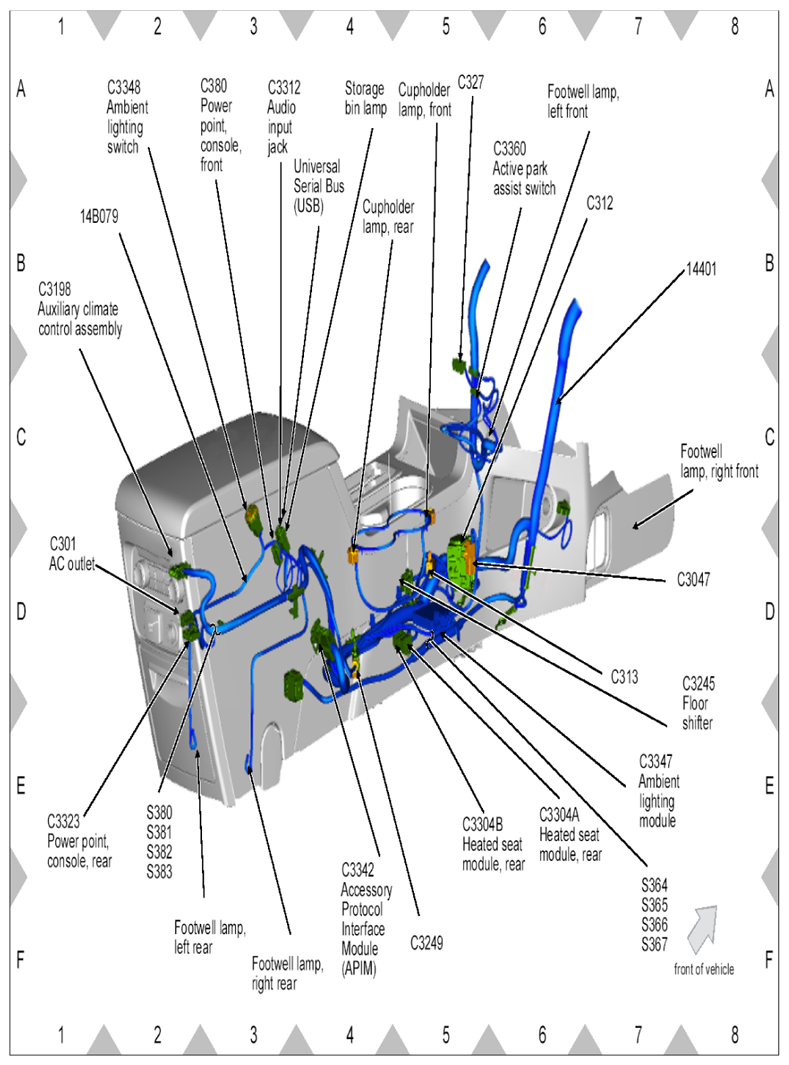

Fig 14: Central Console Rear Connectors Locations
Courtesy of FORD MOTOR CO.

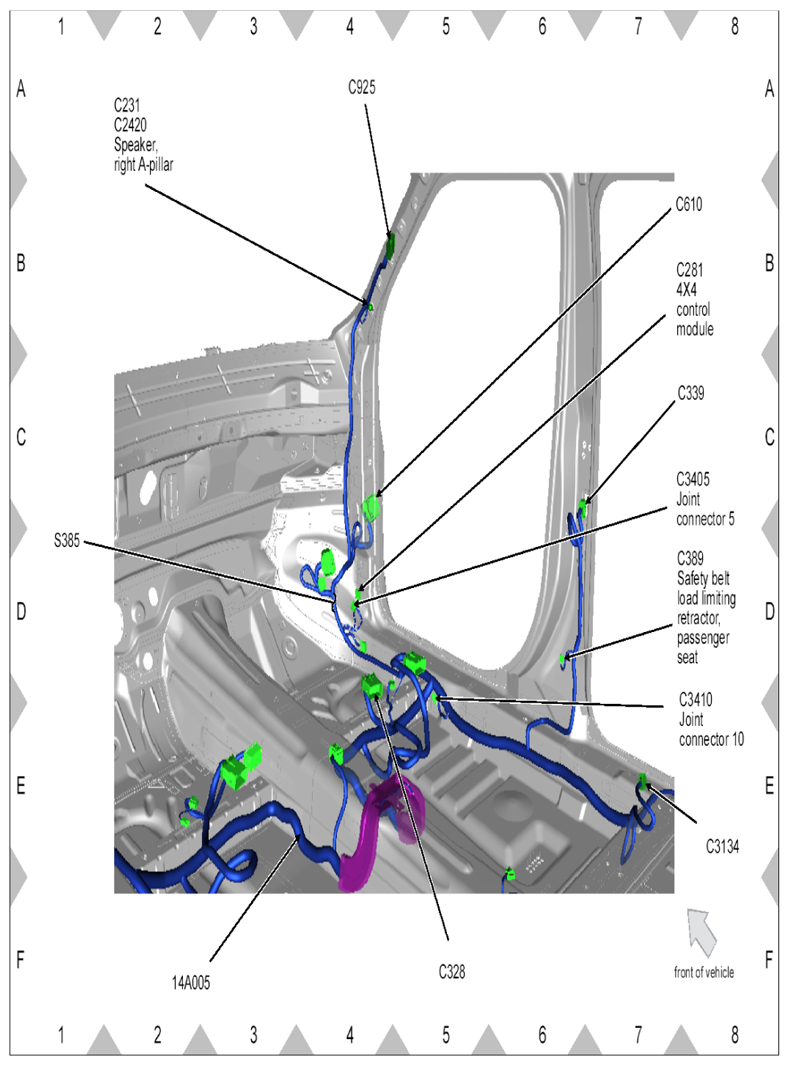

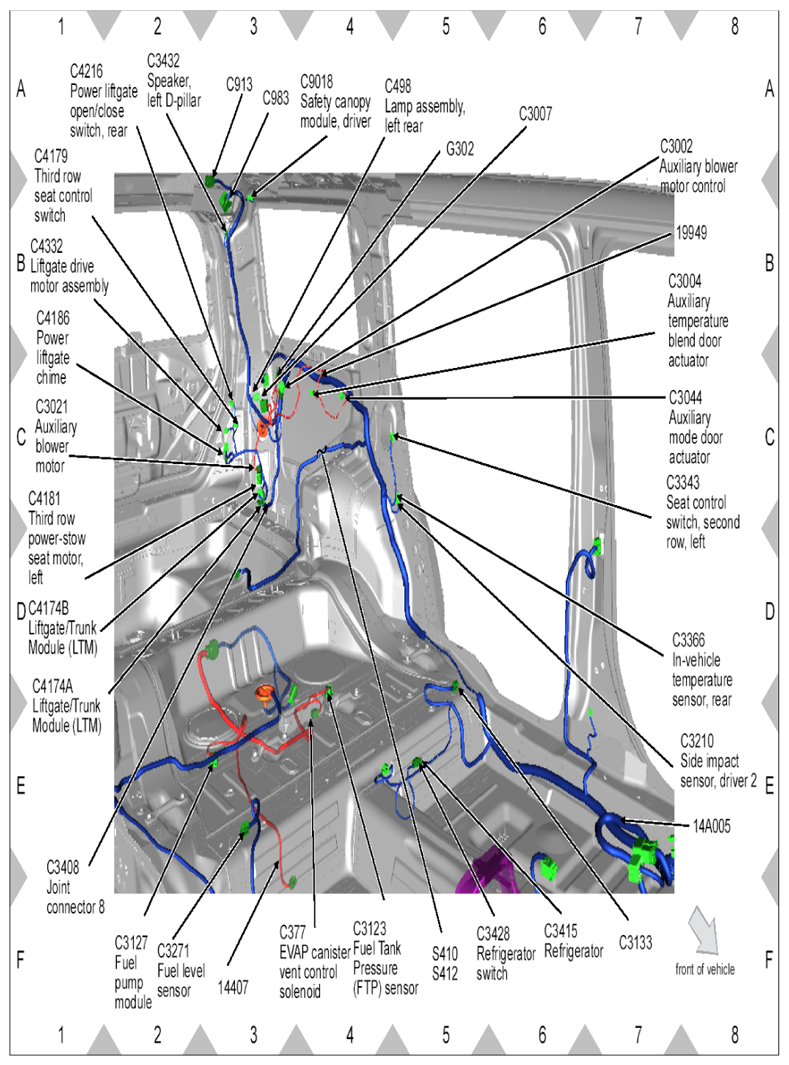

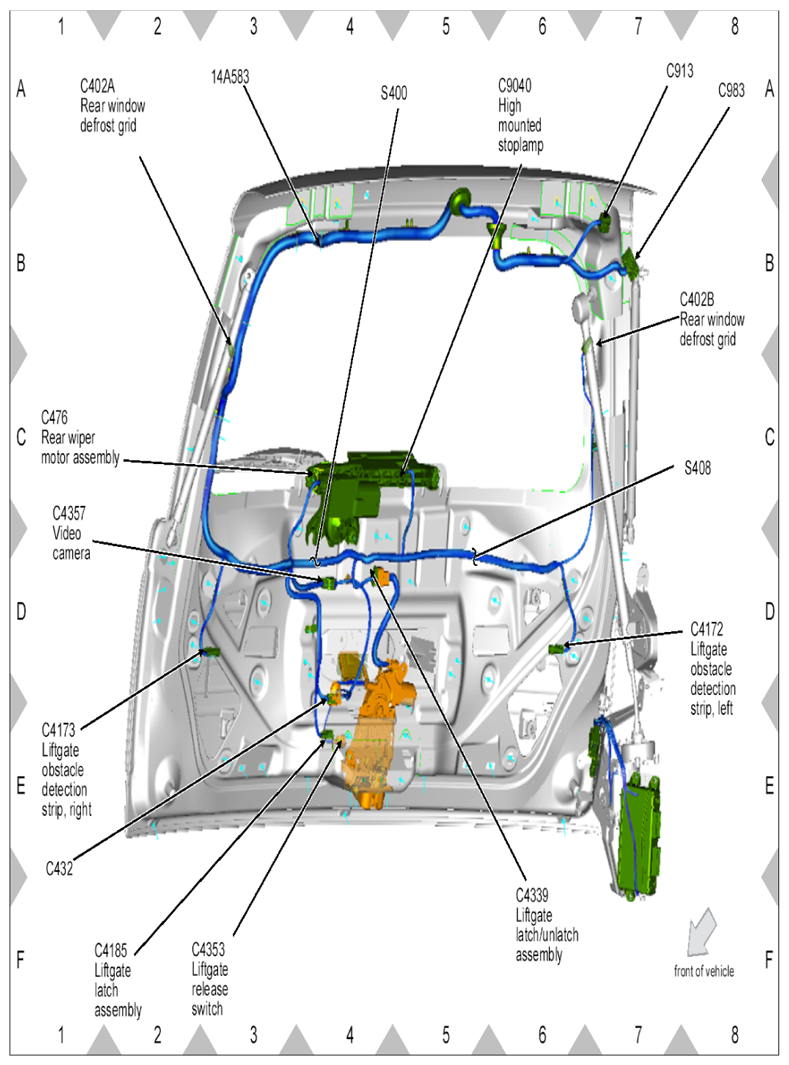

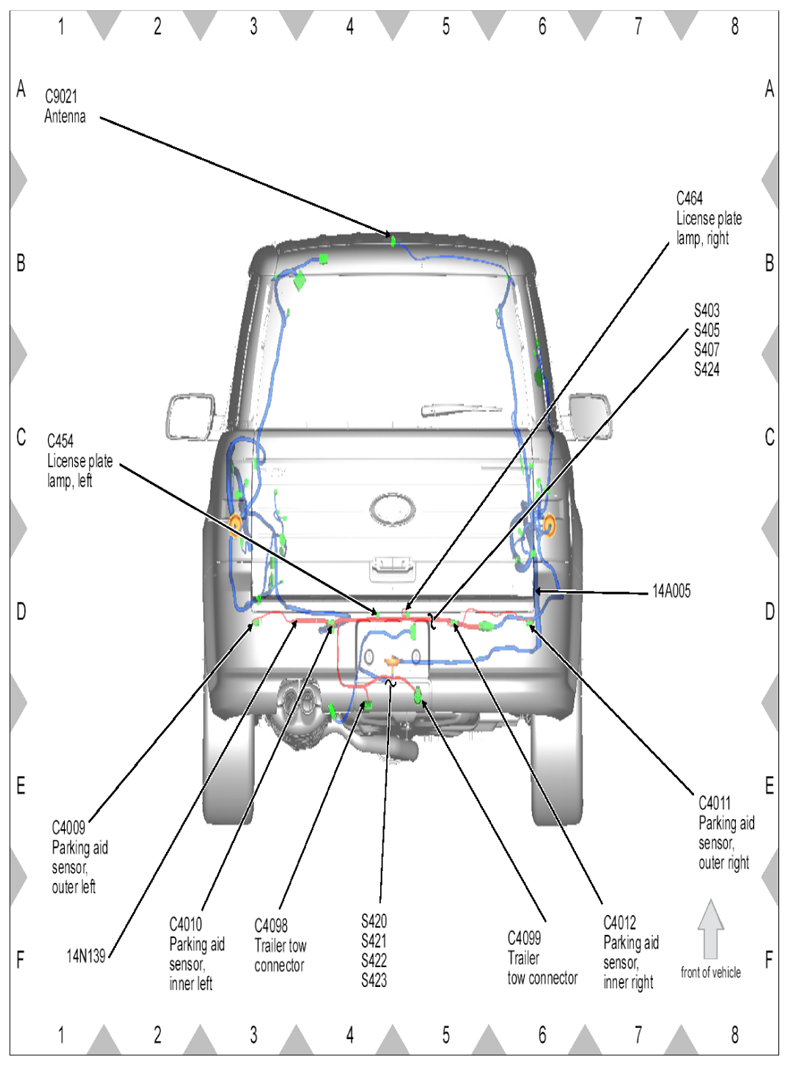

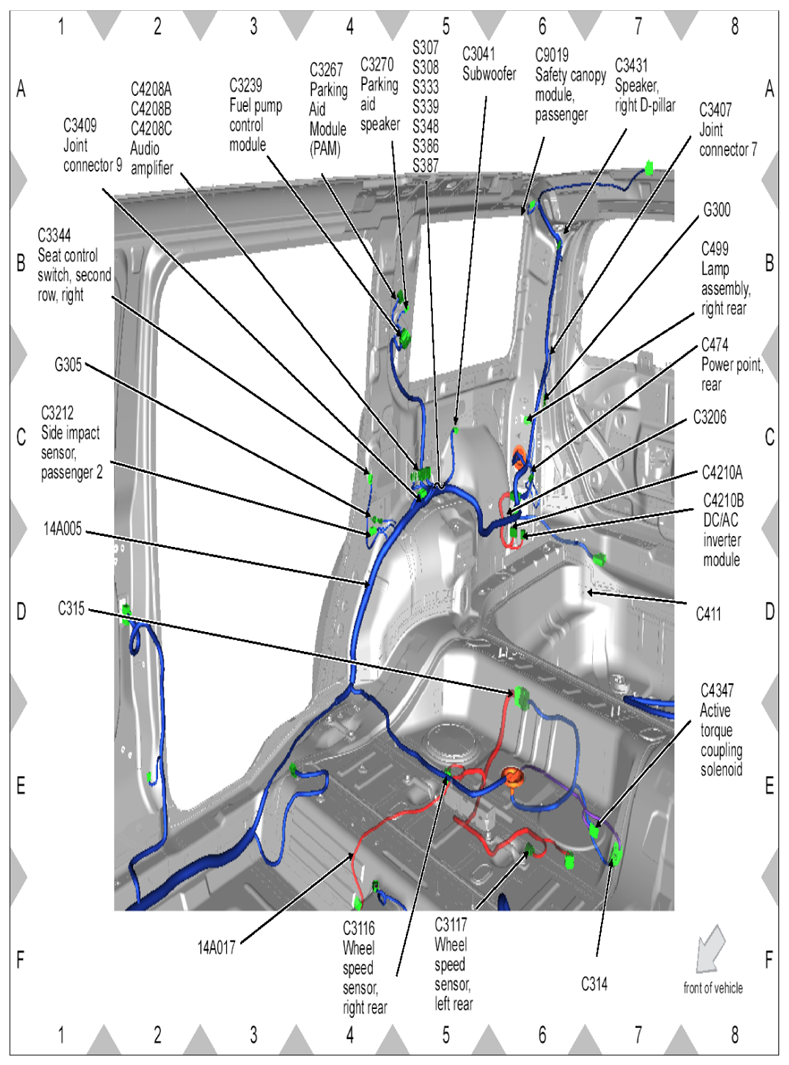

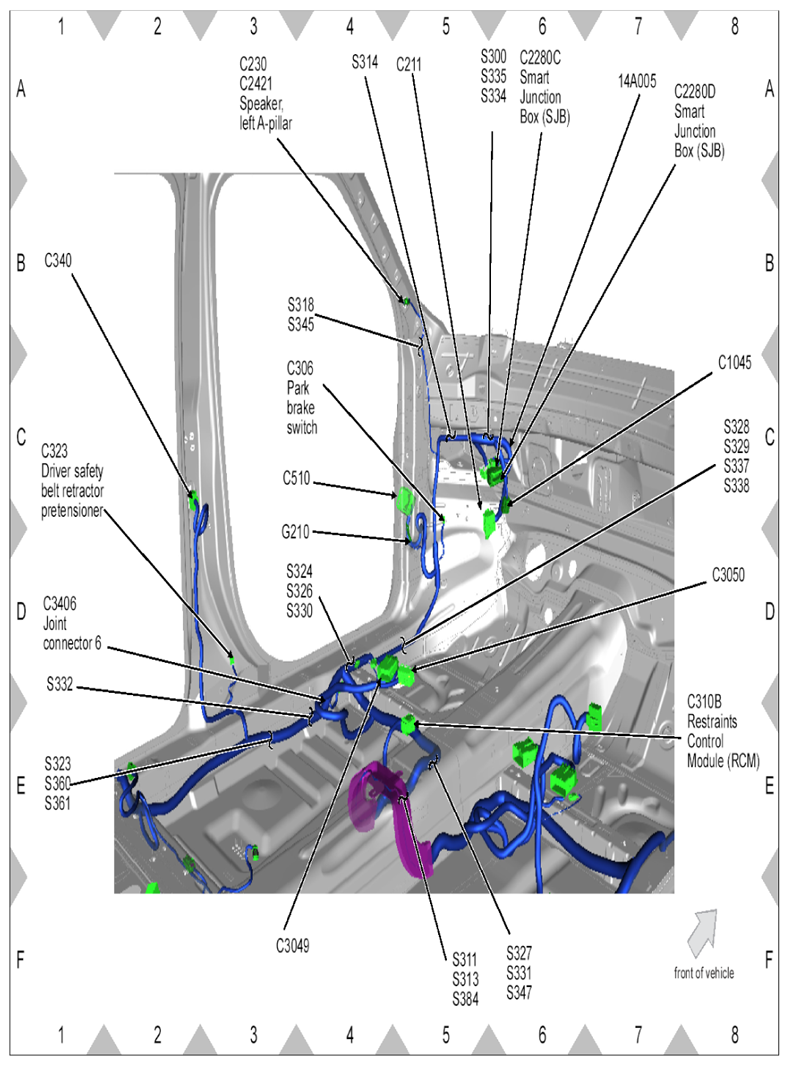

Fig 15: Body Panel Connectors Locations (1 Of 5)
Courtesy of FORD MOTOR CO.
Fig 16: Body Panel Connectors Locations (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 17: Body Panel Connectors Locations (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 18: Body Panel Connectors Locations (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 19: Body Panel Connectors Locations (5 Of 5)
Courtesy of FORD MOTOR CO.

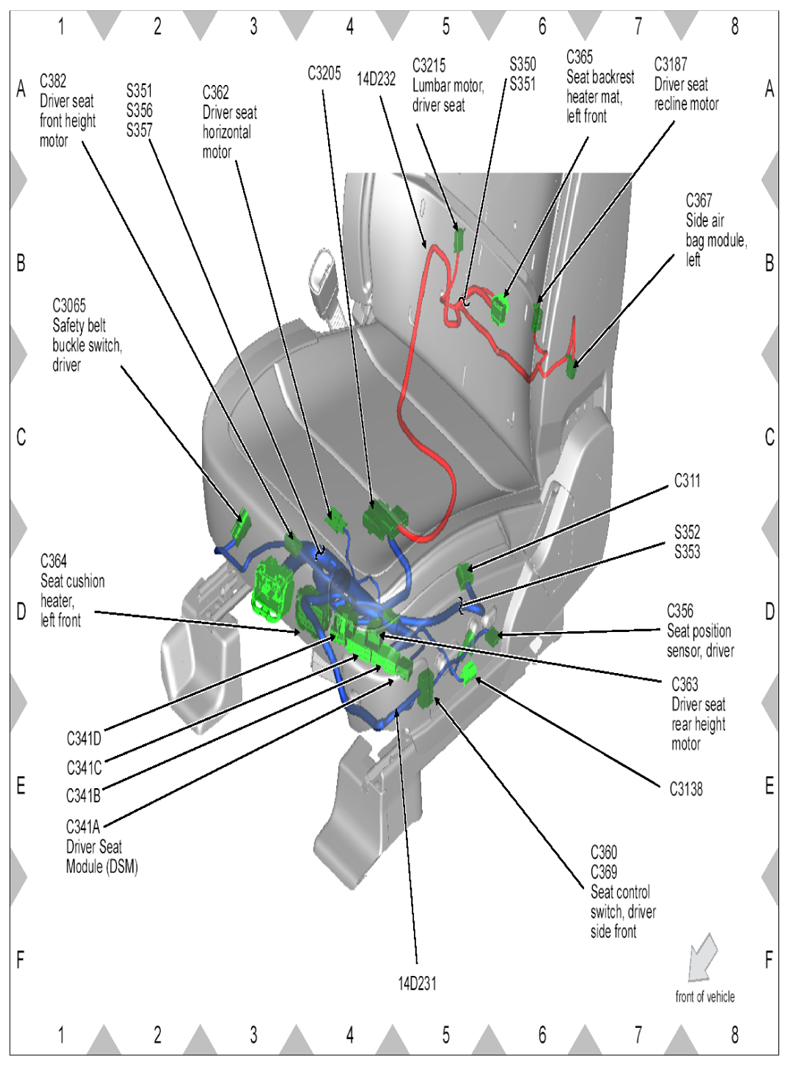

Fig 20: Driver Seat Connectors Locations
Courtesy of FORD MOTOR CO.

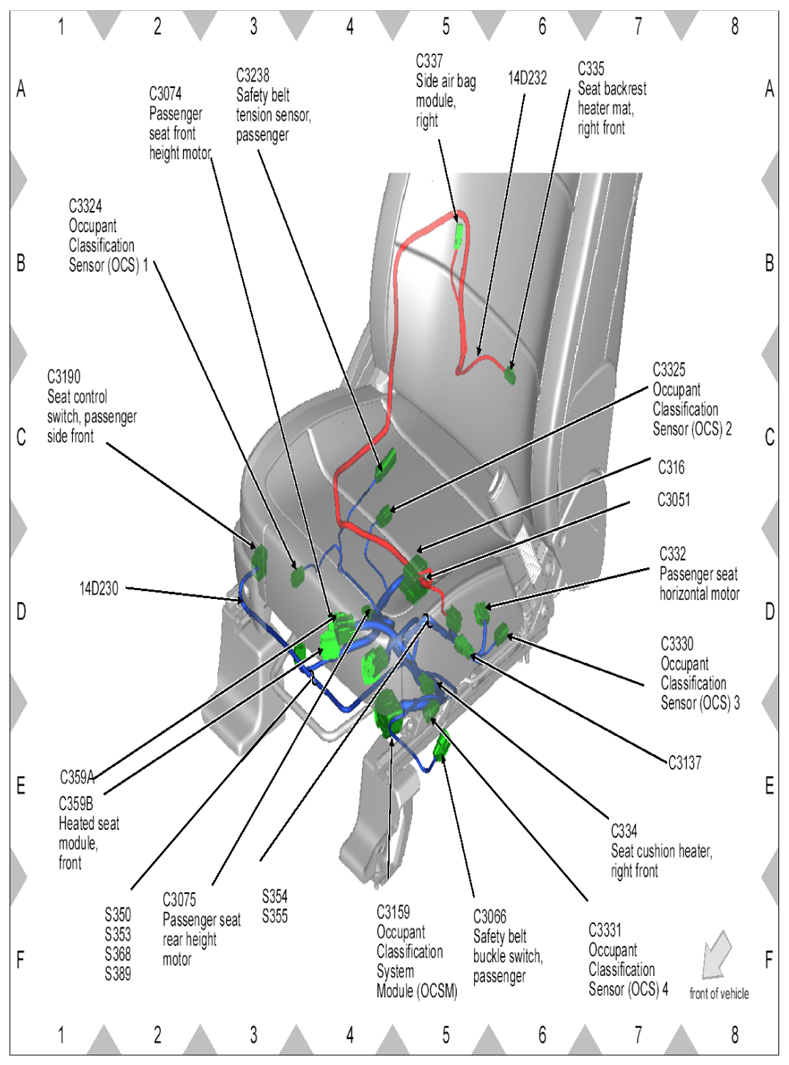

Fig 21: Passenger Seat Front Connectors Locations
Courtesy of FORD MOTOR CO.

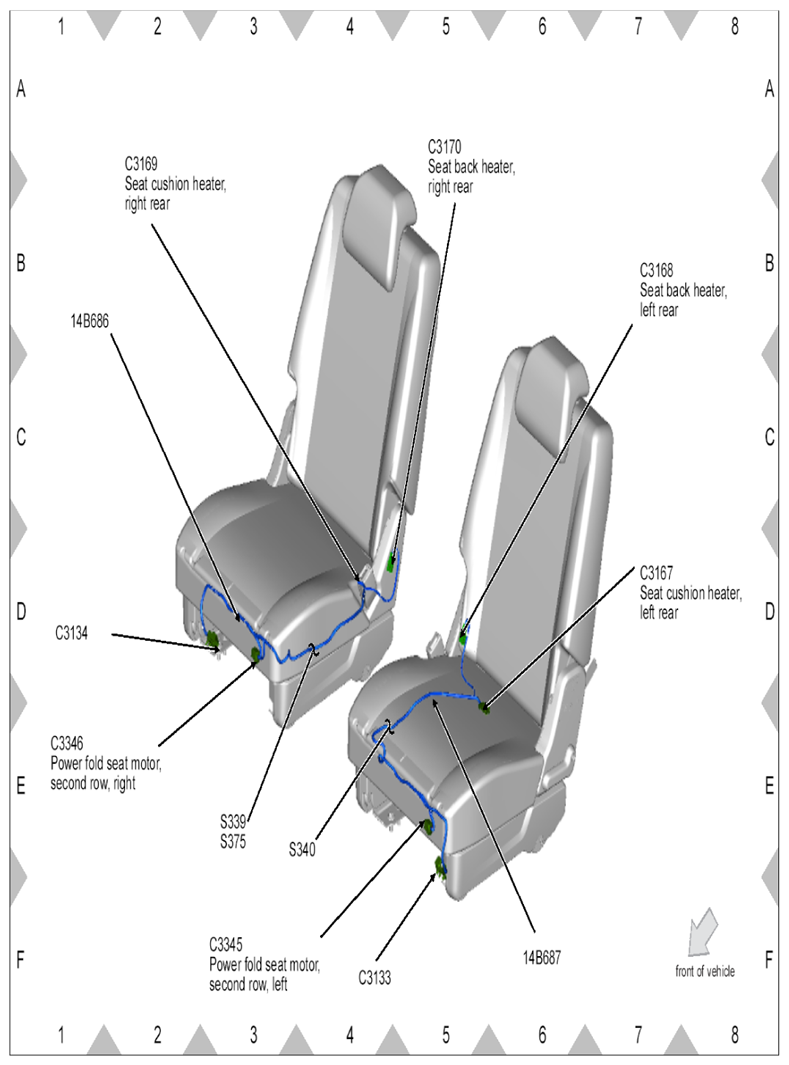

Fig 22: Rear Seats Connectors Locations
Courtesy of FORD MOTOR CO.

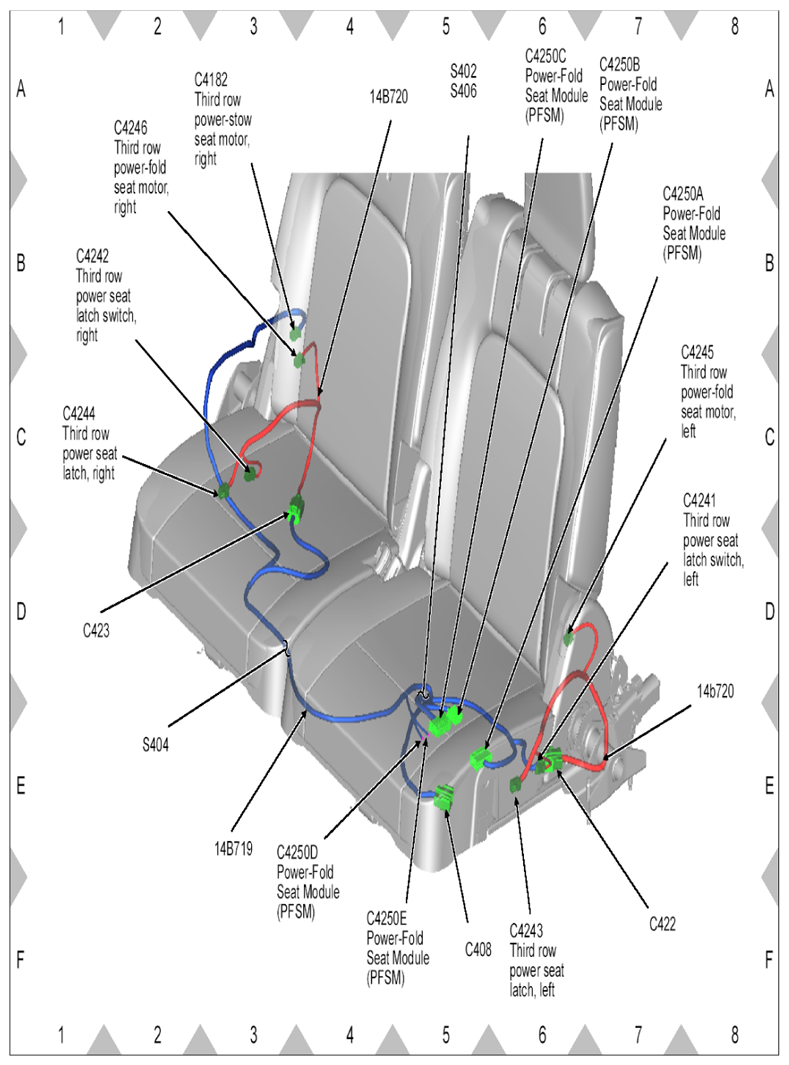

Fig 23: Third Row Seats Connectors Locations
Courtesy of FORD MOTOR CO.

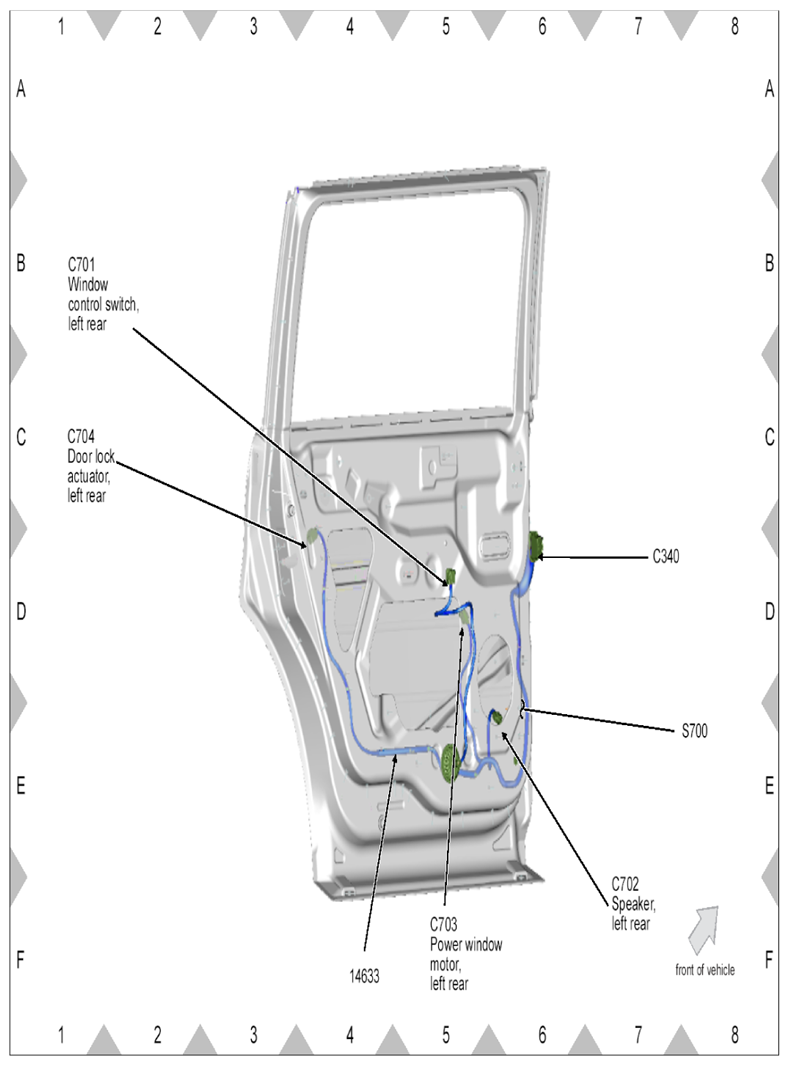

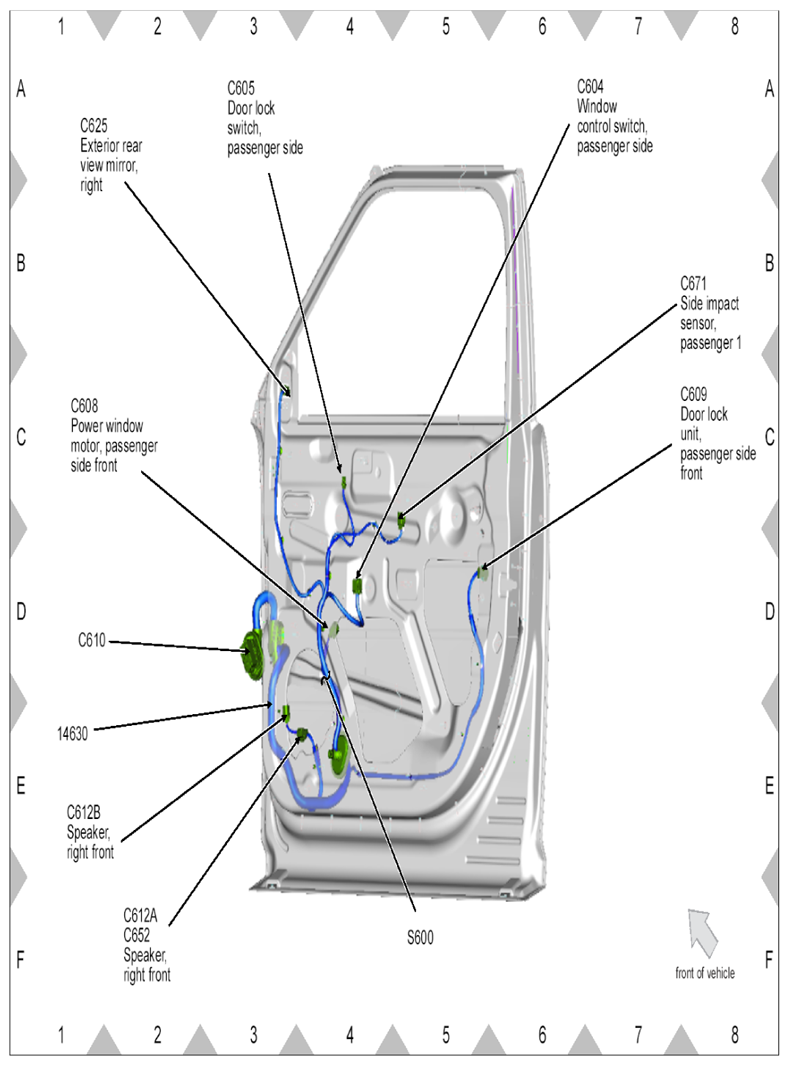

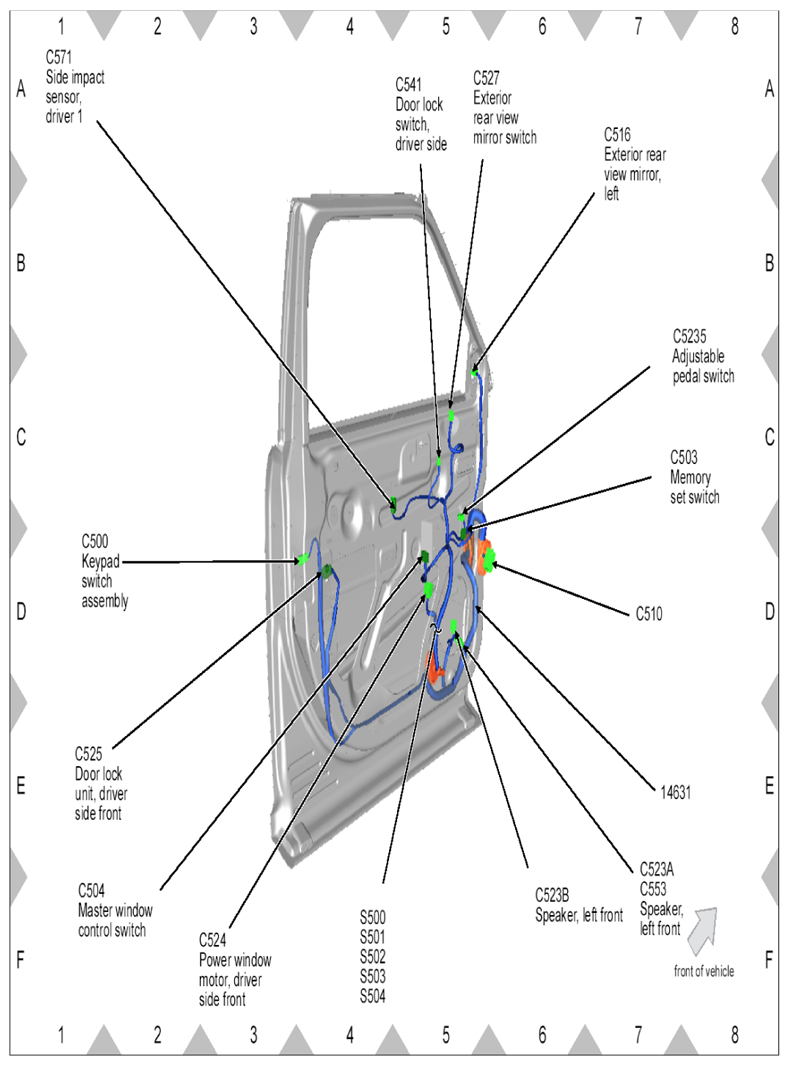

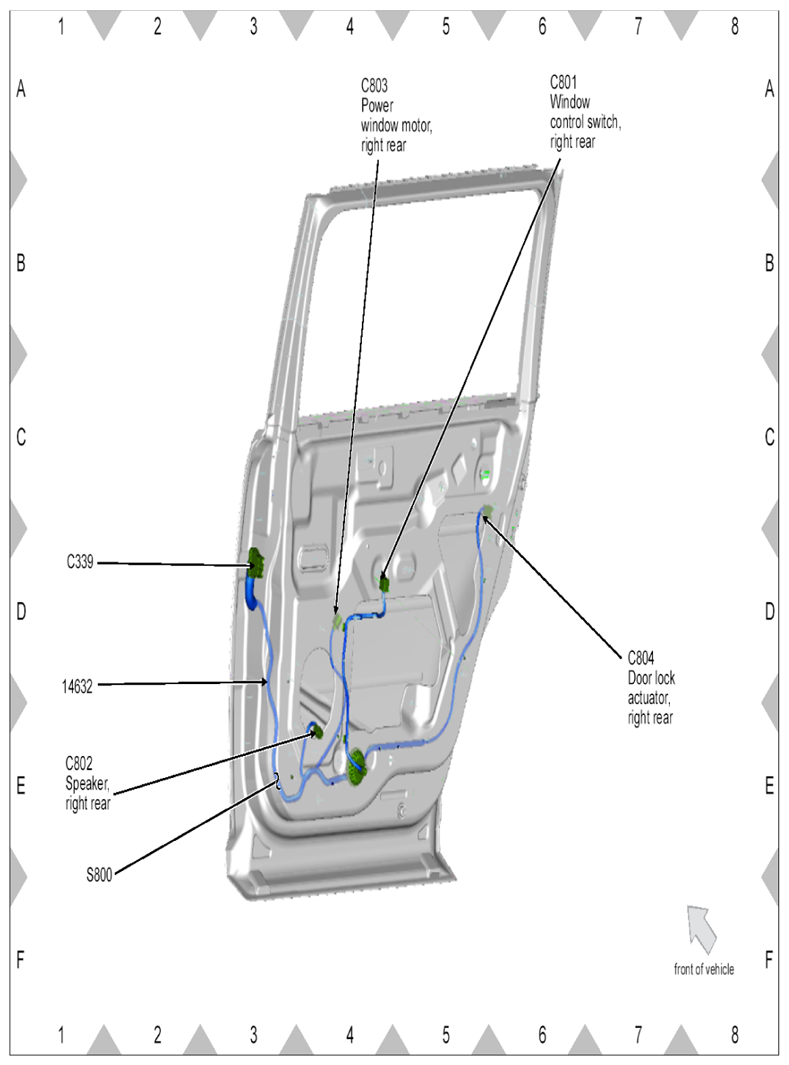

Fig 24: Door Panel Connectors Locations (1 Of 5)
Courtesy of FORD MOTOR CO.
Fig 25: Door Panel Connectors Locations (2 Of 5)
Courtesy of FORD MOTOR CO.
Fig 26: Door Panel Connectors Locations (3 Of 5)
Courtesy of FORD MOTOR CO.
Fig 27: Door Panel Connectors Locations (4 Of 5)
Courtesy of FORD MOTOR CO.
Fig 28: Door Panel Connectors Locations (5 Of 5)
Courtesy of FORD MOTOR CO.

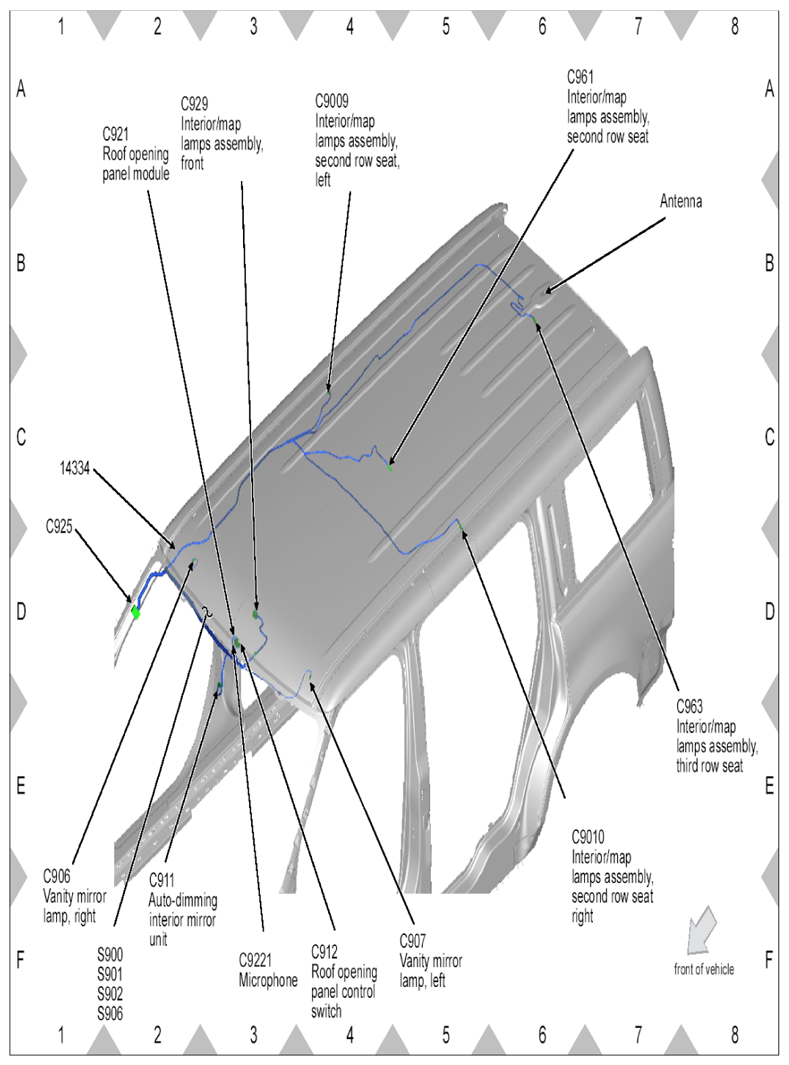

Fig 29: Roof Panel Connectors Locations
Courtesy of FORD MOTOR CO.

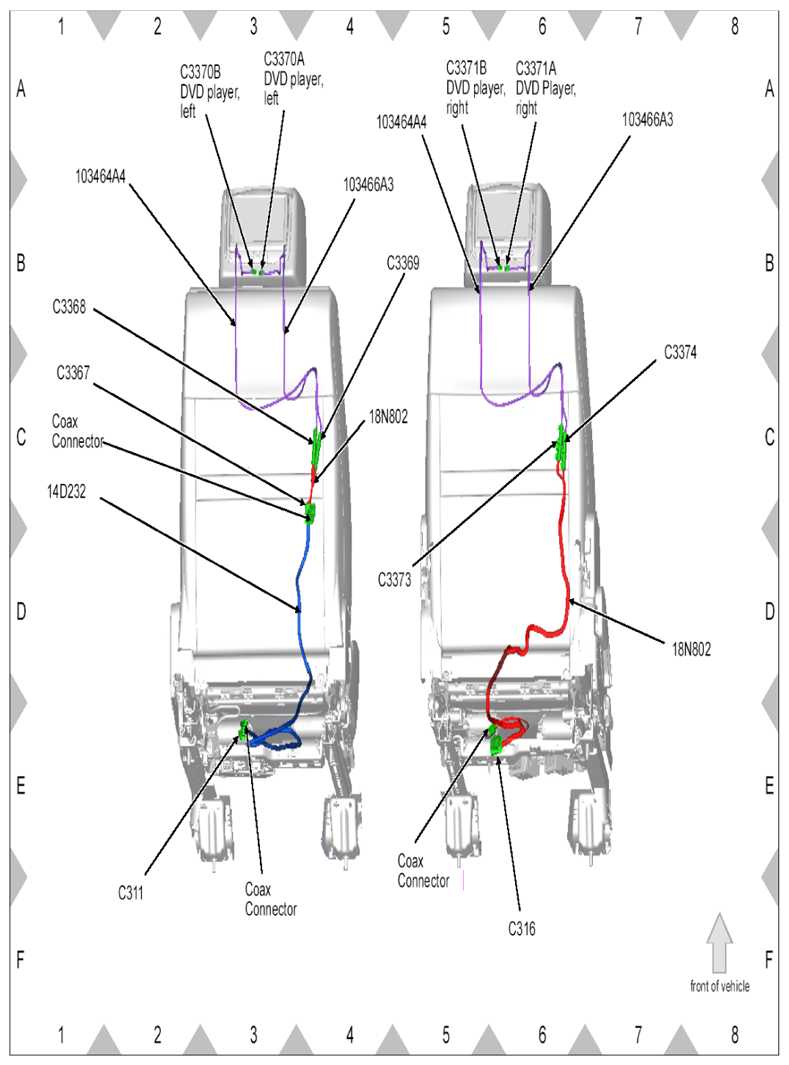

Fig 30: Seat Back Side Connectors Locations
Courtesy of FORD MOTOR CO.
