Powertrain Control Module (PCM): Notes

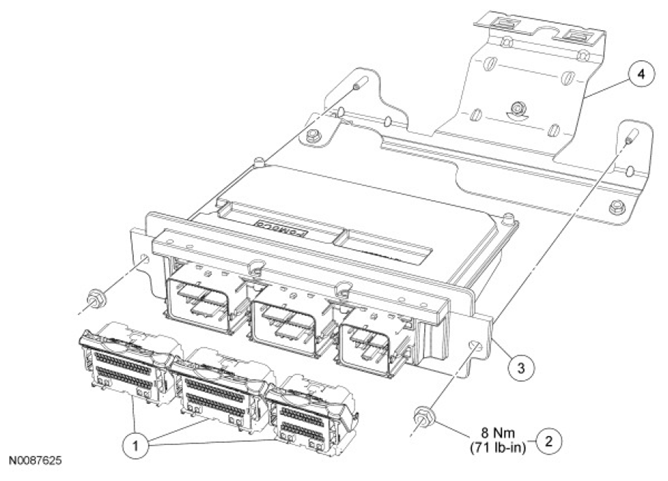

Fig 1: Exploded View Of Powertrain Control Module With Torque Specifications
G07464941Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 14A464 PCM electrical connectors (part of 12B637) (3 required)
2 W707137 PCM nut (2 required)
3 12A650 PCM
4 12A659 PCM bracket
