Home >> Ford >> 2011 >> Focus SES, Automatic >> Repair and Diagnosis >> Engine Performance >> Remove, Overhaul & Install >> Electronic Engine Controls >> Removal And Installation >> Powertrain Control Module (PCM) >> Notes

Powertrain Control Module (PCM): Notes

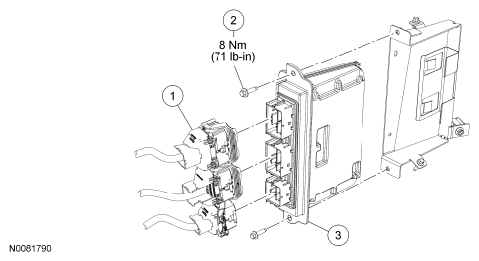

Fig 1: Exploded View Of Powertrain Control Module (PCM With Torque Specifications)
G06292674Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 PCM electrical connector (3 required)
2 W505423 PCM bolt (2 required)
3 12A650 PCM
