Multifunction switch, Lamp portion: Schematic

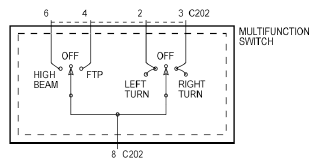

Fig 1: Multifunction Switch, Lamp Portion - Schematic

G07337042

Courtesy of FORD MOTOR CO.
