Fuel Pump Control Module Connector - C3239

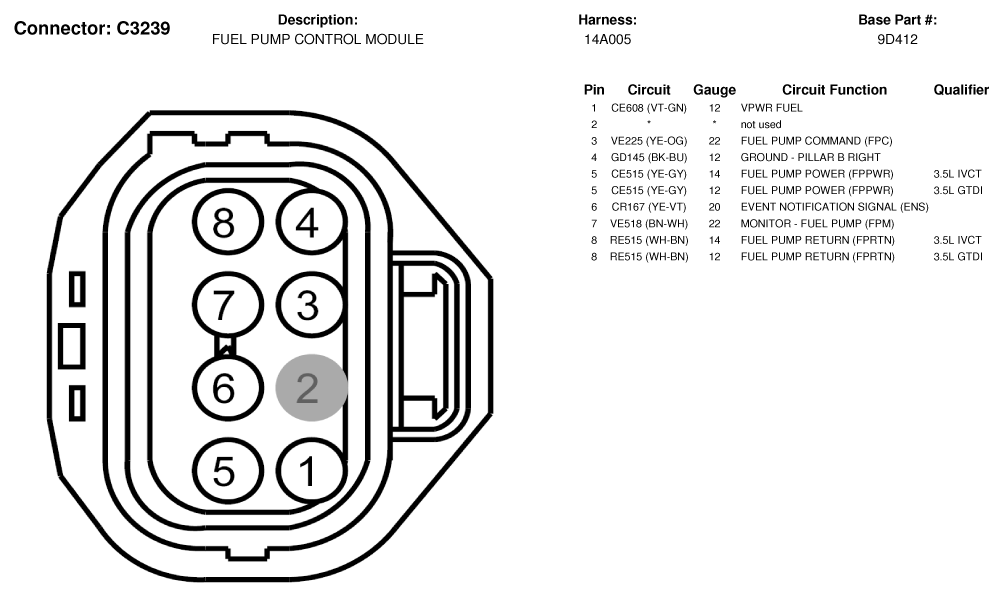

Fig 1: Fuel Pump Control Module Connector End View (C3239)

G07340183

Courtesy of FORD MOTOR CO.
