Home >> Ford >> 2011 >> Taurus SE >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Highbeam Control Module 2 Connector - C9115

Highbeam Control Module 2 Connector - C9115

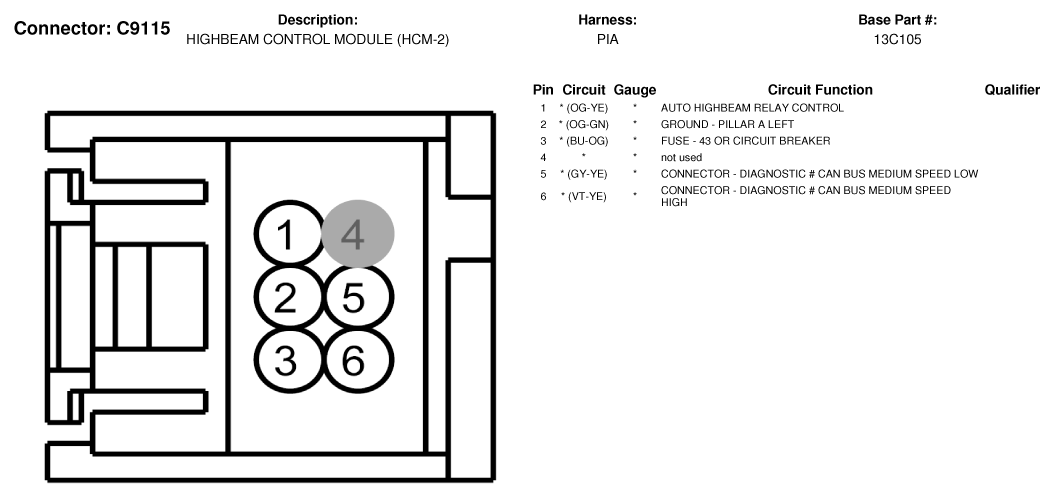

Fig 1: Highbeam Control Module 2 Connector End View (C9115)

G07340254

Courtesy of FORD MOTOR CO.
