Valve Spring Installed Length

NOTE: Refer to the appropriate Engine article for the specification.
  1. Measure the installed length of each valve spring.

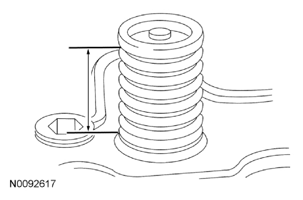

    Fig 1: Identifying Length Of Valve Spring
    G07806428Courtesy of FORD MOTOR CO.
