Selector Lever Bezel: Notes

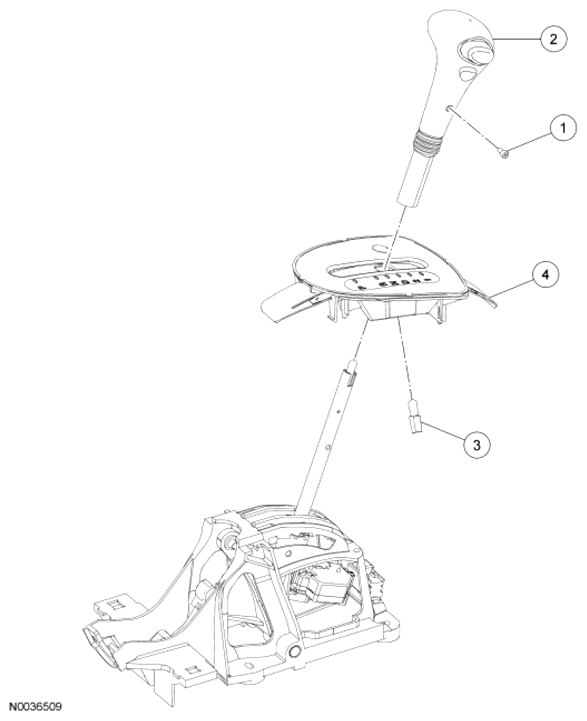

Fig 1: Exploded View Of Selector Lever Bezel Components
G07496715Courtesy of FORD MOTOR CO.
SELECTOR LEVER BEZEL PARTS DESCRIPTION CHART

Item Part Number Description
1 7348 Selector lever knob screw
2 7213 Selector lever knob
3 - Selector lever light
4 7A213 Selector lever bezel
