Steering Wheel Rotation Sensor: Notes

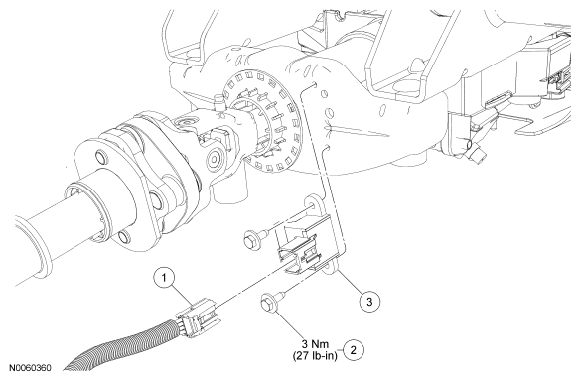

Fig 1: Steering Wheel Rotation Sensor, Bolt And Electrical Connector With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Steering wheel rotation sensor electrical connector (part of 14489)
2	N802141	Steering wheel rotation sensor bolt (2 required)
3	3F818	Steering wheel rotation sensor
