Vehicle Dynamics Module (VDM): Notes

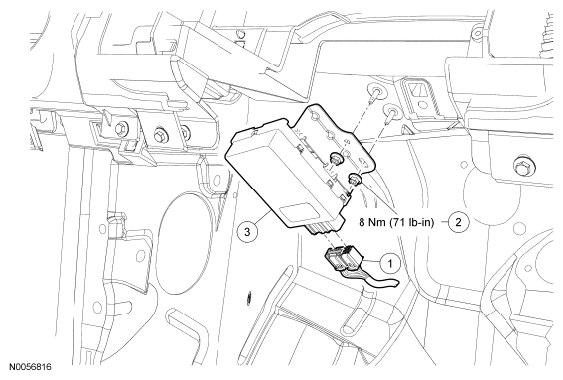

Fig 1: Vehicle Dynamics Module Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Vehicle Dynamics Module (VDM) electrical connector (part of 14489) (2 required)
2	W707142	VDM bracket nut (2 required)
3	3C142	VDM and bracket assembly
