Exploded View

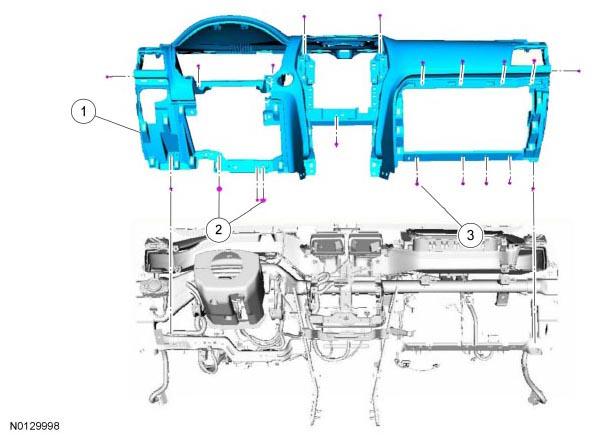

Fig 1: Identifying Instrument Panel Cover And Bolts
G07429296Courtesy of FORD MOTOR CO.
Item Service Part Number Description Torque Material Name Notes
1 7804459 Instrument panel cover - - -
2 N807316 Instrument panel cover bolts 3 Nm (27 lb-in) - -
3 W707628 Instrument panel cover bolts (18 required) 3 Nm (27 lb-in) - -
