Multifunction switch, Lamp portion: Schematic

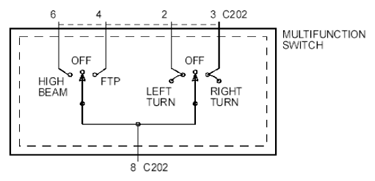

Fig 1: Multifunction Switch, Lamp Portion - Component Testing

G07925506

Courtesy of FORD MOTOR CO.
