Component Locations
>>
OEM Component Harness Location Views
>>
Component Location Views
Component Location Views

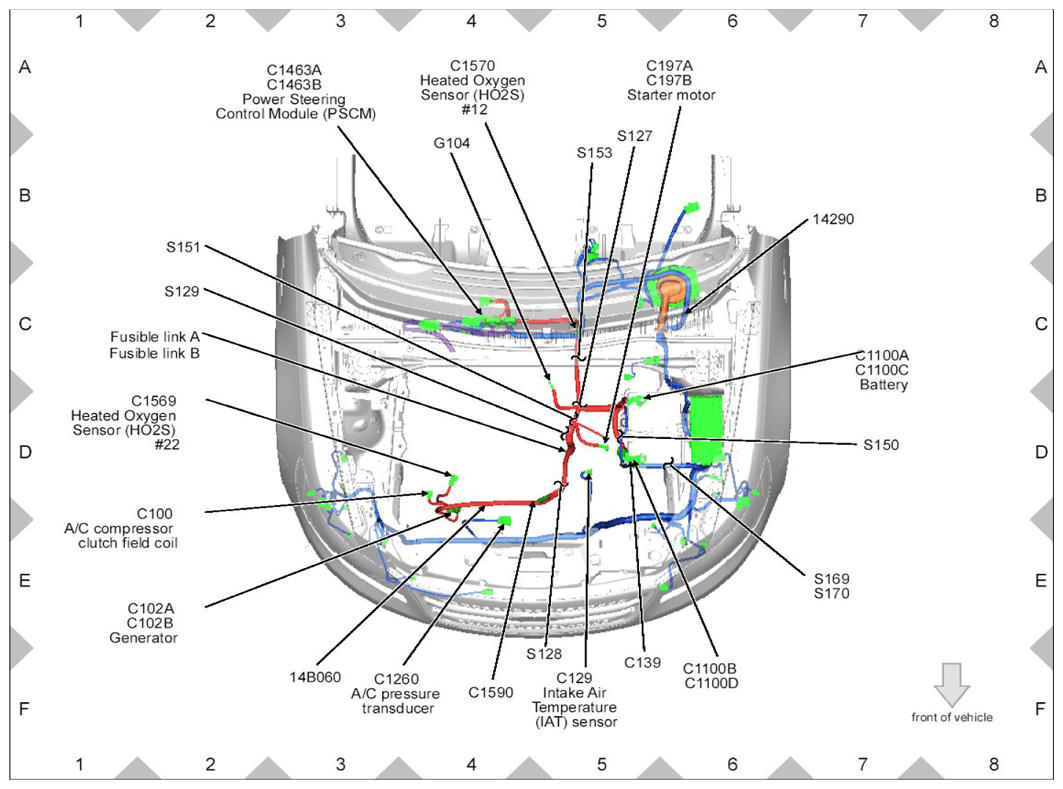

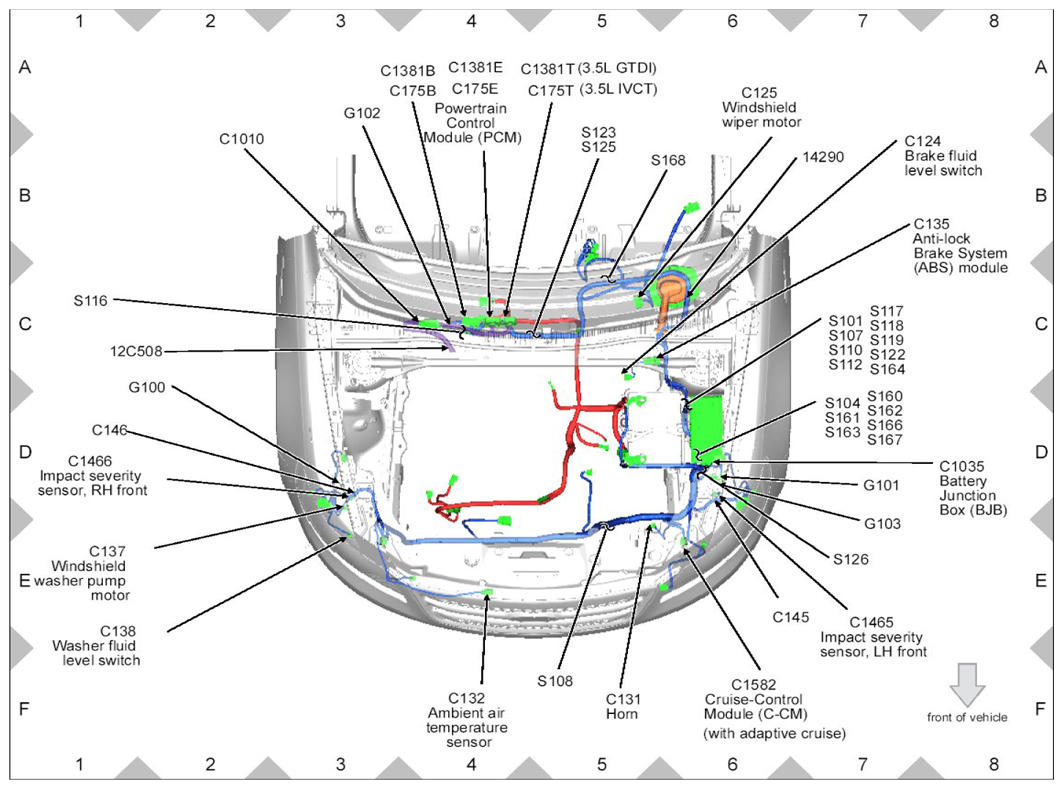

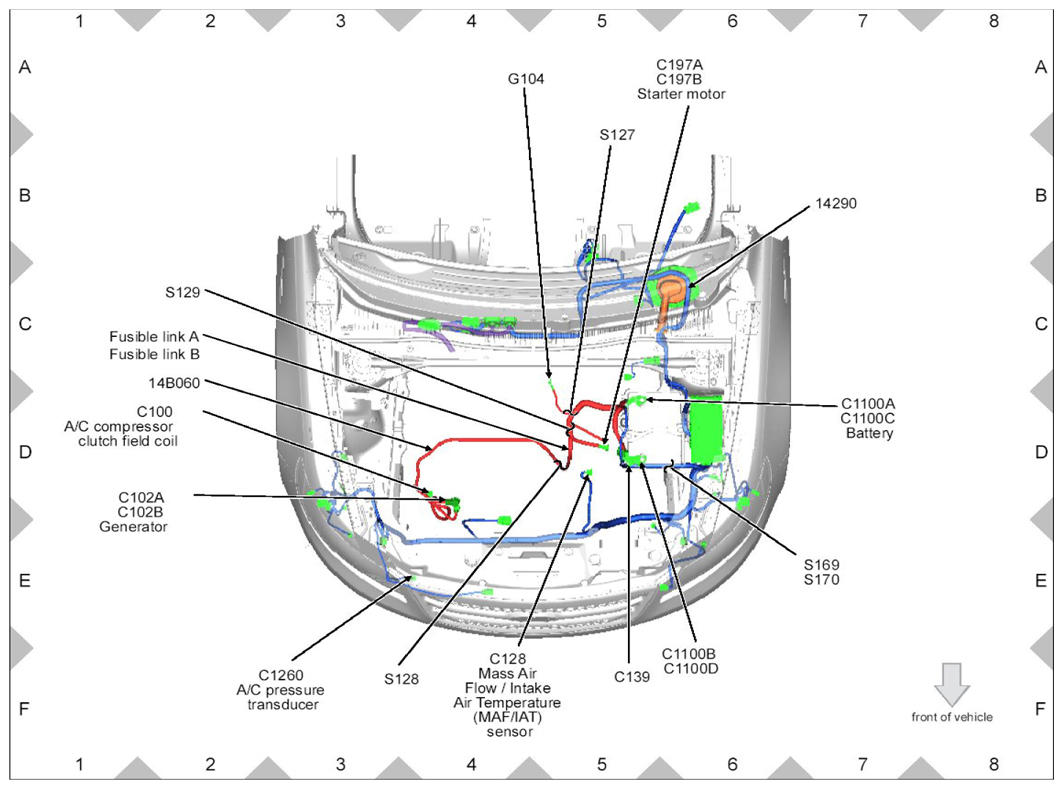

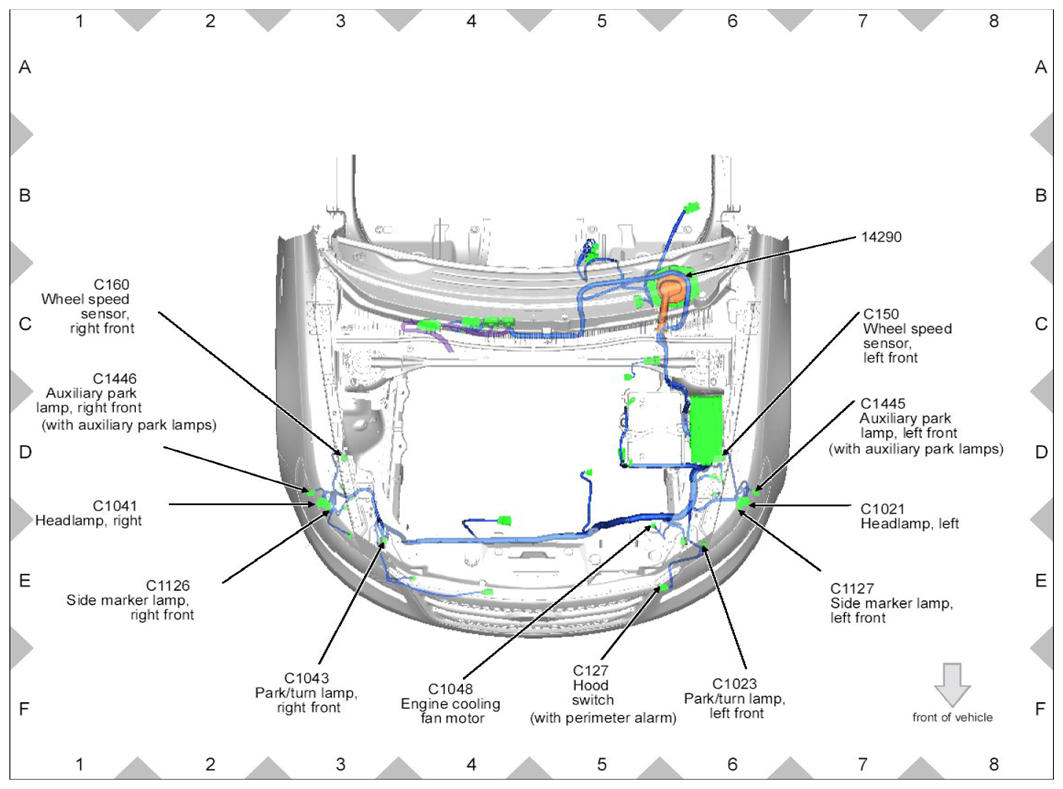

Fig 1: Engine Compartment Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 2: Engine Compartment Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 4: Engine Compartment Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

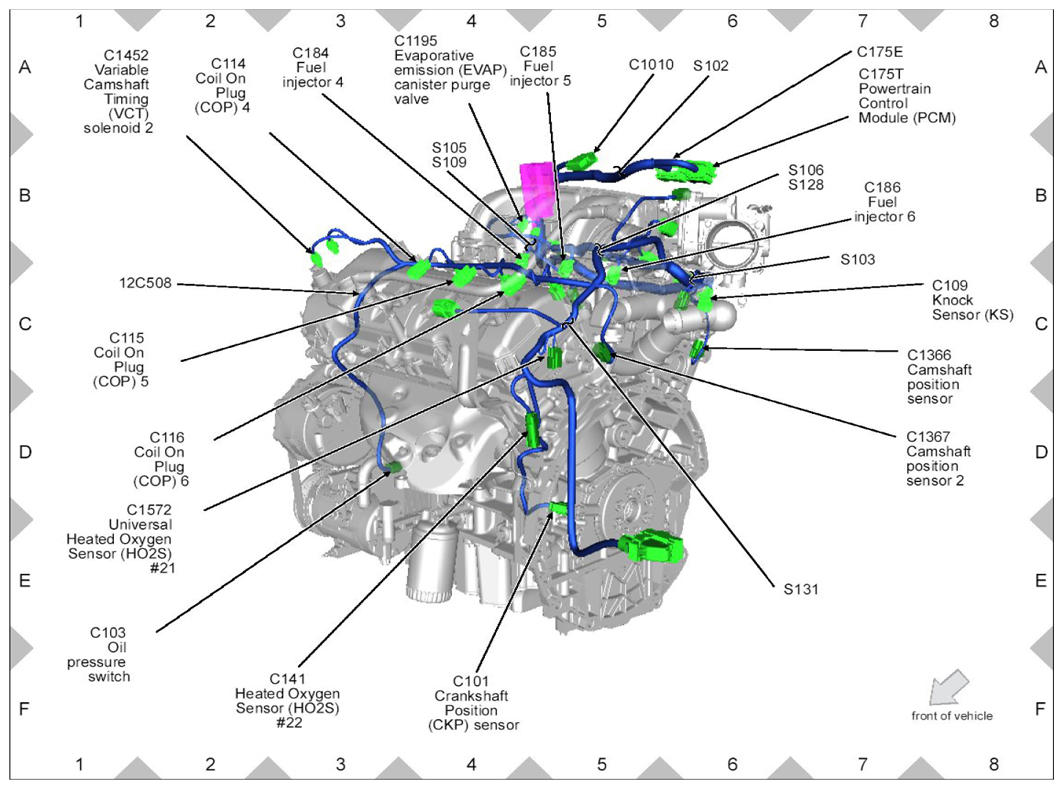

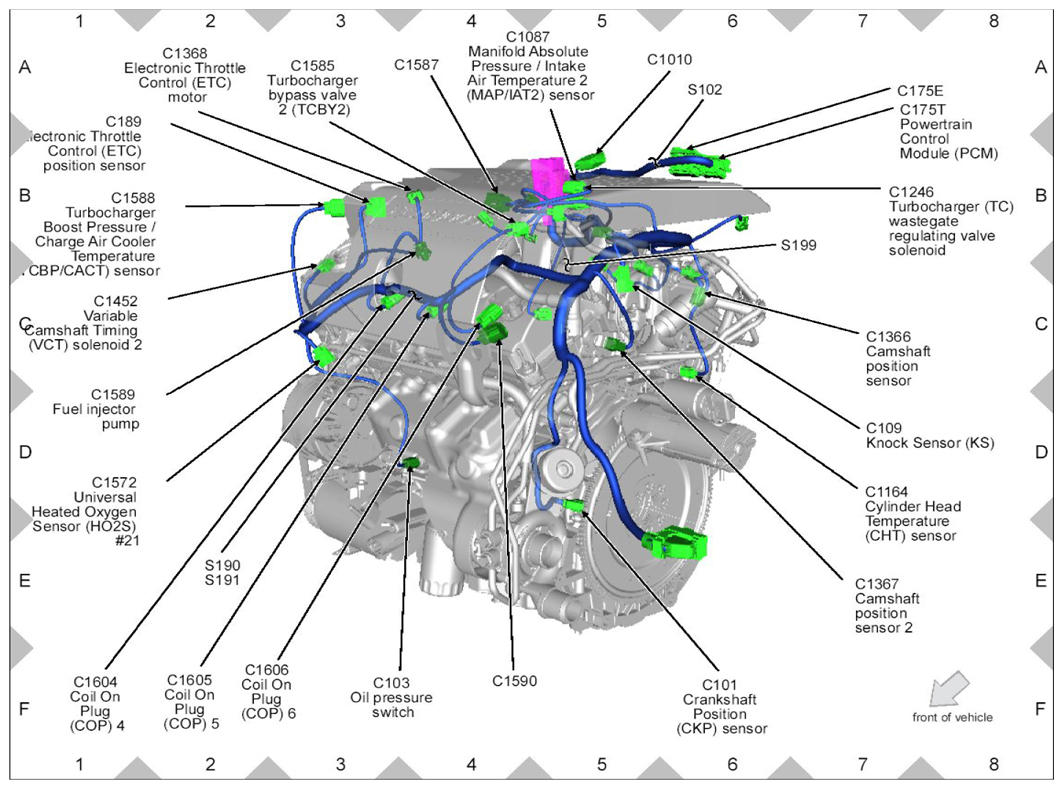

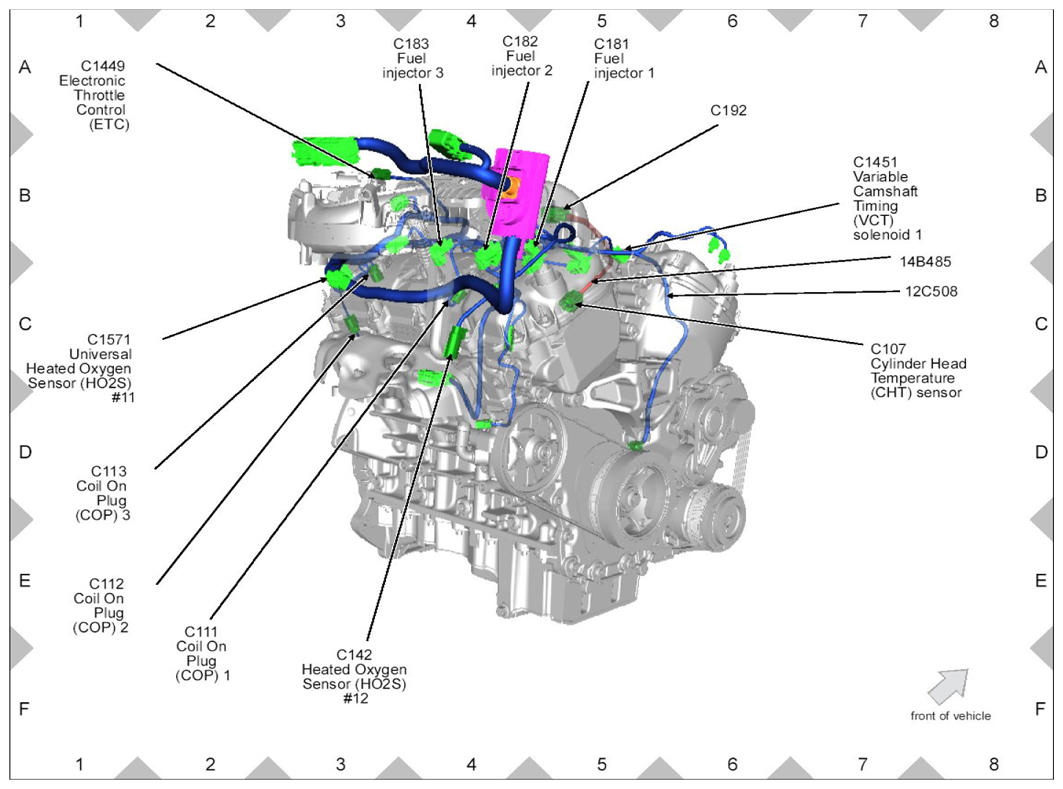

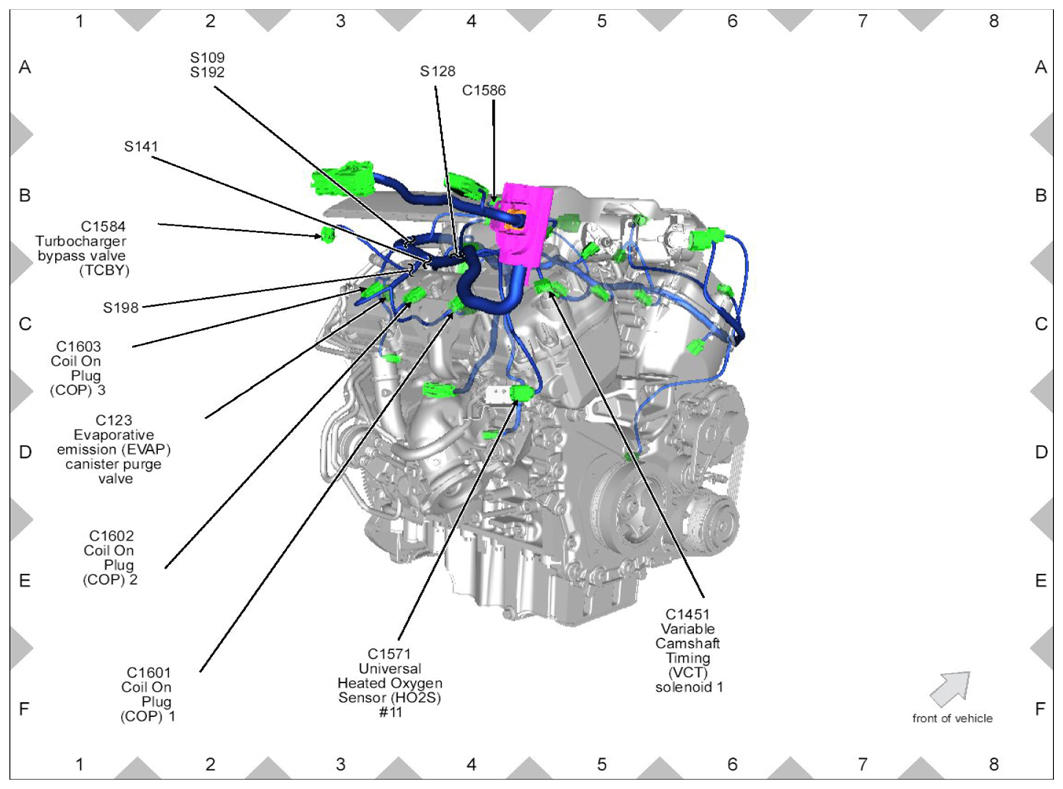

Fig 5: Engine Wiring Harness Connectors Location (1 Of 4)
Courtesy of FORD MOTOR CO.
Fig 6: Engine Wiring Harness Connectors Location (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 7: Engine Wiring Harness Connectors Location (3 Of 4)
Courtesy of FORD MOTOR CO.
Fig 8: Engine Wiring Harness Connectors Location (4 Of 4)
Courtesy of FORD MOTOR CO.

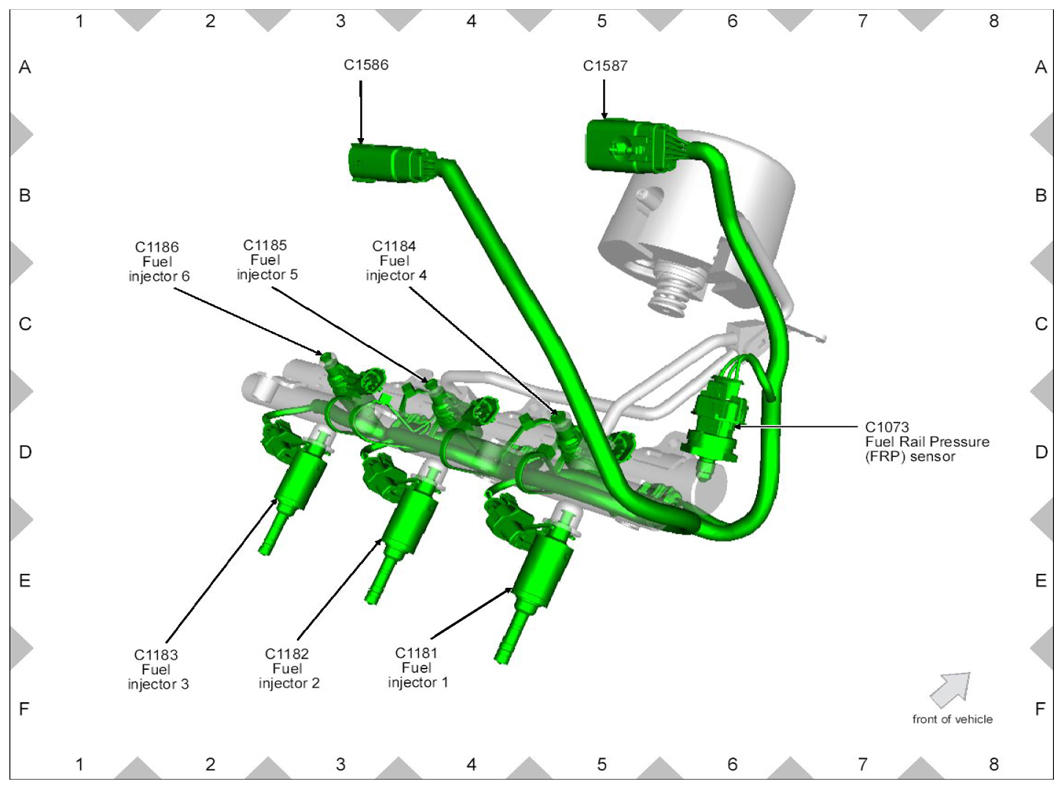

Fig 9: Fuel Rail Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

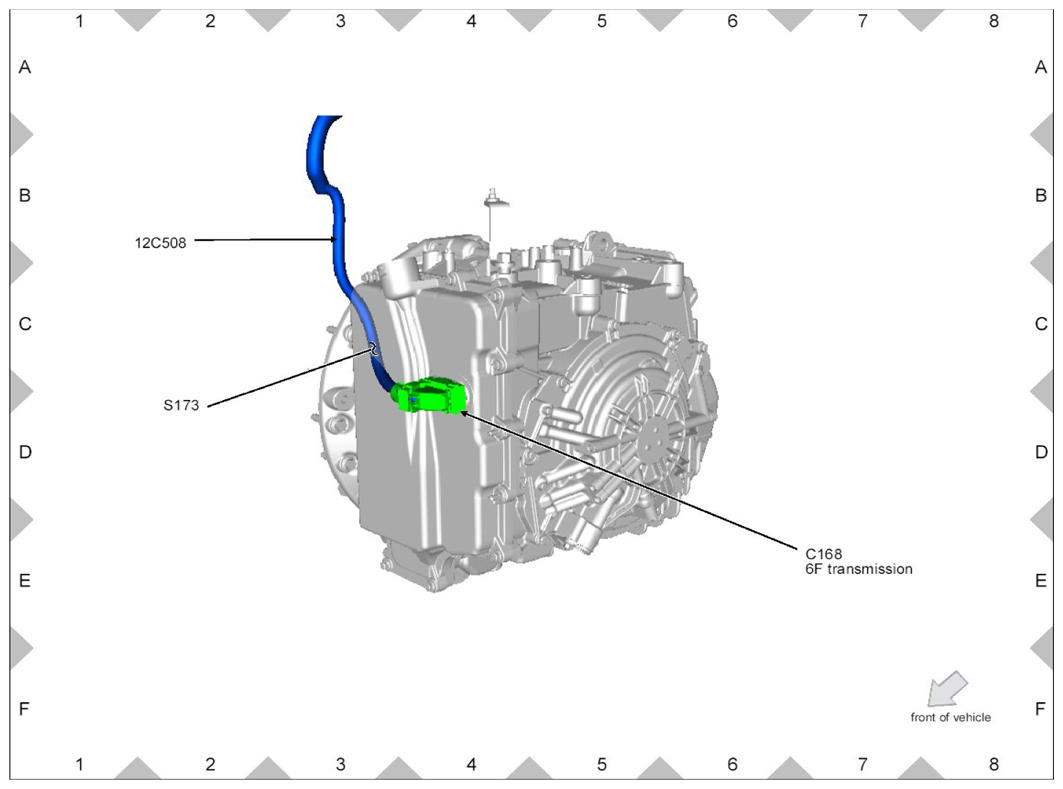

Fig 10: Transmission Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

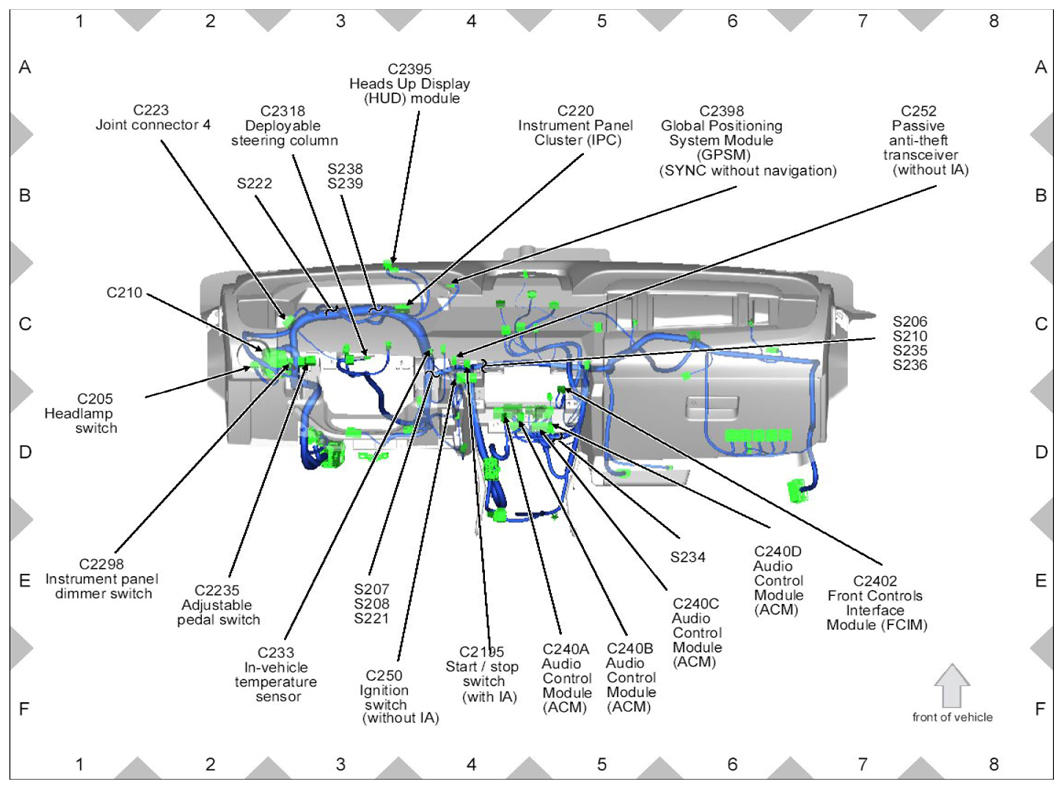

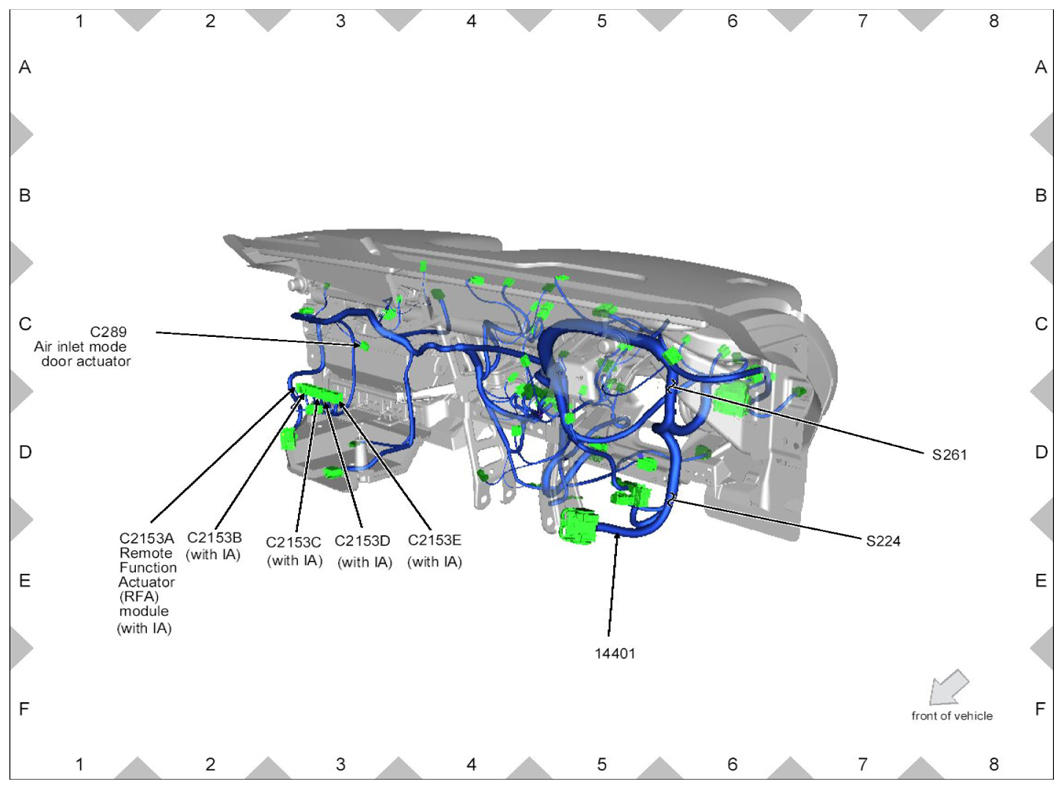

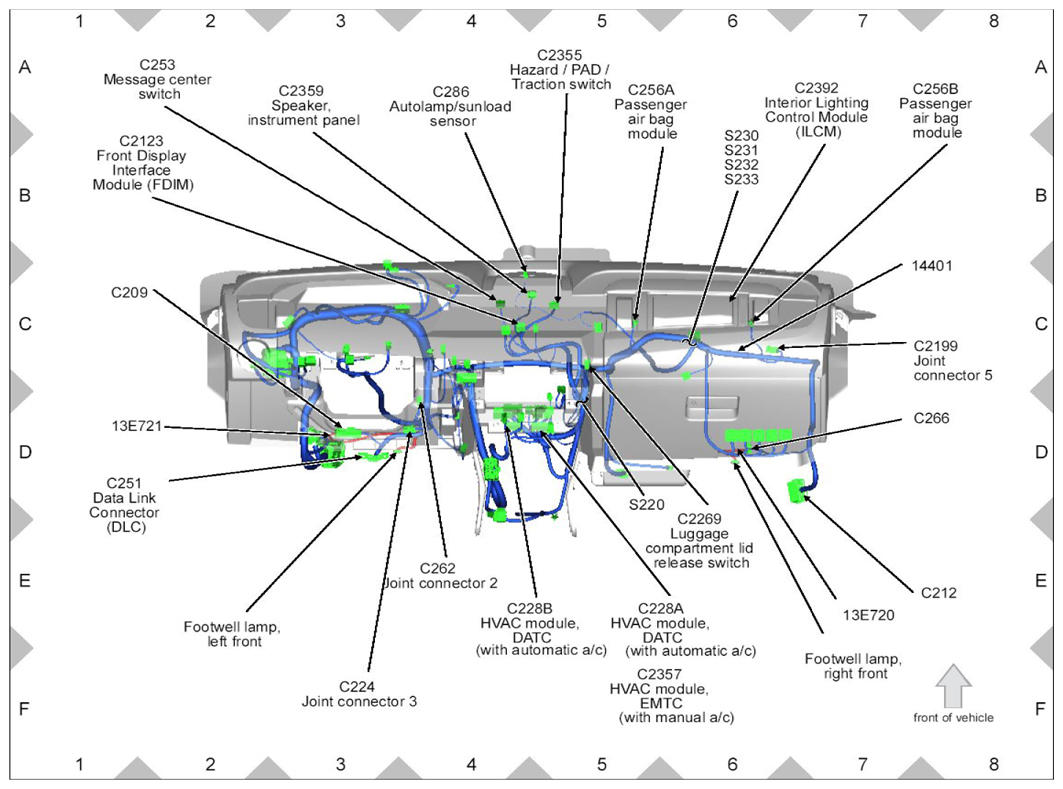

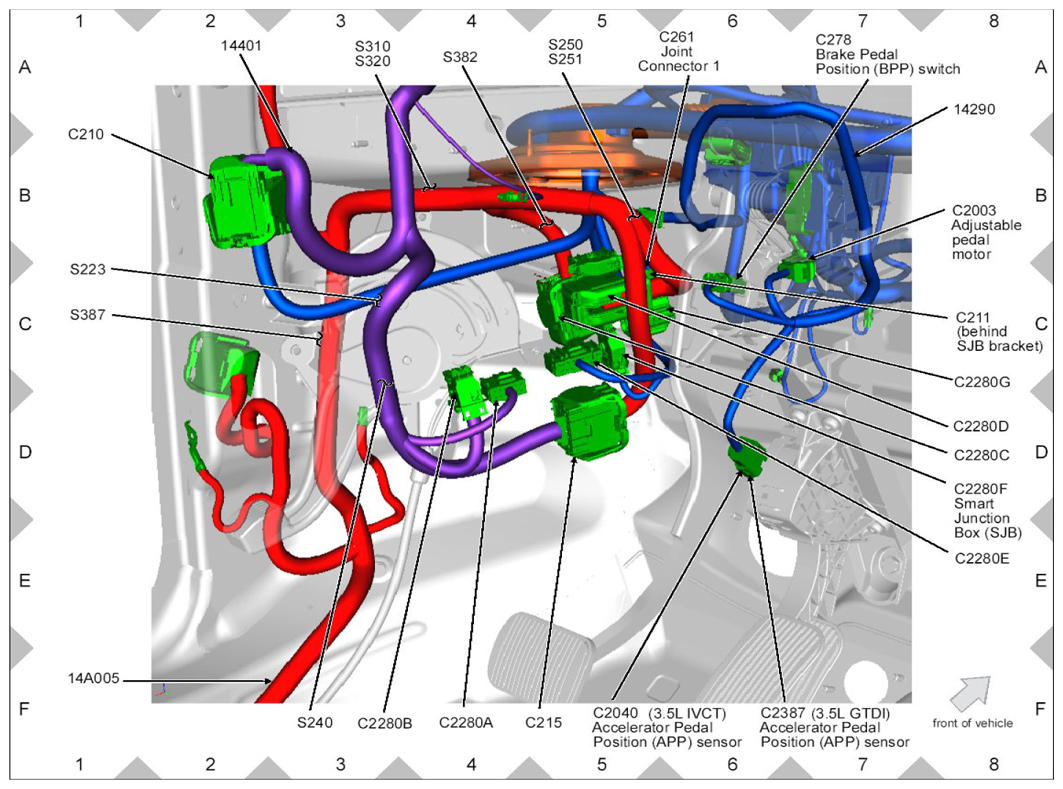

Fig 11: Front Dash Board Wiring Harness Connectors Location (1 Of 3)
Courtesy of FORD MOTOR CO.
Fig 12: Front Dash Board Wiring Harness Connectors Location (2 Of 3)
Courtesy of FORD MOTOR CO.
Fig 13: Front Dash Board Wiring Harness Connectors Location (3 Of 3)
Courtesy of FORD MOTOR CO.

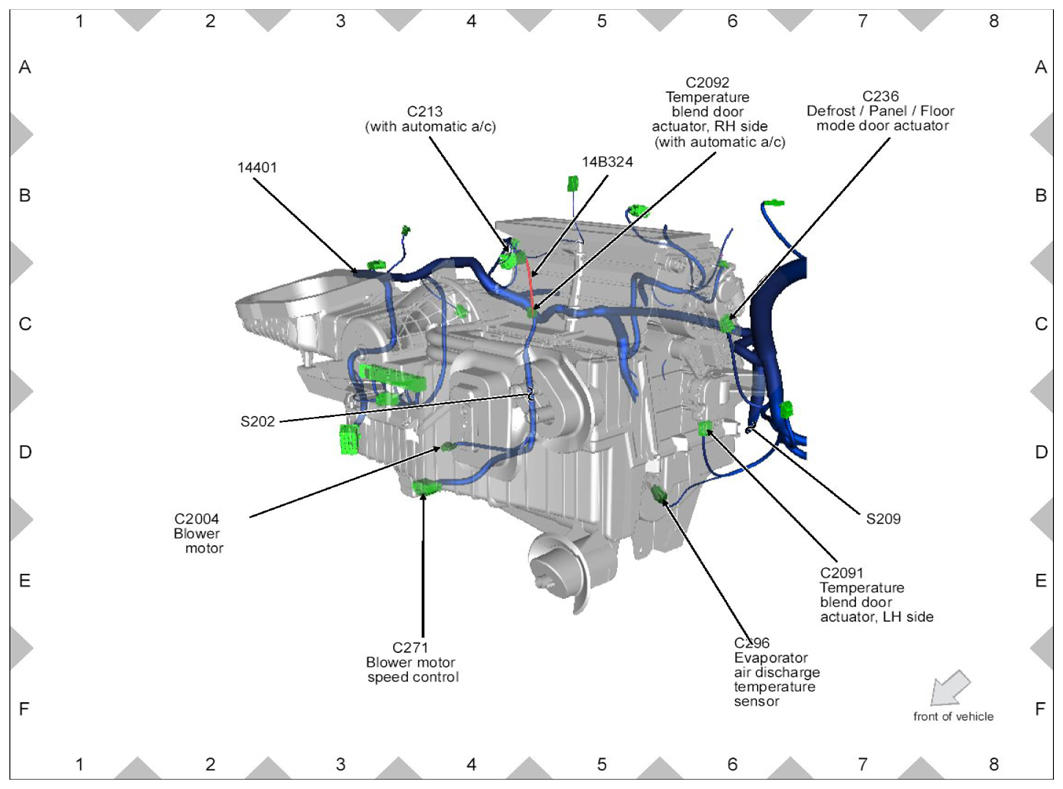

Fig 14: Blower Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

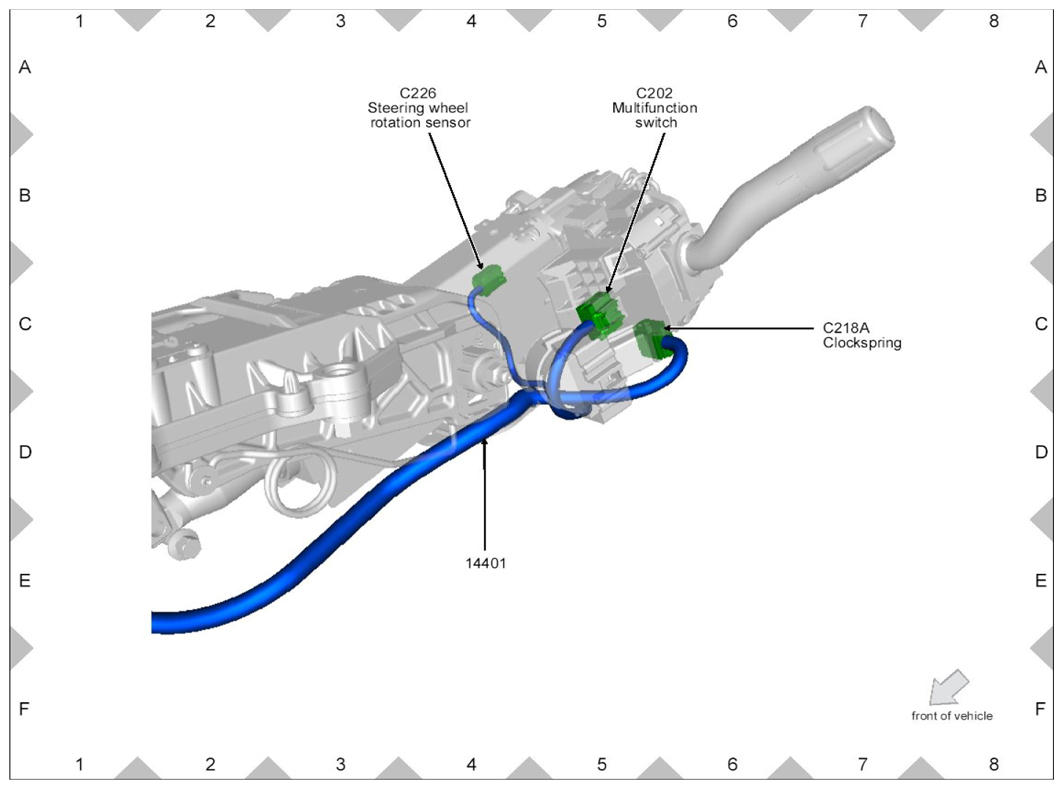

Fig 15: Steering Column Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

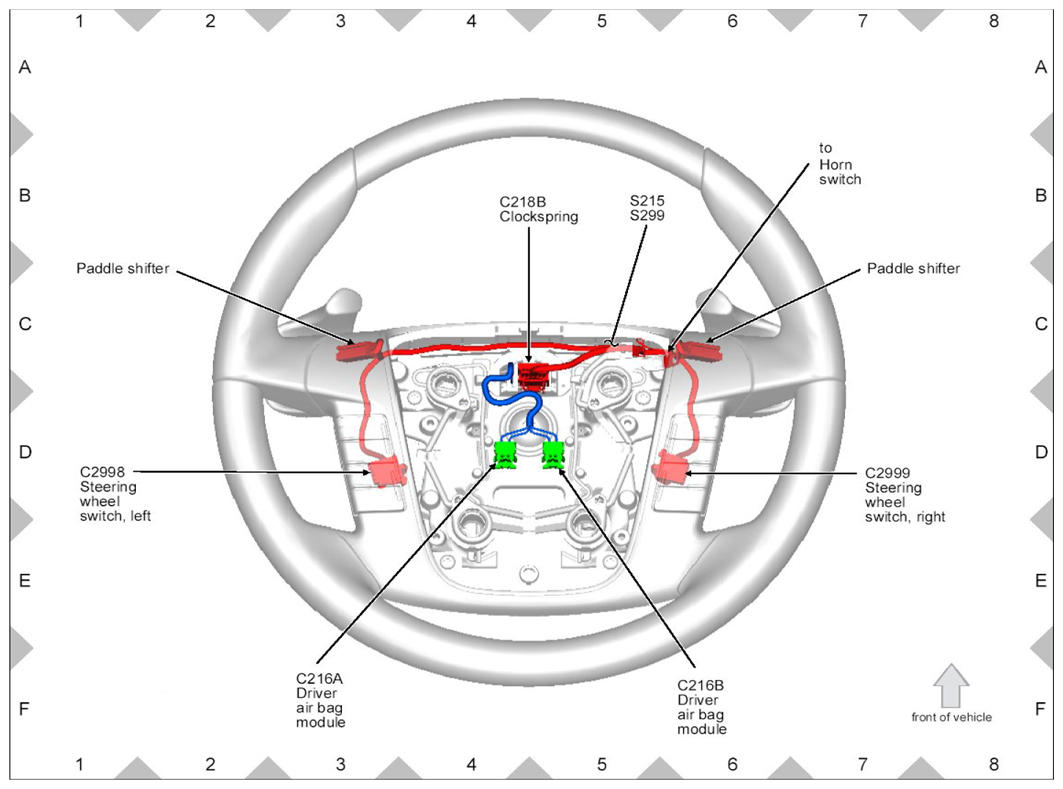

Fig 16: Steering Wheel Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

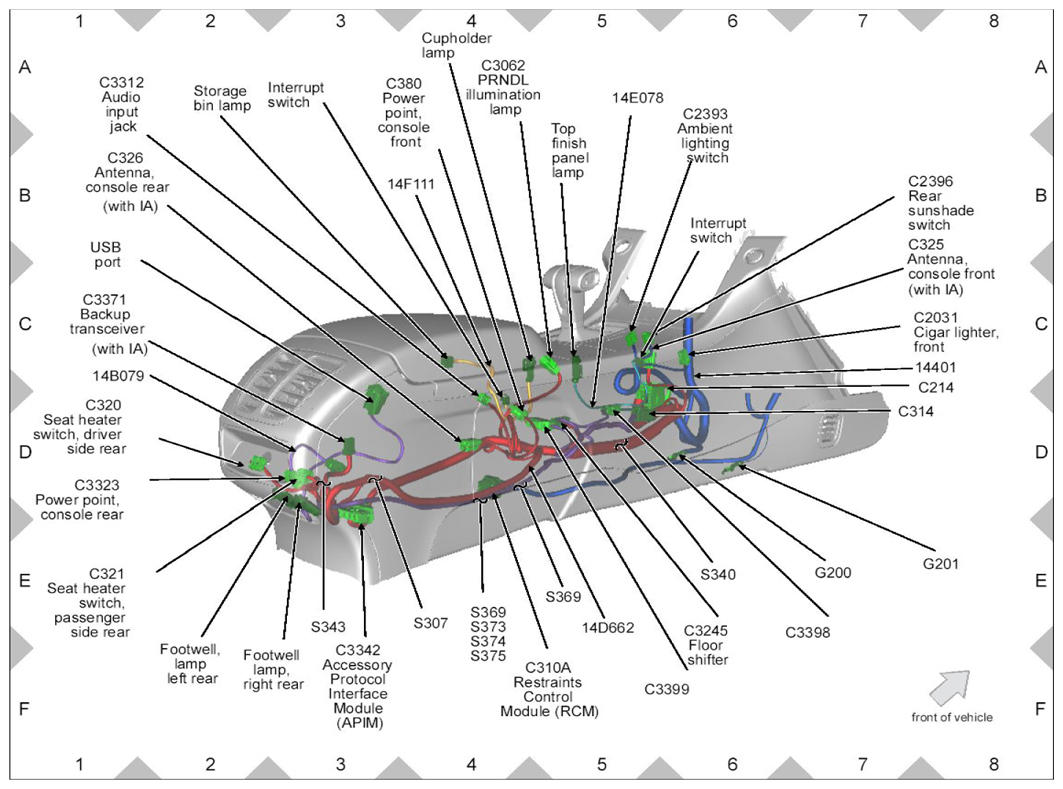

Fig 17: Center Console Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

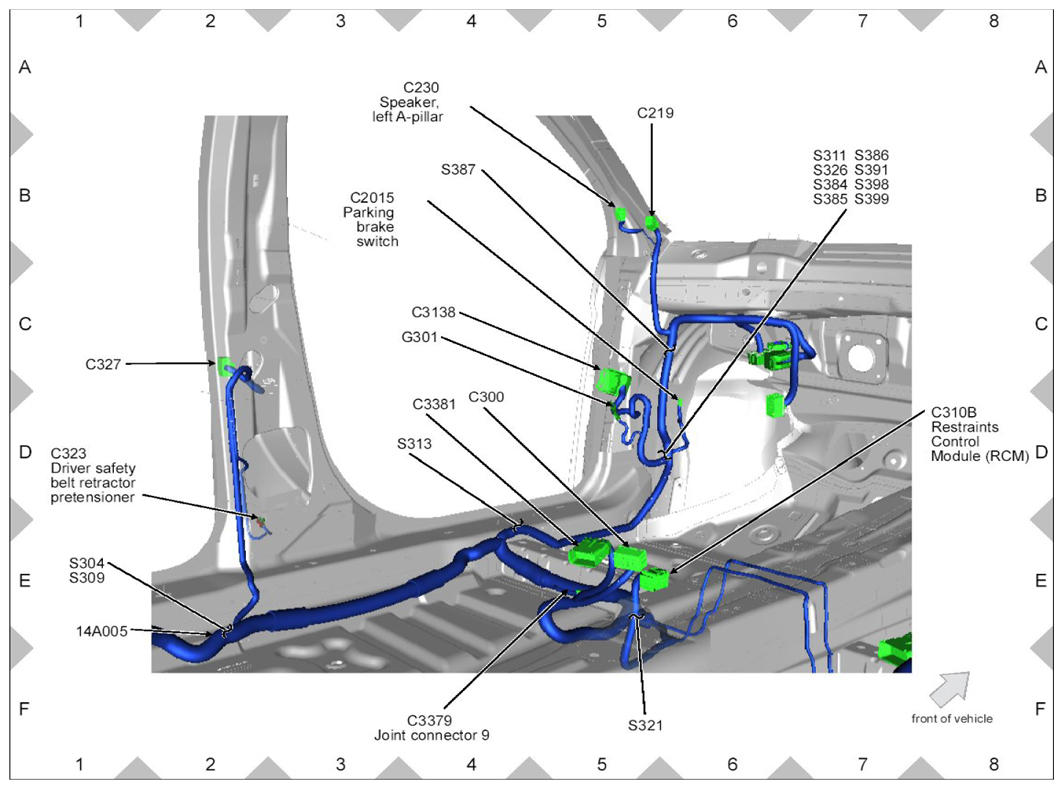

Fig 18: Front Compartment Wiring Harness Connectors Location - LH (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 19: Front Compartment Wiring Harness Connectors Location - LH (2 Of 2)
Courtesy of FORD MOTOR CO.

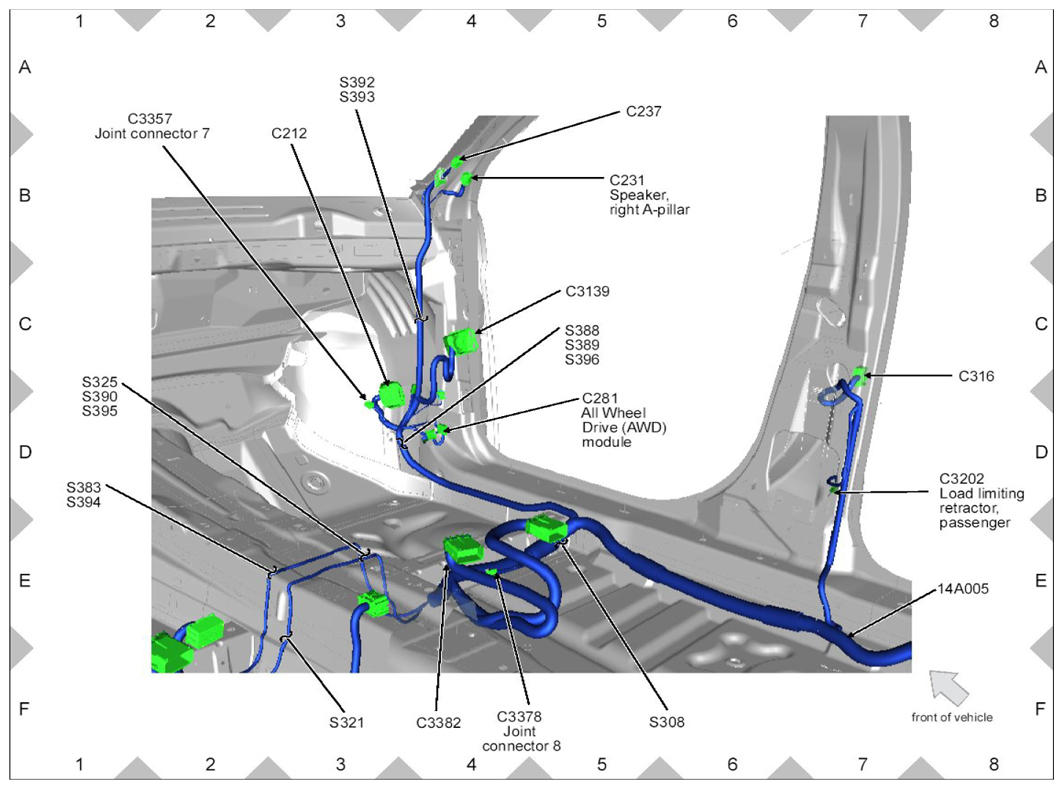

Fig 20: Front Compartment Wiring Harness Connectors Location - RH
Courtesy of FORD MOTOR CO.

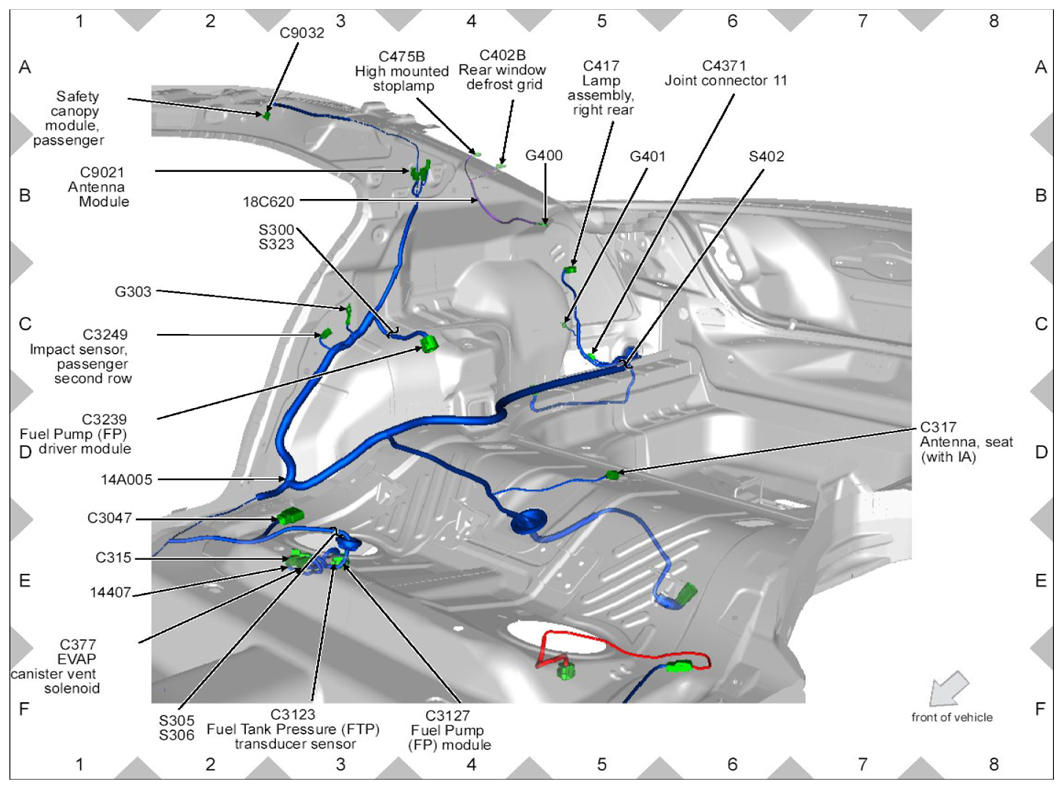

Fig 21: Rear Compartment Wiring Harness Connectors Location - LH (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 22: Rear Compartment Wiring Harness Connectors Location - LH (2 Of 2)
Courtesy of FORD MOTOR CO.
Fig 23: Rear Compartment Wiring Harness Connectors Location - RH
Courtesy of FORD MOTOR CO.

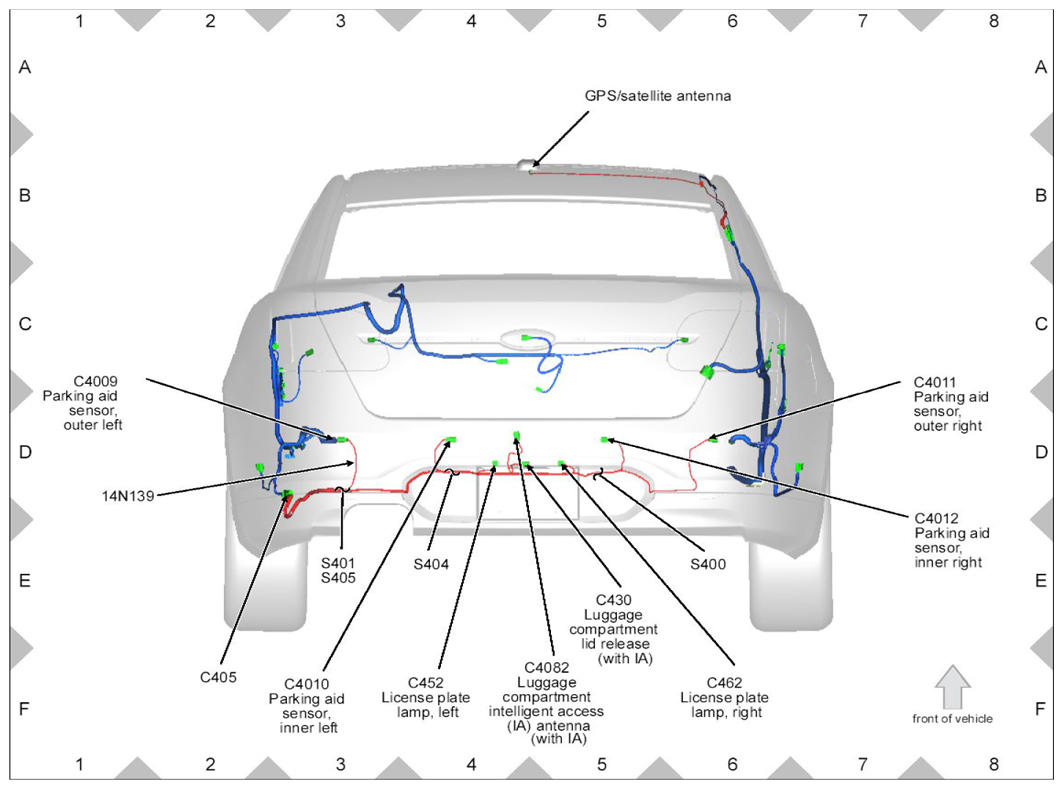

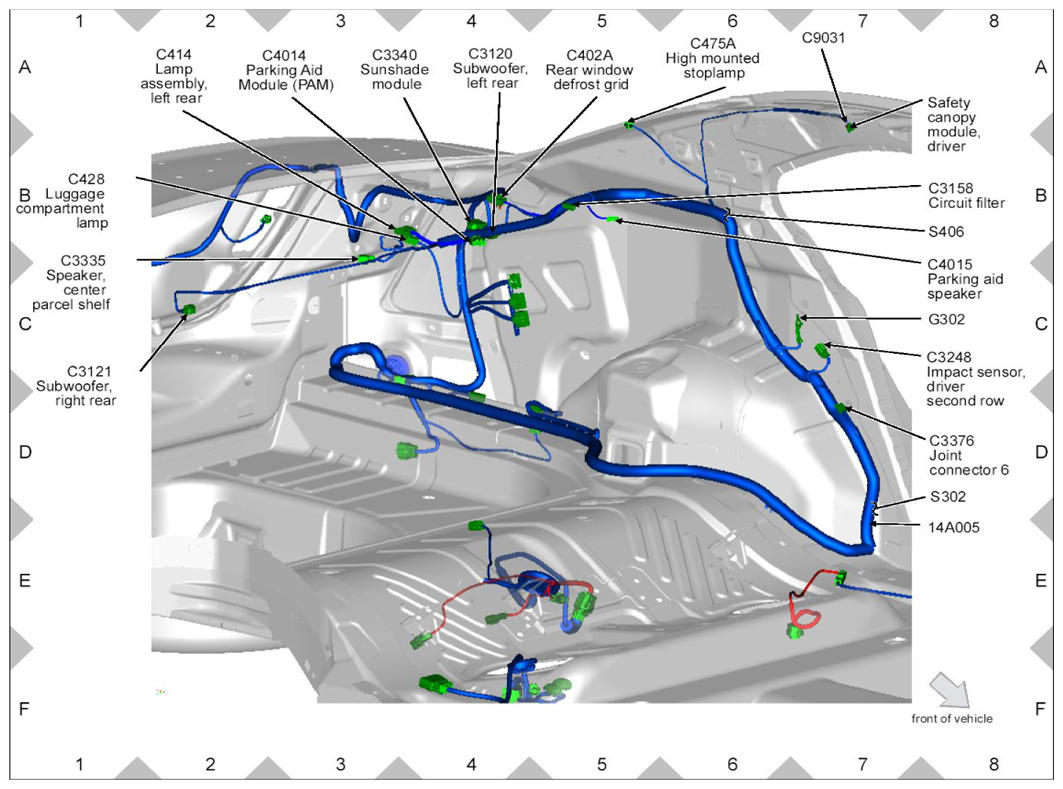

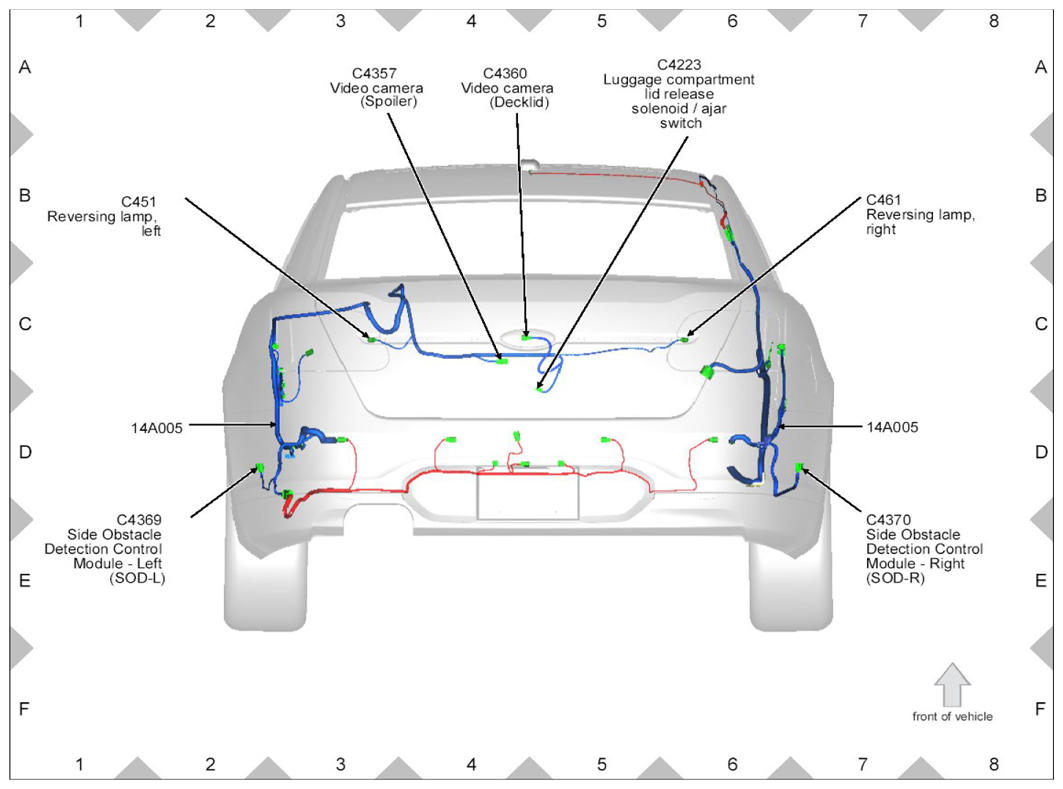

Fig 24: Luggage Compartment Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

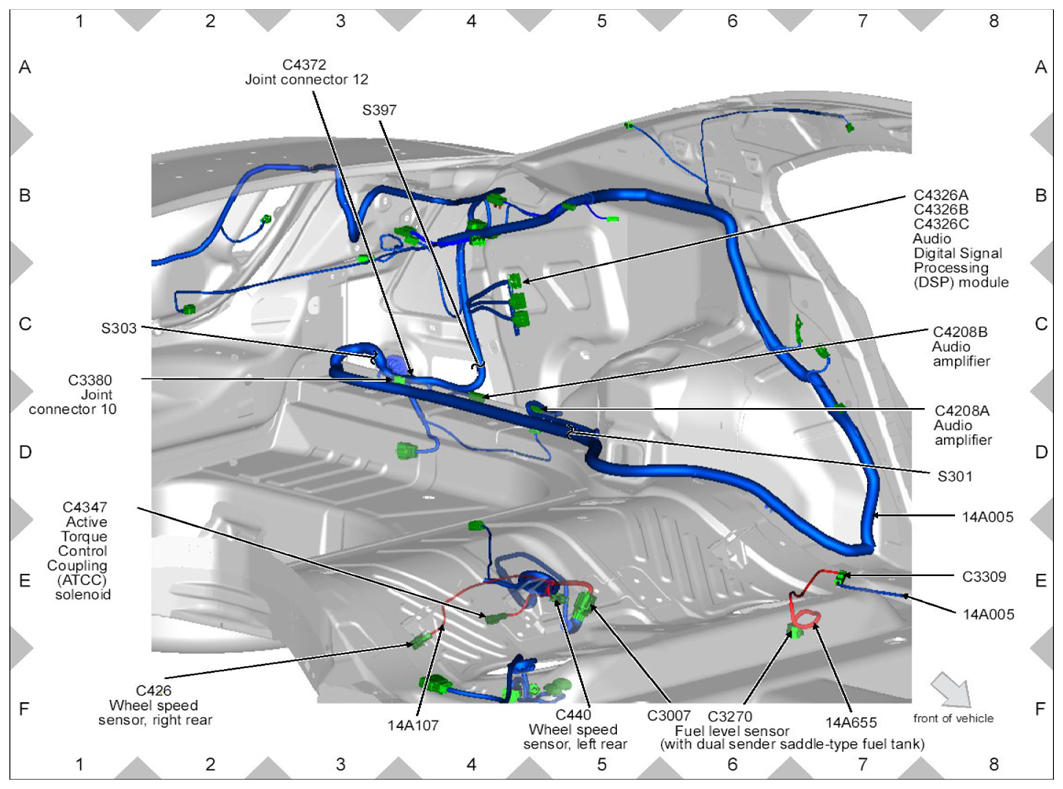

Fig 25: Luggage Compartment Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

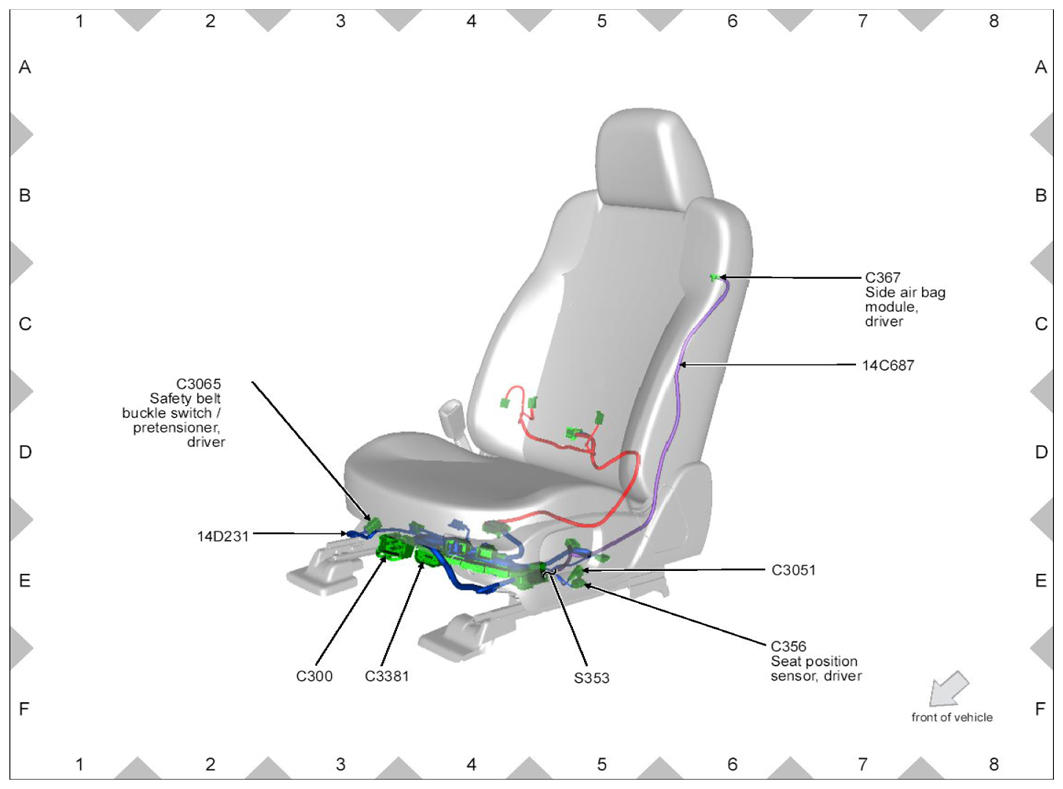

Fig 26: Driver Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.

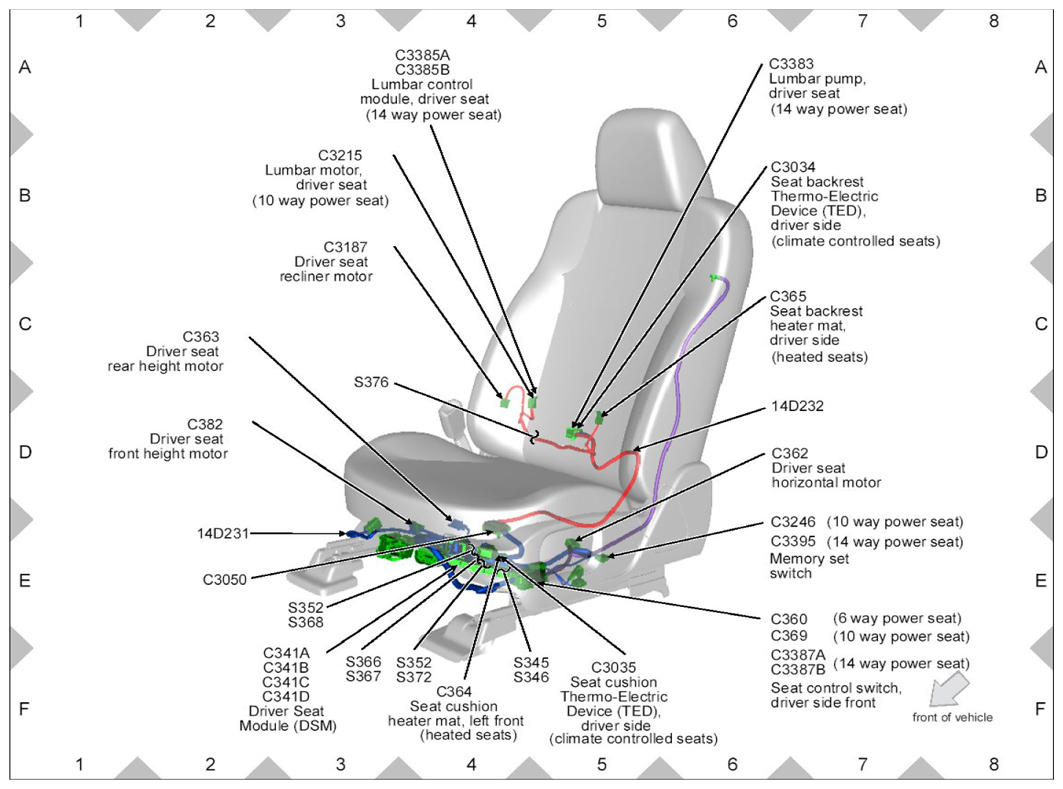

Fig 27: Driver Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

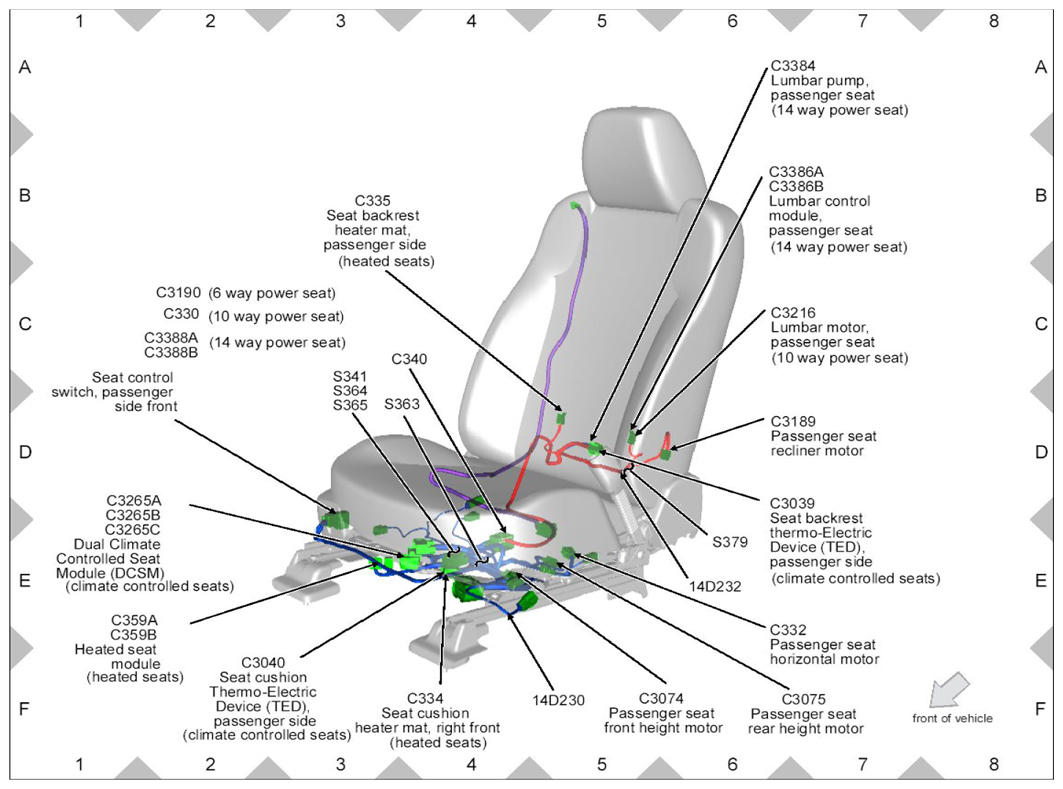

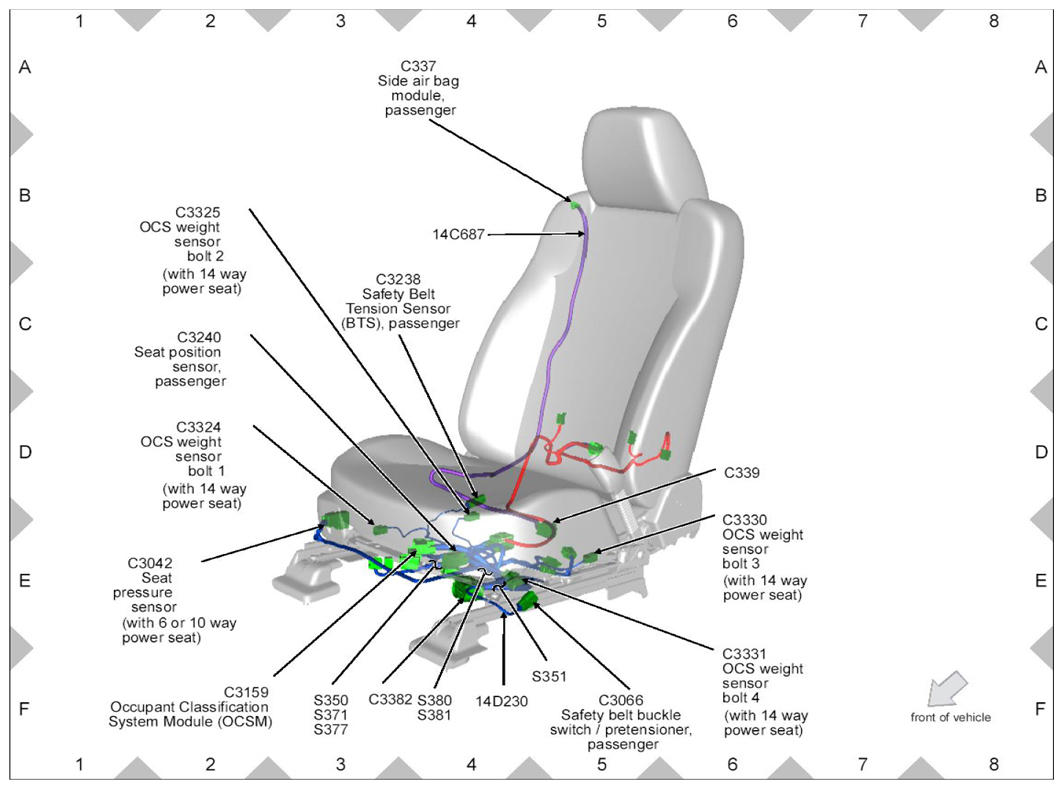

Fig 28: Passenger Seat Wiring Harness Connectors Location (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 29: Passenger Seat Wiring Harness Connectors Location (2 Of 2)
Courtesy of FORD MOTOR CO.

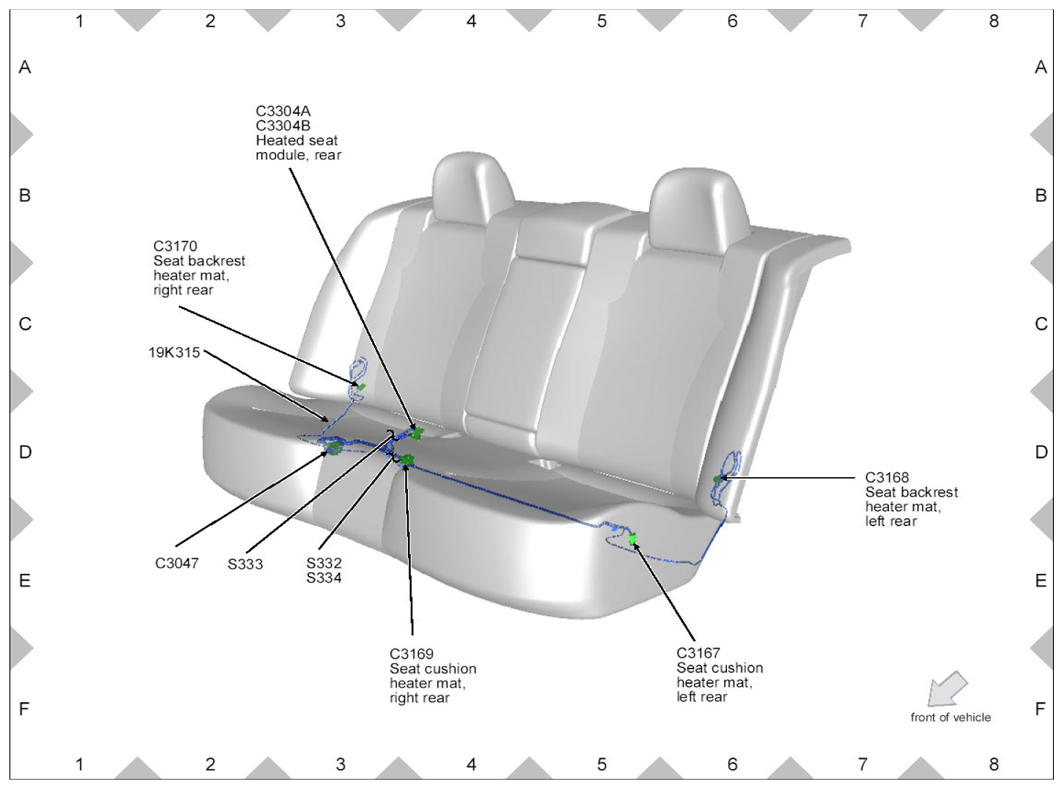

Fig 30: Rear Seat Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.

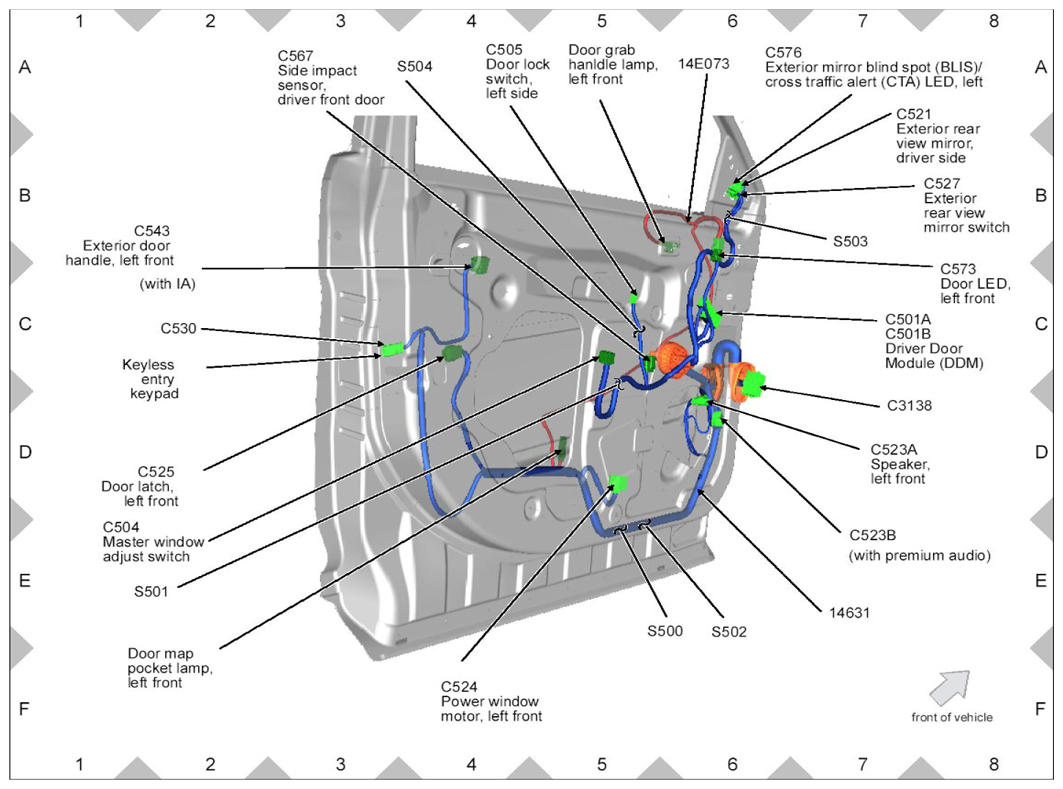

Fig 31: Front Door Wiring Harness Connectors Location - LH
Courtesy of FORD MOTOR CO.

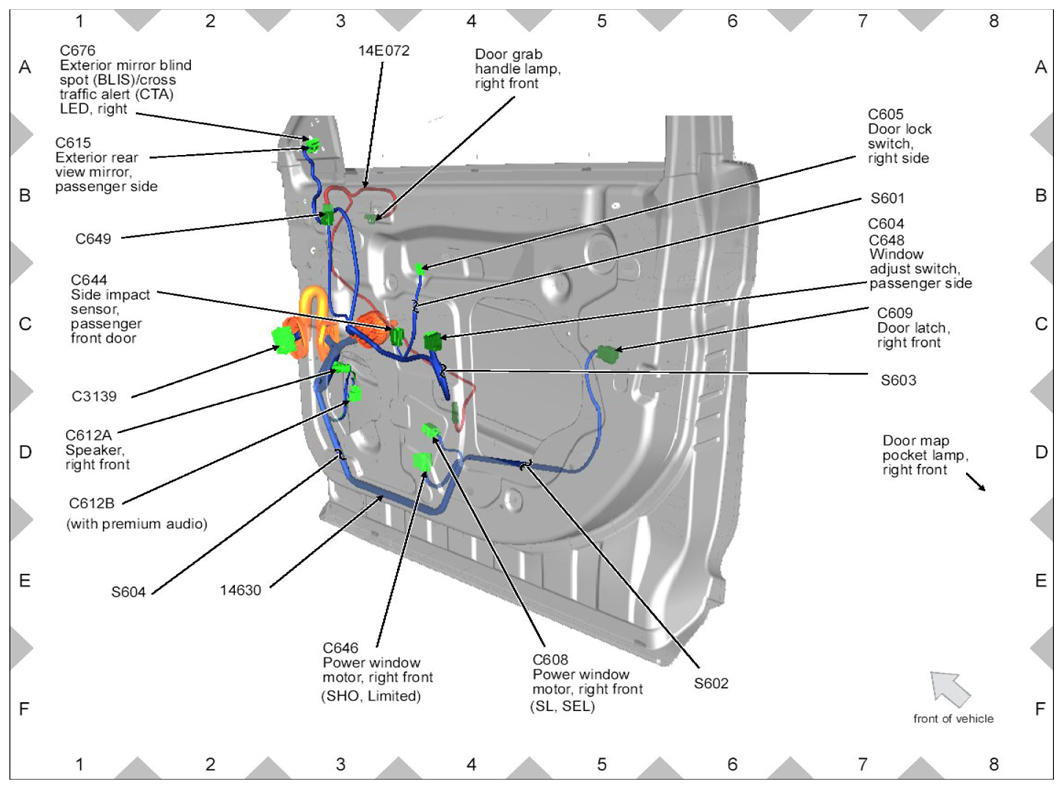

Fig 32: Front Door Wiring Harness Connectors Location - RH
Courtesy of FORD MOTOR CO.

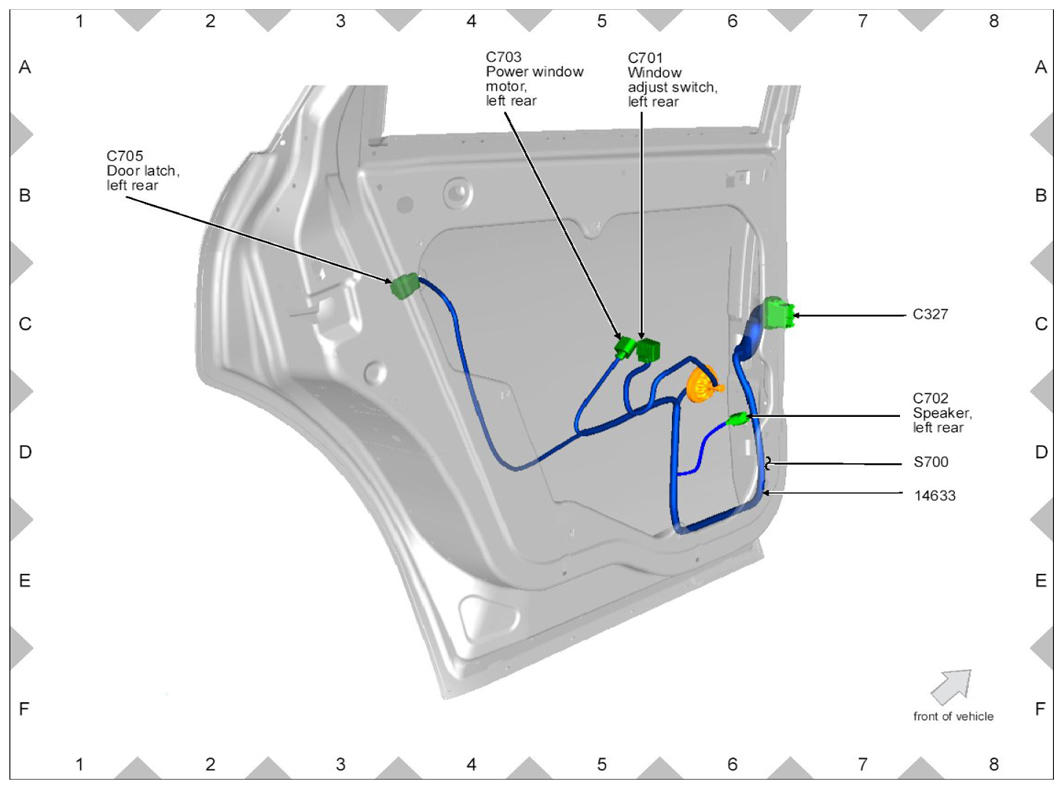

Fig 33: Rear Door Wiring Harness Connectors Location - LH
Courtesy of FORD MOTOR CO.

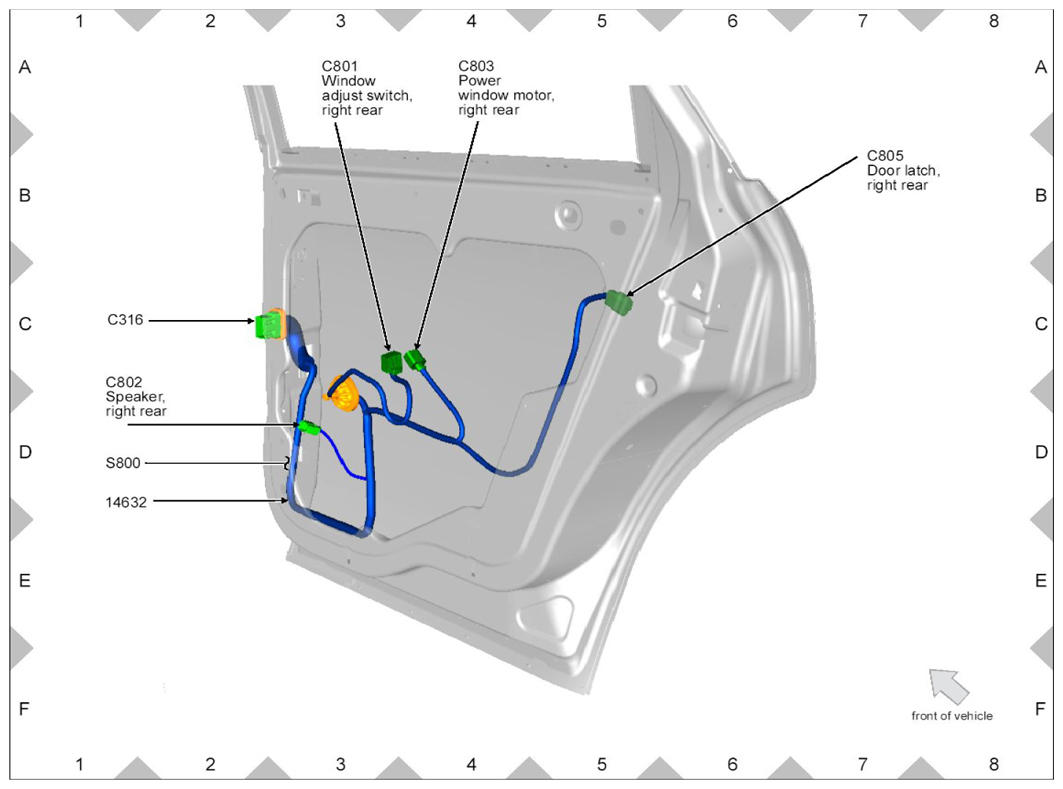

Fig 34: Rear Door Wiring Harness Connectors Location - RH
Courtesy of FORD MOTOR CO.

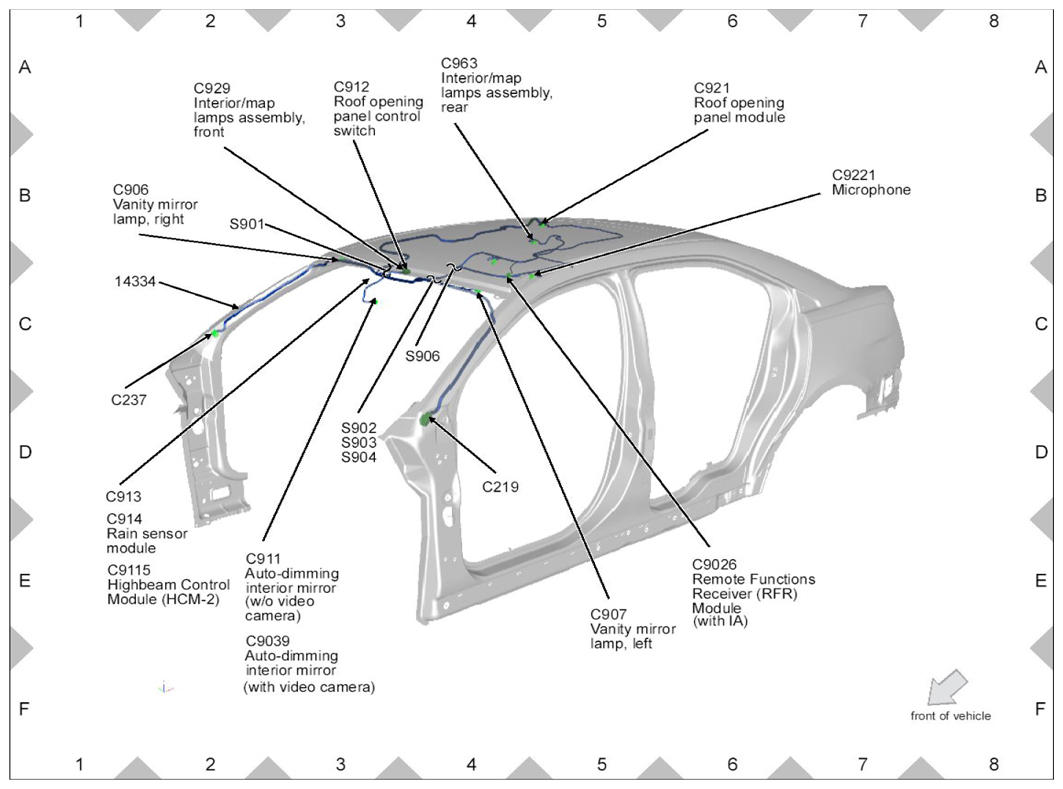

Fig 35: Roof Wiring Harness Connectors Location
Courtesy of FORD MOTOR CO.
