C-Max Energi
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Ground Distribution
>>
Grounds
>>
Notes
OEM Ground Distribution: Grounds: Notes

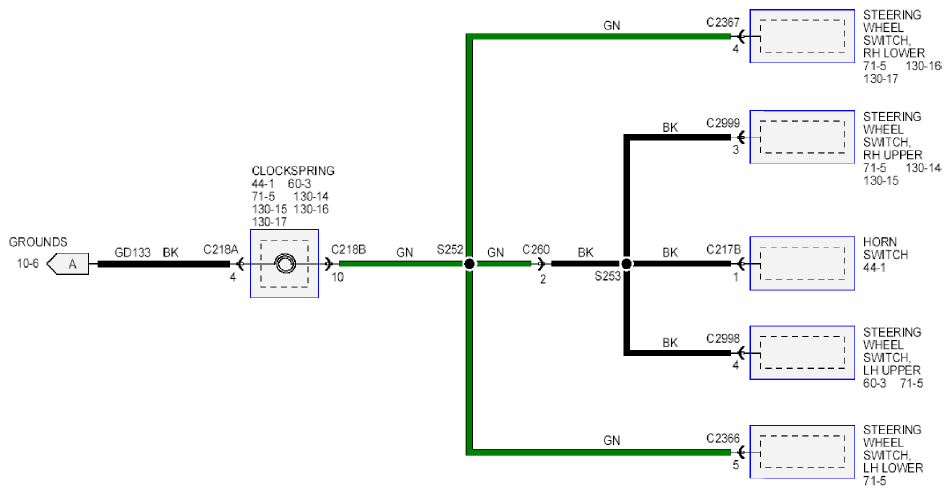

Fig 1: Ground Circuit Diagram - (1 Of 2)
Courtesy of FORD MOTOR CO.

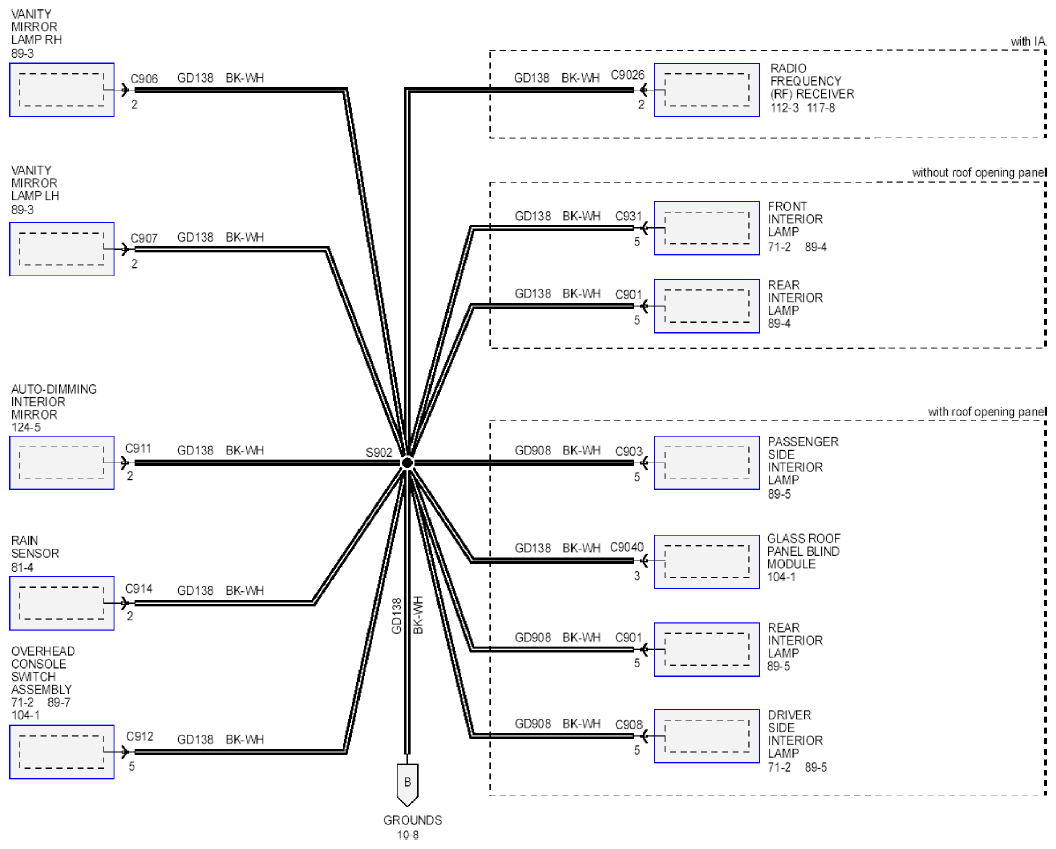

Fig 2: Ground Circuit Diagram - (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
