Powertrain Control Module (PCM): Installation

1.6L GTDI, 2.0L GTDI engines

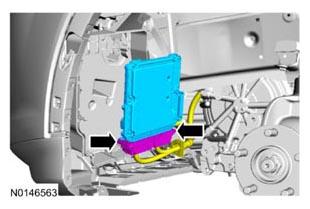

  1. G08614007

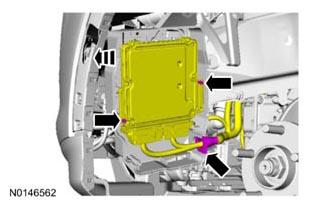

  2. G08614012

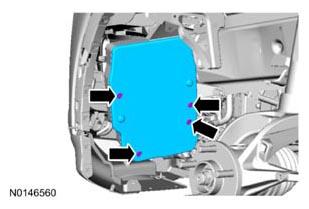

  3. G08614013

    2.5L engine

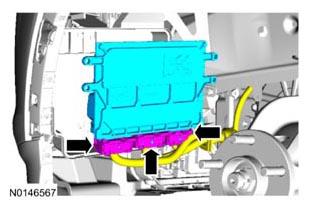

  4. G08614010

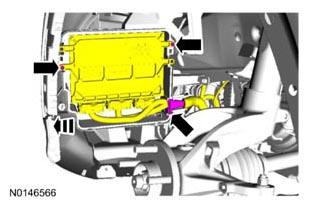

  5. G08614015

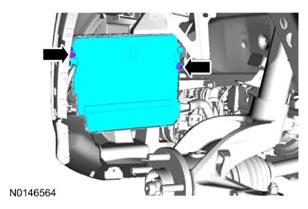

  6. G08614008

    All engines

  7. Install the LH fender splash shield. Refer to FRONT END BODY PANELS .
  8. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. Refer to MODULE CONFIGURATION .
  9. Reprogram the PATS. Carry out the Parameter Reset procedure. For vehicles without IA, refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITHOUT INTELLIGENT ACCESS (IA) . For vehicles with IA, refer to ANTI-THEFT - PASSIVE ANTI-THEFT SYSTEM (PATS), WITH INTELLIGENT ACCESS (IA) .
  10. Using the scan tool, perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
