OEM Ground Distribution: Grounds: Notes

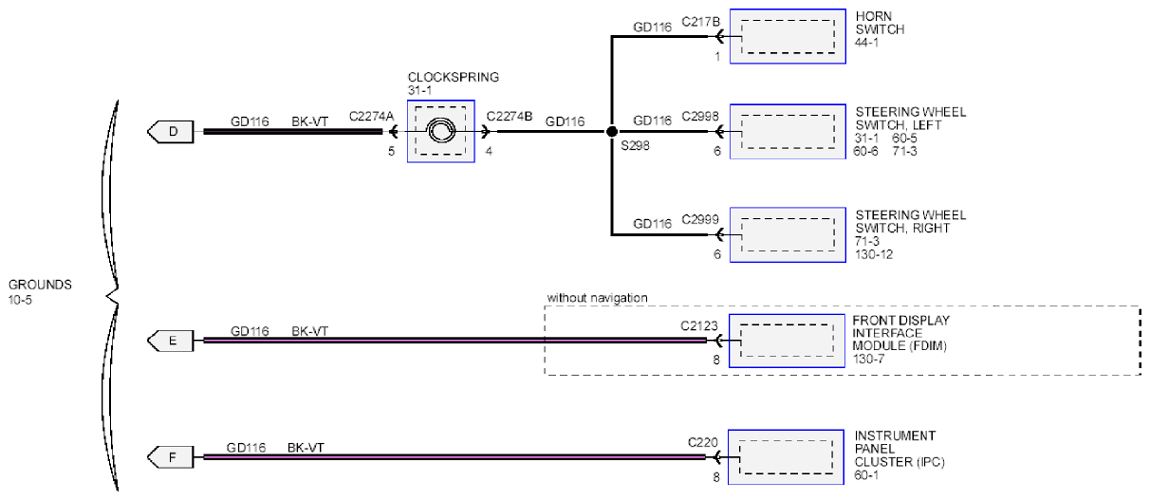

Fig 1: Grounds - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Grounds - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
