Connector Repair Procedures

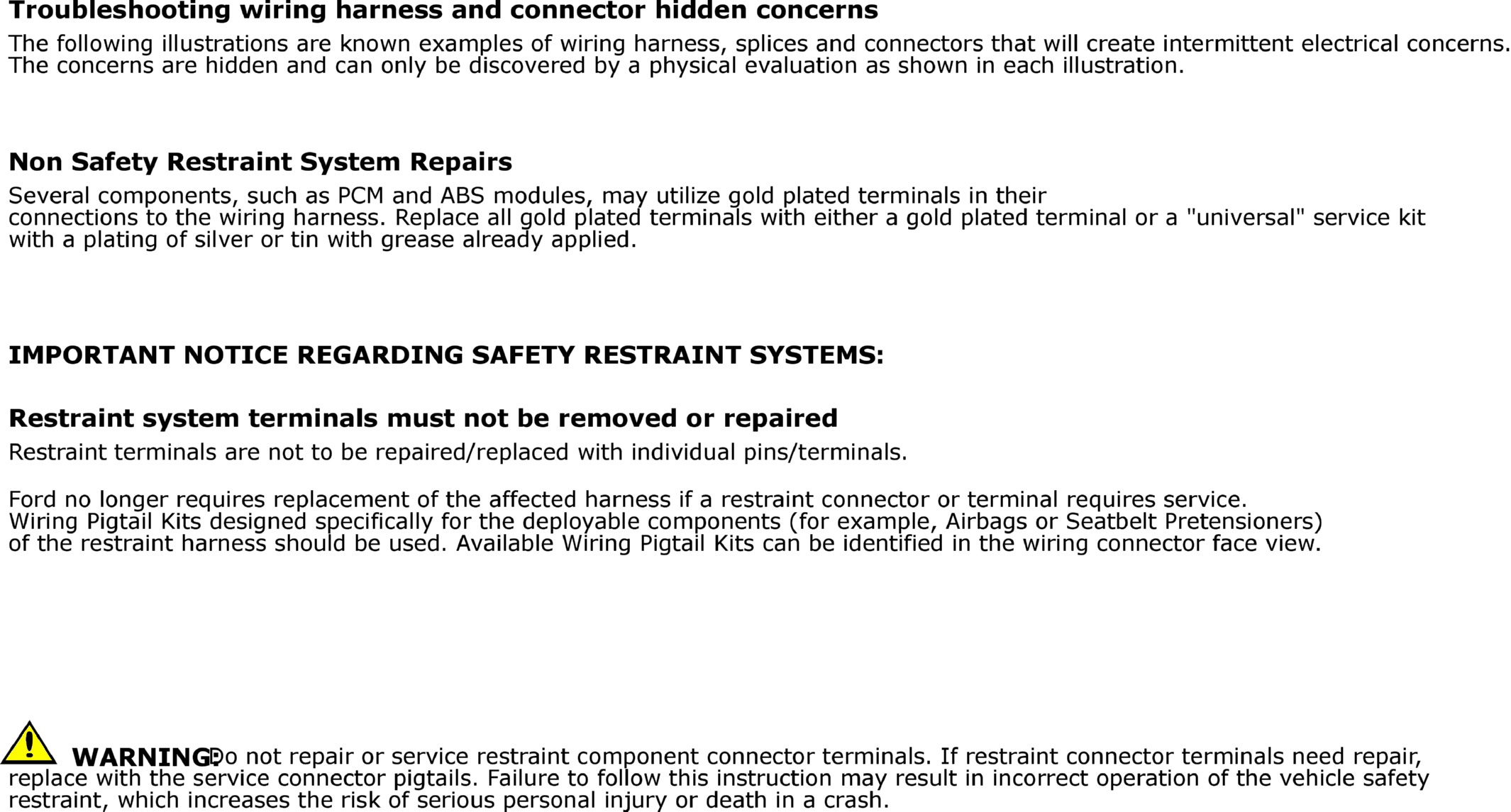

GFDW12273Courtesy of FORD MOTOR COMPANY

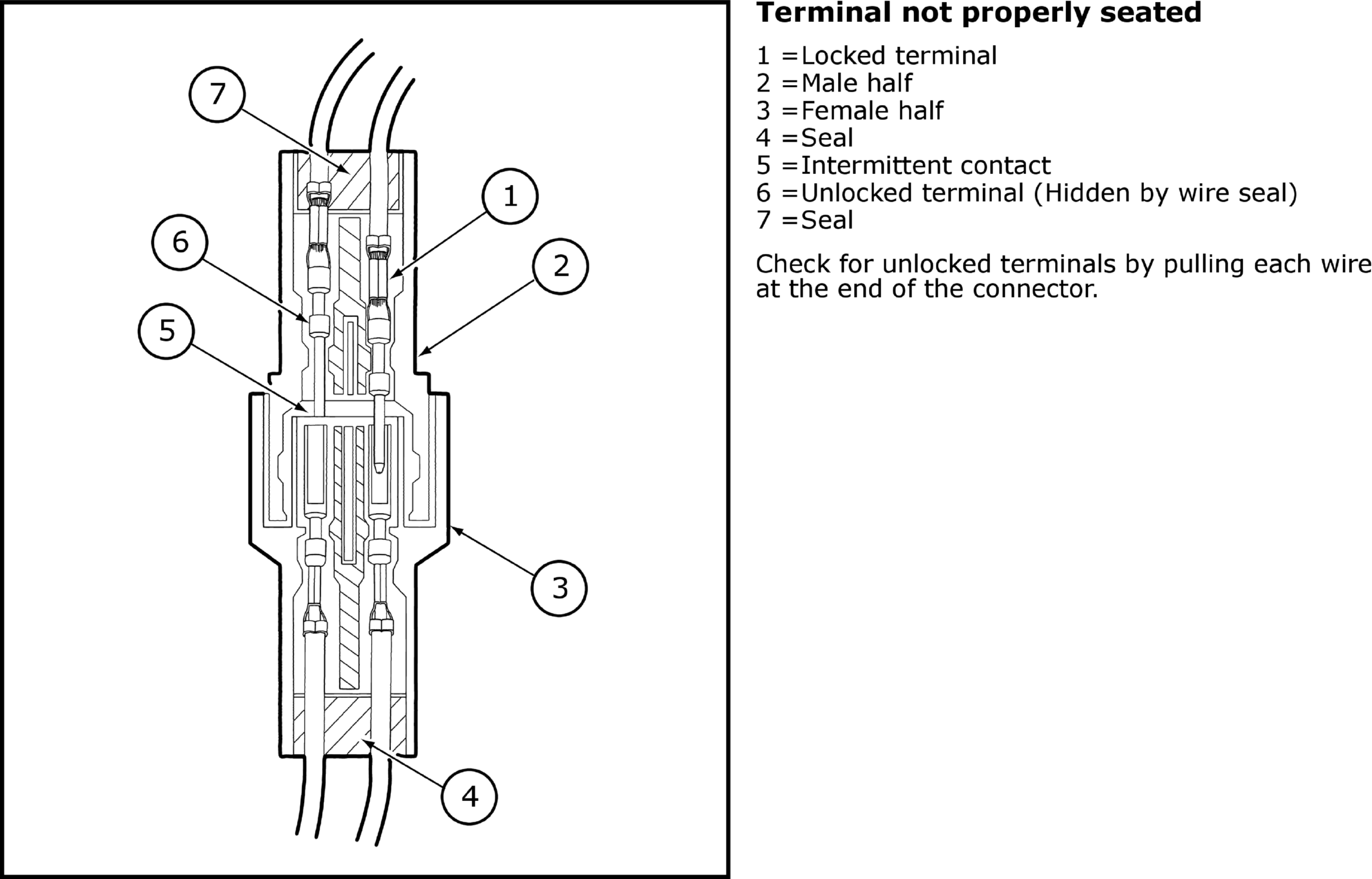

GFDW12274Courtesy of FORD MOTOR COMPANY

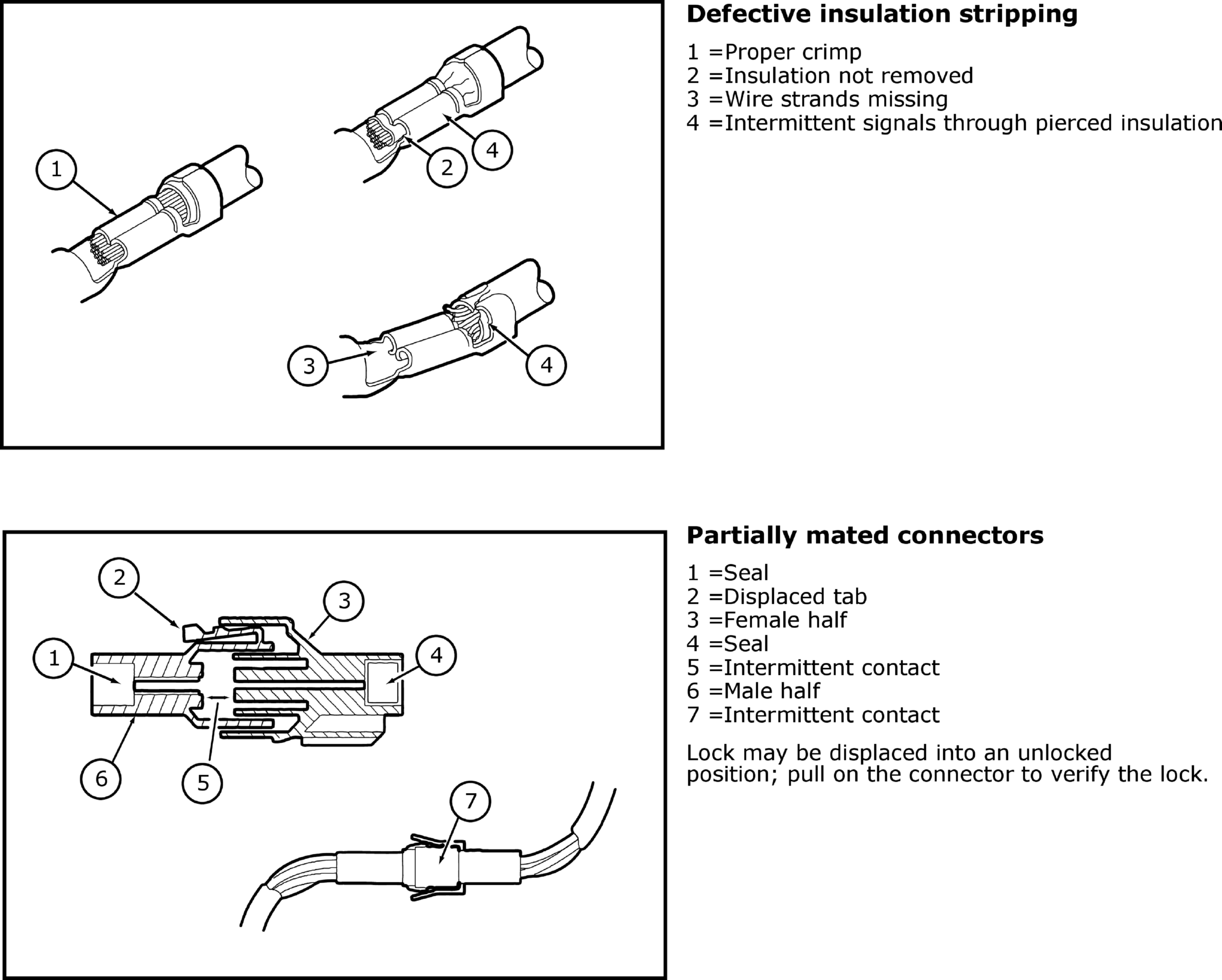

GFDW12275Courtesy of FORD MOTOR COMPANY

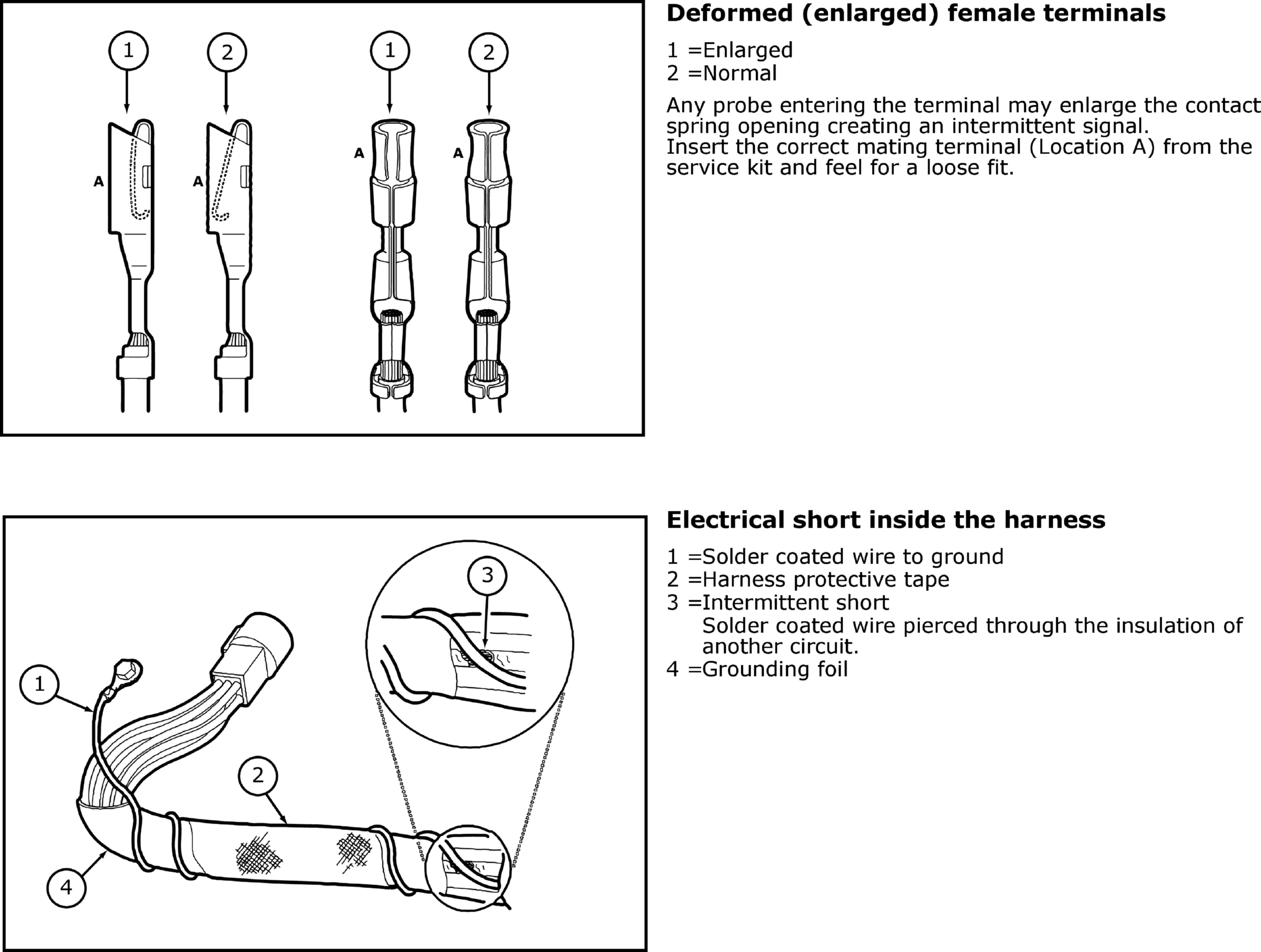

GFDW12276Courtesy of FORD MOTOR COMPANY

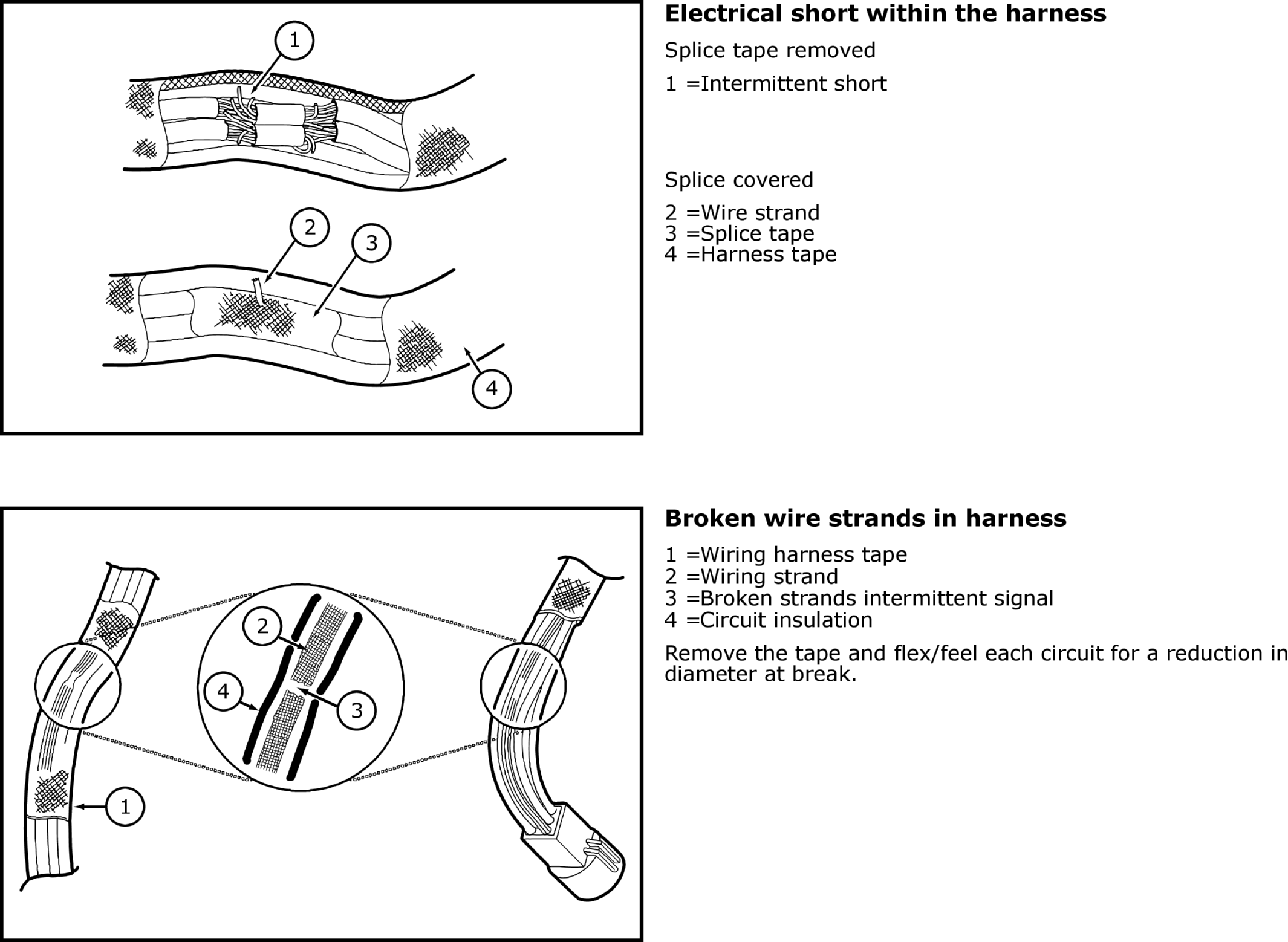

GFDW12277Courtesy of FORD MOTOR COMPANY

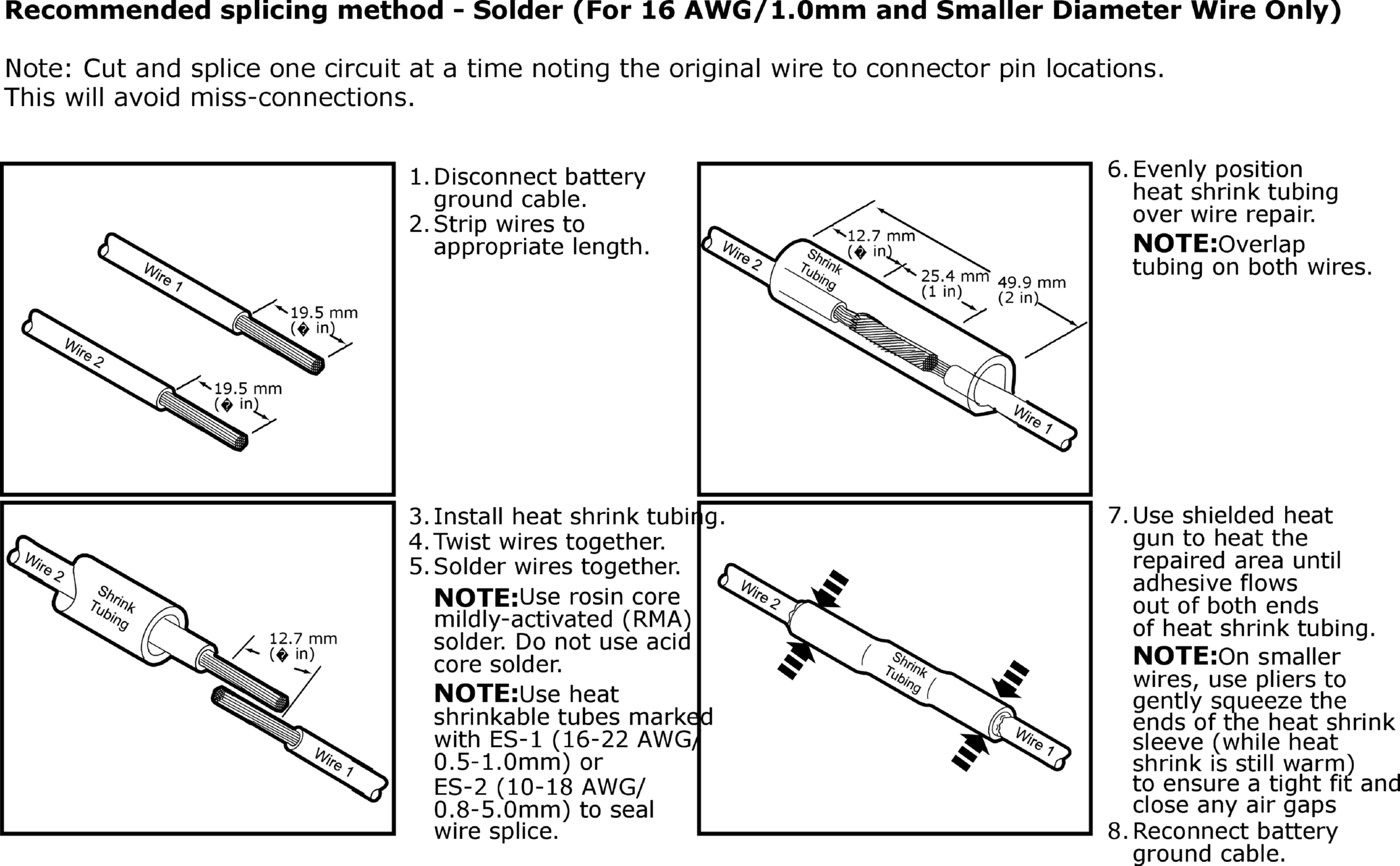

GFDW12278Courtesy of FORD MOTOR COMPANY

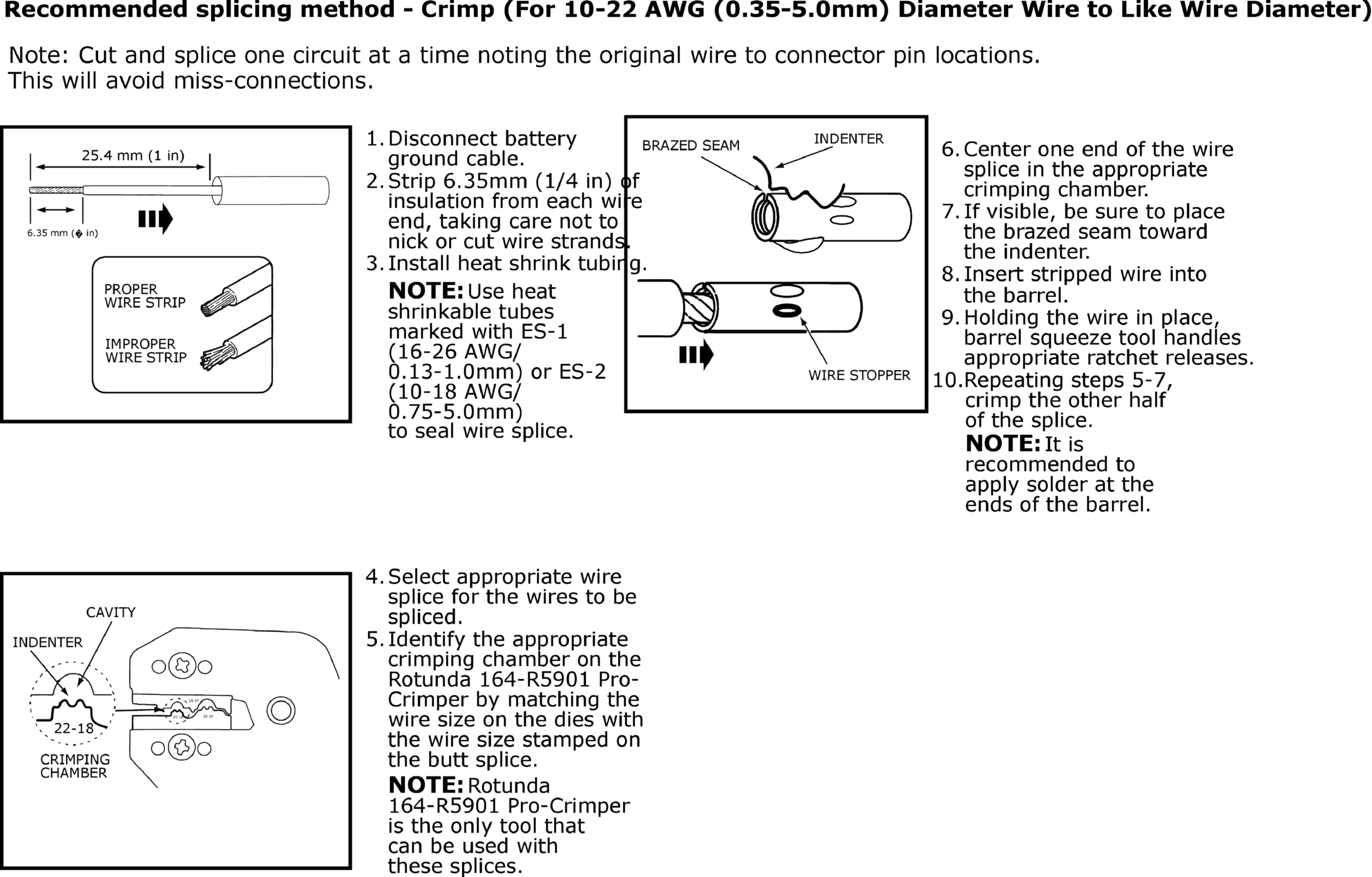

GFDW12279Courtesy of FORD MOTOR COMPANY

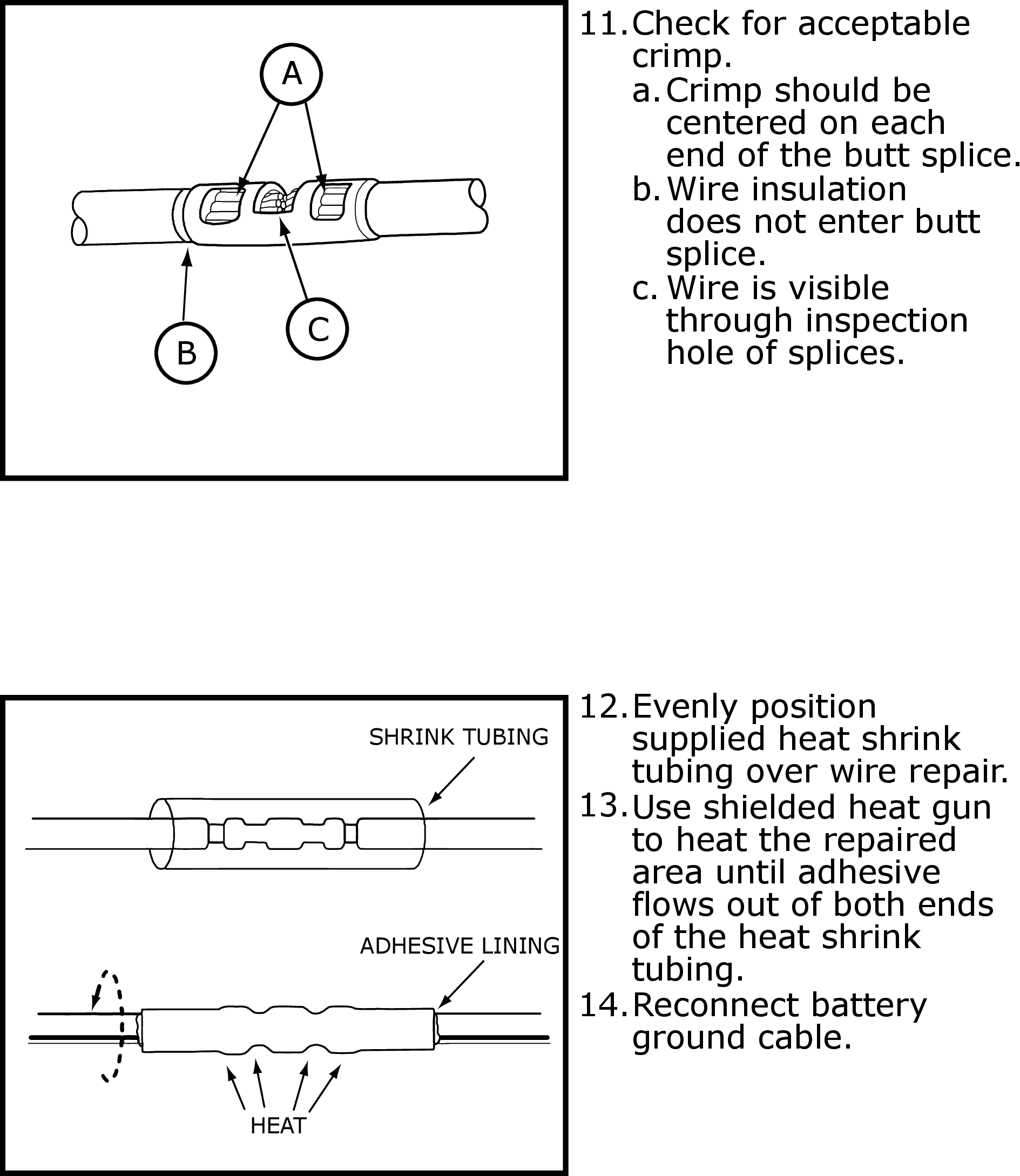

GFDW12280Courtesy of FORD MOTOR COMPANY

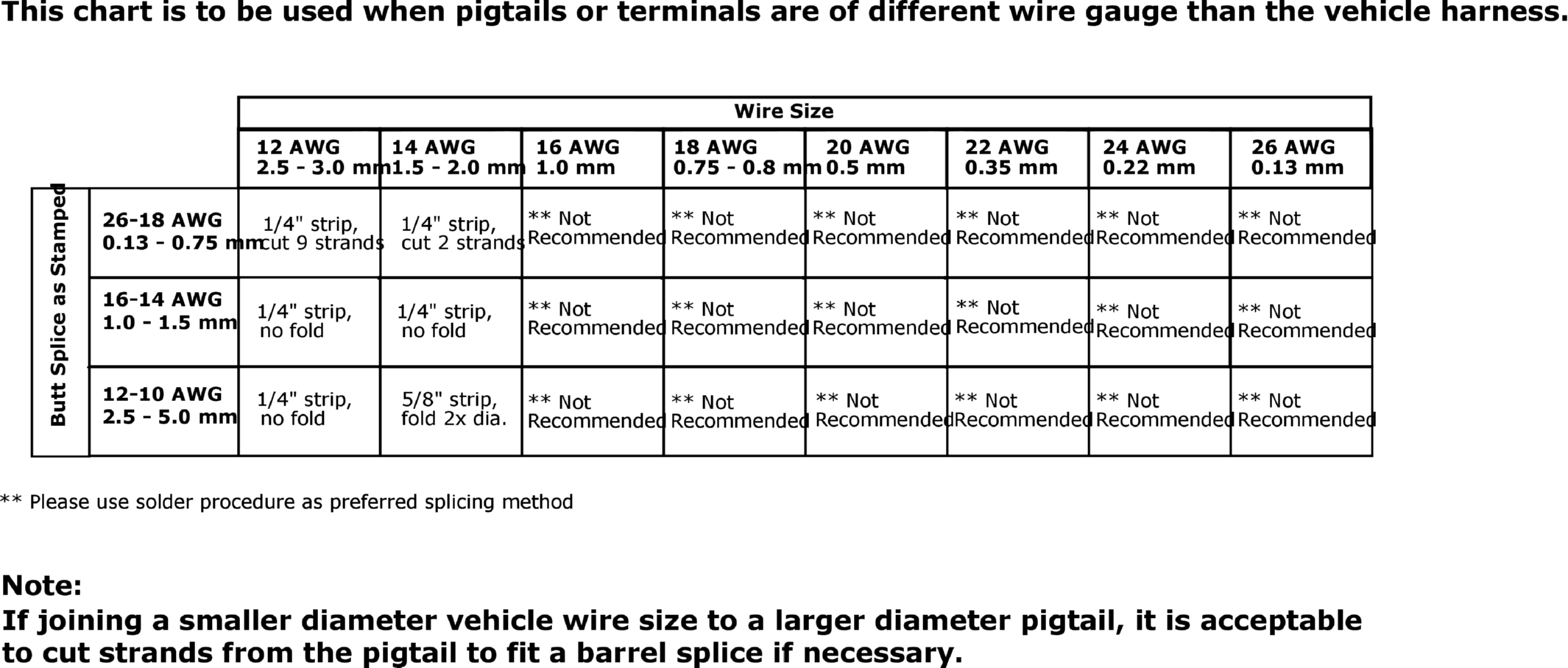

GFDW12281Courtesy of FORD MOTOR COMPANY
