All-Wheel Drive (AWD) Module: Installation

1. 1.

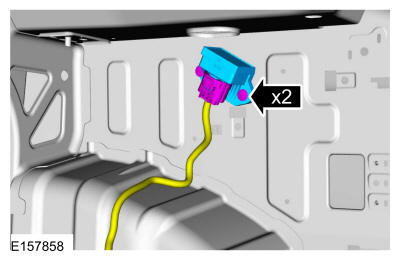

   • Install the AWD module and the push pin fasteners.
   • Connect the AWD module electrical connector.

Courtesy of FORD MOTOR COMPANY

1. 2.

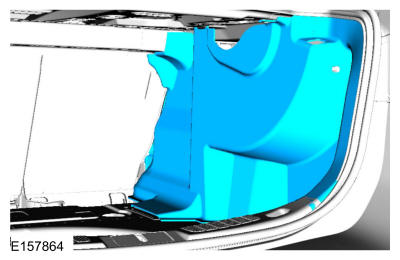

   Install the loadspace trim panel.

Courtesy of FORD MOTOR COMPANY
