Powertrain Drivetrain Mount Neutralizing

Powertrain/Drivetrain Mount Neutralizing

Adjustment

• 1.

  With the vehicle in NEUTRAL, position it on a hoist. REFER to: Jacking and Lifting - Overview

• 2.

  Remove the battery tray. REFER to: Battery Tray

• 3.

  Loosen, but do not remove, the 2 engine mount bolts.

Courtesy of FORD MOTOR COMPANY

• 4.

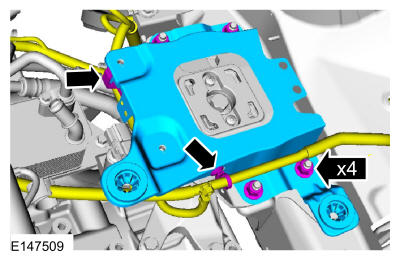

  Remove the bolts, the pin-type retainers and the engine mount reinforcement bracket.

Courtesy of FORD MOTOR COMPANY

• 5.

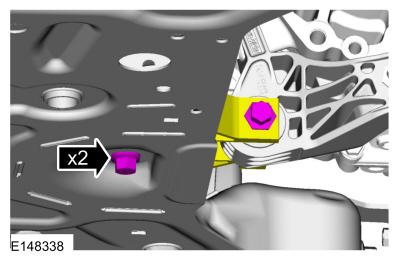

  Loosen, but do not remove the 2 roll restrictor bolts. Verify that the roll restrictor is loose.

Courtesy of FORD MOTOR COMPANY

• 6.


  NOTE: Do not twist or strain the powertrain/drivetrain mounts or damage to the mounts may occur.

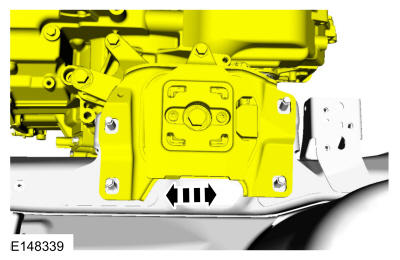

  Center the engine and transmission mounts to the center of the slots in the mount brackets.

Courtesy of FORD MOTOR COMPANY

• 7.

  Tighten the 2 engine mount bolts.

  Torque:

  59 lb.ft (80 Nm)

Courtesy of FORD MOTOR COMPANY

• 8.

  Install the engine mount reinforcement bracket, the pin-type retainers and the nuts.

  Torque:

  35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

• 9.


  NOTE: Rock the powertrain/drivetrain assembly forward and rearward to ensure the roll restrictor is not bound.

  Tighten the 2 roll restrictor bolts.

  Torque:

  92 lb.ft (125 Nm)

Courtesy of FORD MOTOR COMPANY

• 10.

  Install the battery tray. REFER to: Battery Tray

• 11.

  Test the system for normal operation.
