Main Control Valve Body: Installation
- 1.

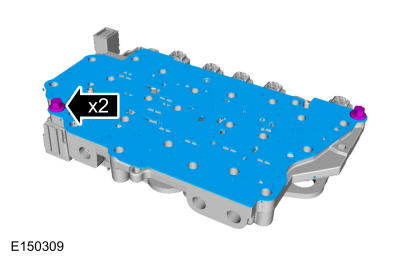

Install the new separator plate and the separator plate-to-solenoid body bolts.Torque
: 89 lb.in (10 Nm)
- 2.

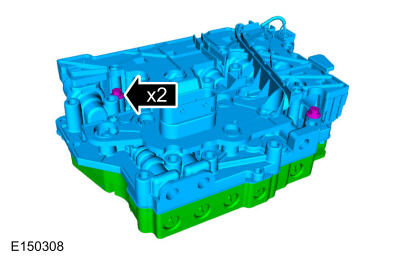

Install the solenoid body onto the main control valve body. Install the solenoid body-to-valve body bolts.Torque
: 89 lb.in (10 Nm)

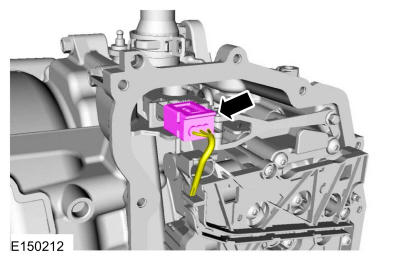

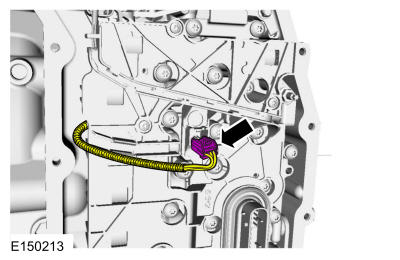

- 3.NOTE: Position the OSS and TR sensor wiring harnesses aside.

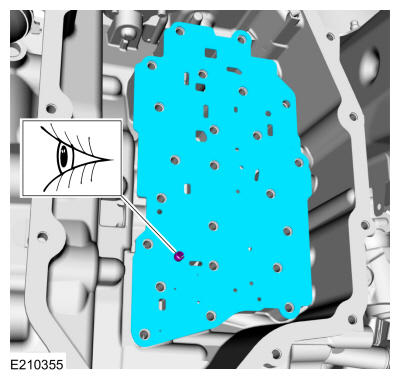

Install the new main control-to-transmission case separator plate.
- 4.NOTE: Be sure that the manual lever pin (part of the TR sensor) is correctly installed in the manual valve.

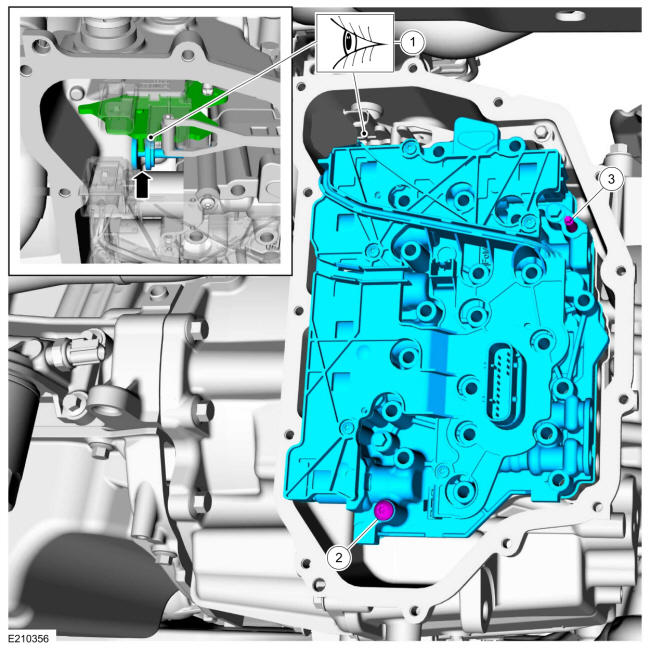

Install the main control assembly.
- 1.
Align the manual lever pin (part of the TR sensor) with the manual valve.
- 2.
Install a long main control-to-transmission case bolt hand-tight.
- 3.
Install the main control-to-case stud.Torque
: 89 lb.in (10 Nm)
- 1.
- 7.

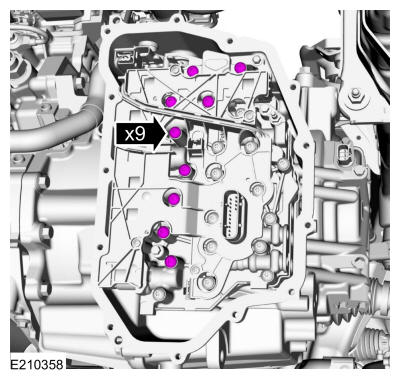

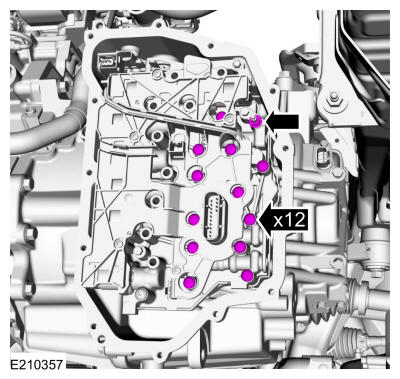

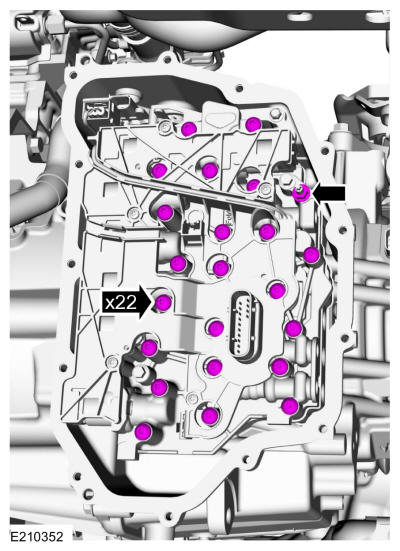

Tighten the main control-to-transmission case bolts and nut in a crisscross pattern.Torque
: 89 lb.in (10 Nm)
- 8.NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.

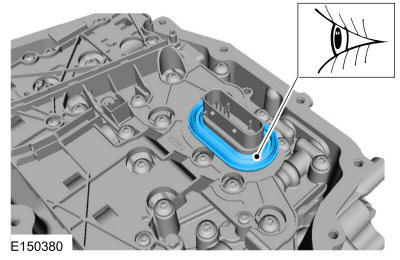

Install the main control-to-cover seal.
- 11.
Install the main control cover. REFER to: Main Control Cover
- 12.NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.
If a new solenoid body is installed, the solenoid body strategy will need to be updated. REFER to: Transmission Strategy Download
