Anti-Lock Brake System (ABS) Module: Notes

NOTE: For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD .

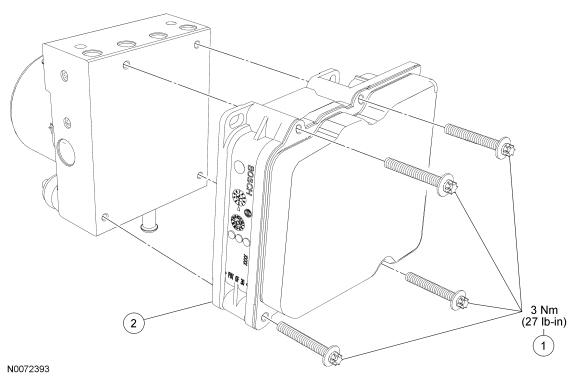

Fig 1: Anti-Lock Brake System (ABS) Module With Torque Specifications

Courtesy of FORD MOTOR COMPANY

Item	Part Number	Description
1	13254806	ABS module screws (4 required)
2	2C219	ABS module
