Powertrain Control Module (PCM): Removal

1.

NOTE: This step is only necessary when installing a new component.

Download the module information to the diagnostic tool using the Programmable Modules Installation routine. Use the General Equipment: Ford Diagnostic Equipment

2.

Disconnect the battery connections. Refer to: Battery Disconnect and Connect .

3.

Remove the fender splash shield. Refer to: Fender Splash Shield .

4.

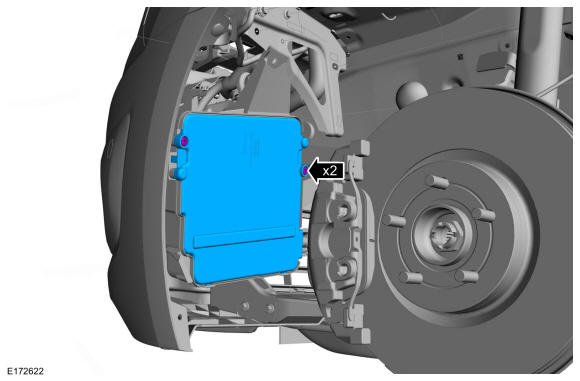

Remove the retainers and the PCM housing cover.

GFD152220

Courtesy of FORD MOTOR COMPANY

5.

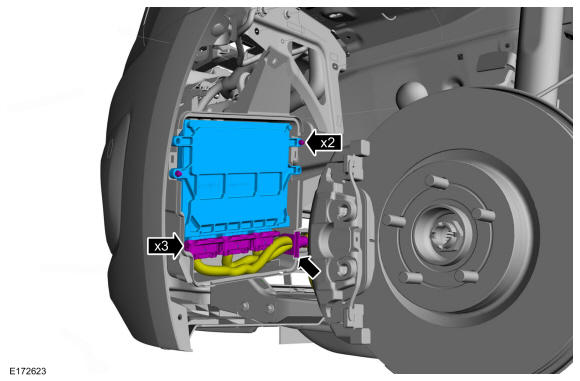

- Disconnect the retainers and the PCM electrical connectors.
- Remove the retainers and the PCM.

GFD152221

Courtesy of FORD MOTOR COMPANY
