Selector Lever Cable: Installation

  1. 1.

    NOTE: Gearshift cables must not be kinked or bent.

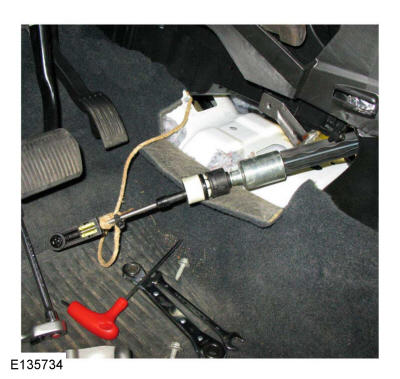

    Attach a pull cord to the selector lever cable. Use the General Equipment: Draw Cord Use the General Equipment: Adhesive Tape

GFD150342Courtesy of FORD MOTOR COMPANY

  1. 2.

    To install, reverse the removal procedure.

  1. 3.

    Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment .
