Component Location Views

GFDW88354Courtesy of FORD MOTOR COMPANY

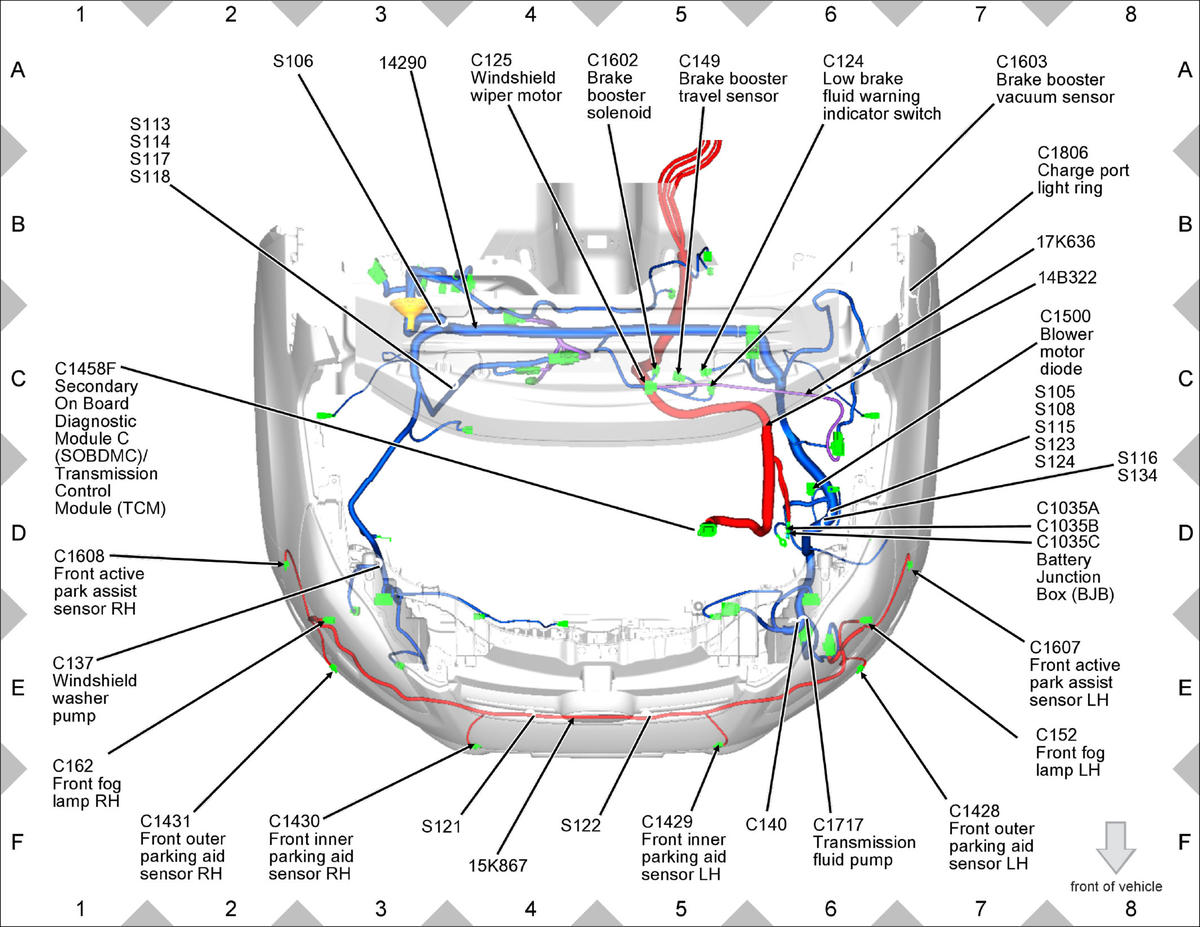

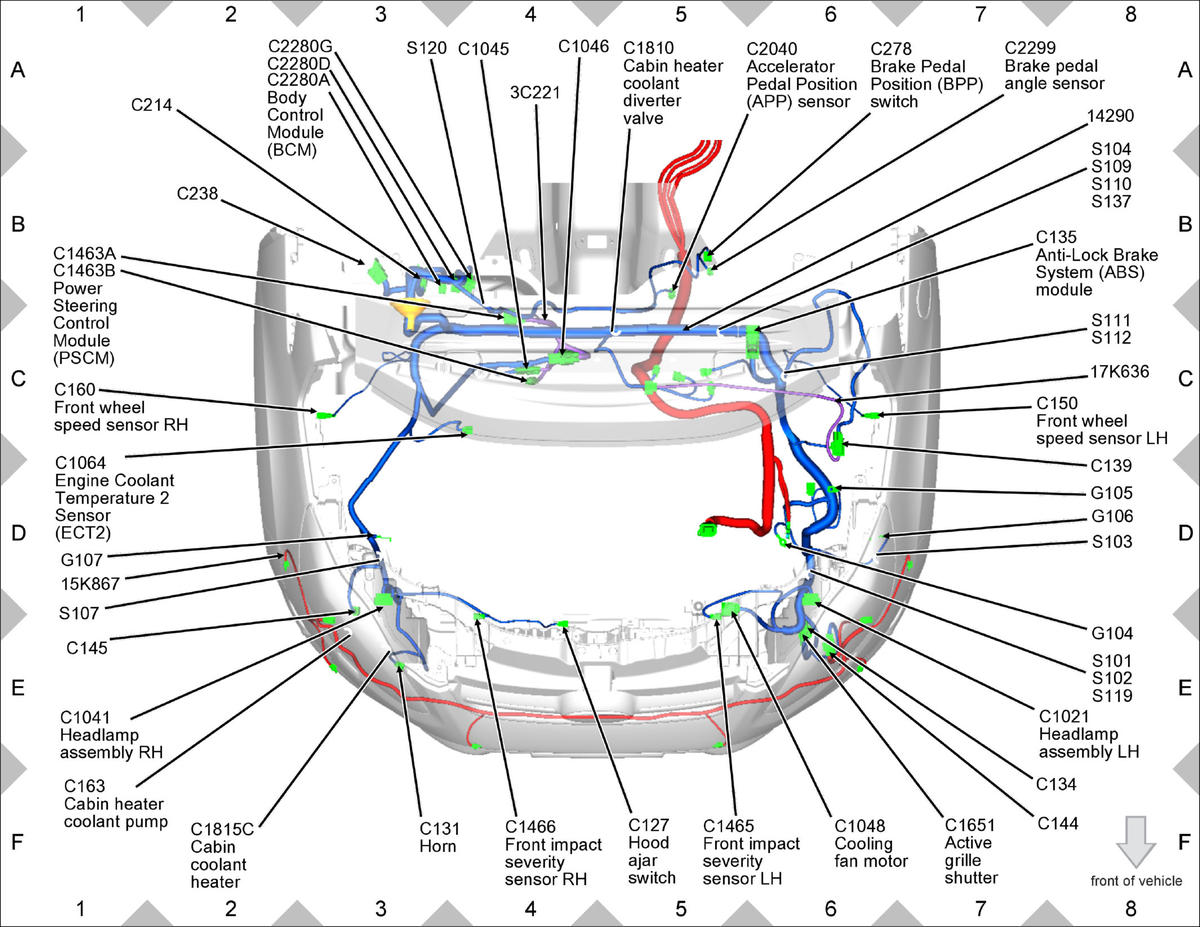

GFDW88355Courtesy of FORD MOTOR COMPANY

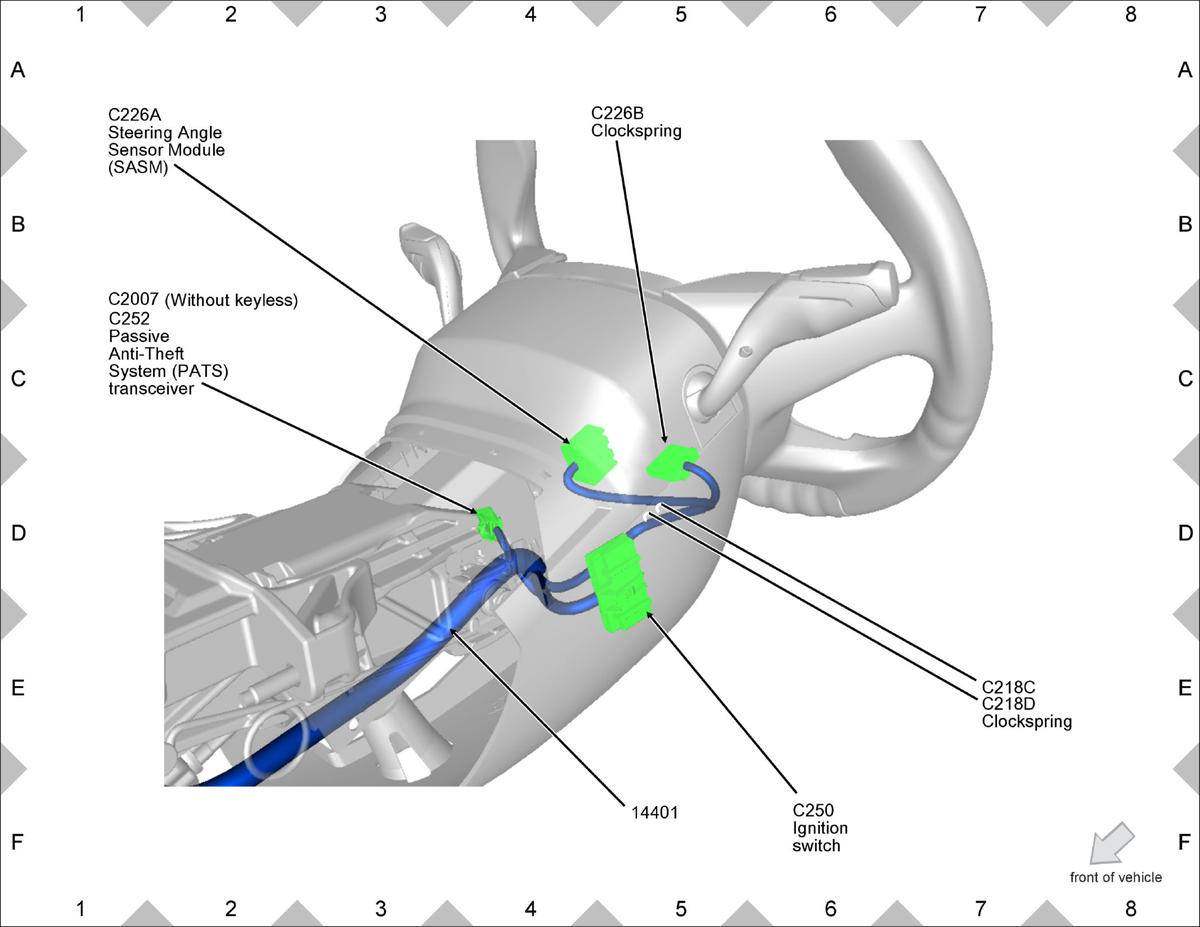

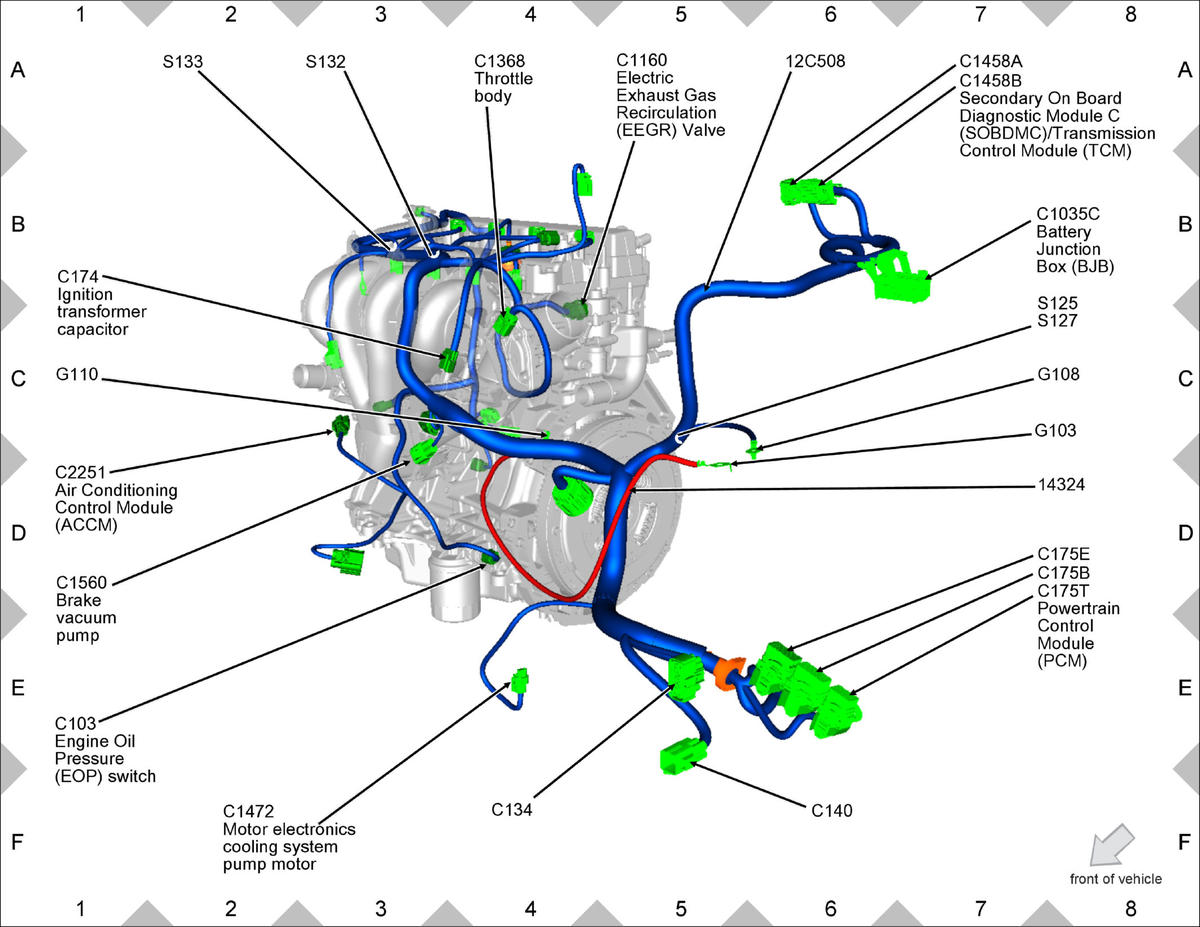

GFDW88356Courtesy of FORD MOTOR COMPANY

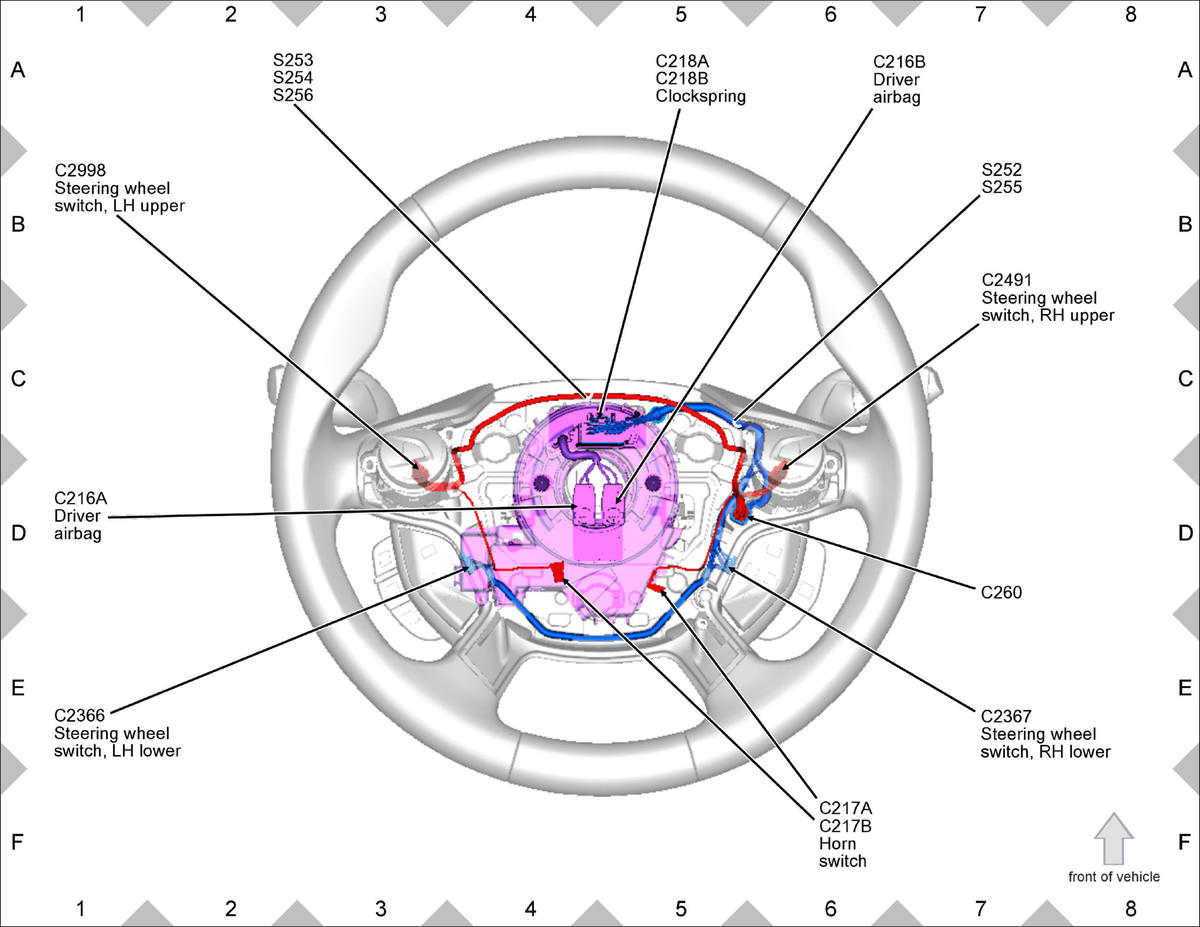

GFDW88357Courtesy of FORD MOTOR COMPANY

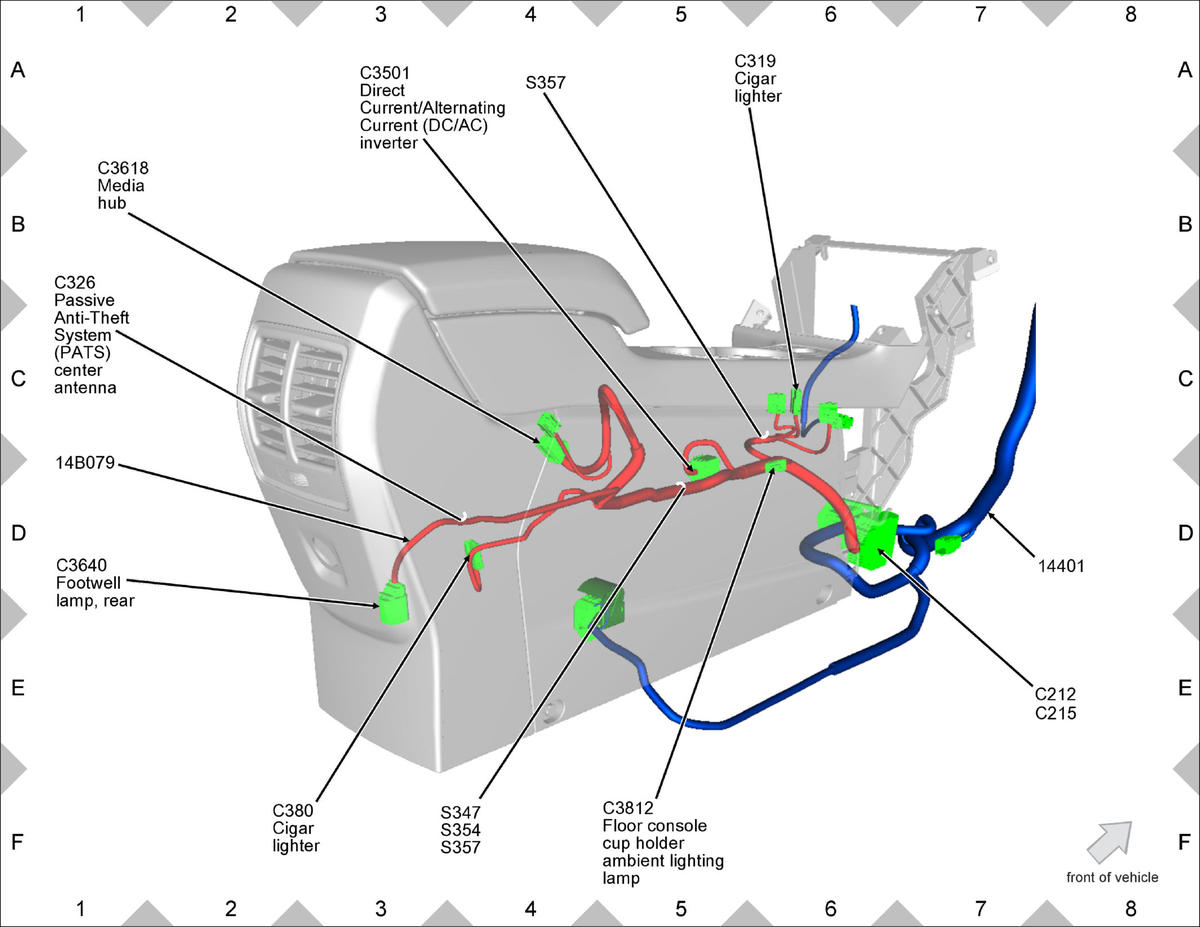

GFDW88358Courtesy of FORD MOTOR COMPANY

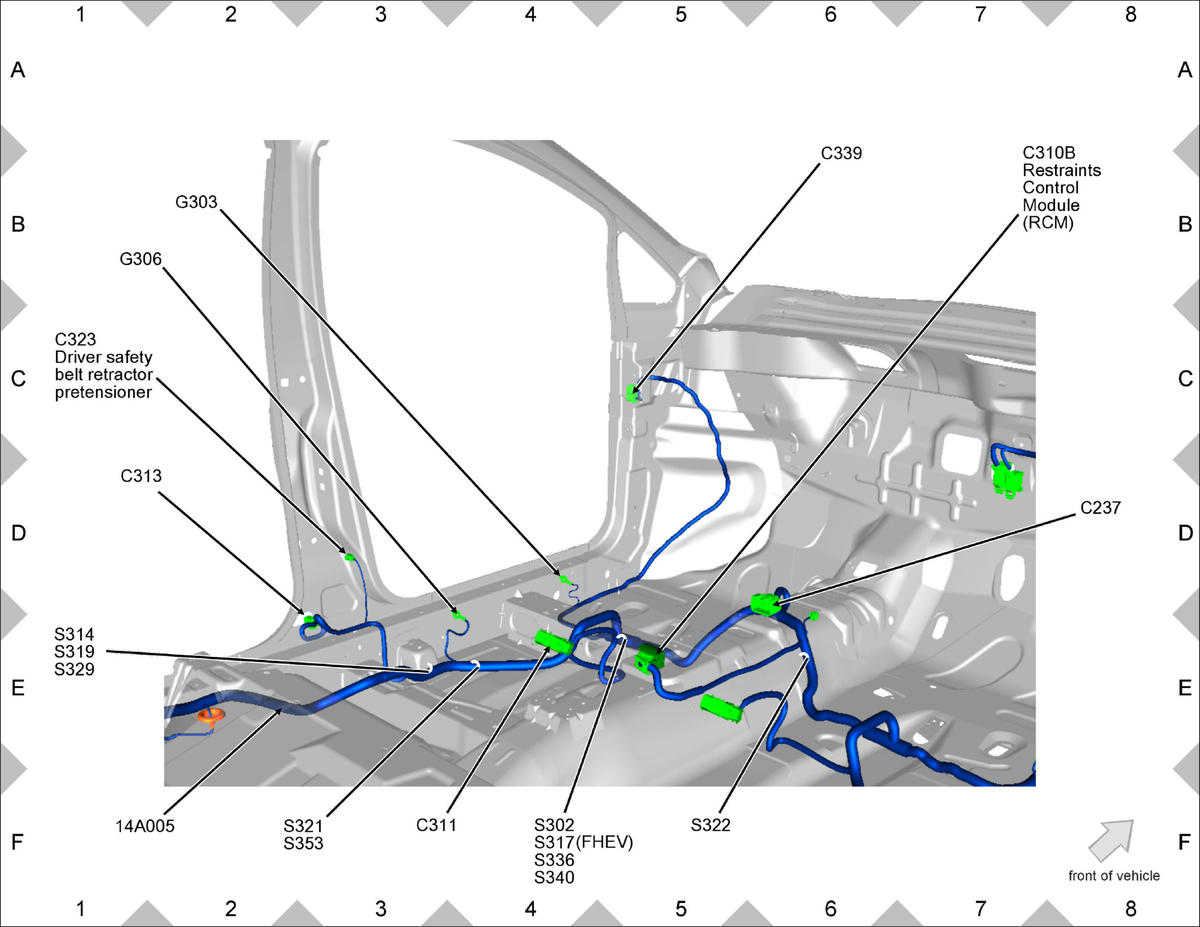

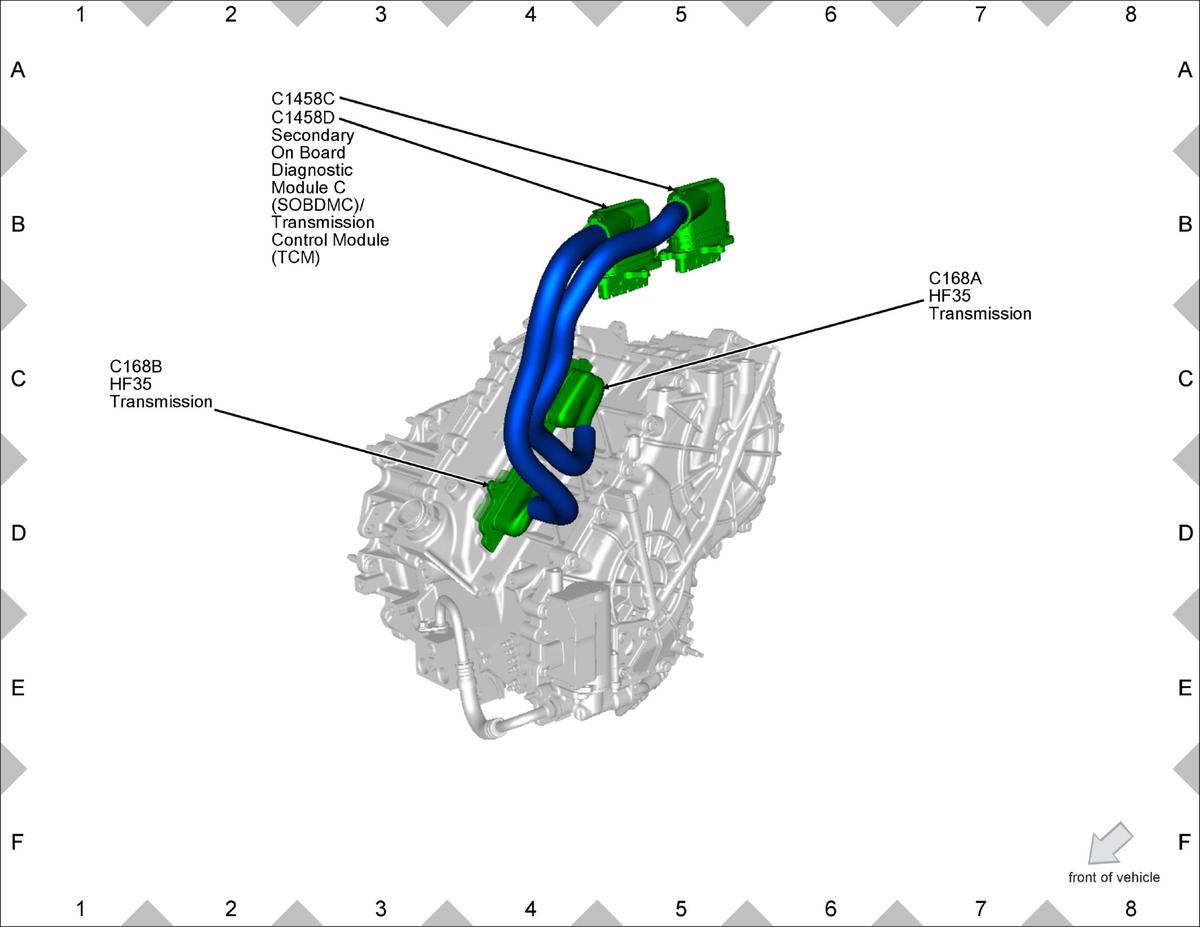

GFDW88359Courtesy of FORD MOTOR COMPANY
GFDW88360Courtesy of FORD MOTOR COMPANY

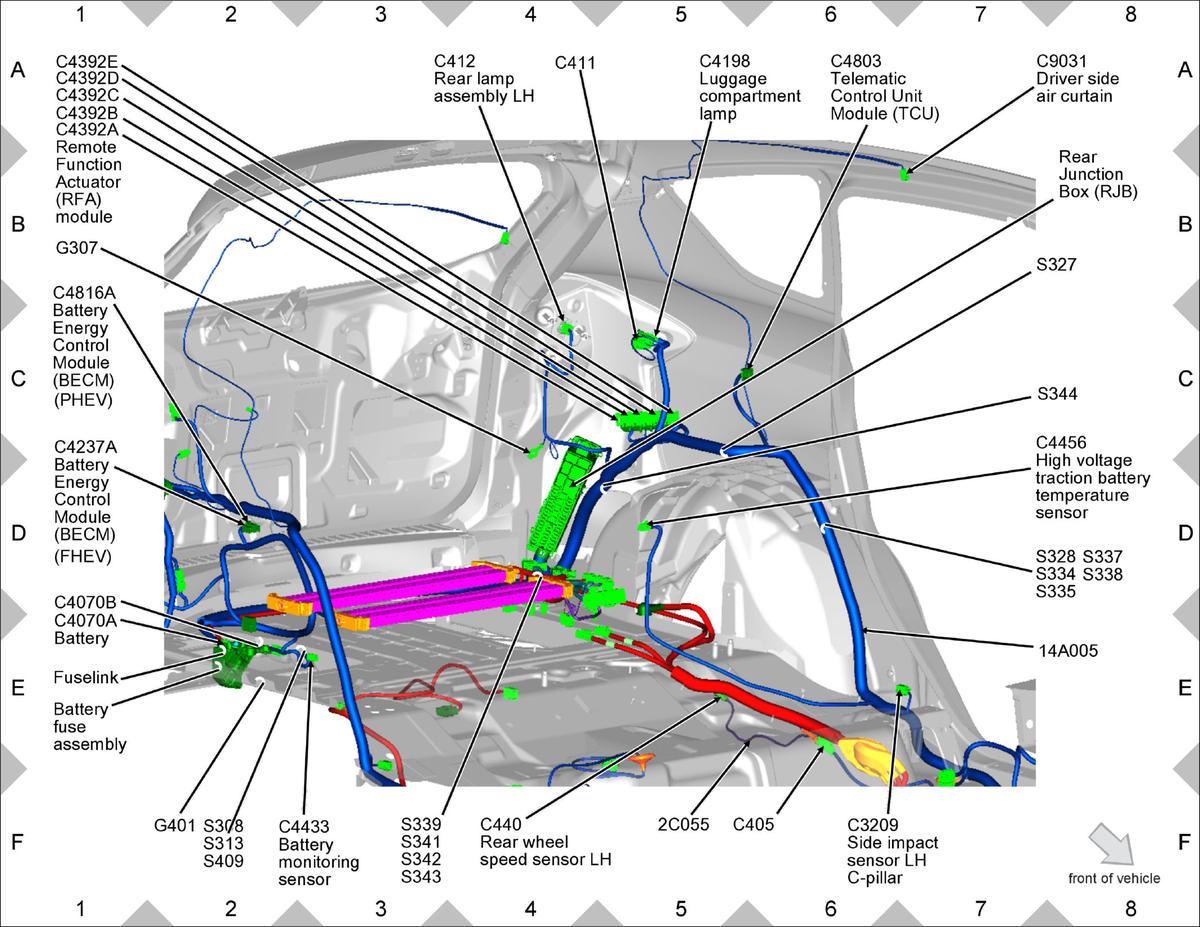

GFDW88361Courtesy of FORD MOTOR COMPANY
GFDW88362Courtesy of FORD MOTOR COMPANY

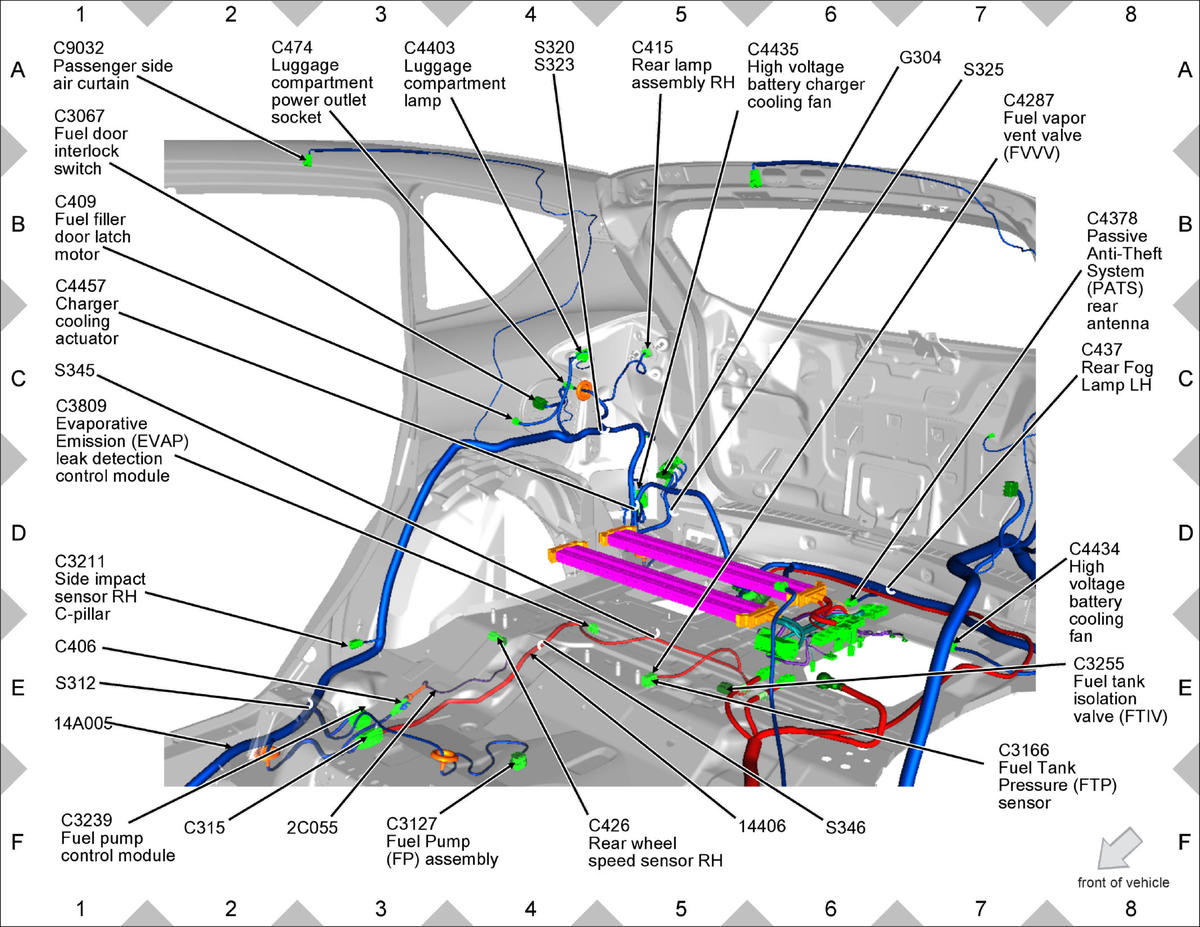

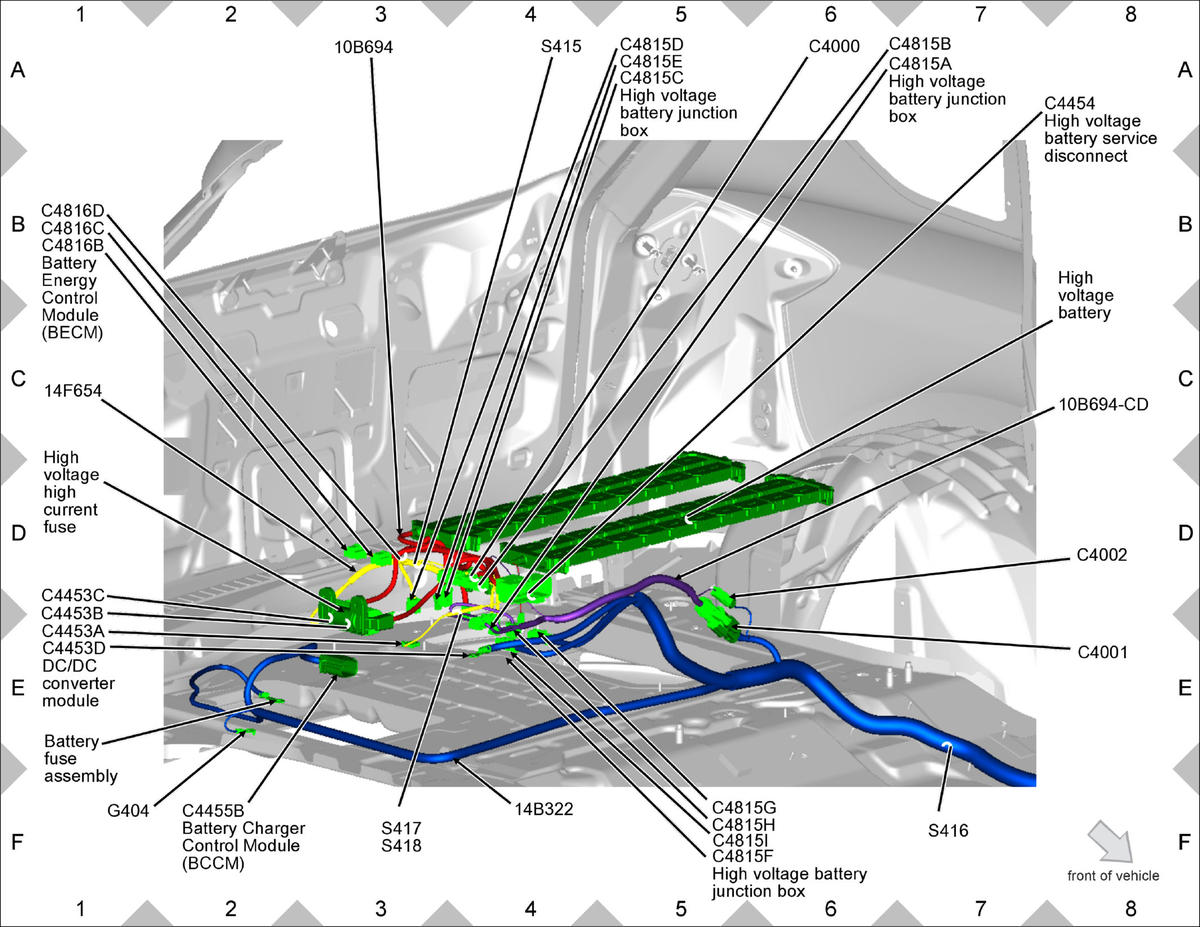

GFDW88363Courtesy of FORD MOTOR COMPANY

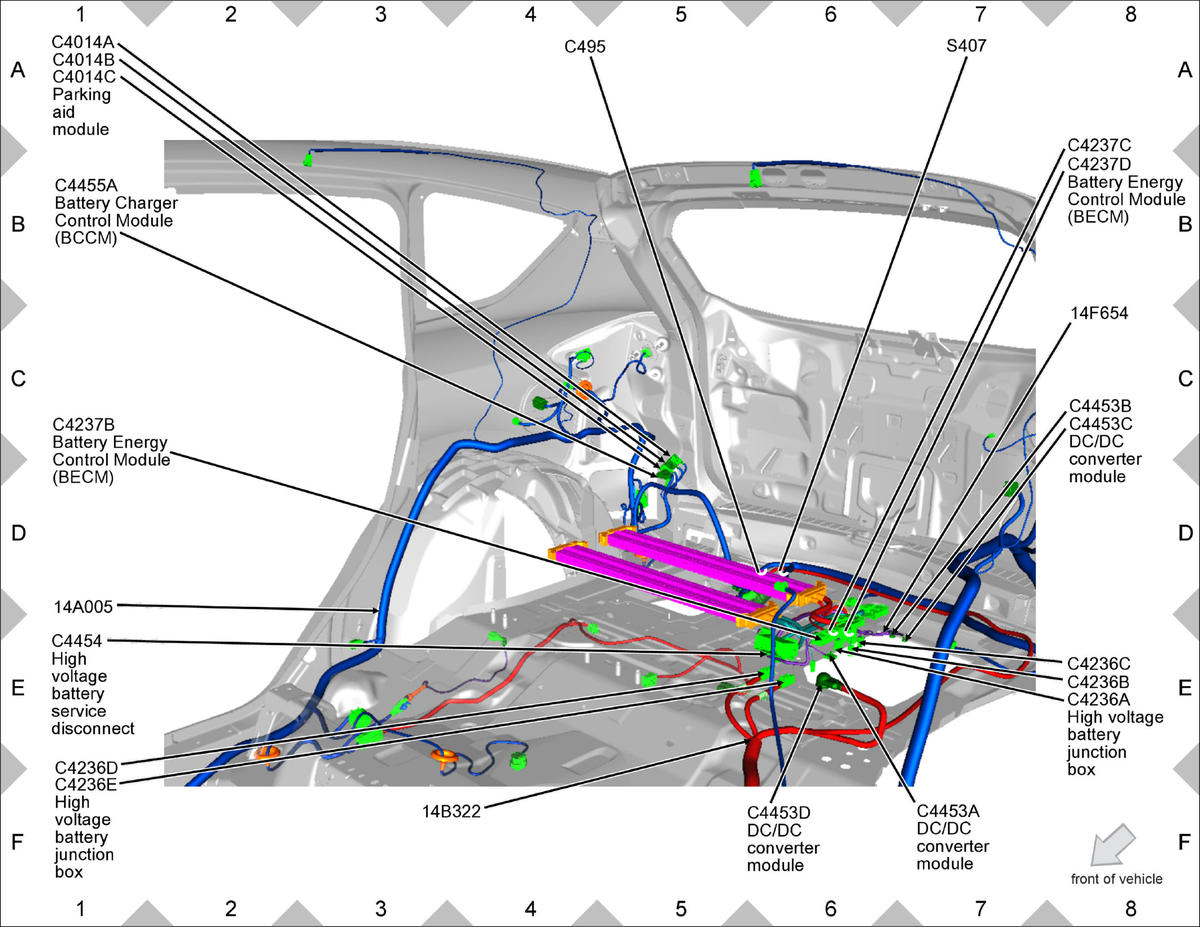

GFDW88364Courtesy of FORD MOTOR COMPANY

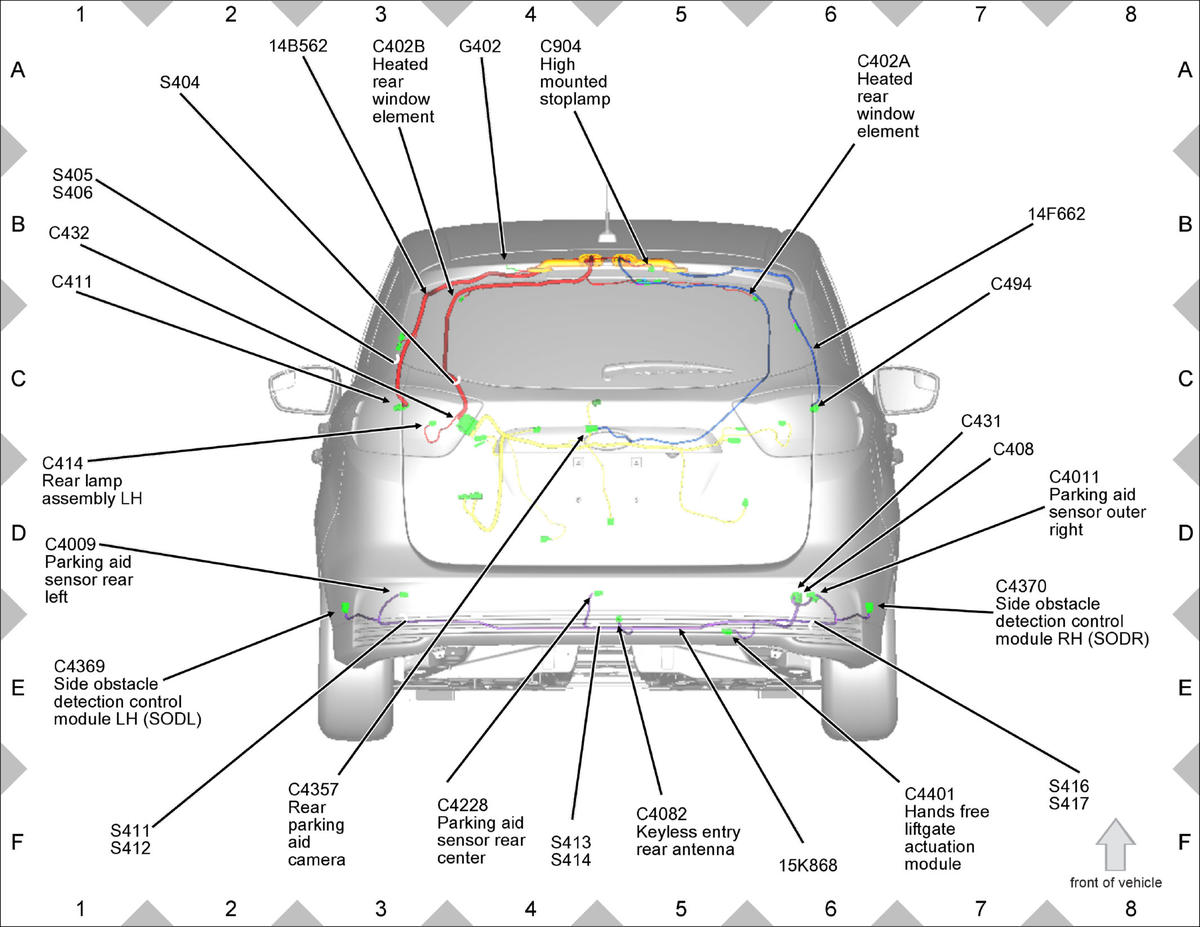

GFDW88365Courtesy of FORD MOTOR COMPANY

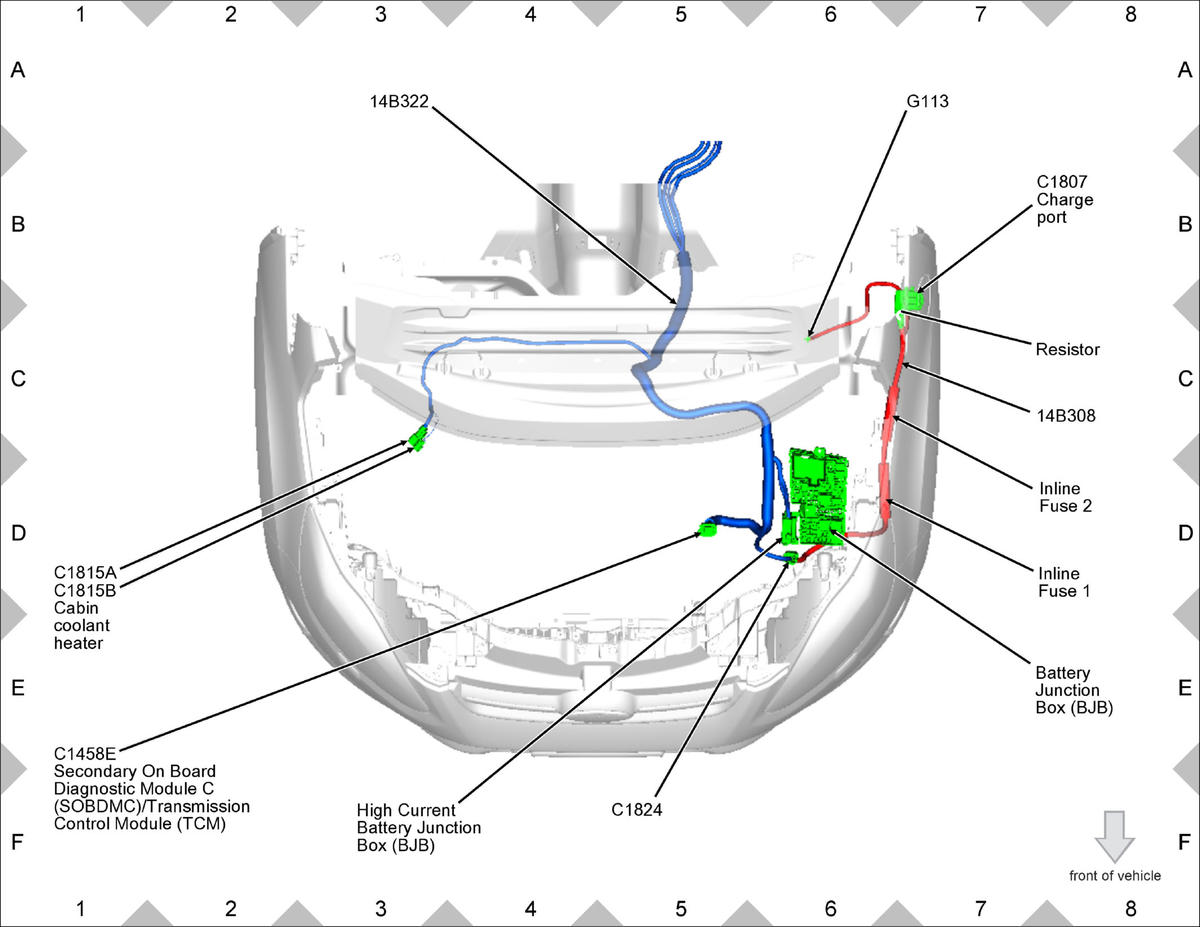

GFDW88366Courtesy of FORD MOTOR COMPANY
GFDW88367Courtesy of FORD MOTOR COMPANY

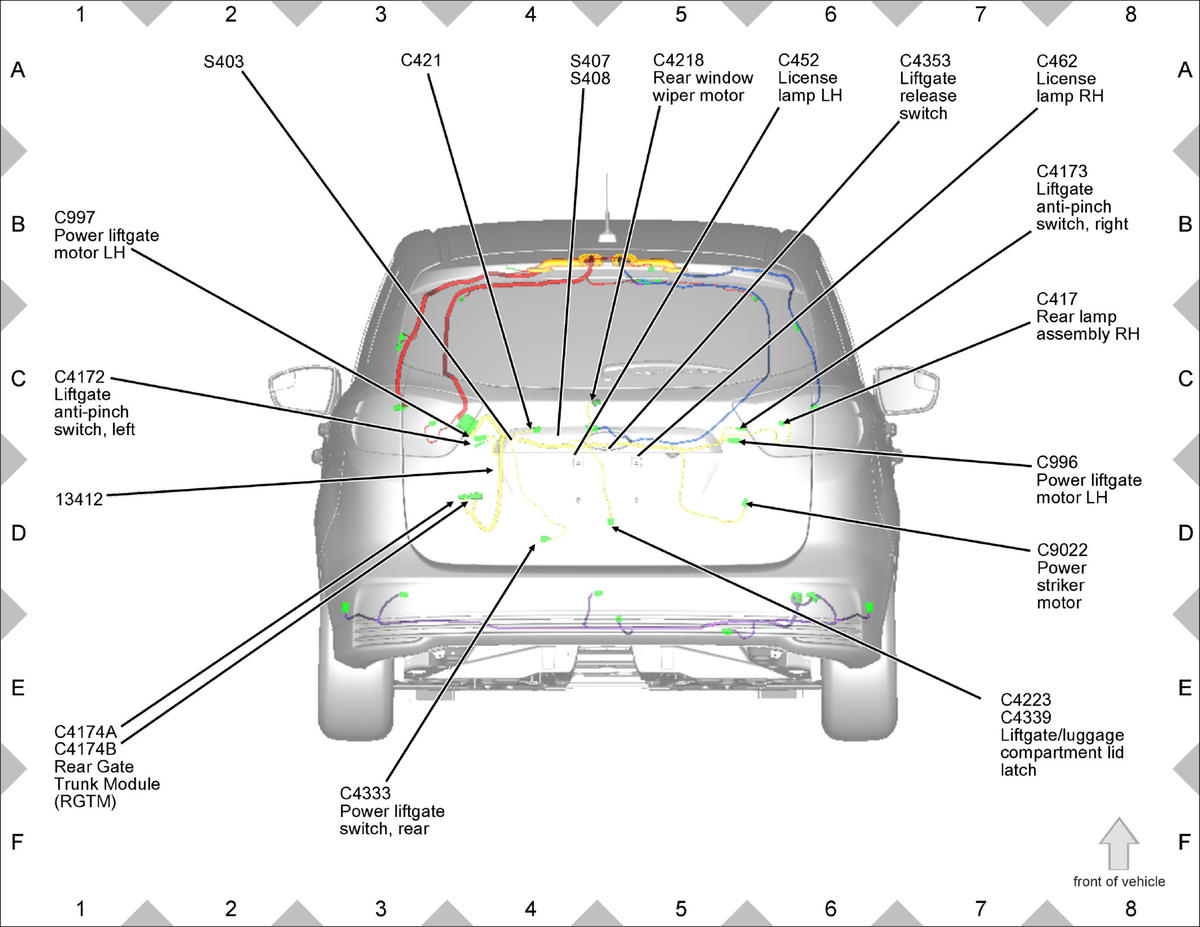

GFDW88368Courtesy of FORD MOTOR COMPANY

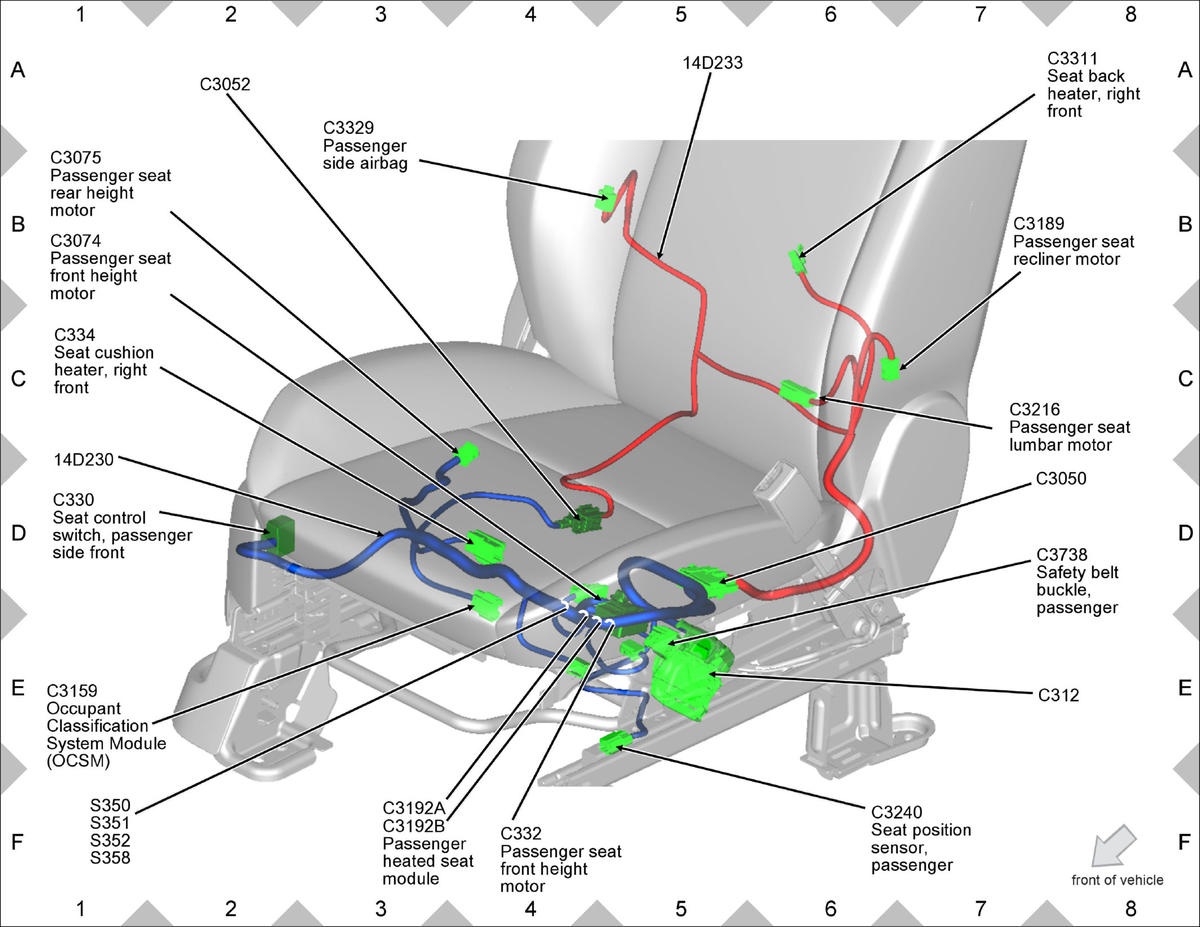

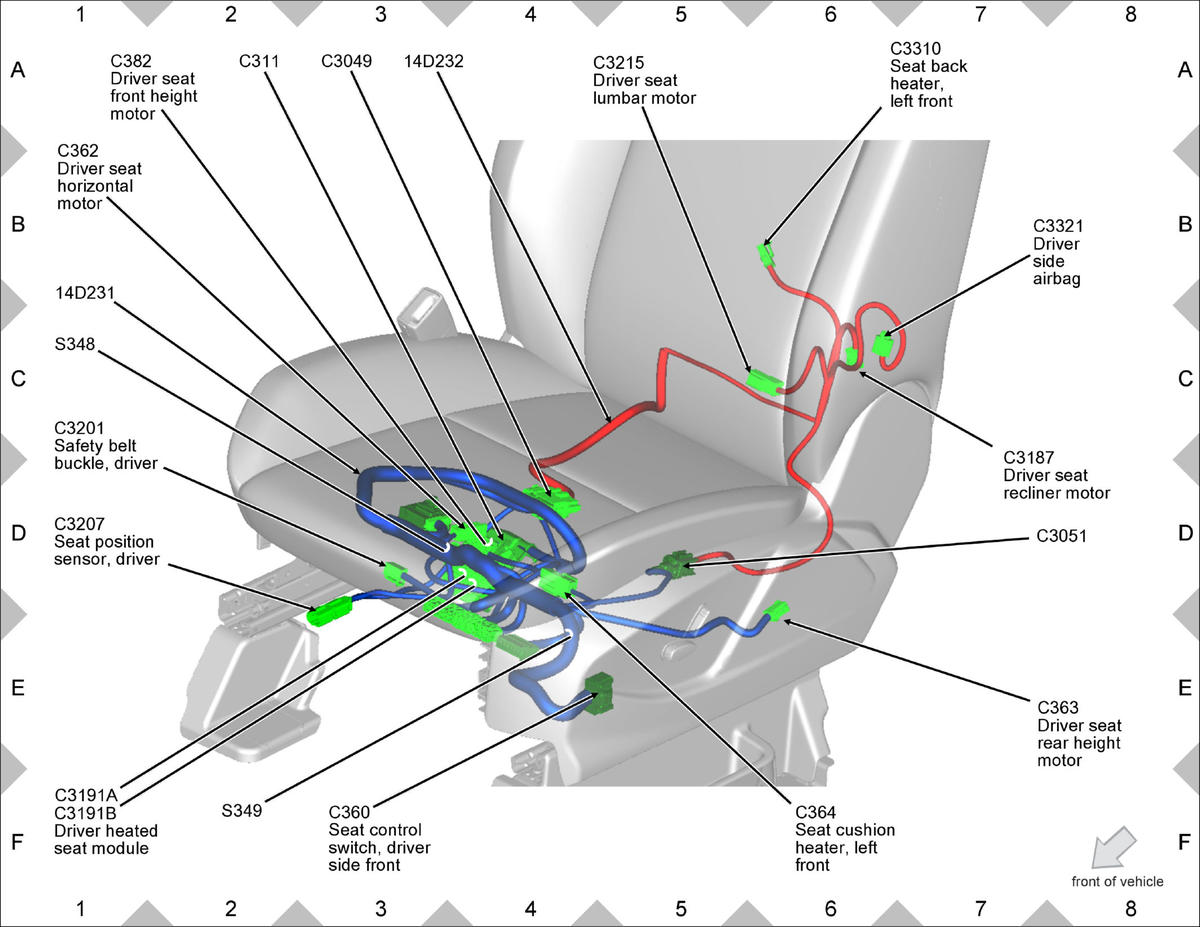

GFDW88369Courtesy of FORD MOTOR COMPANY
GFDW88370Courtesy of FORD MOTOR COMPANY

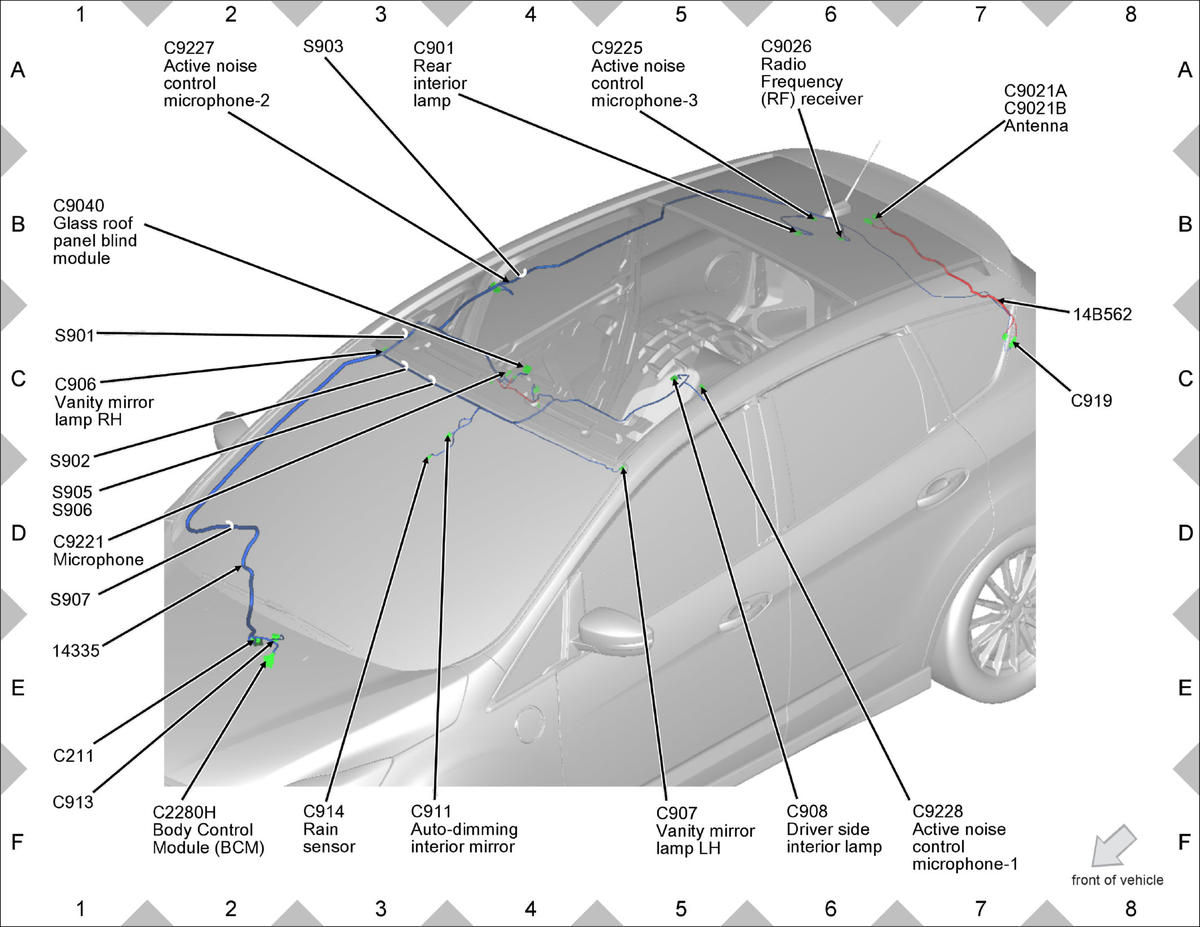

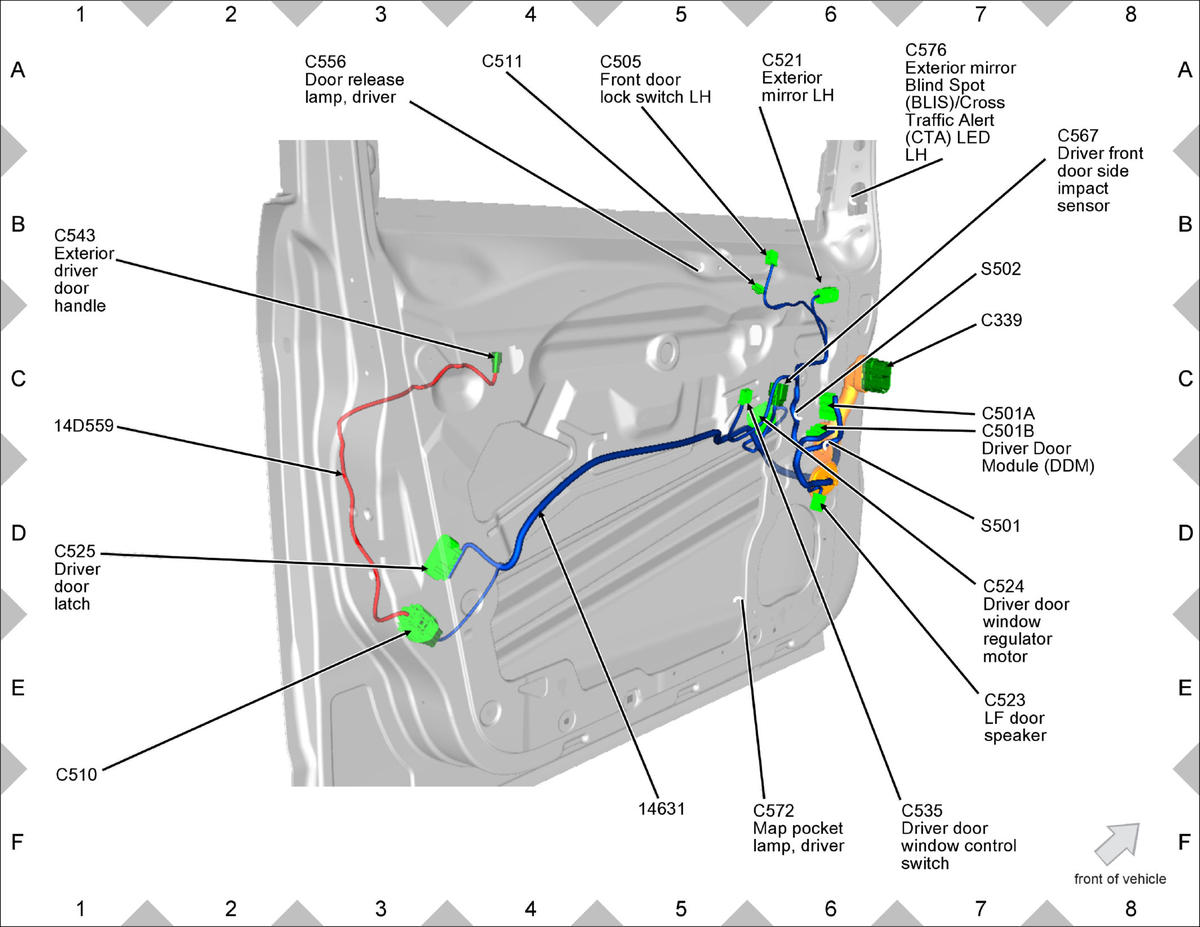

GFDW88371Courtesy of FORD MOTOR COMPANY

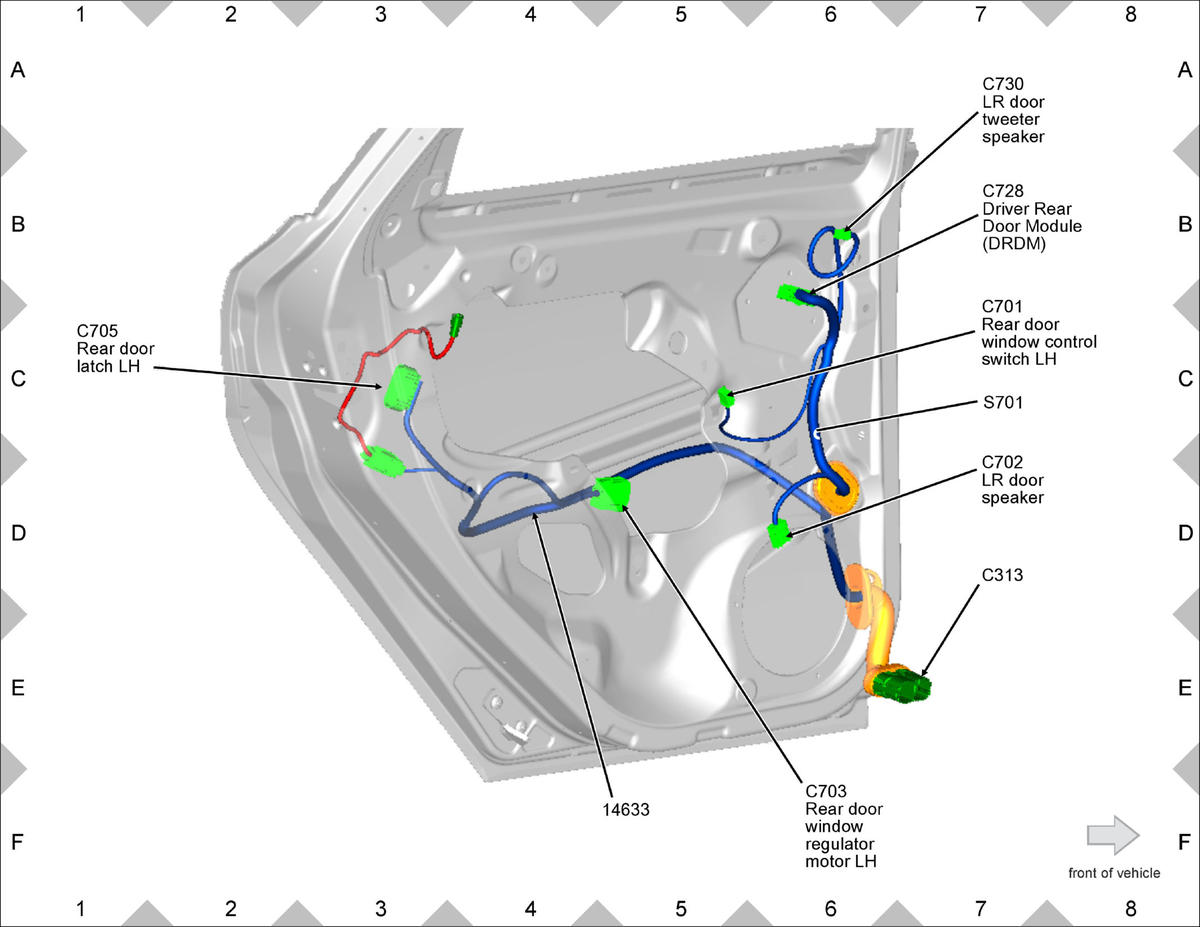

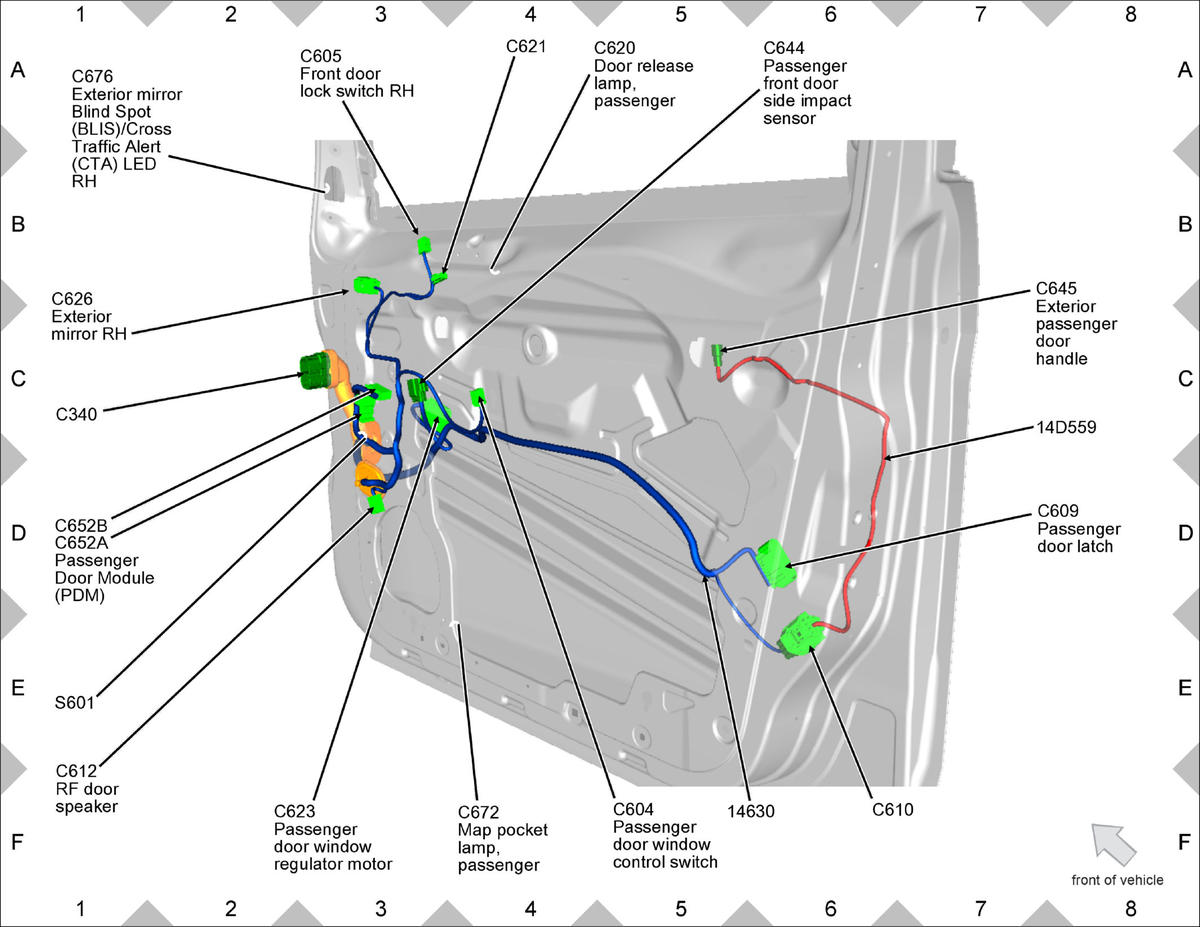

GFDW88372Courtesy of FORD MOTOR COMPANY

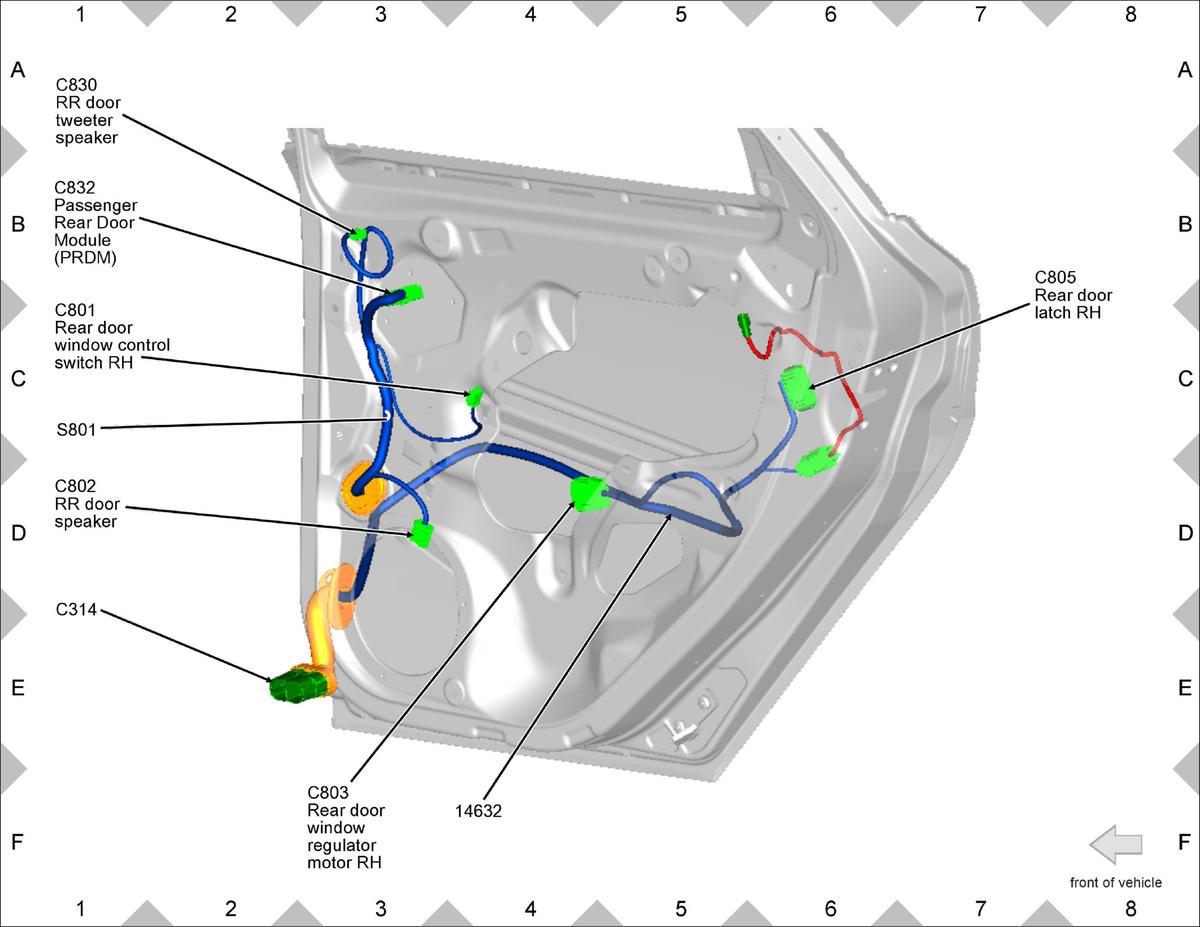

GFDW88373Courtesy of FORD MOTOR COMPANY
GFDW88374Courtesy of FORD MOTOR COMPANY

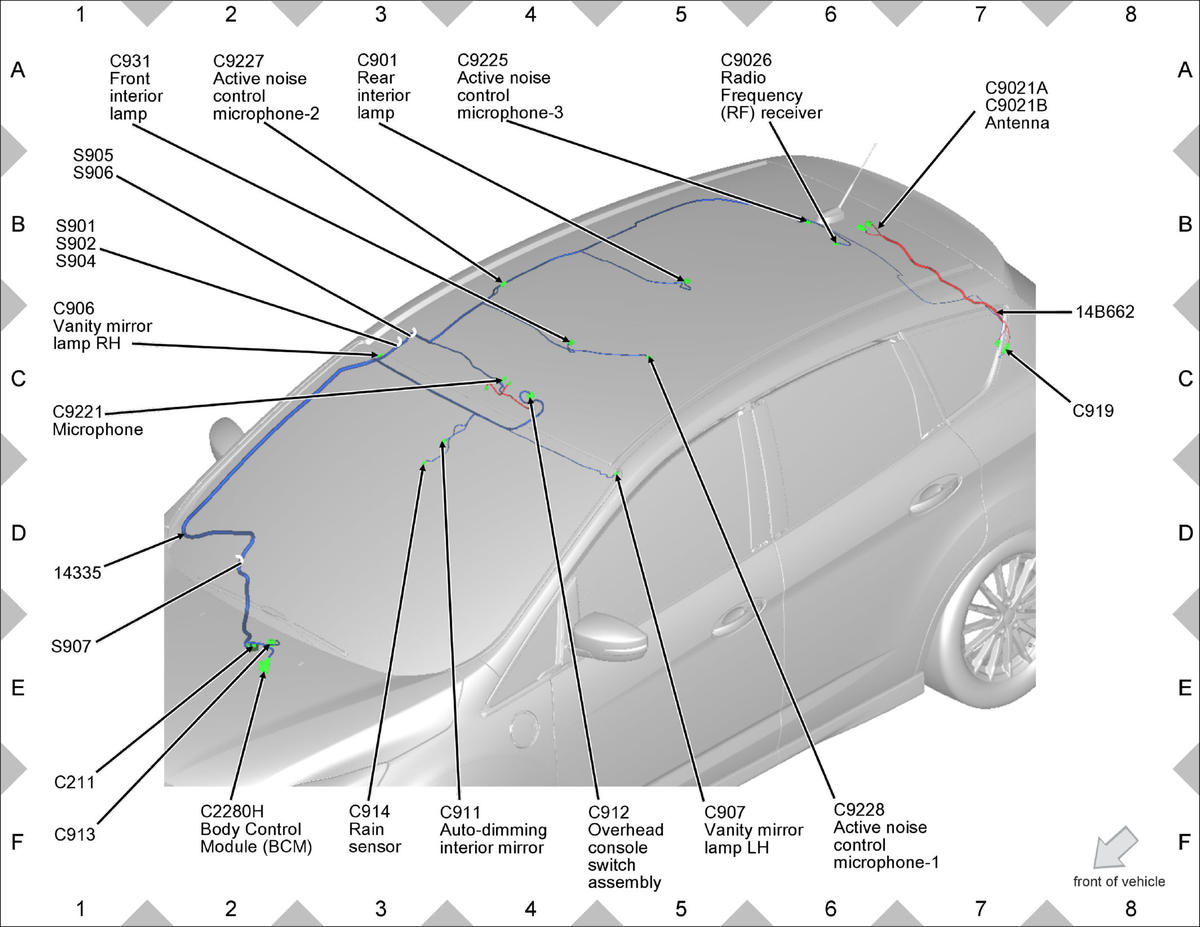

GFDW88375Courtesy of FORD MOTOR COMPANY
GFDW88376Courtesy of FORD MOTOR COMPANY

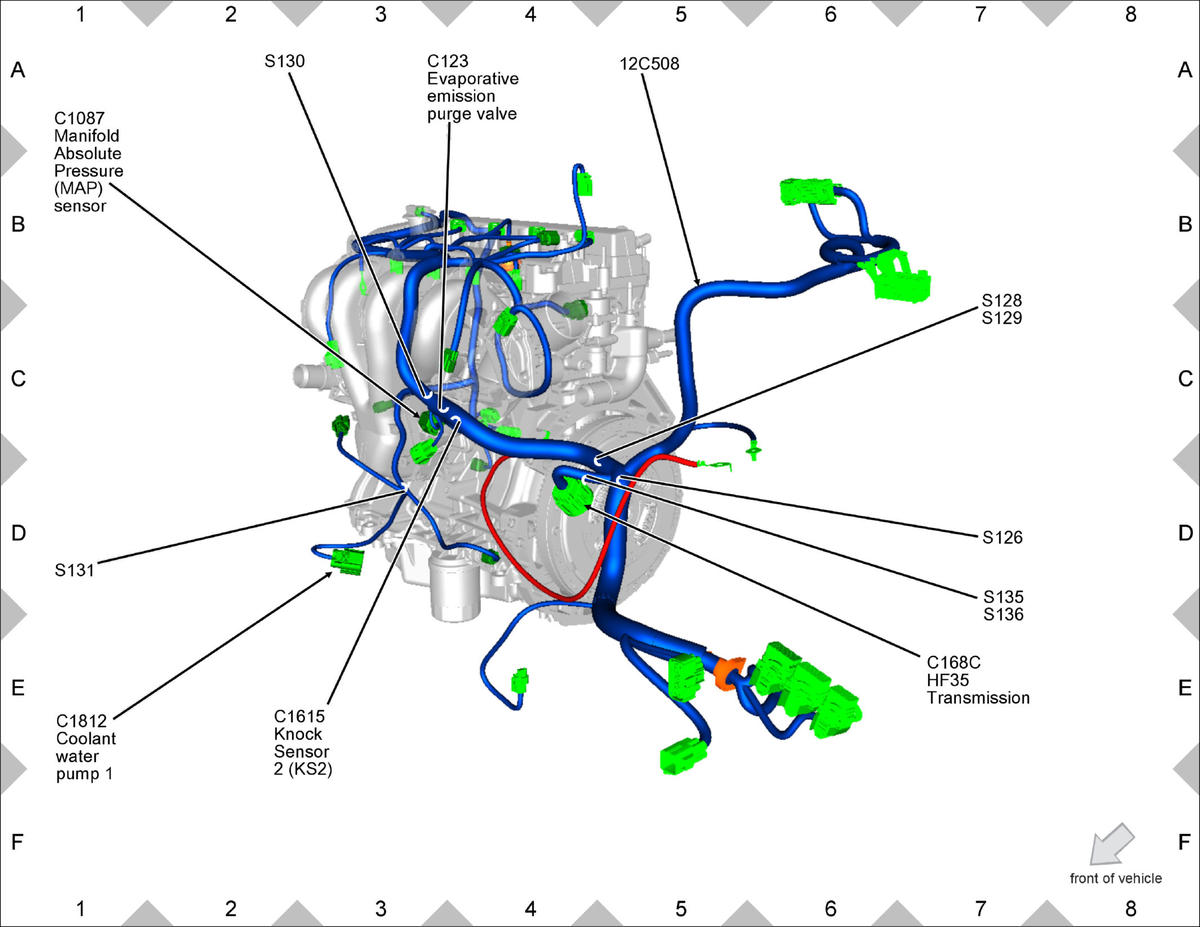

GFDW88377Courtesy of FORD MOTOR COMPANY

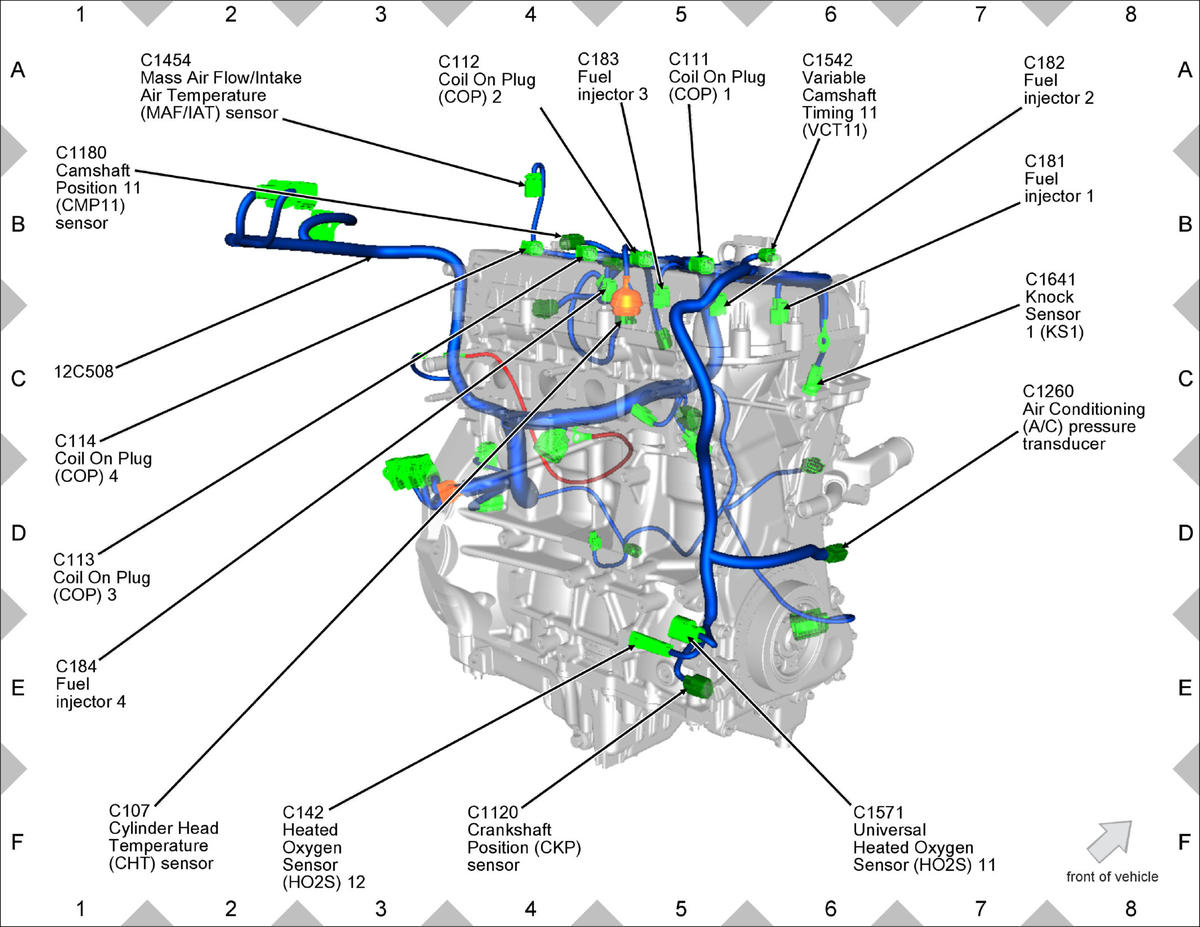

GFDW88378Courtesy of FORD MOTOR COMPANY
GFDW88379Courtesy of FORD MOTOR COMPANY

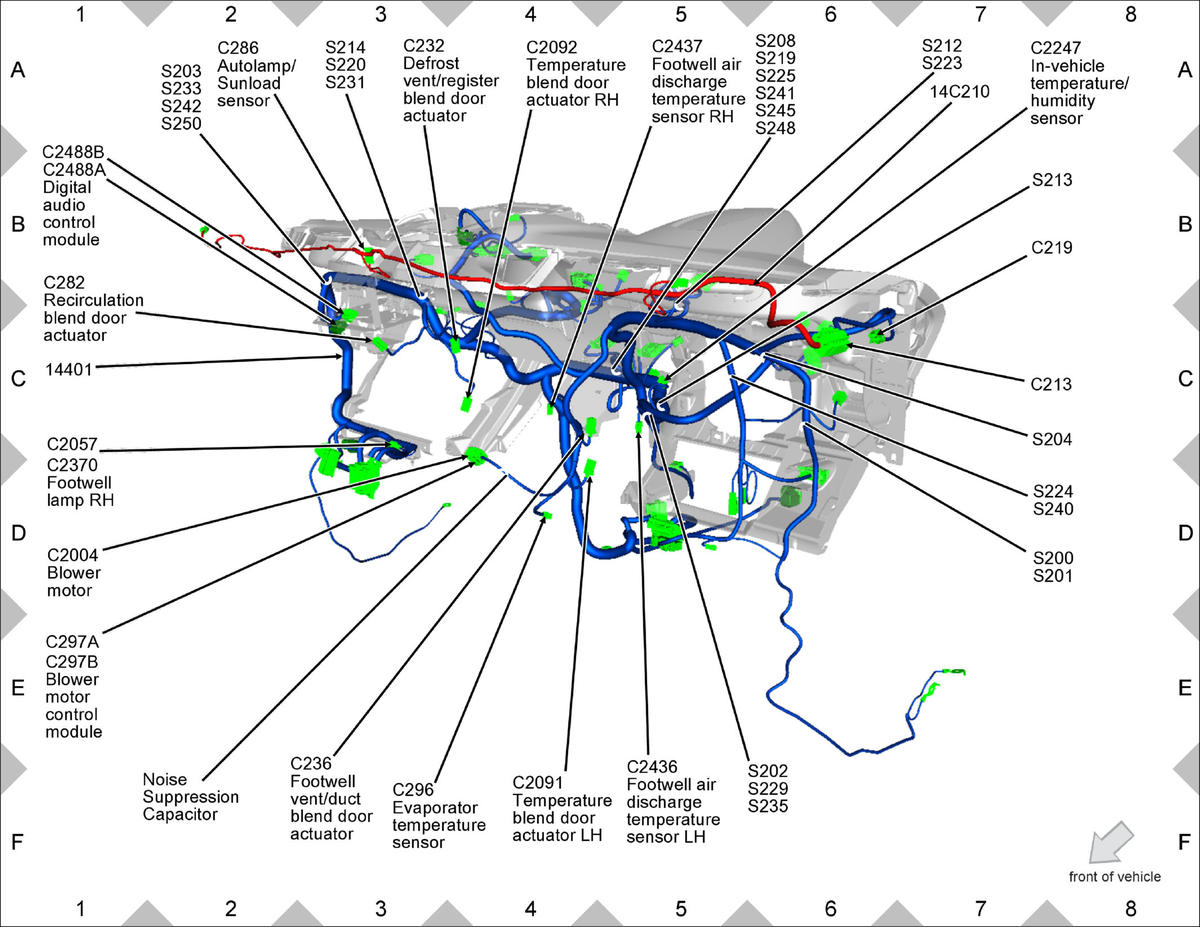

GFDW88380Courtesy of FORD MOTOR COMPANY

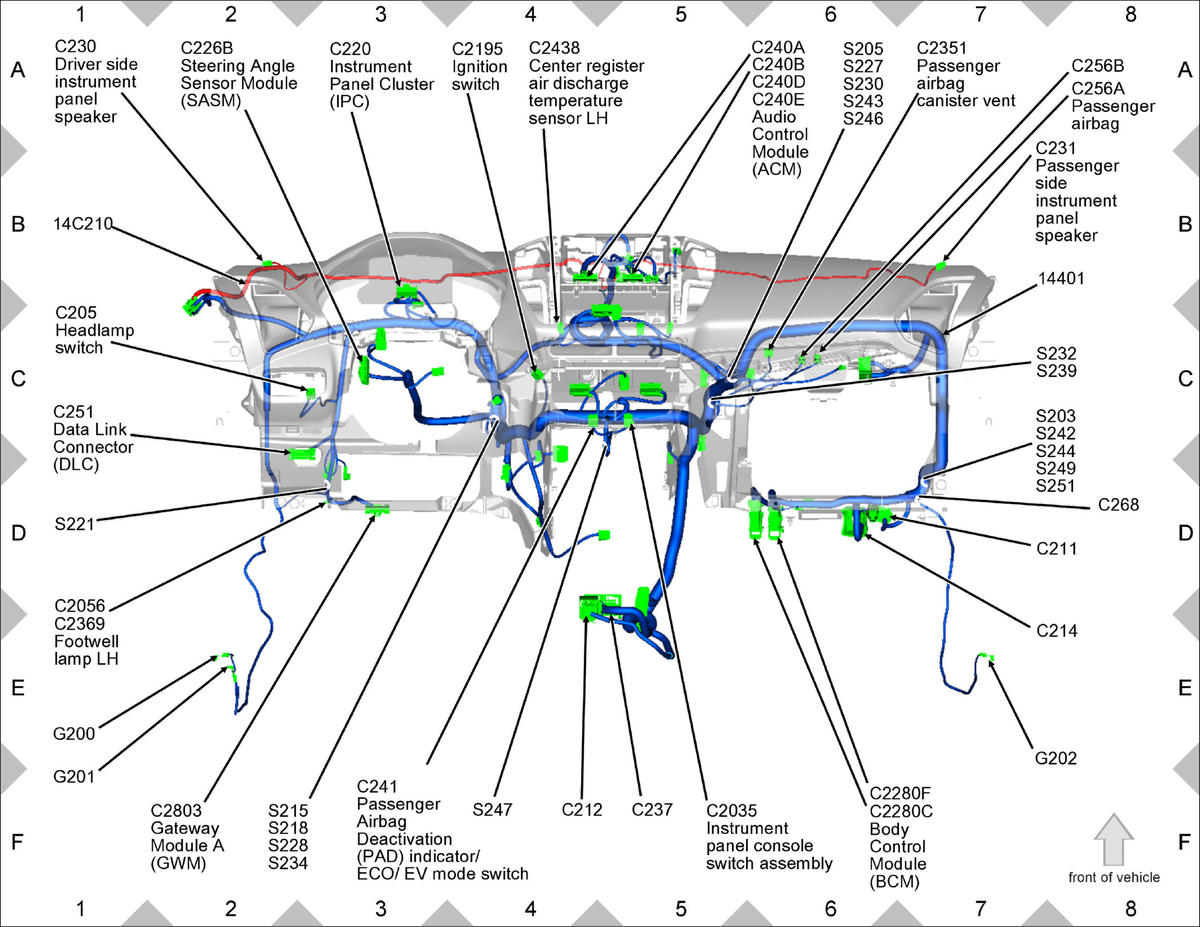

GFDW88381Courtesy of FORD MOTOR COMPANY
GFDW88382Courtesy of FORD MOTOR COMPANY

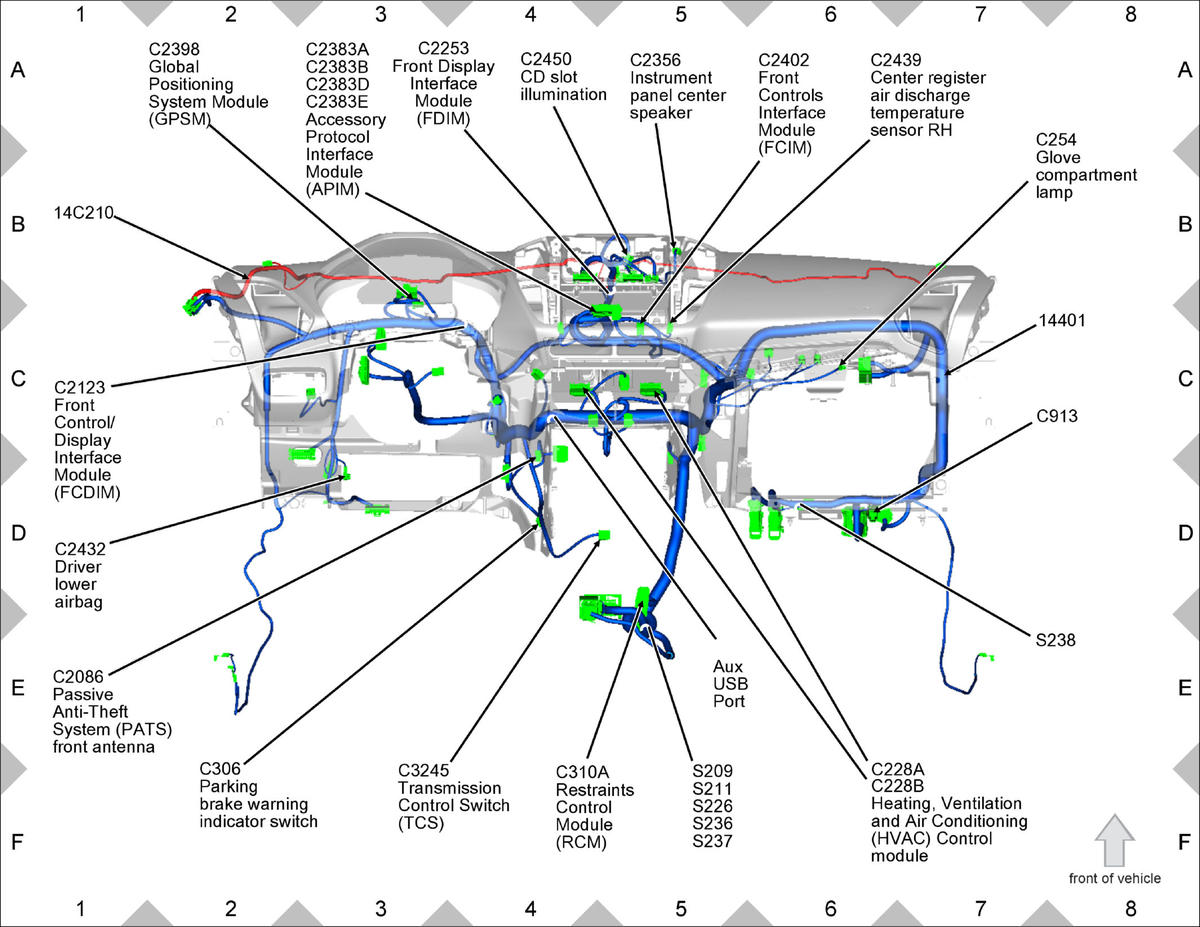

· About lemon-mirror
