Steering Angle Sensor Module (SASM): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove the clockspring. REFER to: Clockspring .
On both sides.
1. Remove the screws.
2. Push in the tabs and remove the steering column multifunction switch.
Courtesy of FORD MOTOR COMPANY

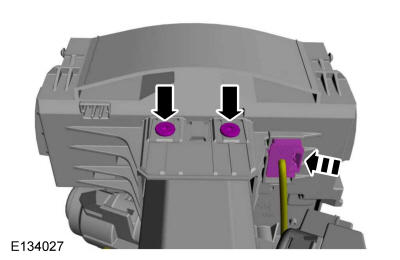

Disconnect the SASM electrical connector and remove the 2 SASM upper screws.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY

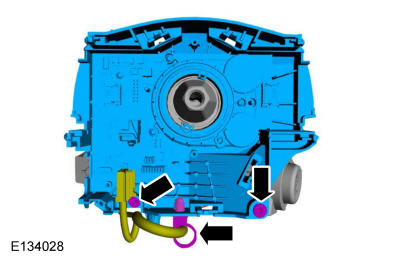

Remove the 2 SASM lower screws, detach the wiring harness pin-type retainer and remove the SASM.
Torque: 27 lb.in (3 Nm)

Courtesy of FORD MOTOR COMPANY
