All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH D-pillar trim panel. Refer to: D-Pillar Trim Panel .

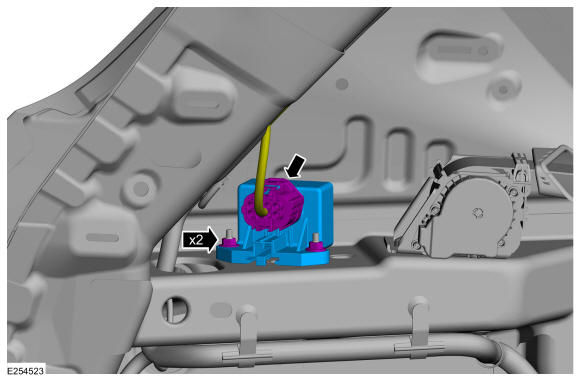

    • Disconnect the AWD module electrical connector.

    • Remove the nuts and the AWD module.

GFD256346Courtesy of FORD MOTOR COMPANY
