All-Wheel Drive (AWD) Module: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the LH load space trim panel. Refer to: Loadspace Trim Panel . Refer to: Loadspace Trim Panel - Police . Refer to: Loadspace Trim Panel - Vehicles With: Inflatable Seatbelts .

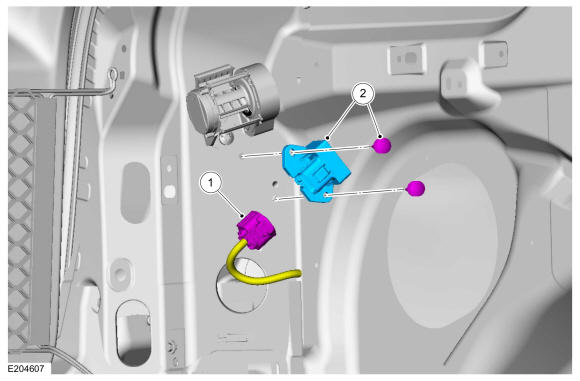

    1. Disconnect the AWD module electrical connector.
    2. Remove the AWD module push pin fasteners and the AWD module.
GFD333853Courtesy of FORD MOTOR COMPANY
