Removal And Installation: Horn: Notes
For information on Ford Color Coded Illustrations refer to OEM Color Coding

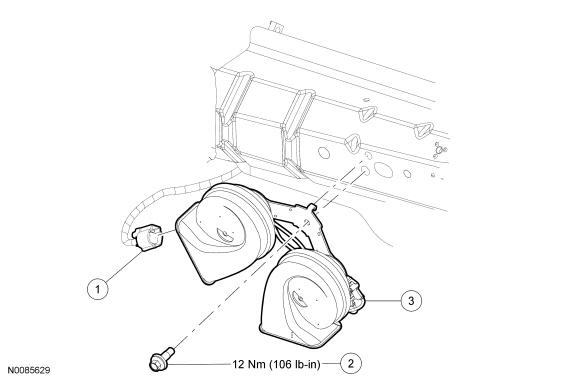

| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Electrical connector (part of 14290) |
| 2 | W710500 | Horn bracket bolt |
| 3 | 13832 | Horn |
For information on Ford Color Coded Illustrations refer to OEM Color Coding
| Item | Part Number | Description |
|---|---|---|
| 1 | -- | Electrical connector (part of 14290) |
| 2 | W710500 | Horn bracket bolt |
| 3 | 13832 | Horn |
