Connector Repair Procedures

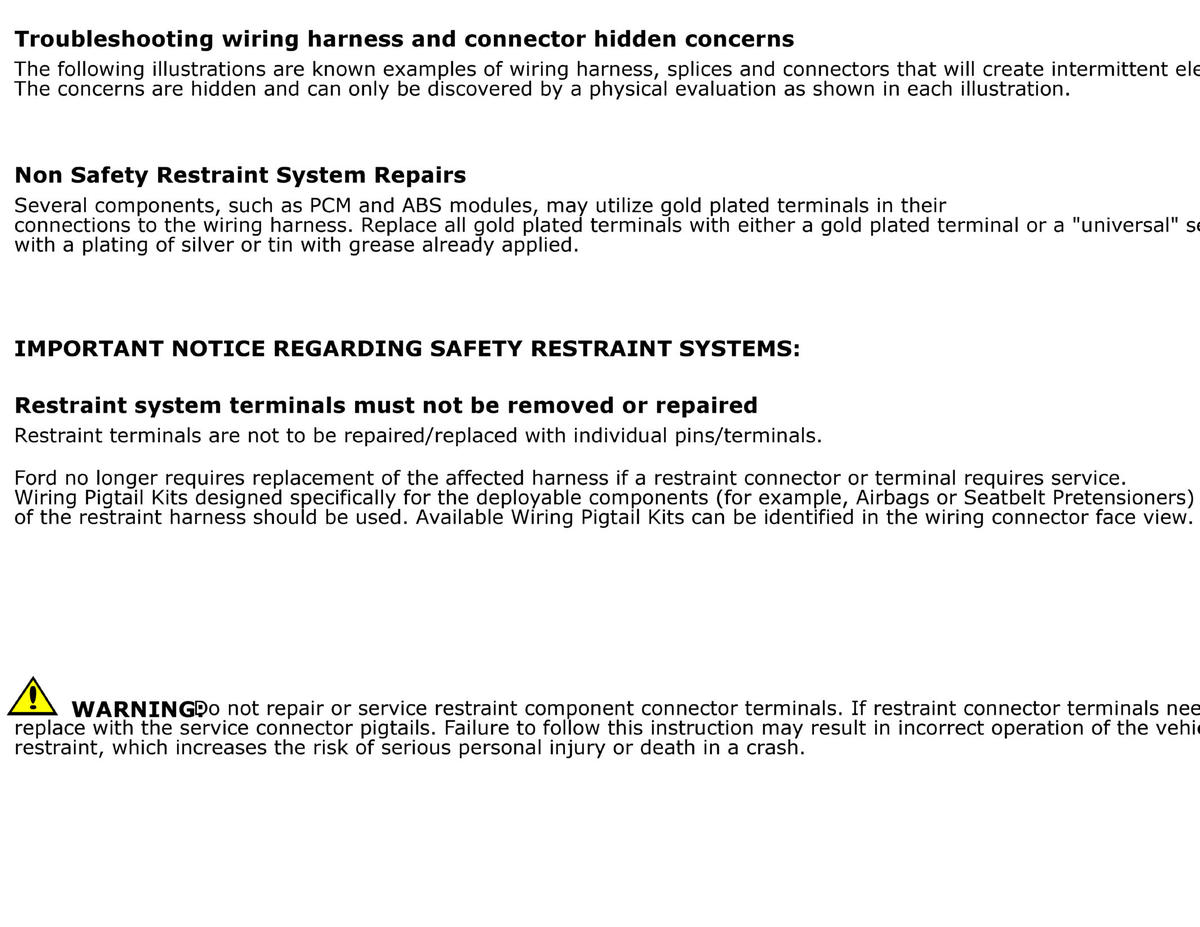

GFDWR108577Courtesy of FORD MOTOR COMPANY

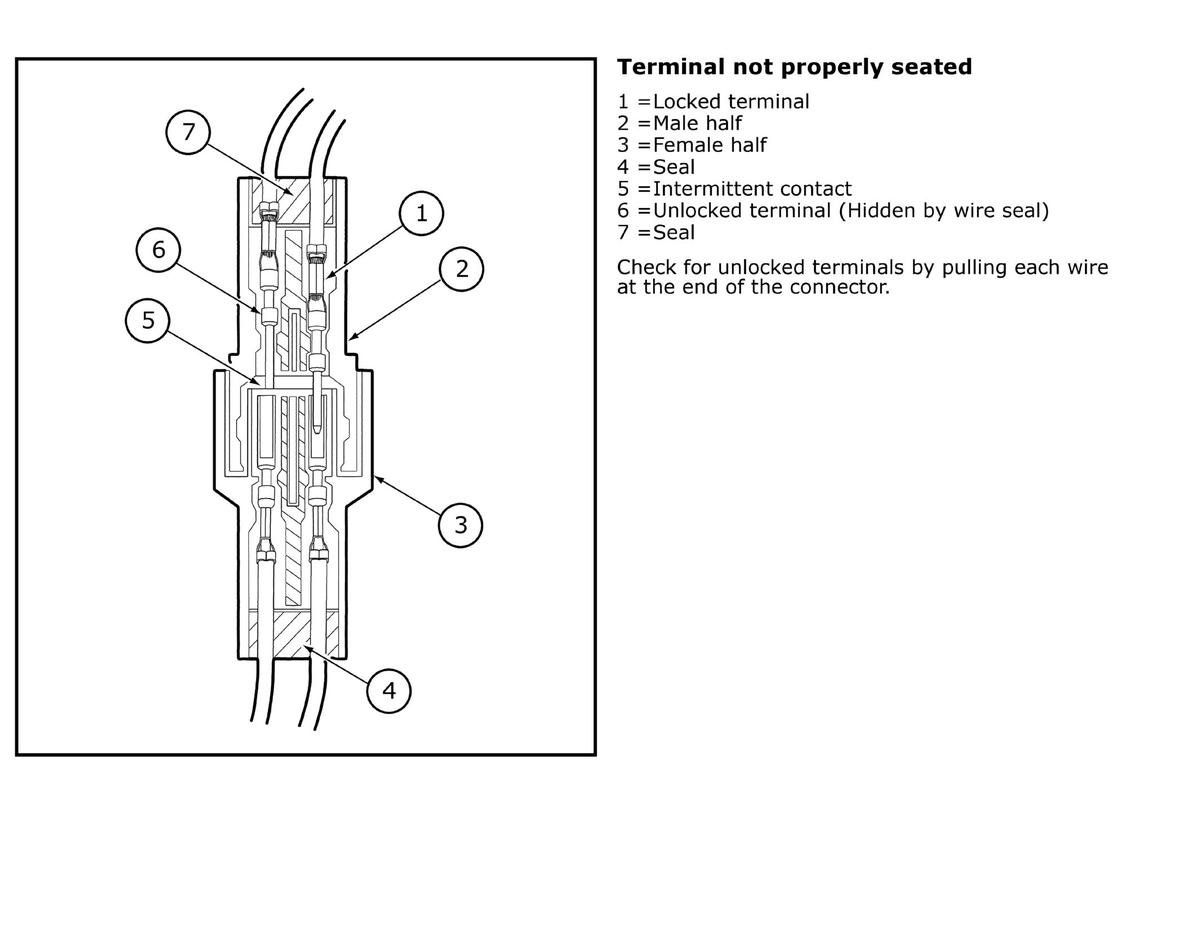

GFDWR108571Courtesy of FORD MOTOR COMPANY

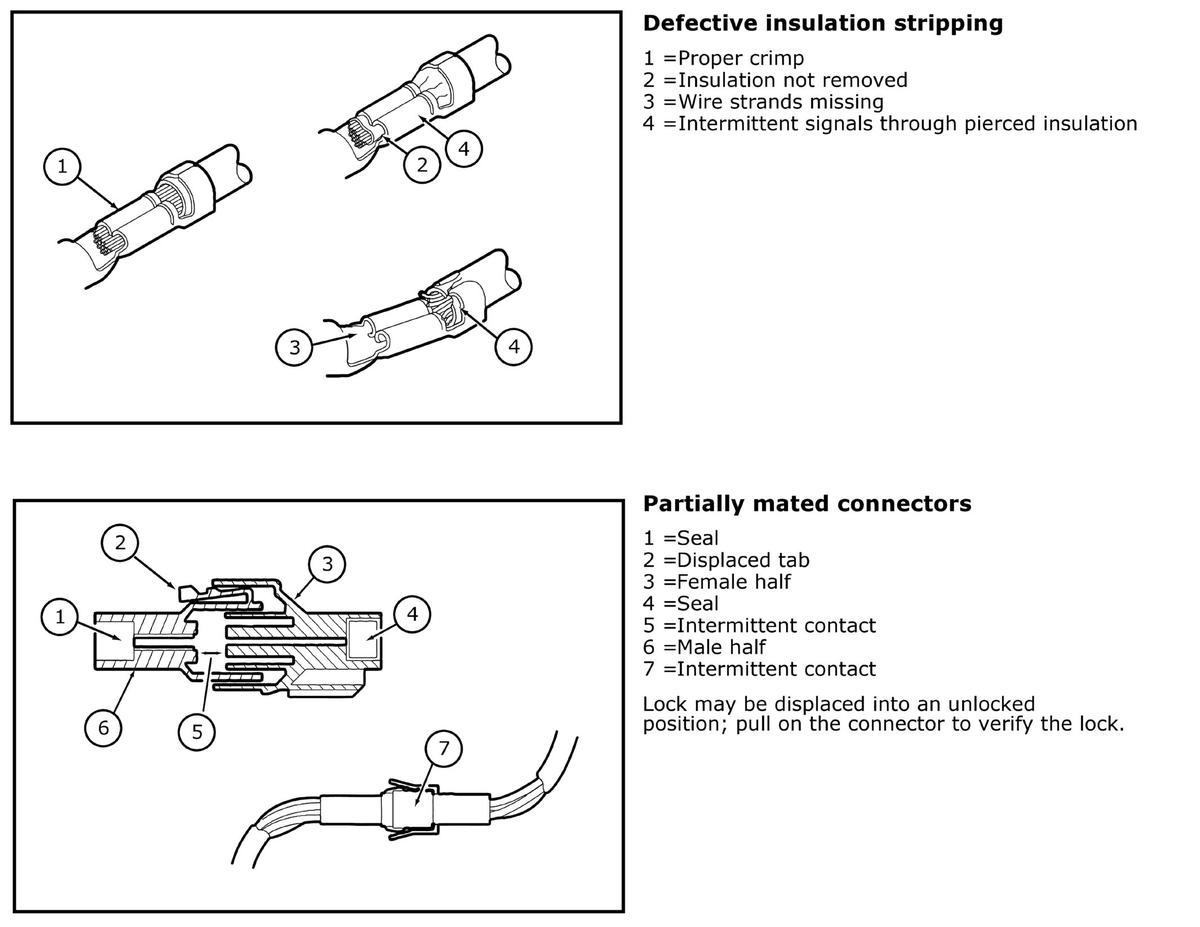

GFDWR108575Courtesy of FORD MOTOR COMPANY

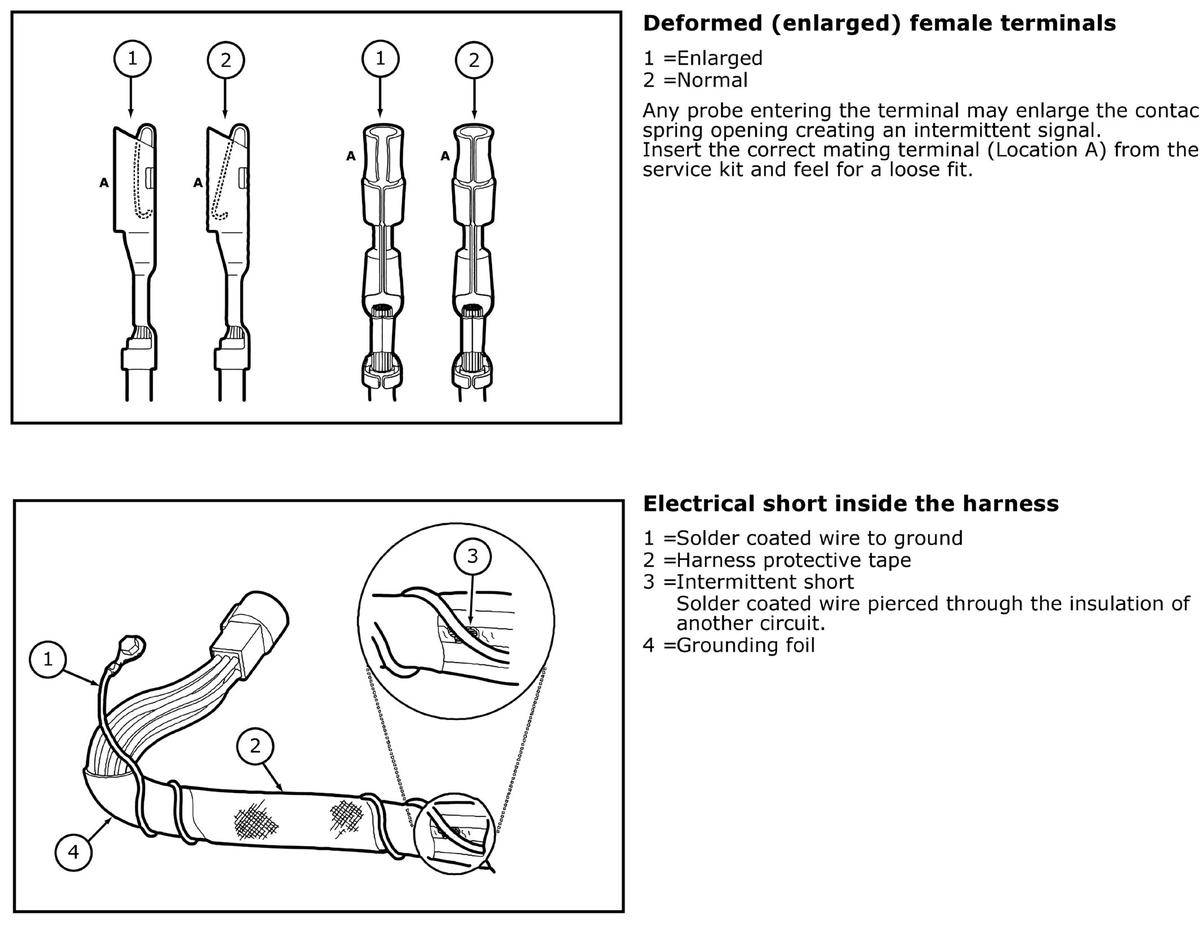

GFDWR108578Courtesy of FORD MOTOR COMPANY

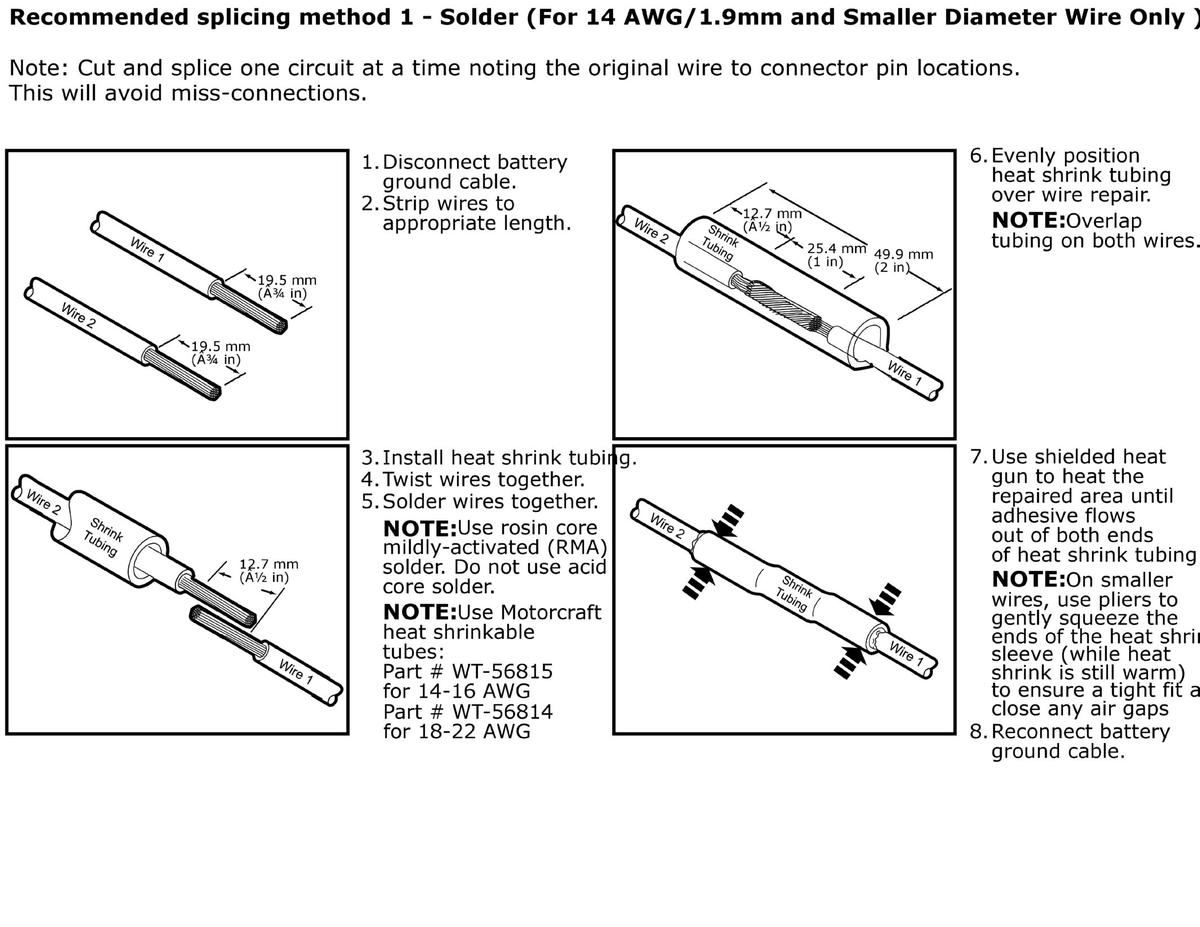

GFDWR108579Courtesy of FORD MOTOR COMPANY

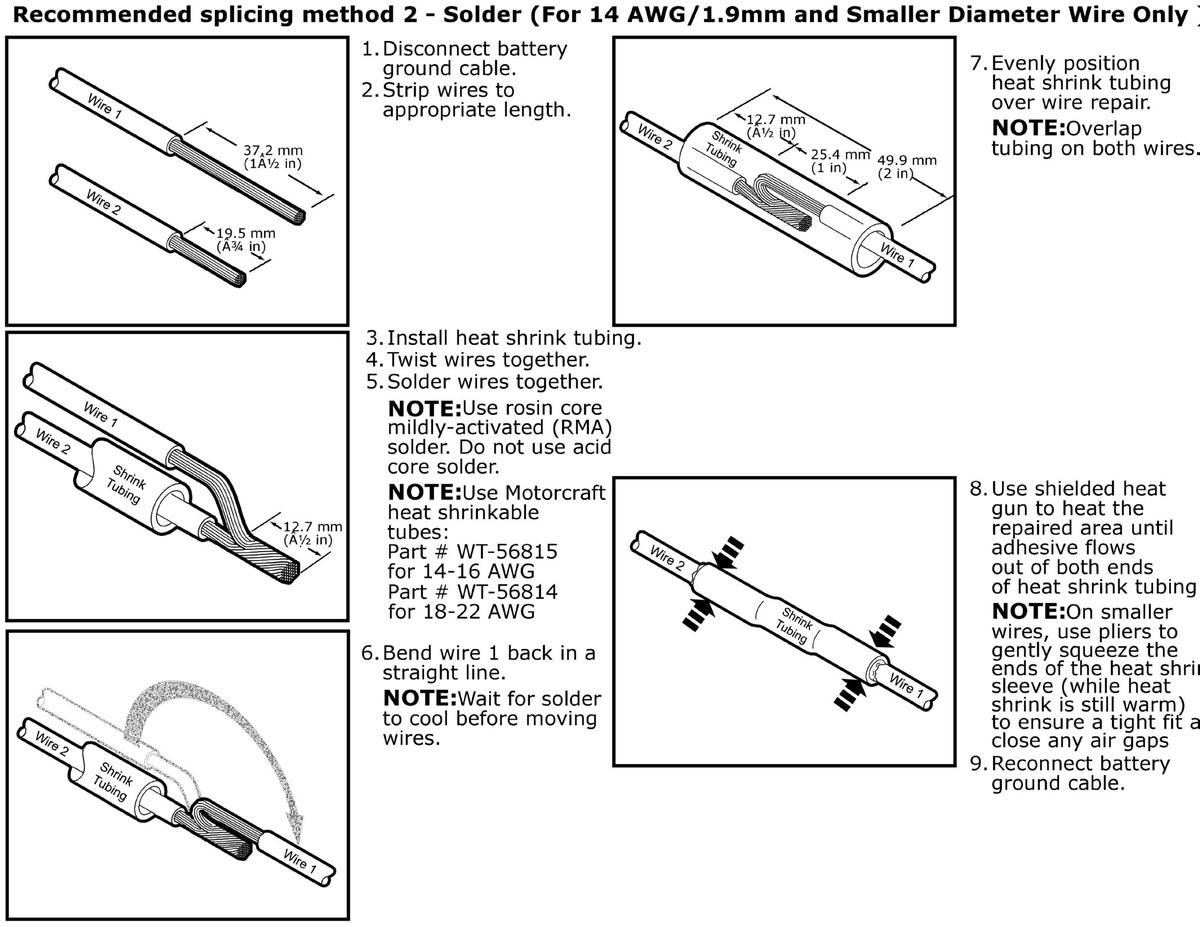

GFDWR108576Courtesy of FORD MOTOR COMPANY

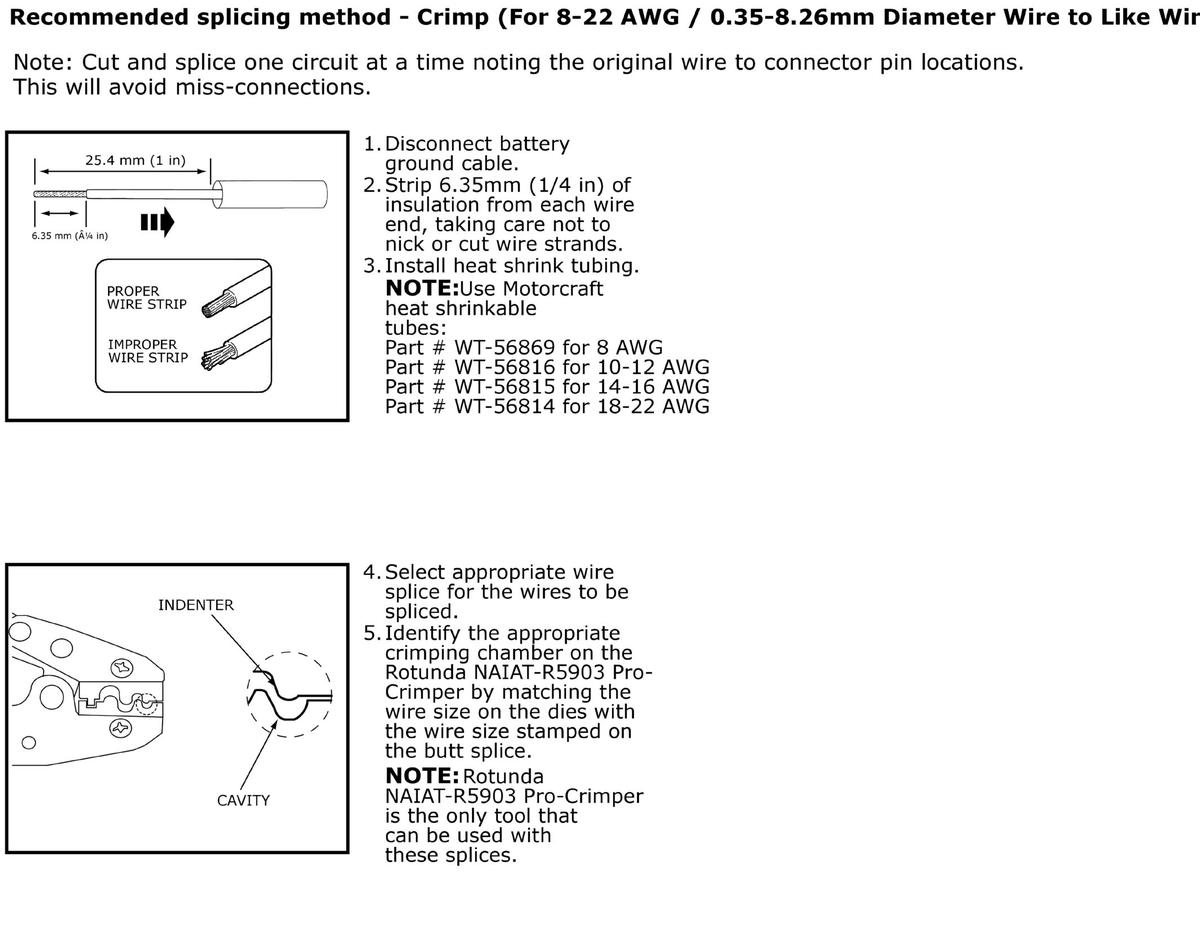

GFDWR108574Courtesy of FORD MOTOR COMPANY

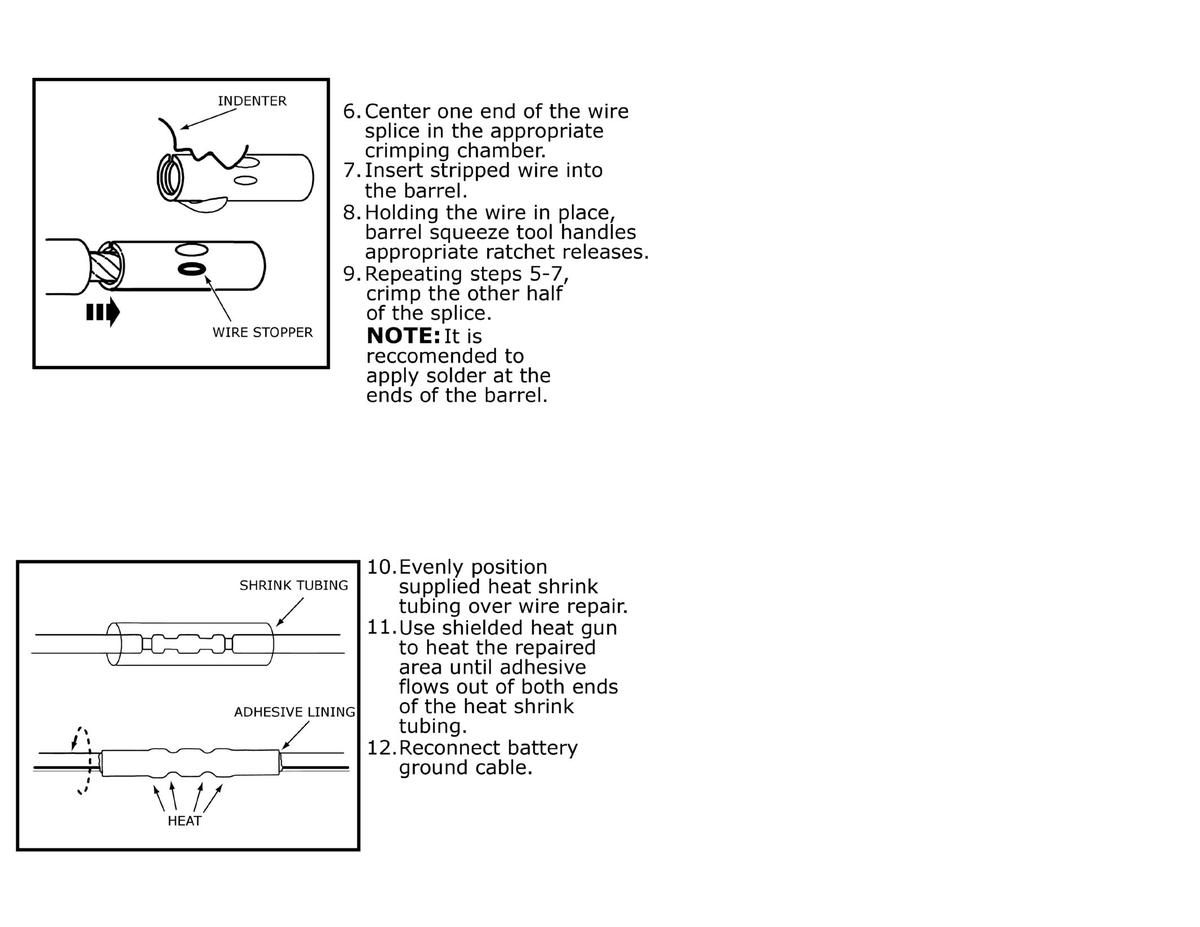

GFDWR108573Courtesy of FORD MOTOR COMPANY

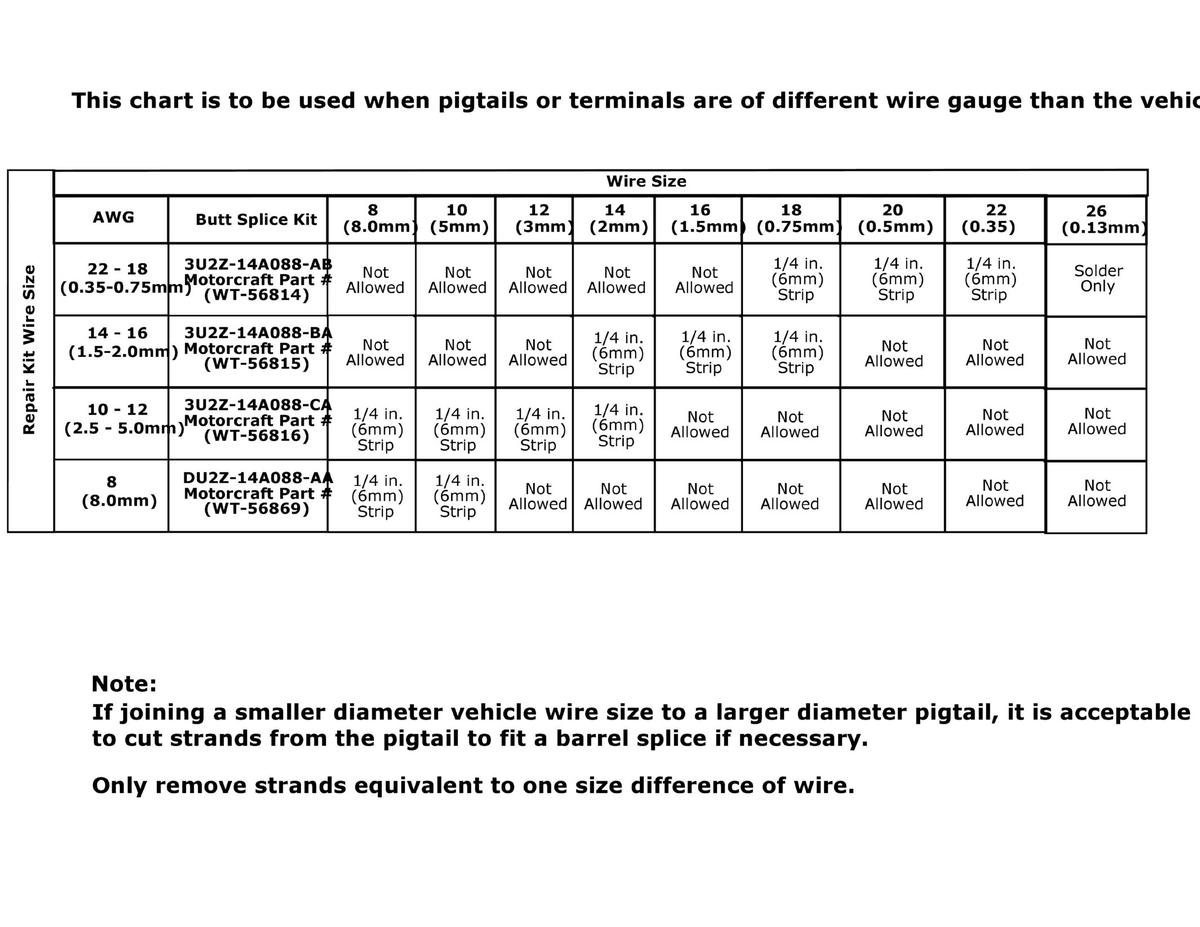

GFDWR108572Courtesy of FORD MOTOR COMPANY
