Electric Powertrain Control - Component Location

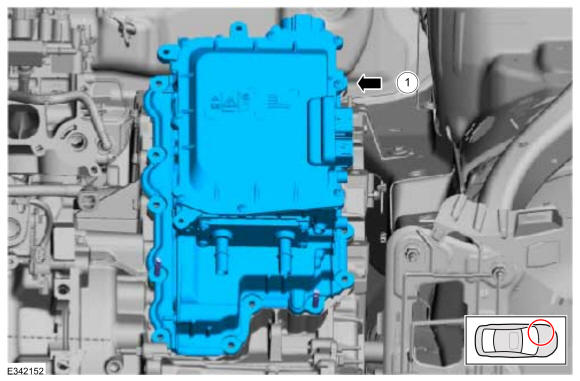

Inverter System Controller

GFD475088Courtesy of FORD MOTOR COMPANY
Item Description
1 Inverter System Controller

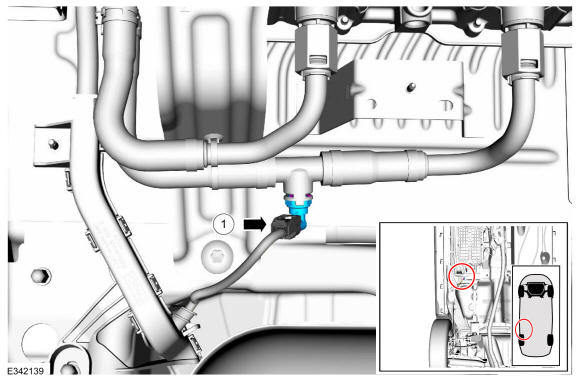

High Voltage Battery Coolant Temperature Sensor

GFD475089Courtesy of FORD MOTOR COMPANY
Item Description
1 High Voltage Battery Coolant Temperature Sensor
