Home >> Ford >> 2020 >> Explorer ST >> Repair and Diagnosis >> Transmission >> Transfer Case >> Description And Operation >> Transfer Case - Overview >> Transfer Case Components

Transfer Case Components

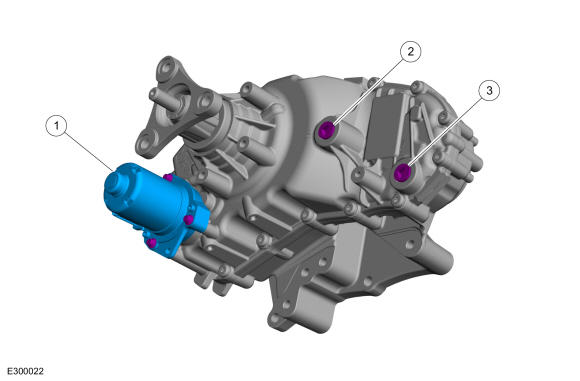

GFD515236Courtesy of FORD MOTOR COMPANY
Item Description
1 Transfer case clutch actuator
2 Fill plug
3 Drain plug

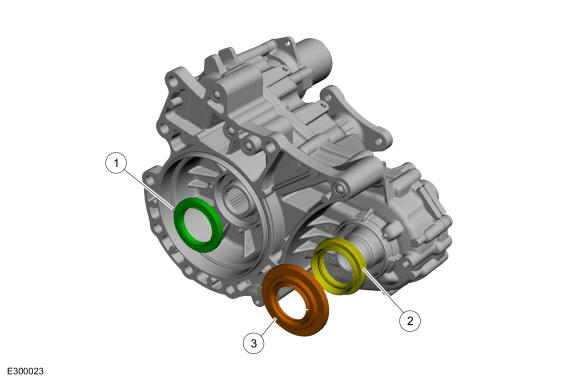

GFD515237Courtesy of FORD MOTOR COMPANY
Item Description
1 Transfer case input shaft seal
1 Transfer case oil seal
1 Dust cover
