Connector Repair Procedures

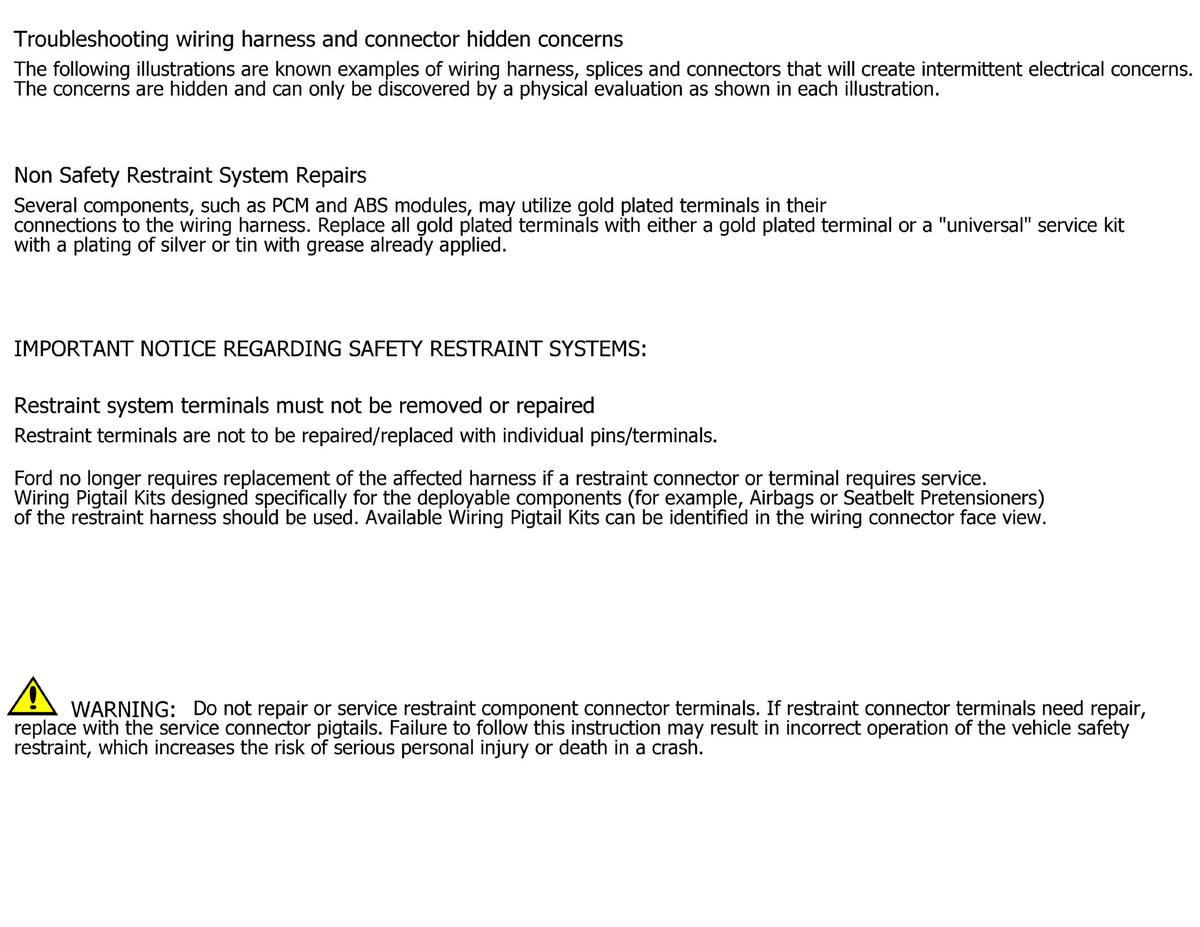

GFDWR139001Courtesy of FORD MOTOR COMPANY

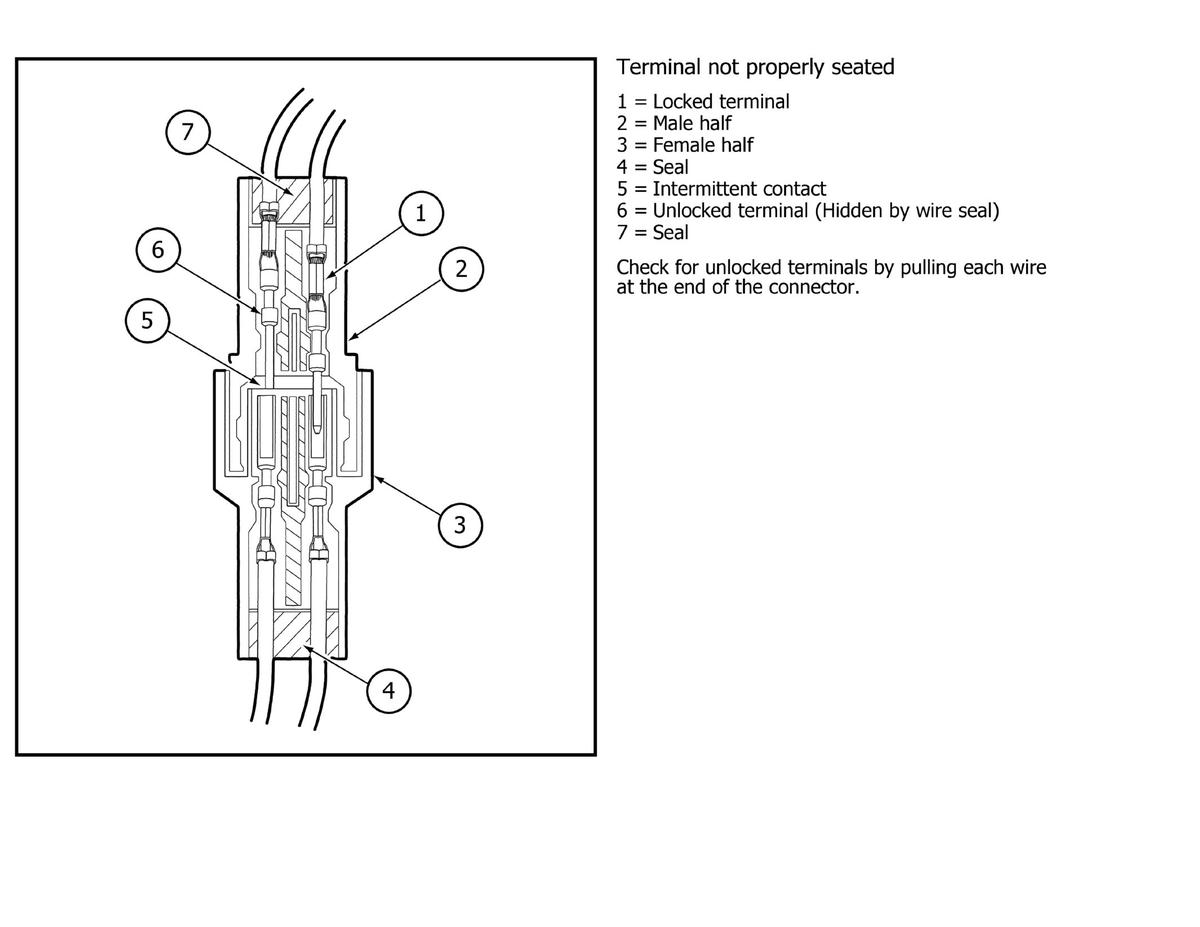

GFDWR139002Courtesy of FORD MOTOR COMPANY

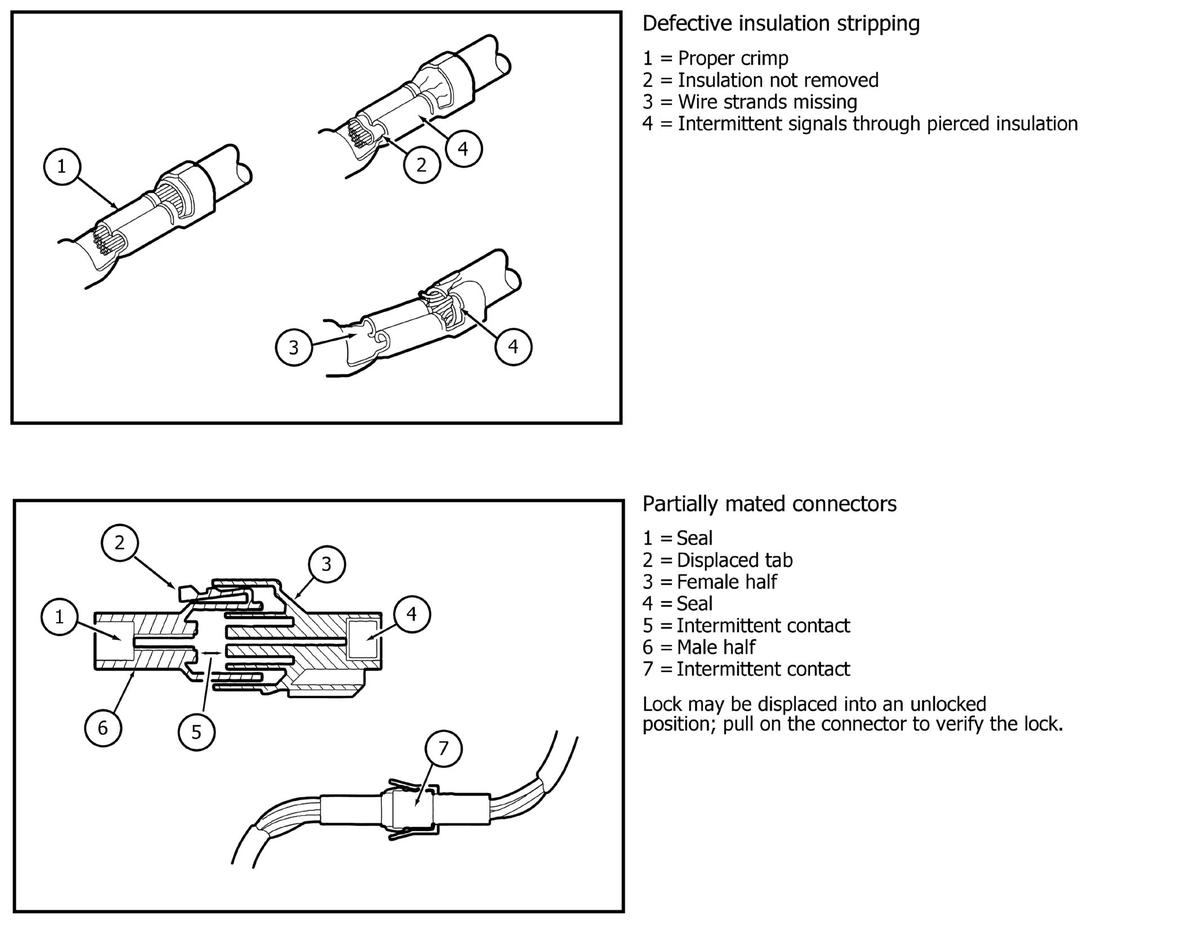

GFDWR139003Courtesy of FORD MOTOR COMPANY

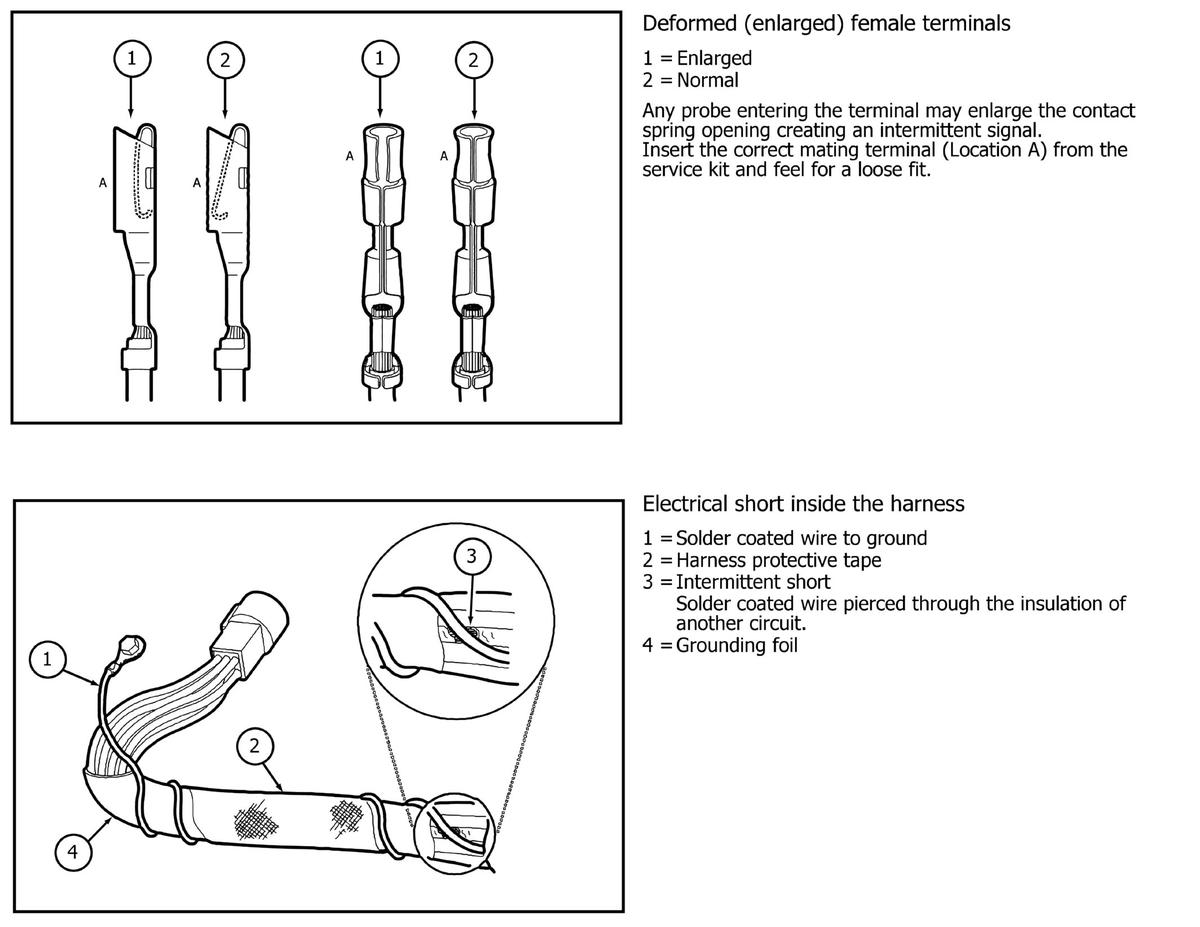

GFDWR139004Courtesy of FORD MOTOR COMPANY

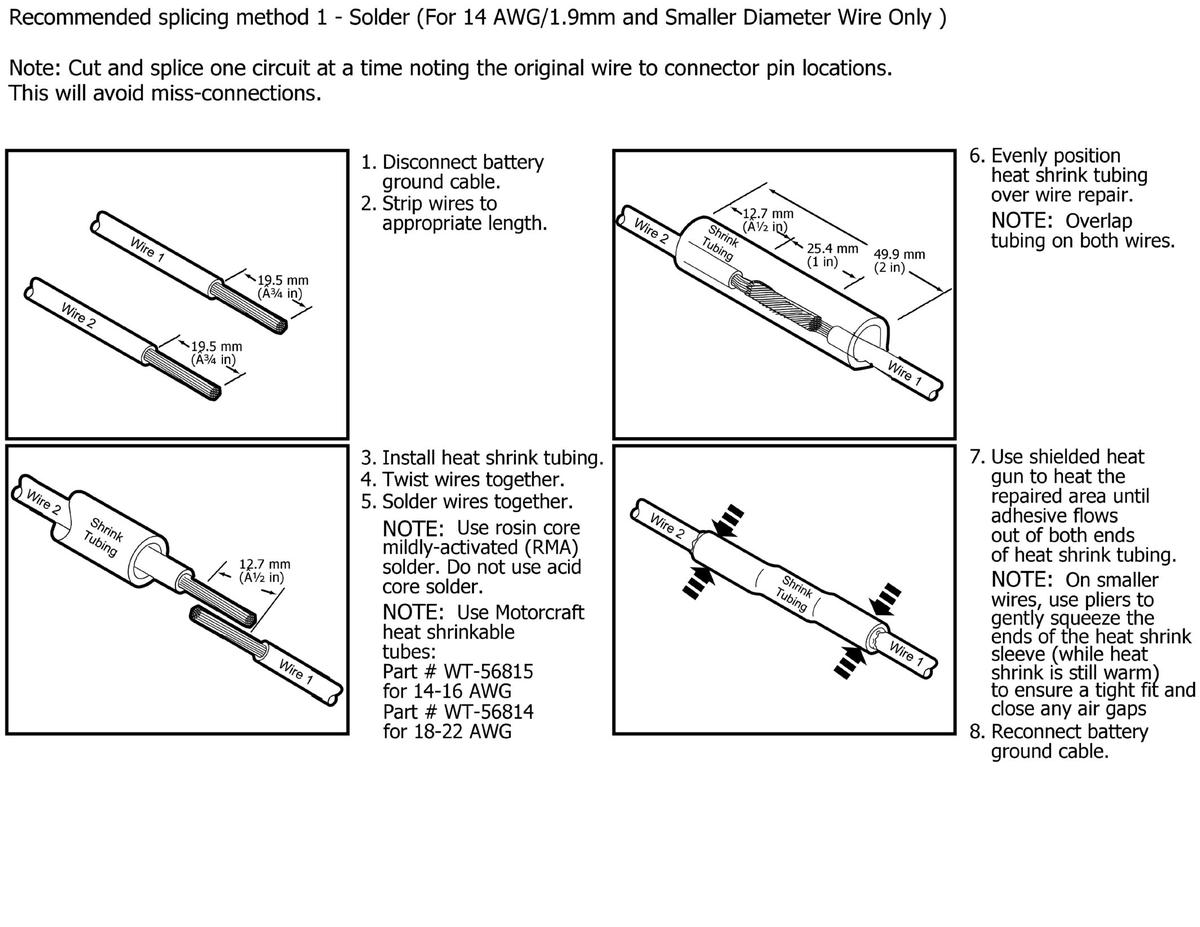

GFDWR139005Courtesy of FORD MOTOR COMPANY

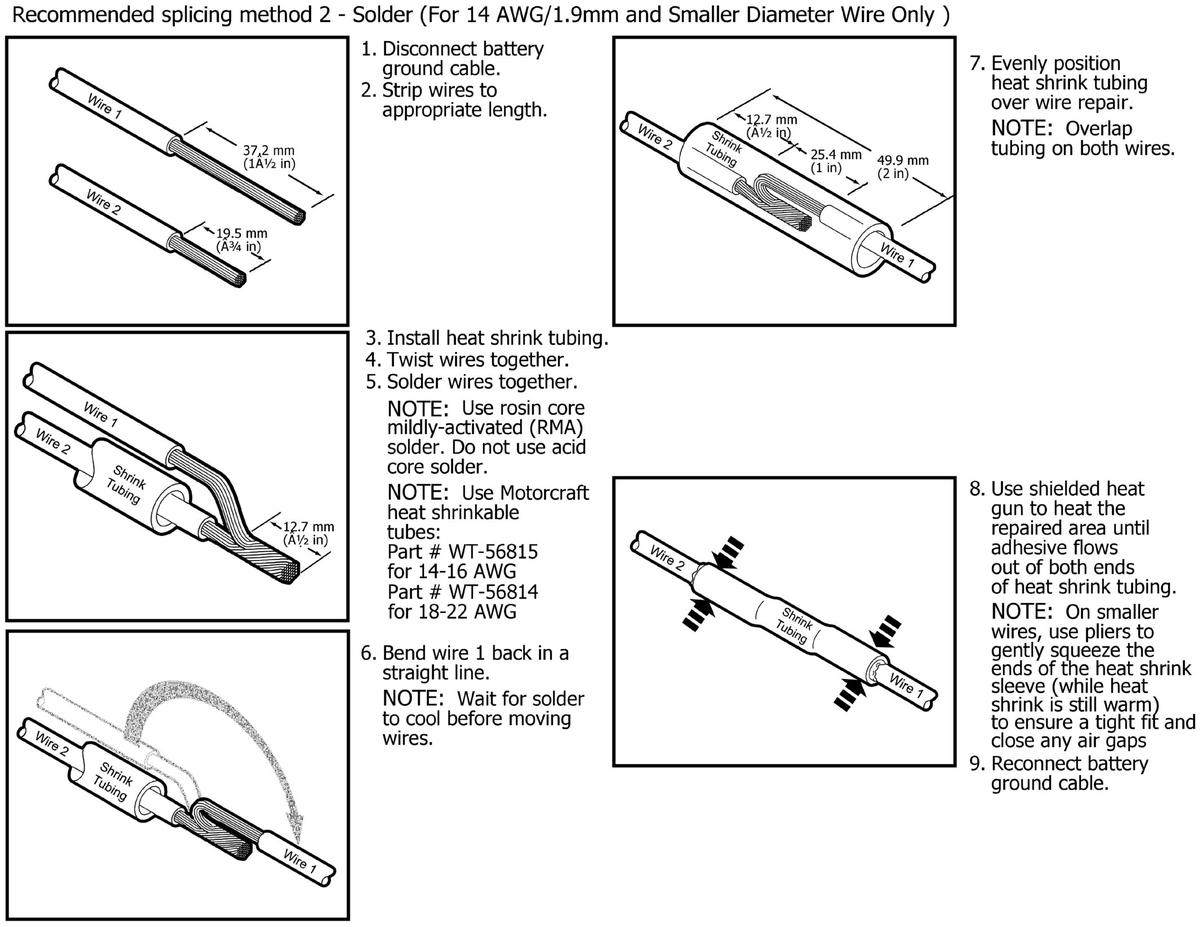

GFDWR139006Courtesy of FORD MOTOR COMPANY

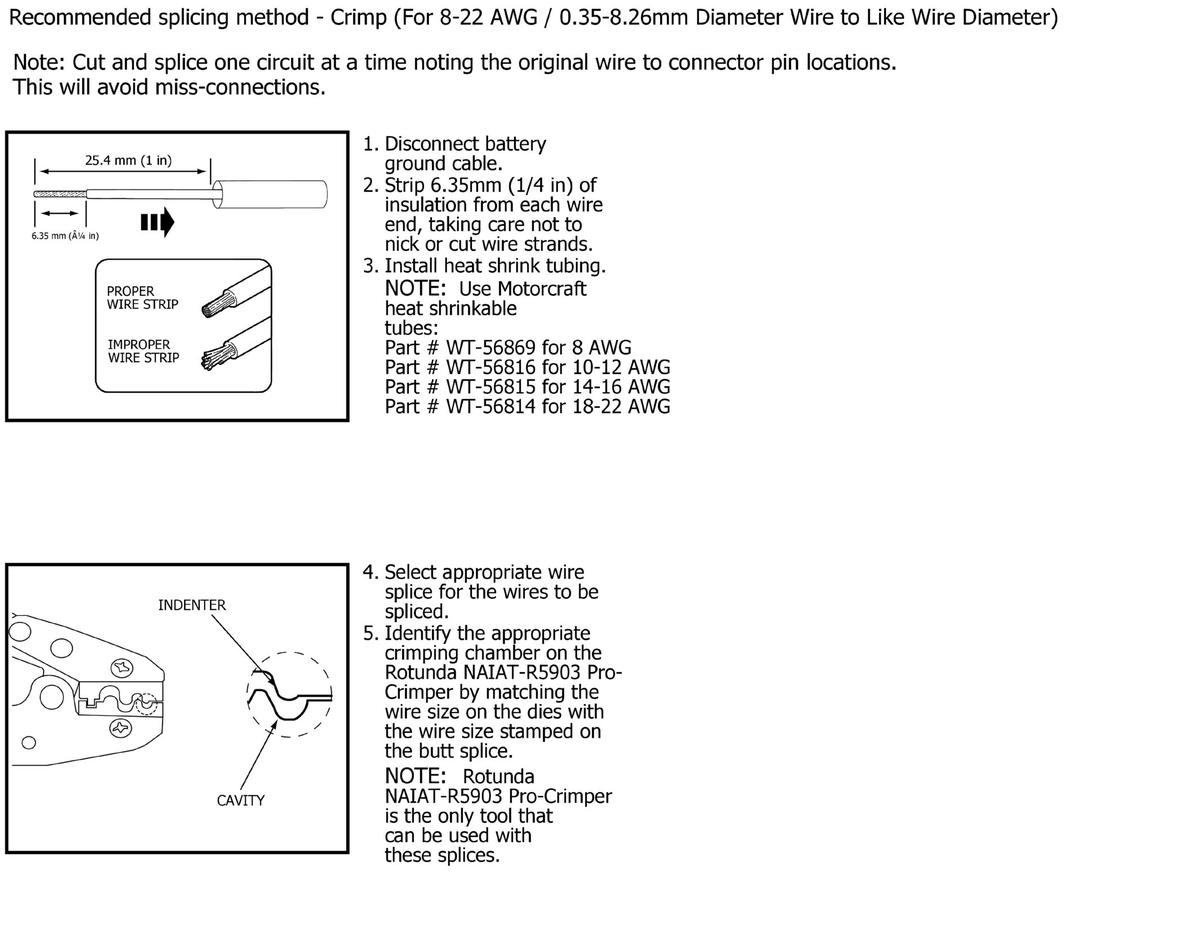

GFDWR139007Courtesy of FORD MOTOR COMPANY

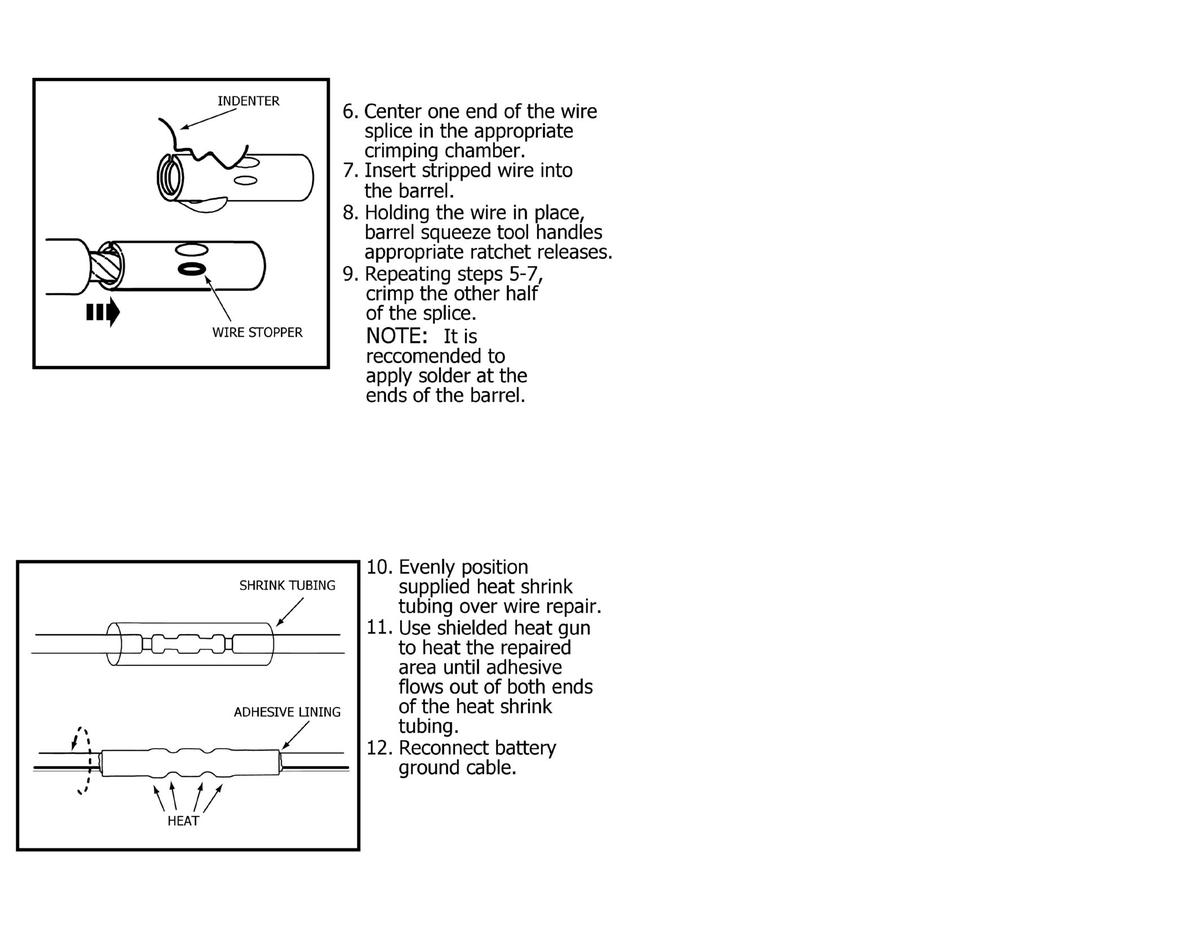

GFDWR139008Courtesy of FORD MOTOR COMPANY

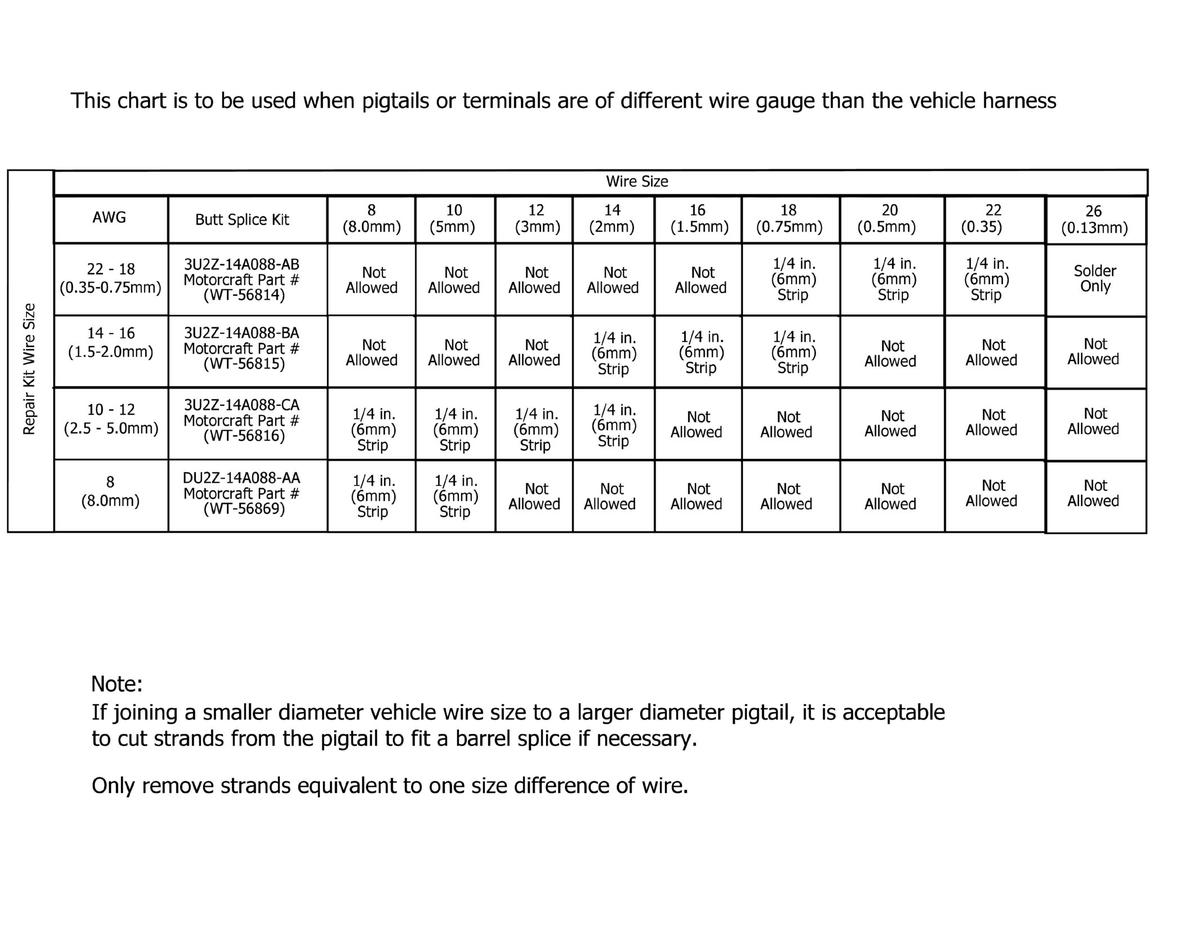

GFDWR139009Courtesy of FORD MOTOR COMPANY
