Component Testing

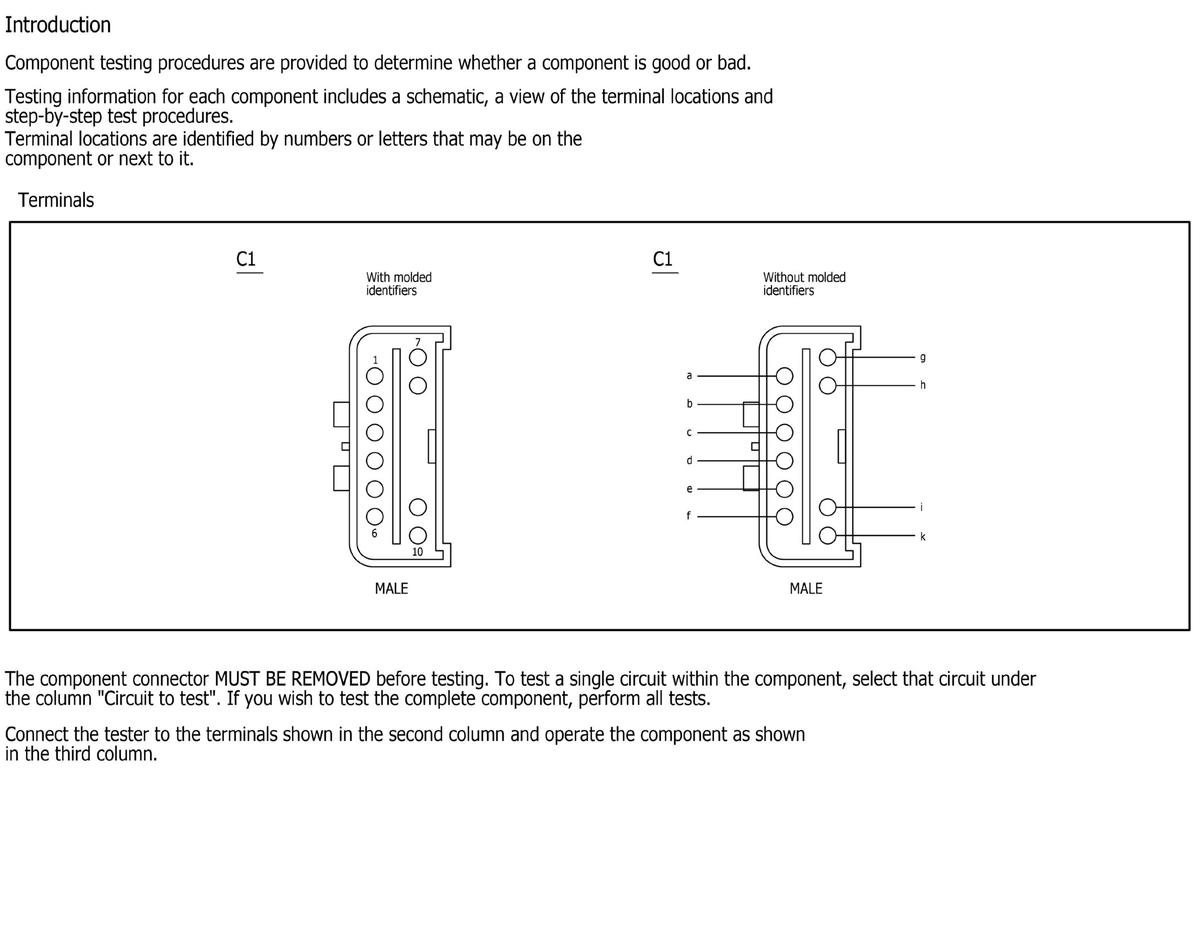

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

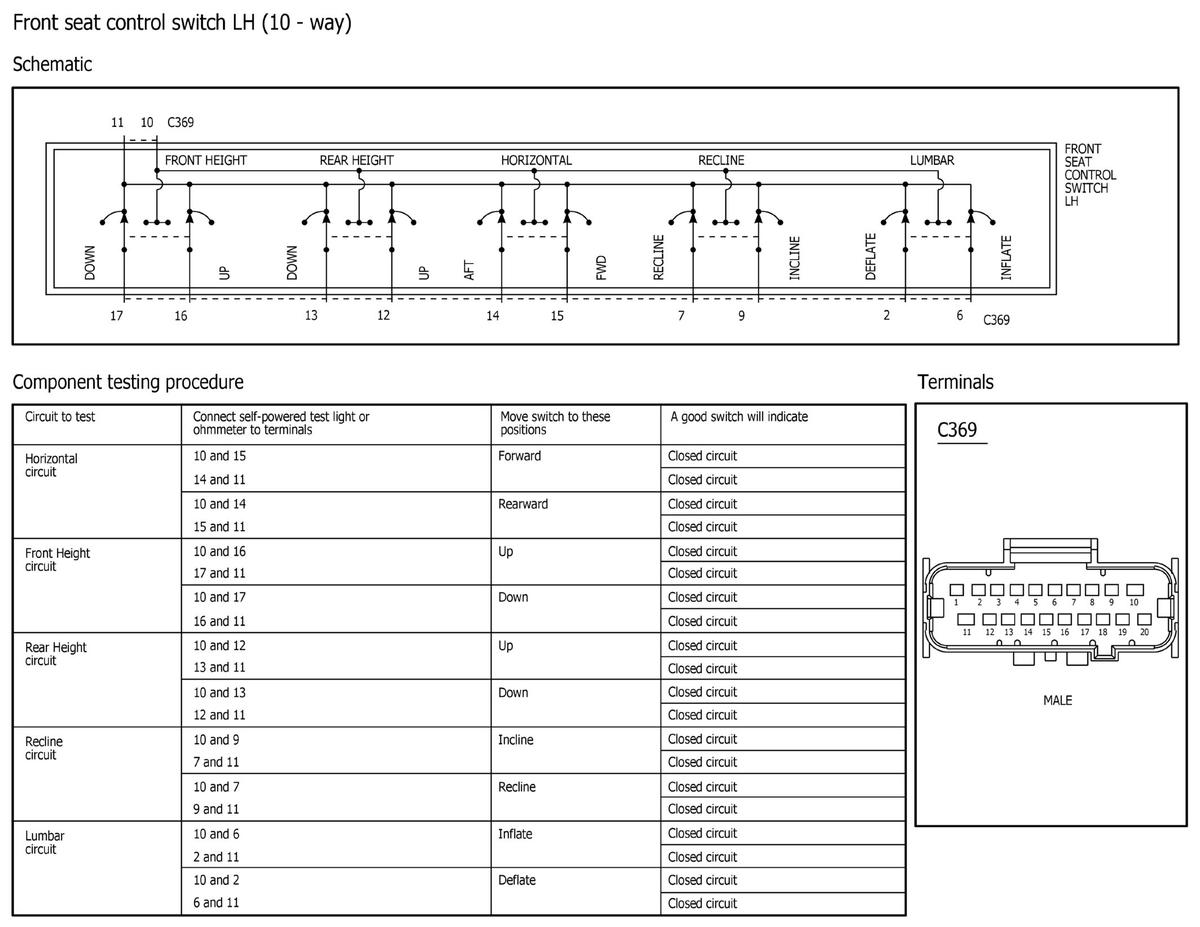

Fig 2: Front Seat Control Switch LH (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

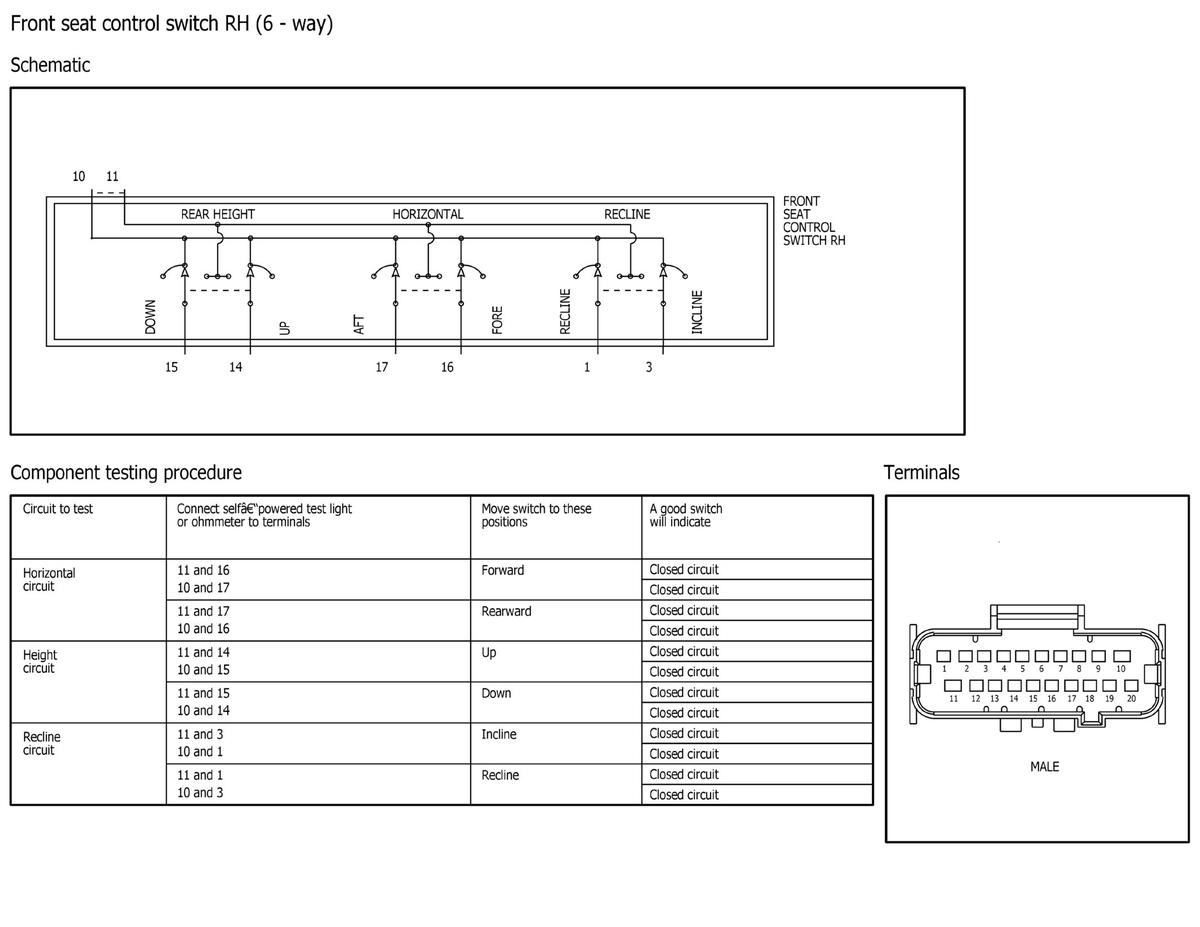

Fig 3: Front Seat Control Switch RH (6-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

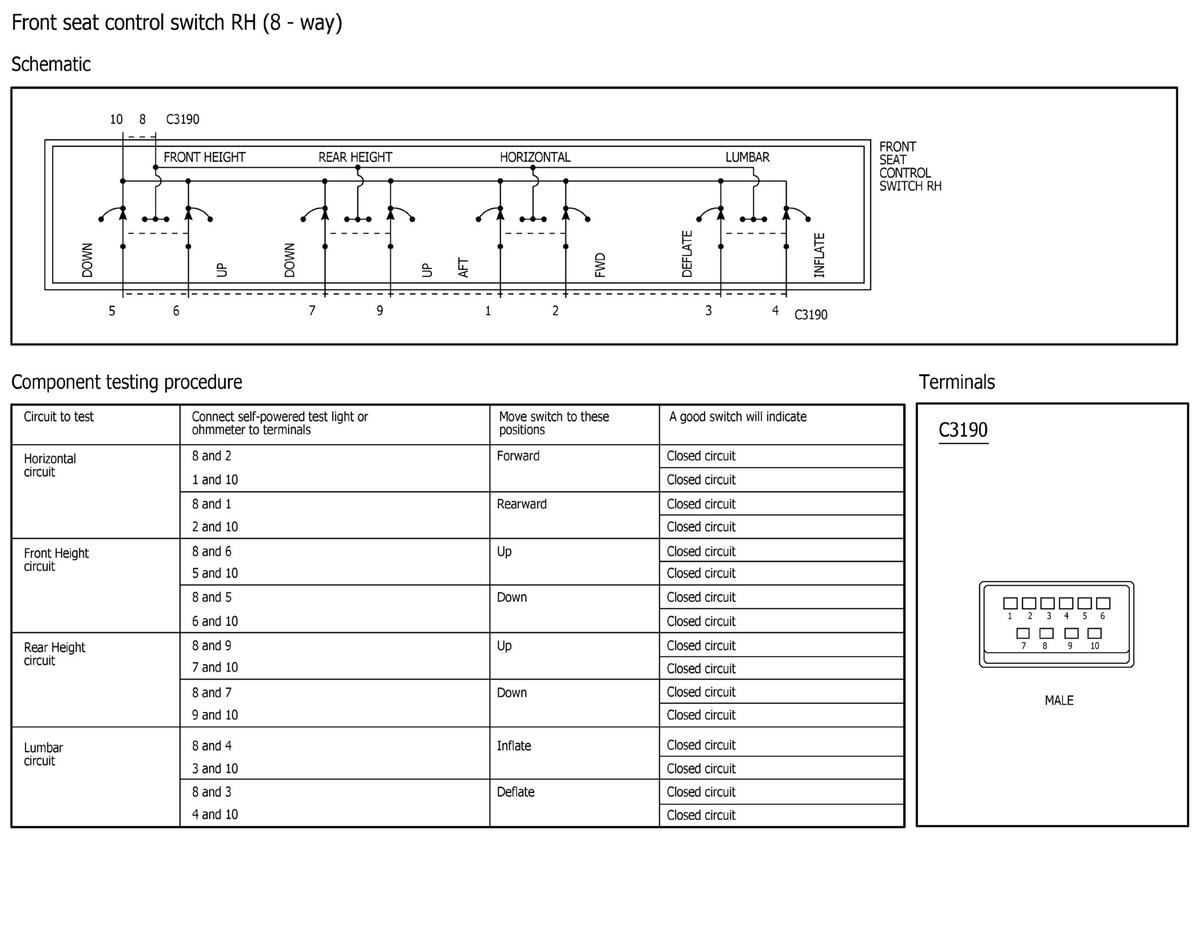

Fig 4: Front Seat Control Switch RH (8-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

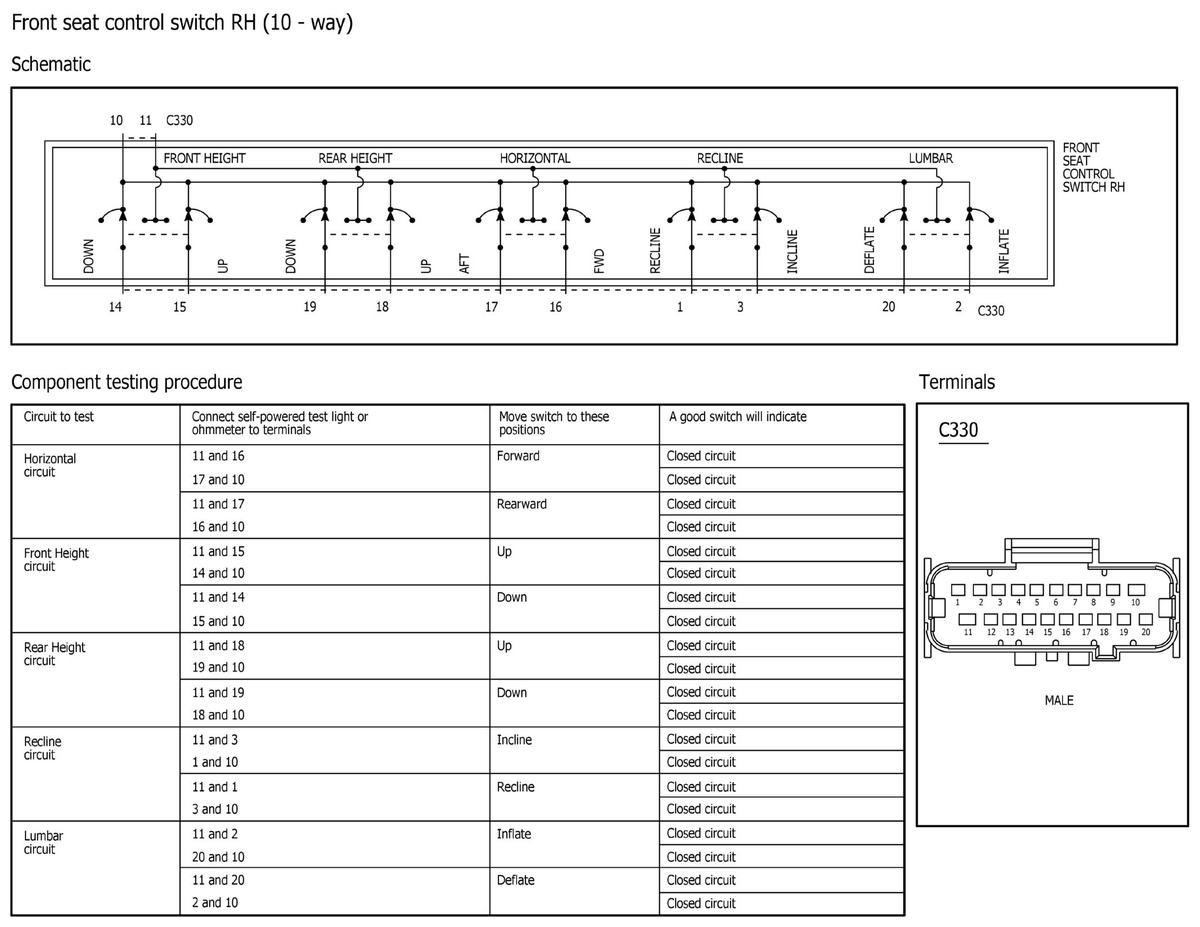

Fig 5: Front Seat Control Switch RH (10-Way) Component Testing

Courtesy of FORD MOTOR COMPANY

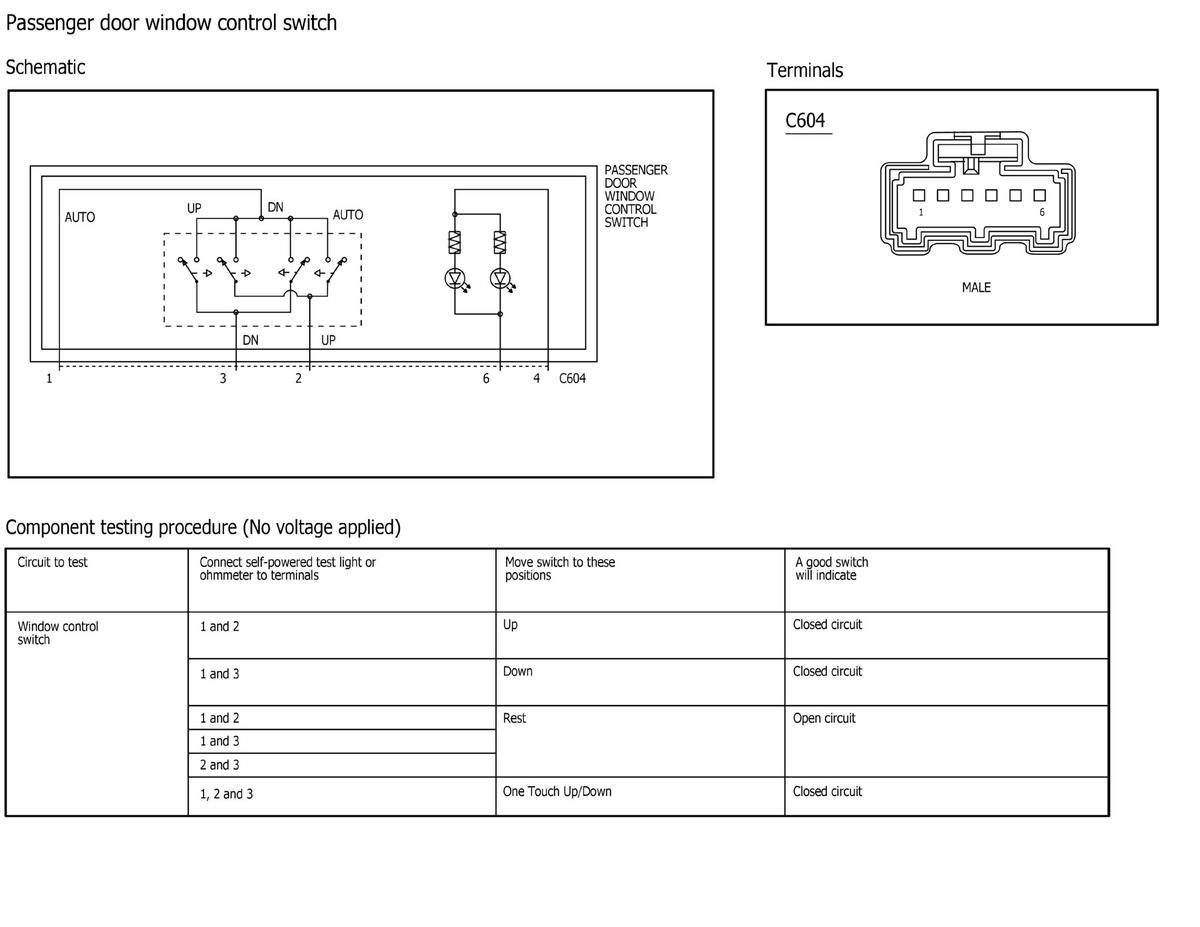

Fig 6: Passenger Door Window Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

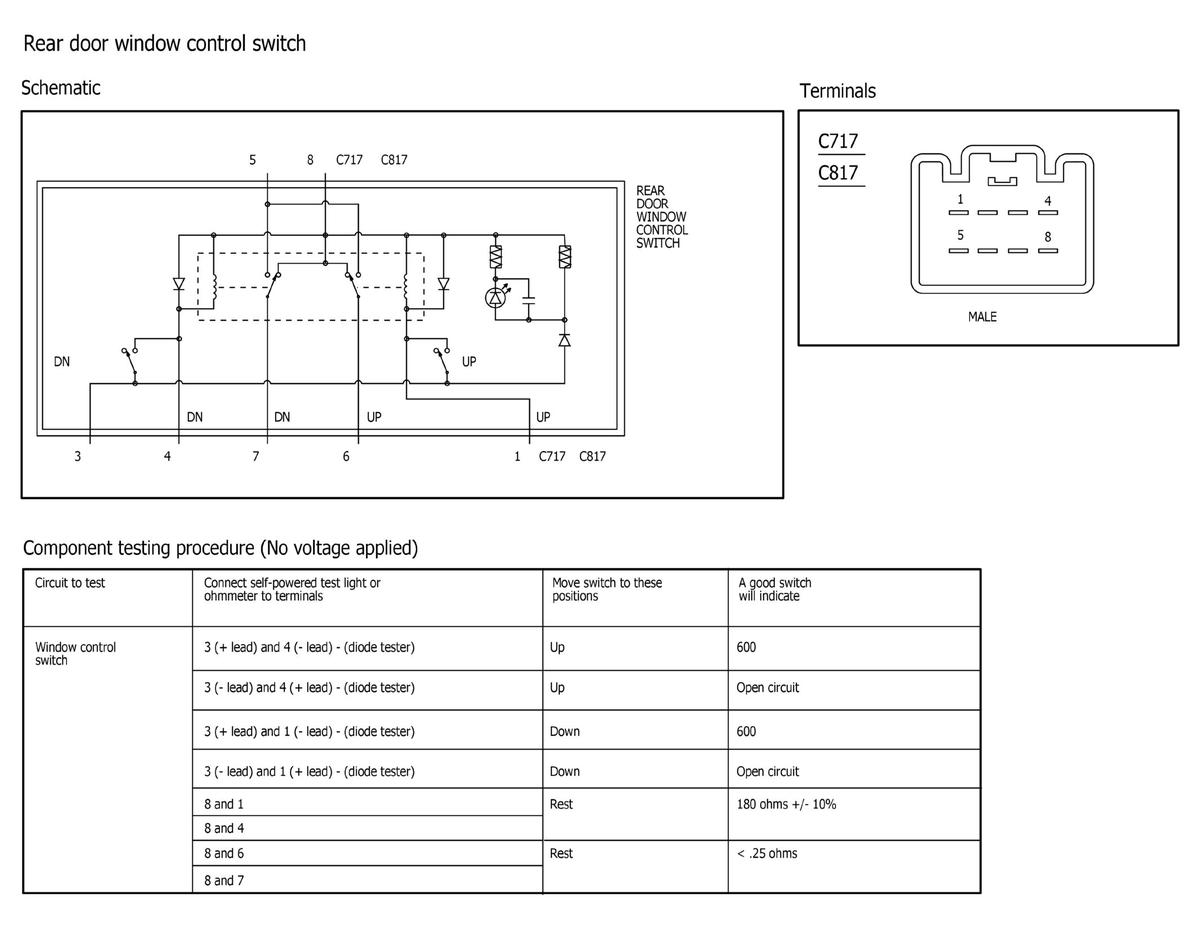

Fig 7: Rear Door Window Control Switch Component Testing

Courtesy of FORD MOTOR COMPANY

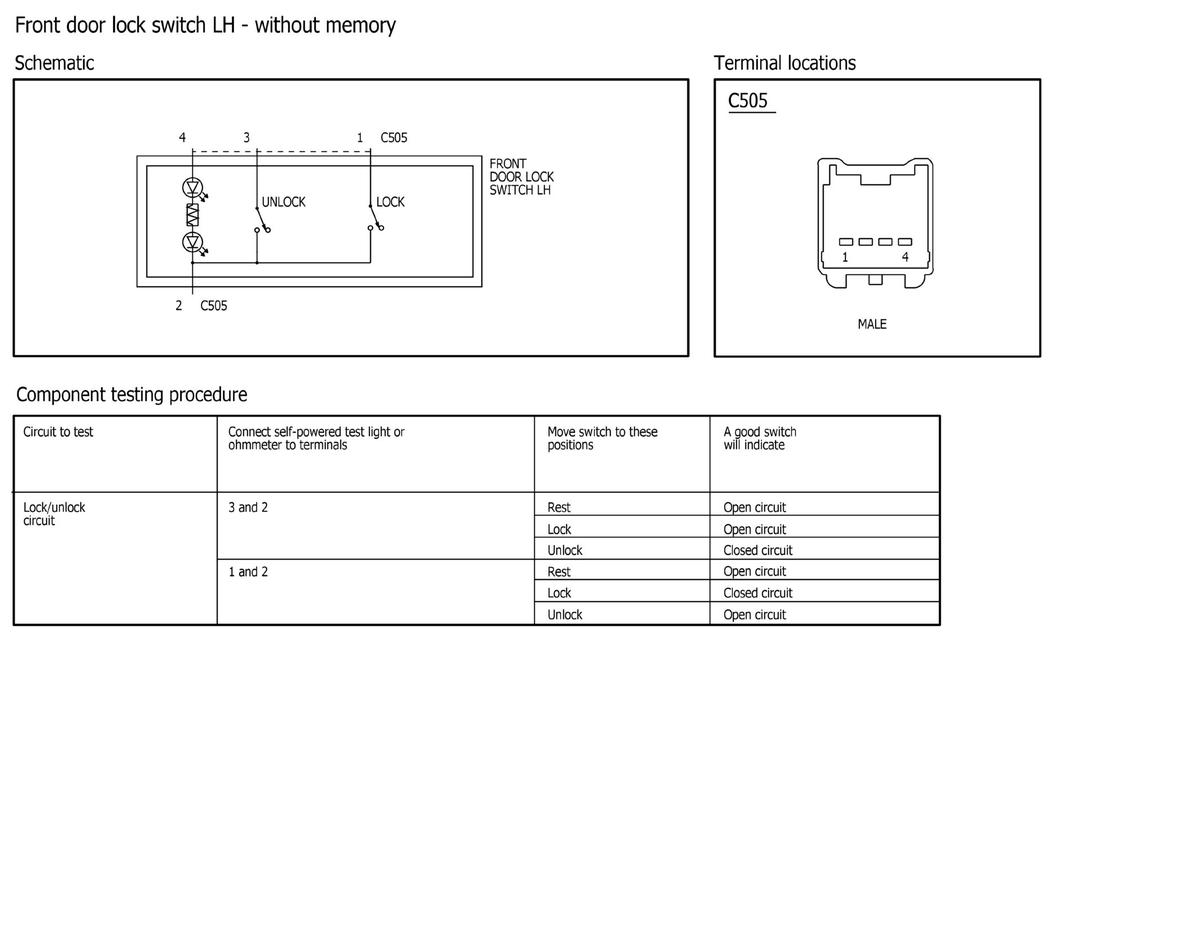

Fig 8: Front Door Lock Switch LH - Without Memory Component Testing

Courtesy of FORD MOTOR COMPANY

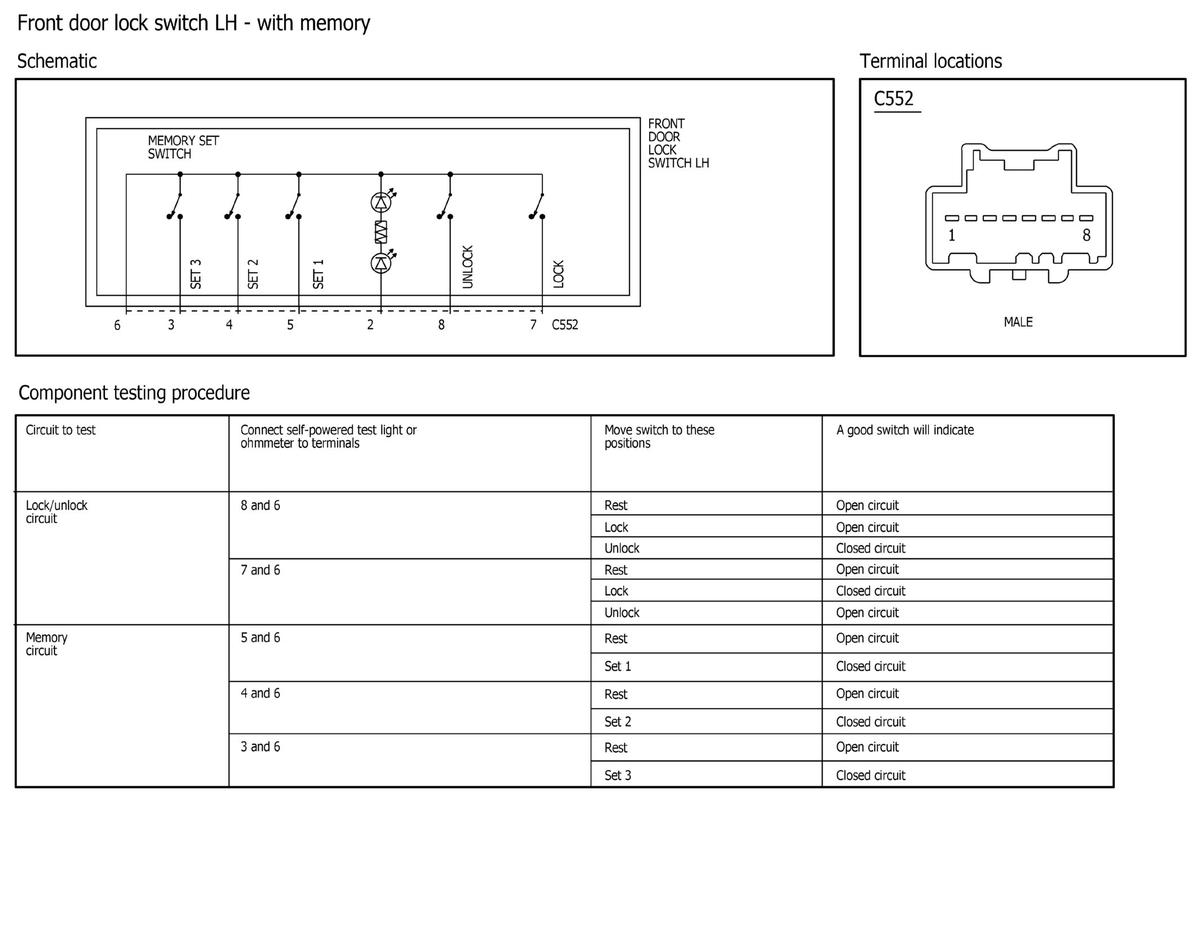

Fig 9: Front Door Lock Switch LH - With Memory Component Testing

Courtesy of FORD MOTOR COMPANY

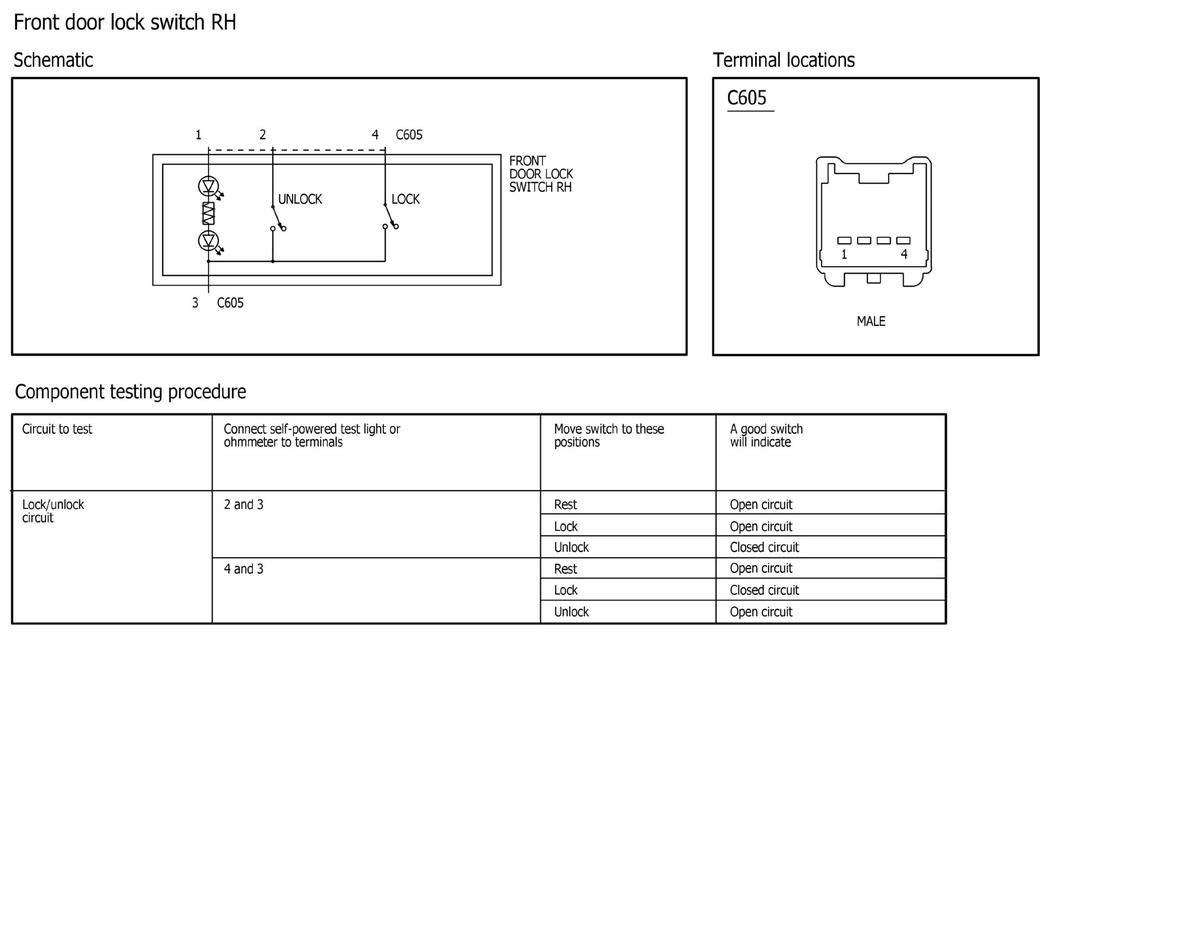

Fig 10: Front Door Lock Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

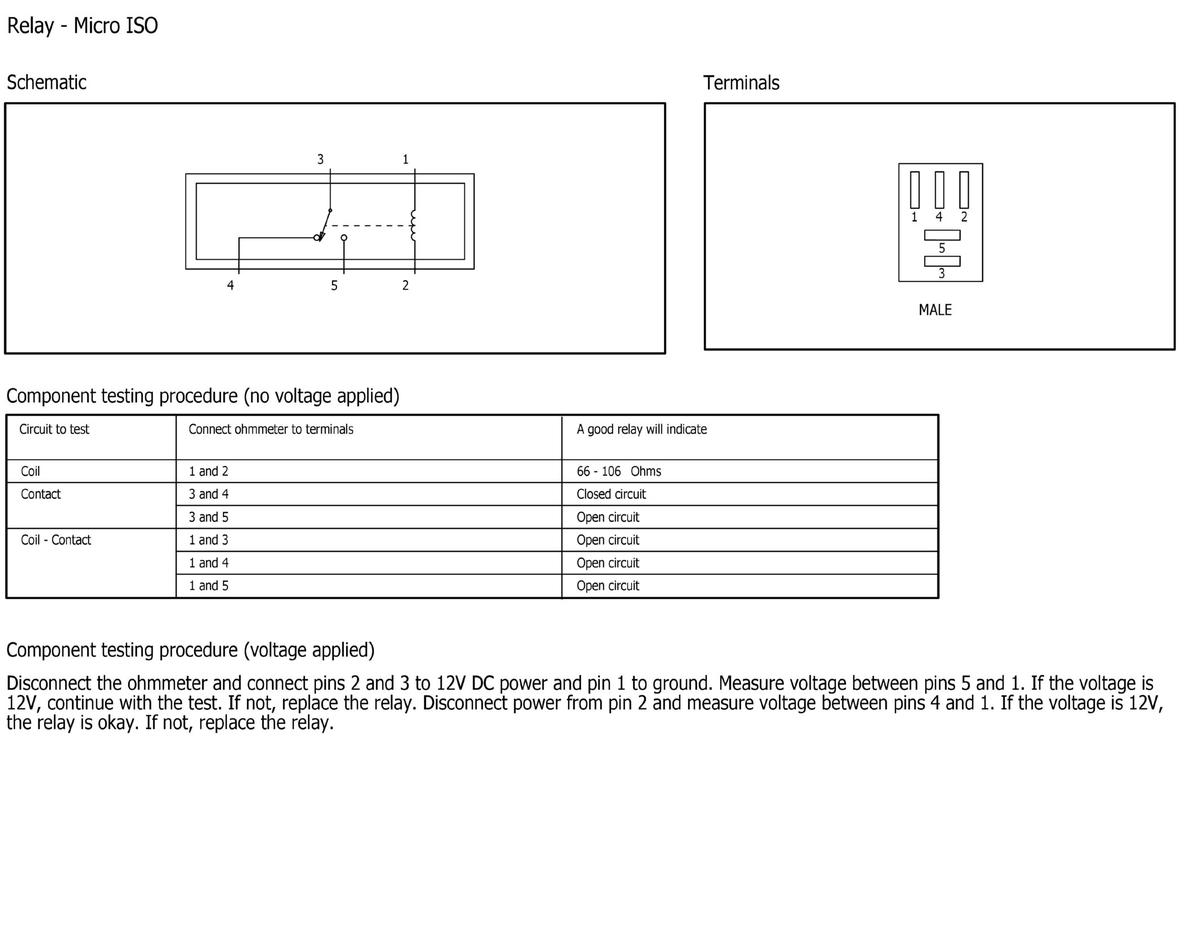

Fig 11: Relay - Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

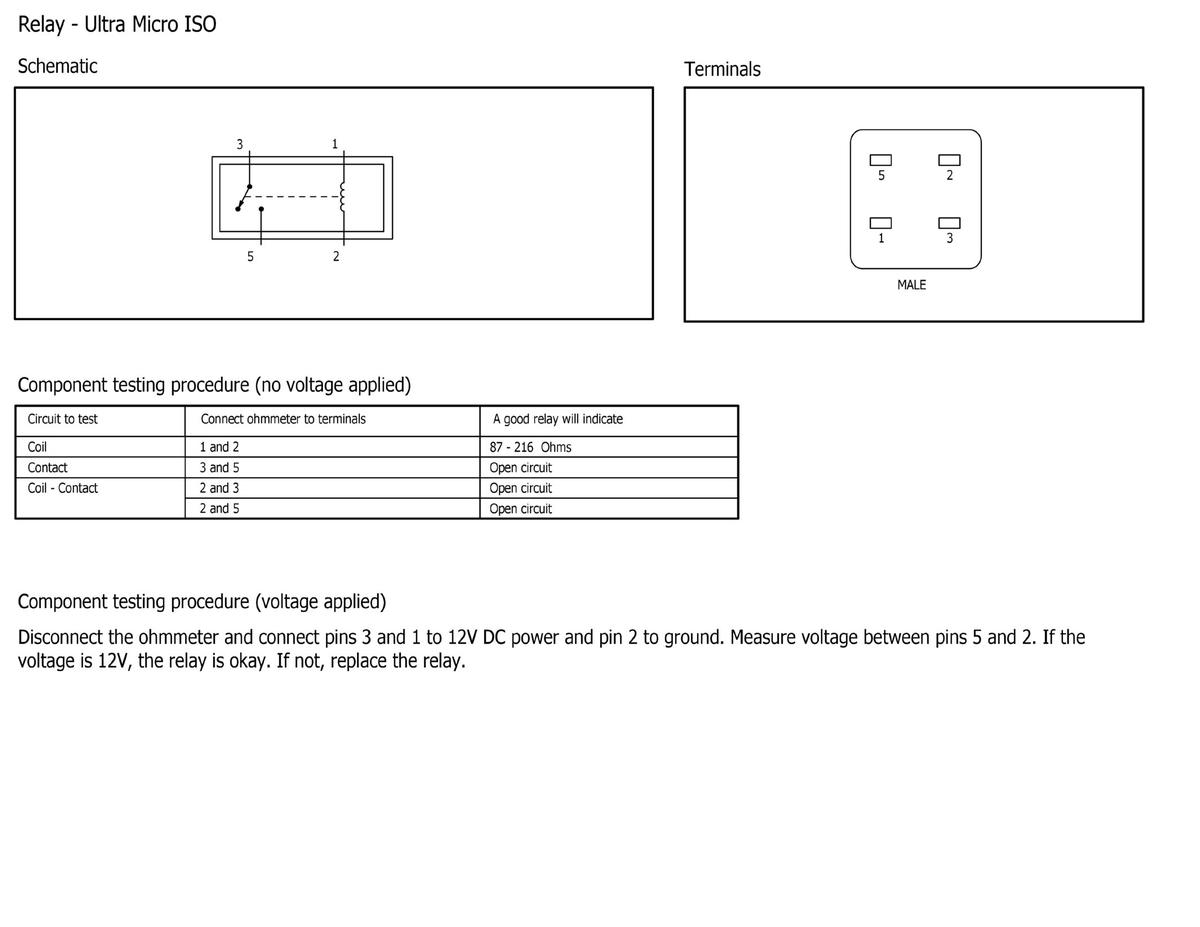

Fig 12: Relay - Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

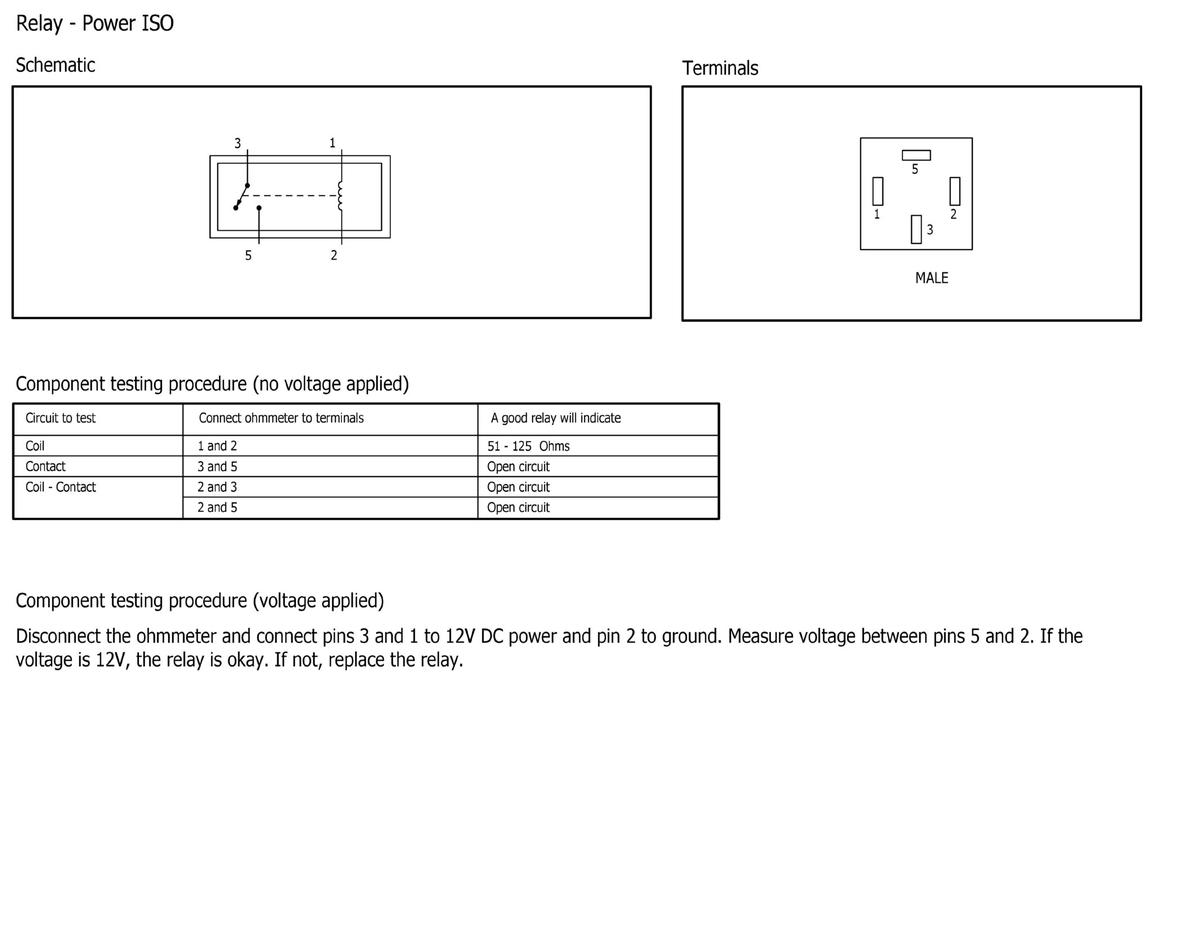

Fig 13: Relay - Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY

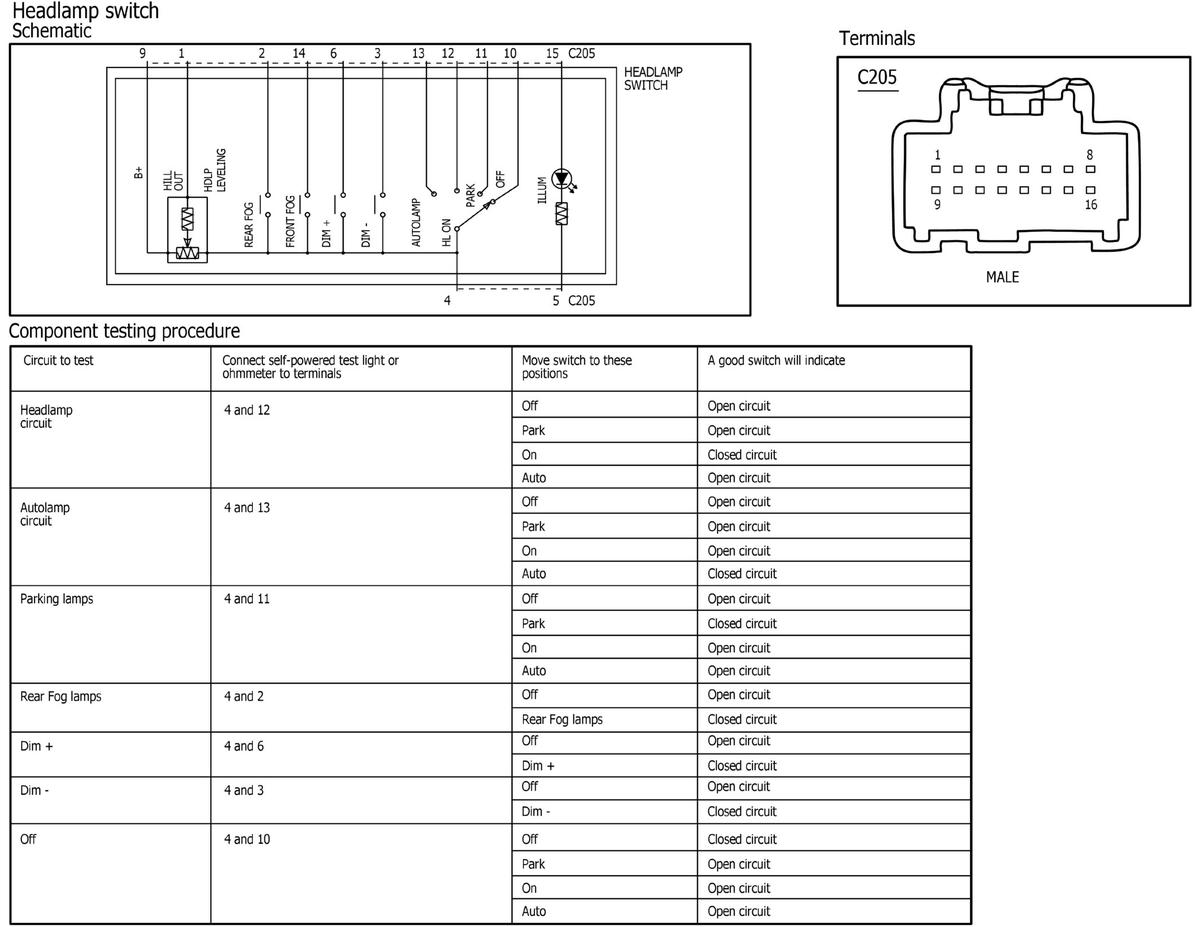

Fig 14: Headlamp Switch Component Testing

Courtesy of FORD MOTOR COMPANY
