Piston Diameter

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Check

NOTE: Refer to the appropriate engine article for the specification.

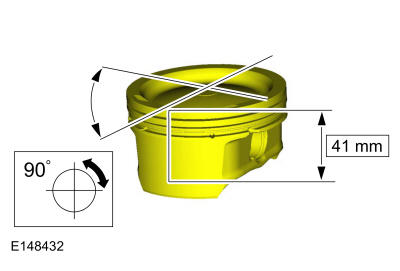

  1. Measure the piston diameter 90 degrees from the piston pin and 41 mm (1.61 in) down from the top of the piston at the point indicated.
GFD586358Courtesy of FORD MOTOR COMPANY
