Piston Inspection

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Inspection

1. NOTE: Do not use a caustic cleaning solution or a wire brush to clean the pistons or damage can occur.

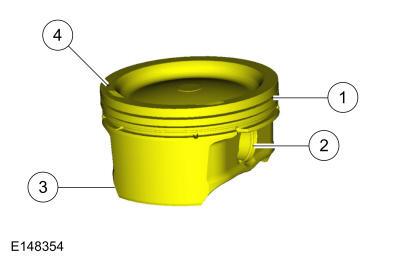

   Clean and inspect the (1) ring lands, (2) pin bosses, (3) skirts and the (4) tops of the pistons. If wear marks, scores or glazing is found on the piston skirt, check for a bent or twisted connecting rod.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Make sure the oil ring holes are clean.

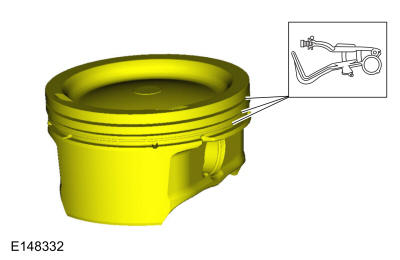

   Using a Piston Ring Groove Scraper, clean the piston ring grooves.

Courtesy of FORD MOTOR COMPANY
