Component Testing

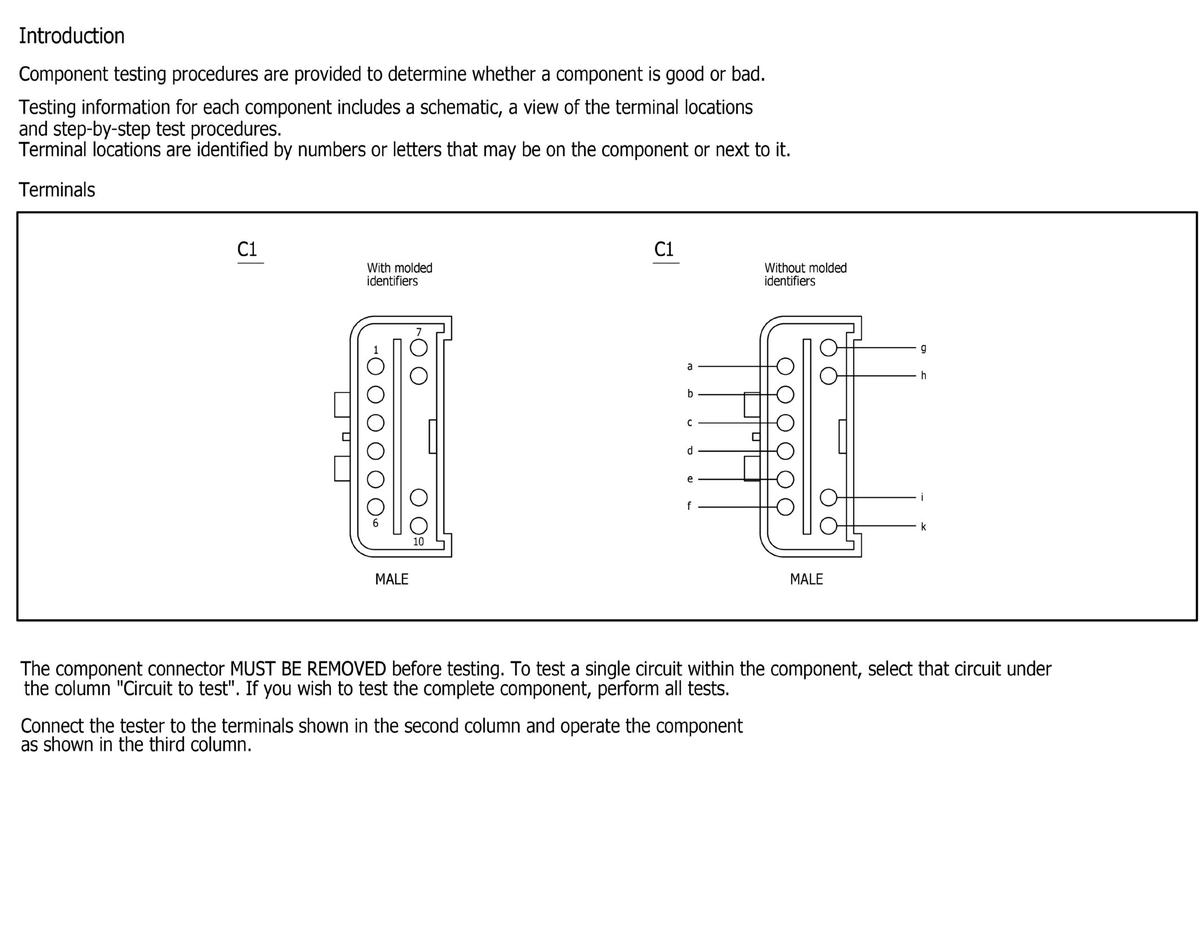

Fig 1: Component Testing Introduction

Courtesy of FORD MOTOR COMPANY

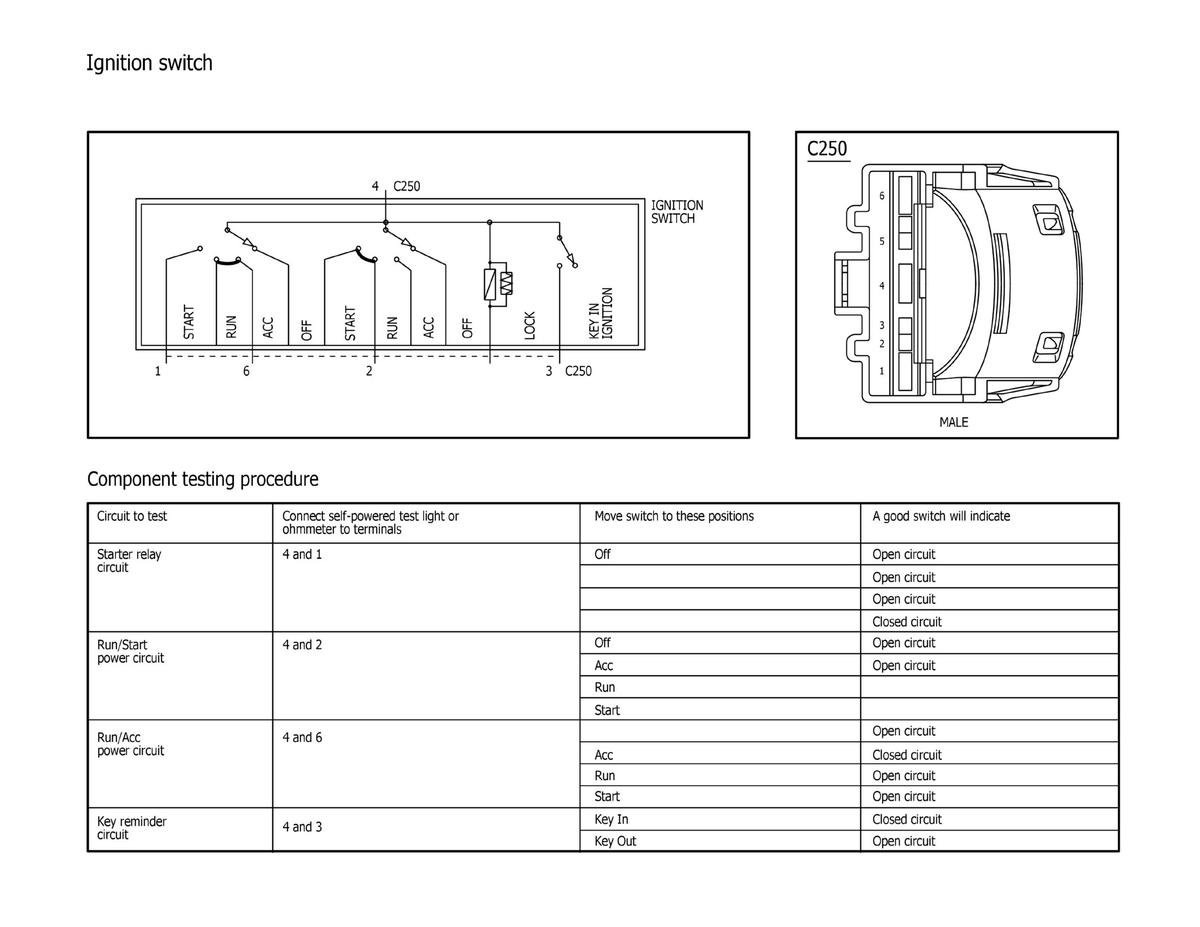

Fig 2: Ignition Switch Component Testing

Courtesy of FORD MOTOR COMPANY

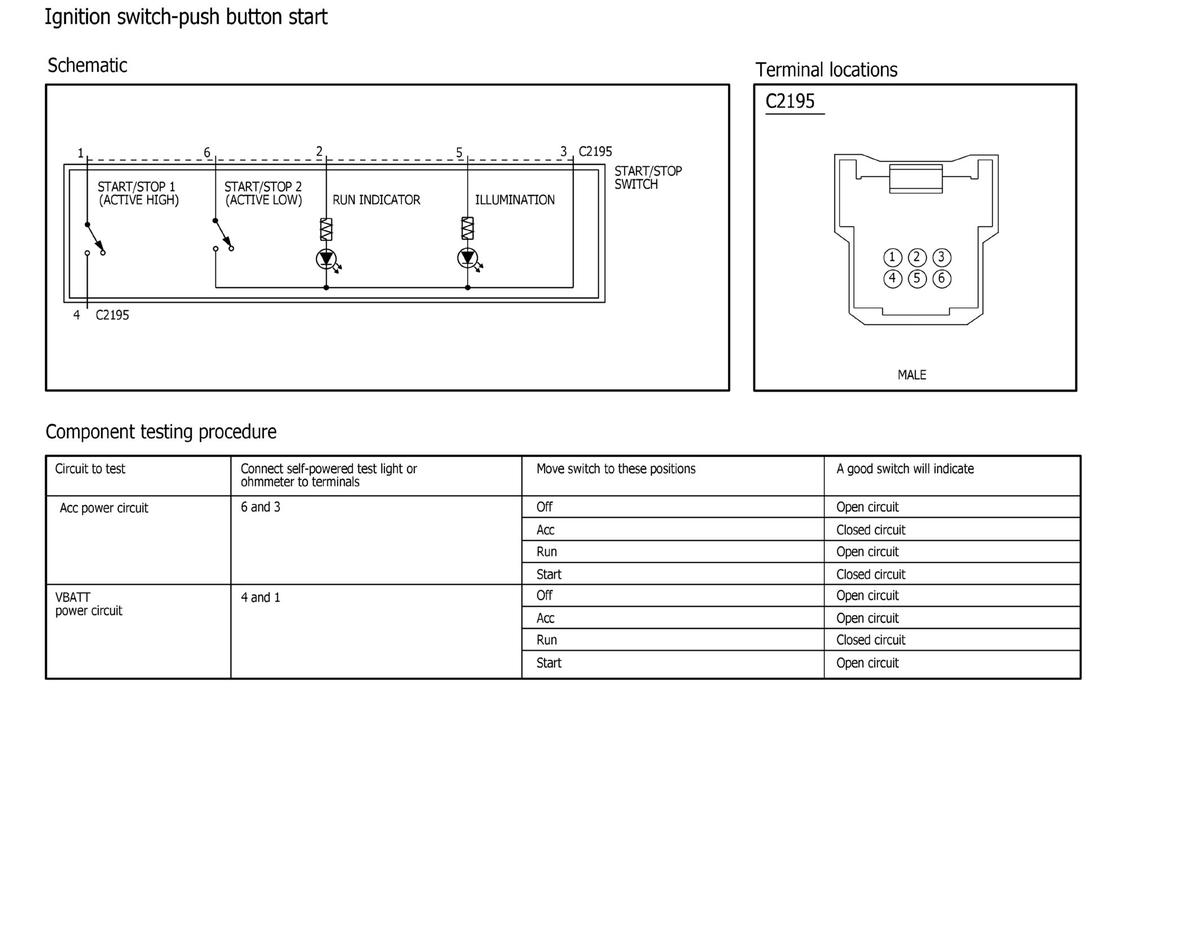

Fig 3: Ignition Switch Push-Button Start Component Testing

Courtesy of FORD MOTOR COMPANY

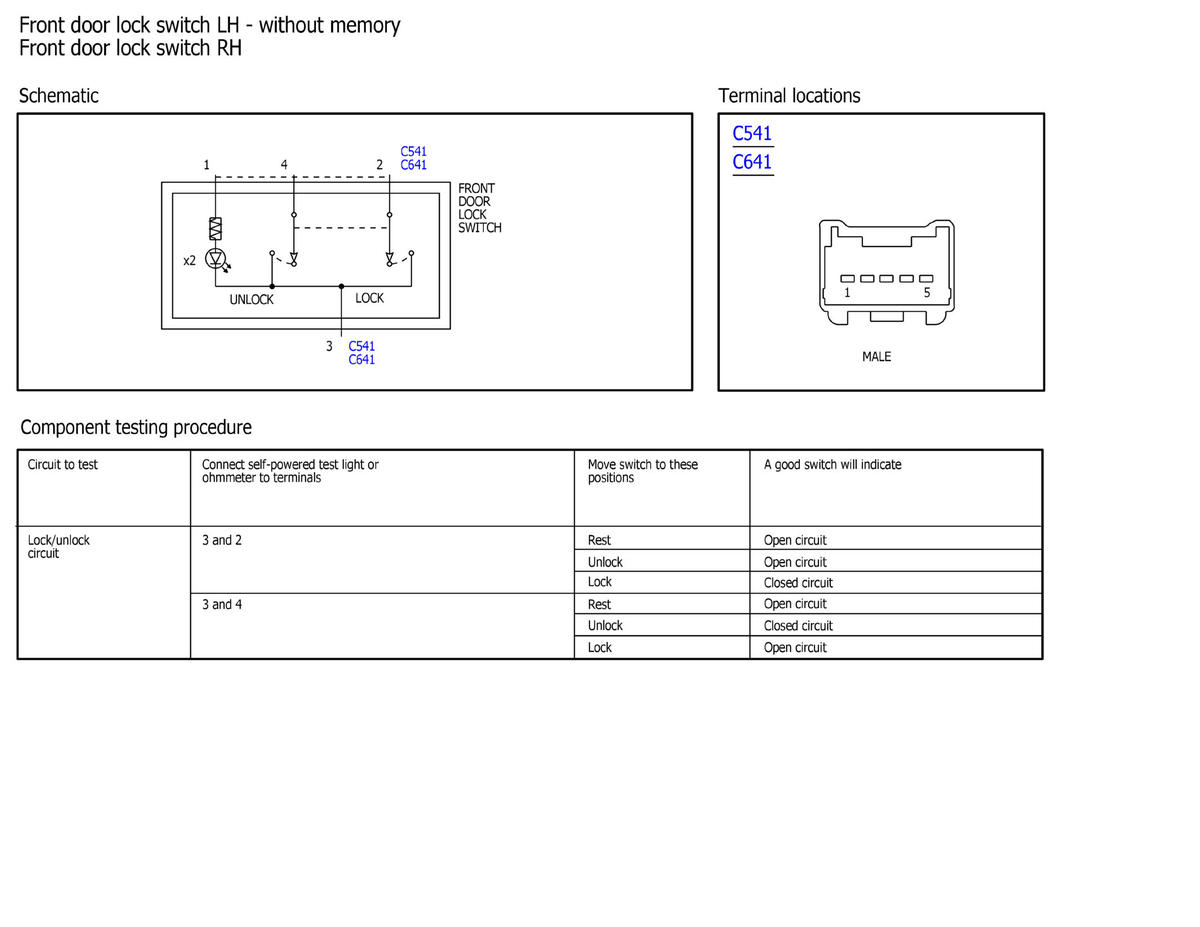

Fig 4: Front Door Lock Switch LH w/o Memory, RH Component Testing

Courtesy of FORD MOTOR COMPANY

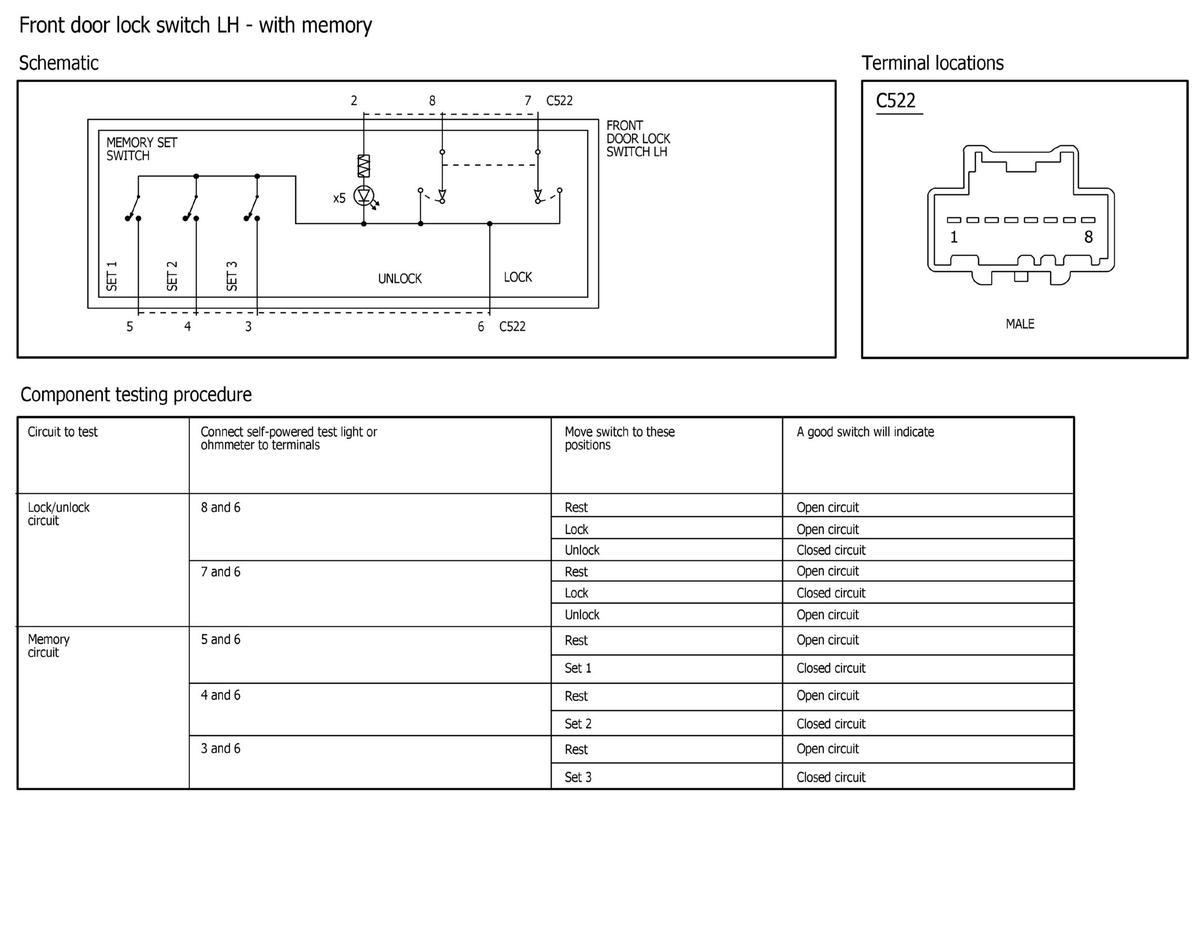

Fig 5: Front Door Lock Switch LH-With Memory Component Testing

Courtesy of FORD MOTOR COMPANY

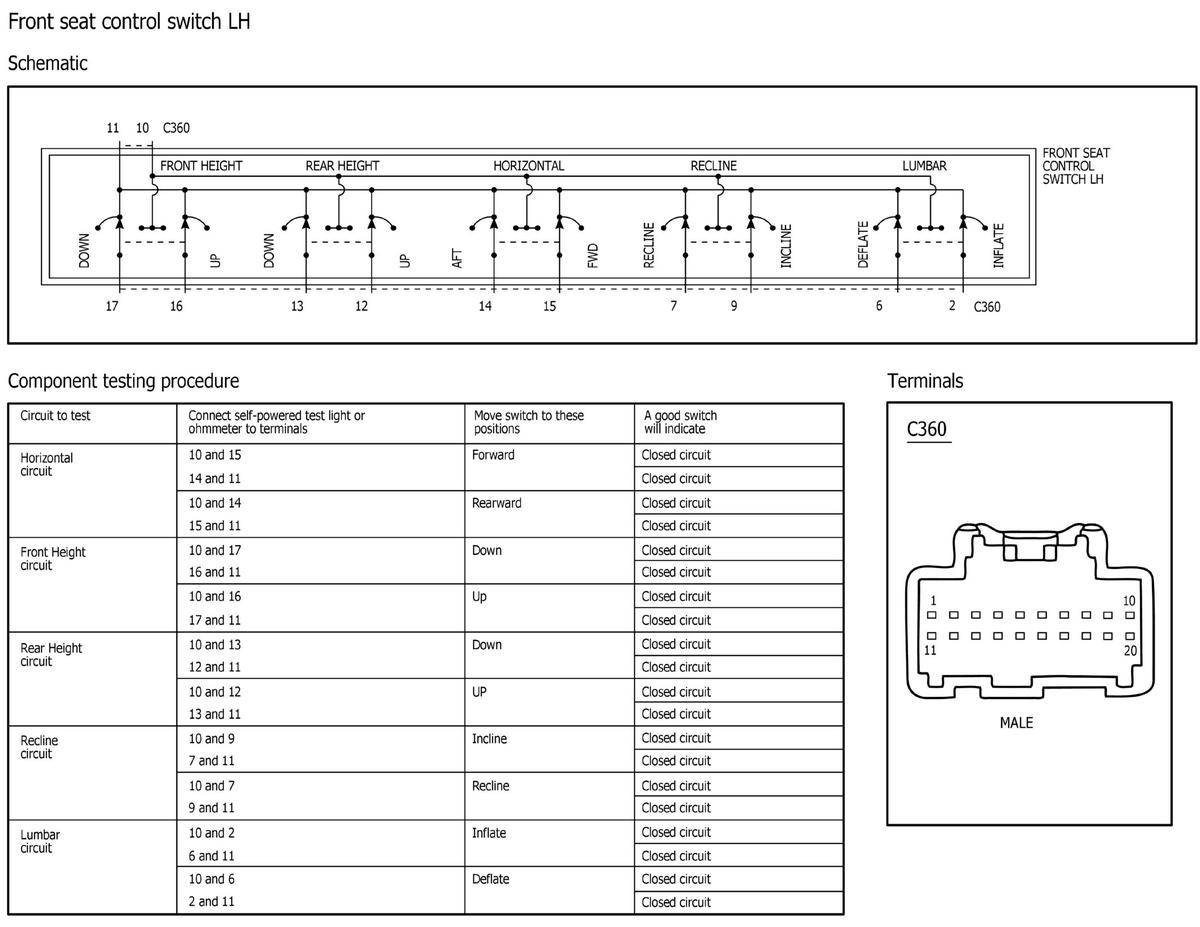

Fig 6: Front Seat Control Switch LH Component Testing

Courtesy of FORD MOTOR COMPANY

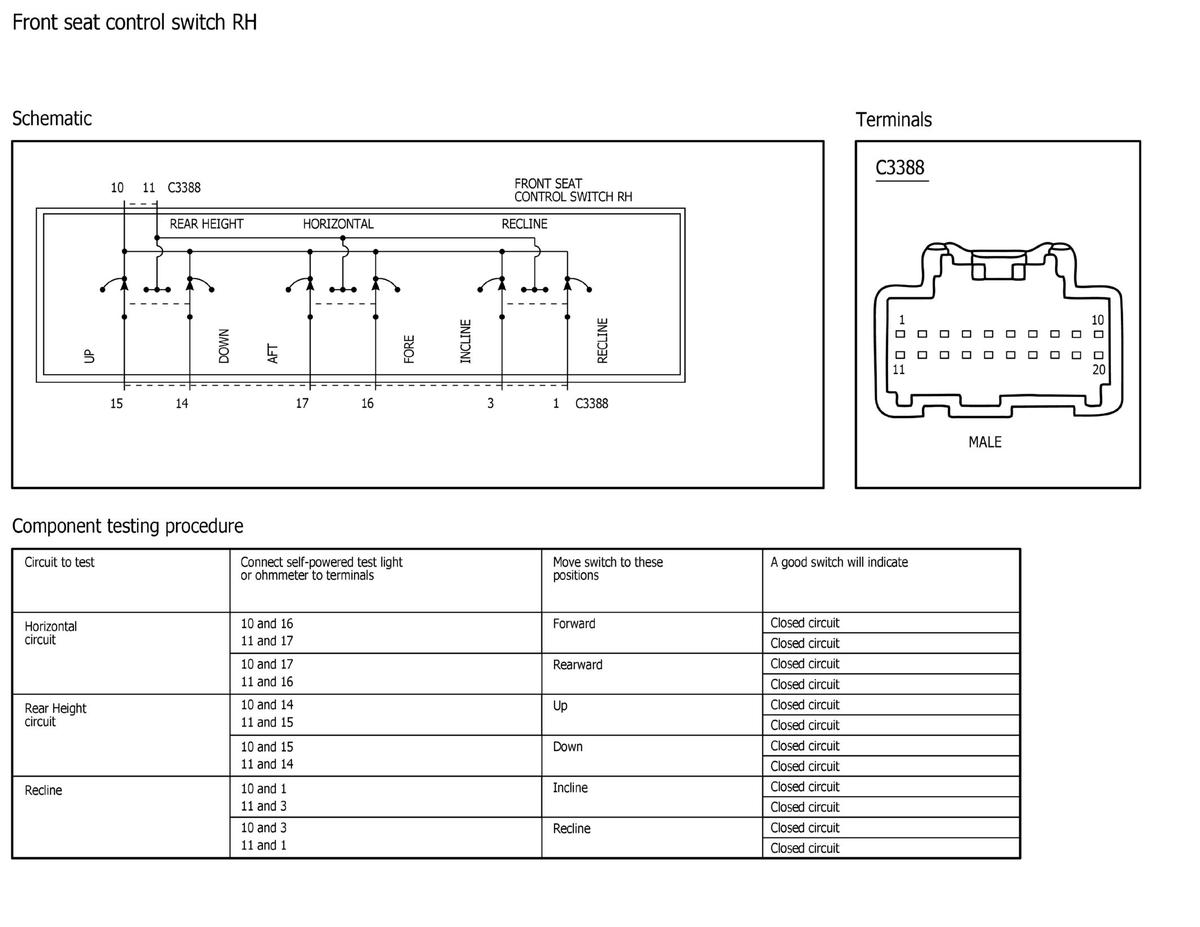

Fig 7: Front Seat Control Switch RH Component Testing

Courtesy of FORD MOTOR COMPANY

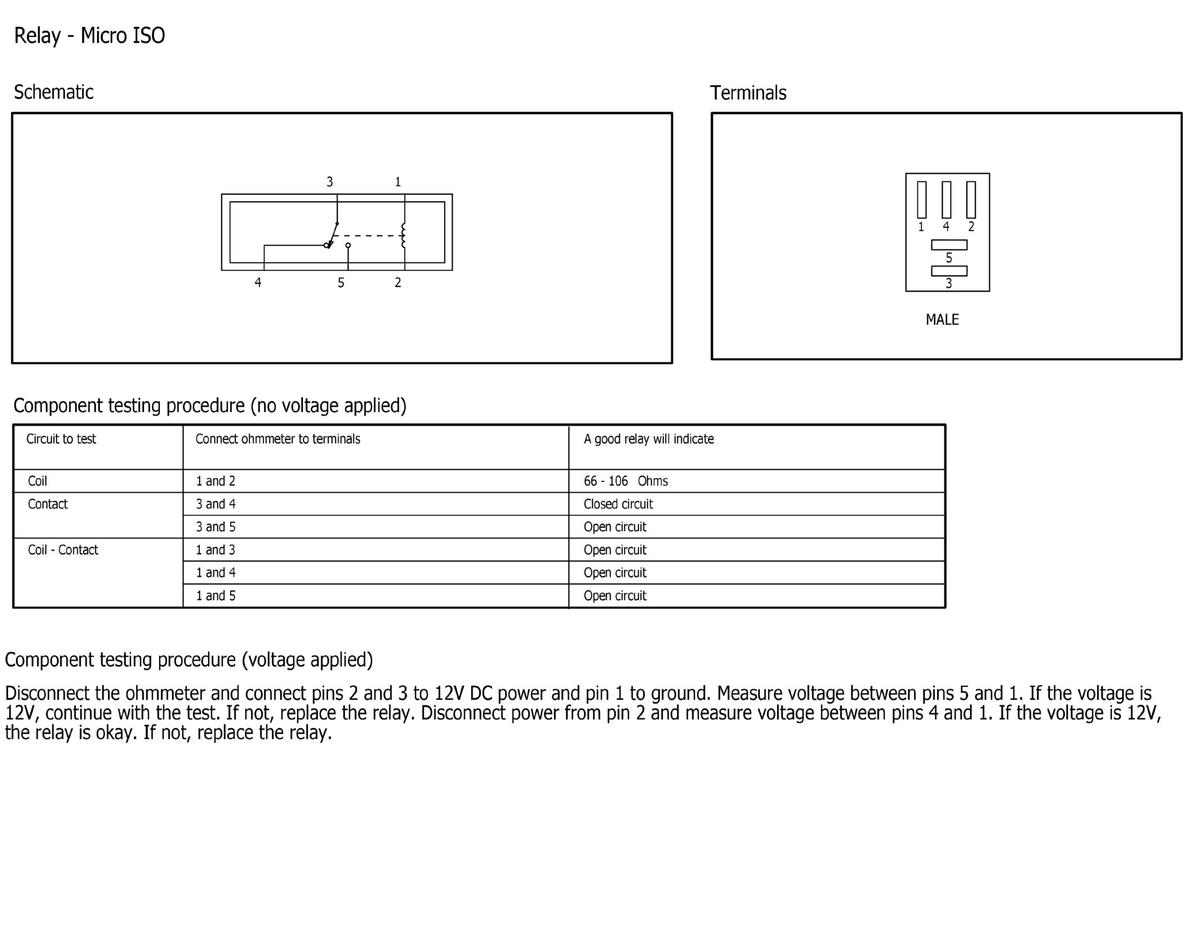

Fig 8: Relay-Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

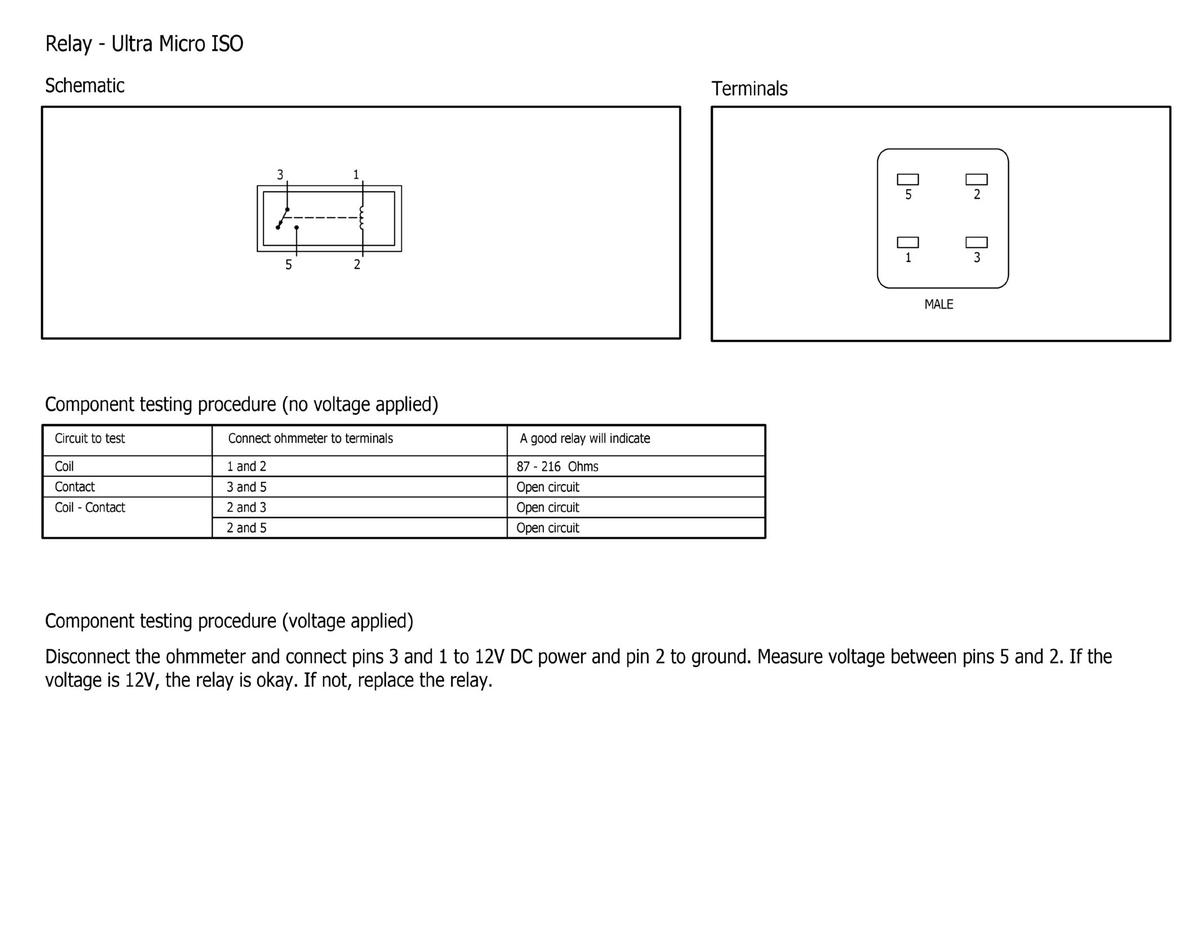

Fig 9: Relay-Ultra Micro ISO Component Testing

Courtesy of FORD MOTOR COMPANY

Fig 10: Relay-Power ISO Component Testing

Courtesy of FORD MOTOR COMPANY
