Piston Diameter
For information on Ford Color Coded Illustrations refer to OEM Color Coding .
Check
-

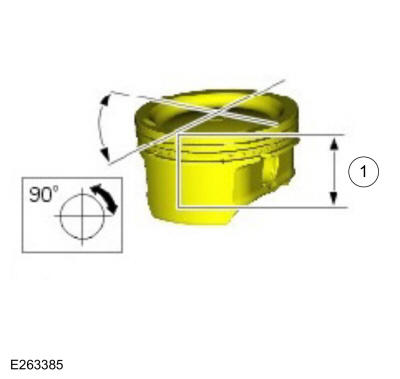

- Measure the piston diameter 90 degrees from the piston pin and piston diameter (DN) height down from the top of the piston at the point indicated.
- Refer to specifications for the piston diameter (DN) height. Refer to: Specifications 2.3L EcoBoost . Refer to: Specifications 3.0L EcoBoost . Refer to: Specifications 3.3L Duratec-V6 . Refer to: Specifications 3.3L Duratec-V6 - Hybrid .
