OEM Ground Distribution: Grounds

GFDWR31894Courtesy of FORD MOTOR COMPANY

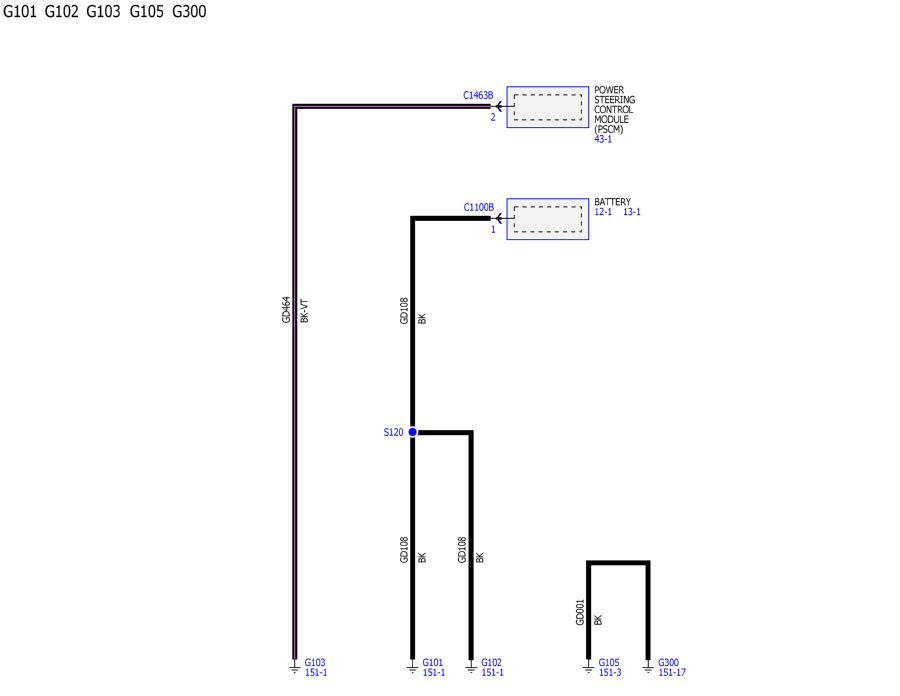

GFDWR31888Courtesy of FORD MOTOR COMPANY

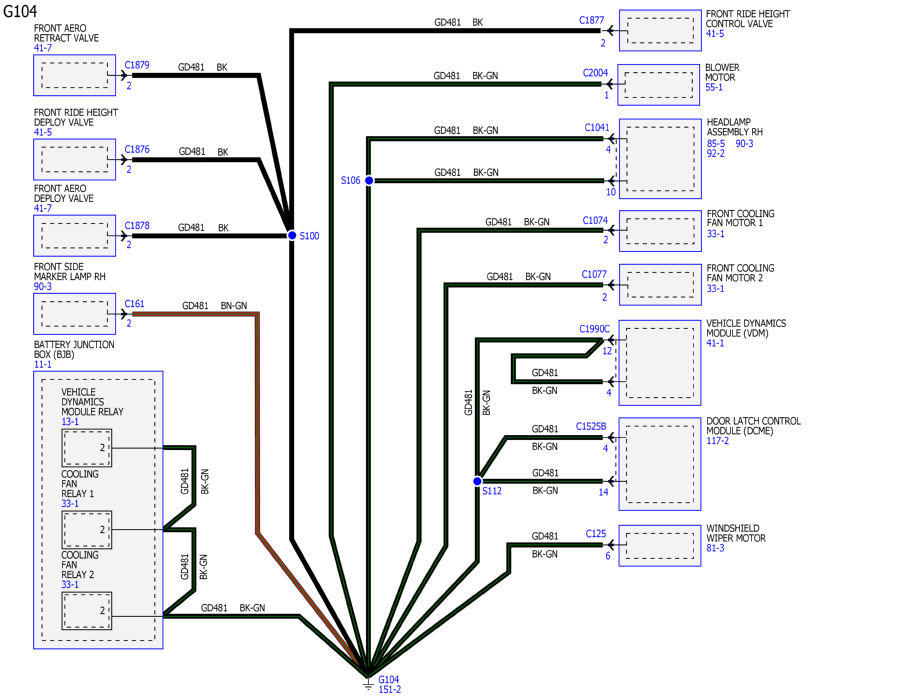

GFDWR31892Courtesy of FORD MOTOR COMPANY

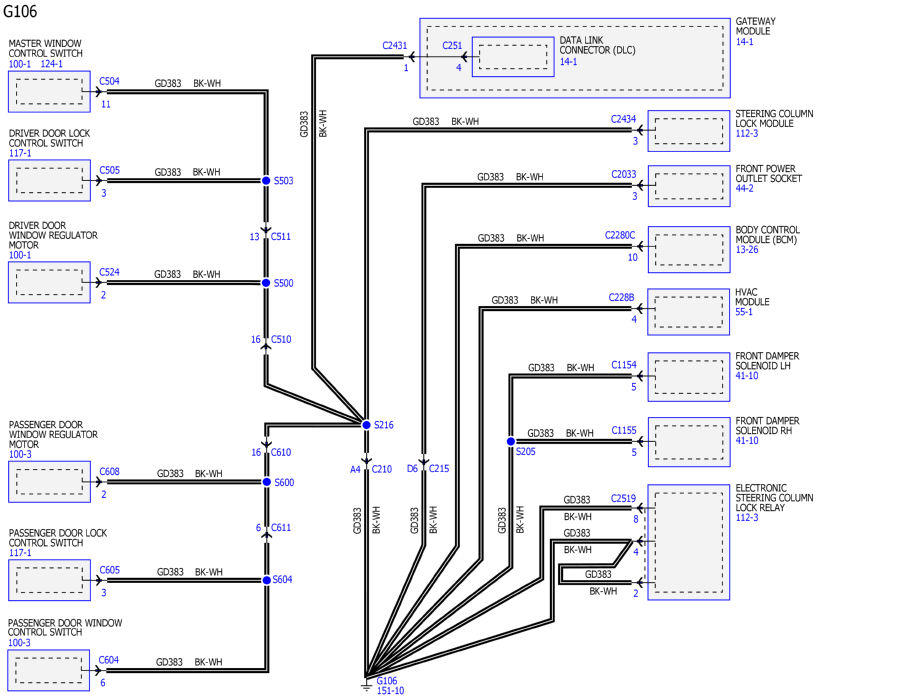

GFDWR31895Courtesy of FORD MOTOR COMPANY

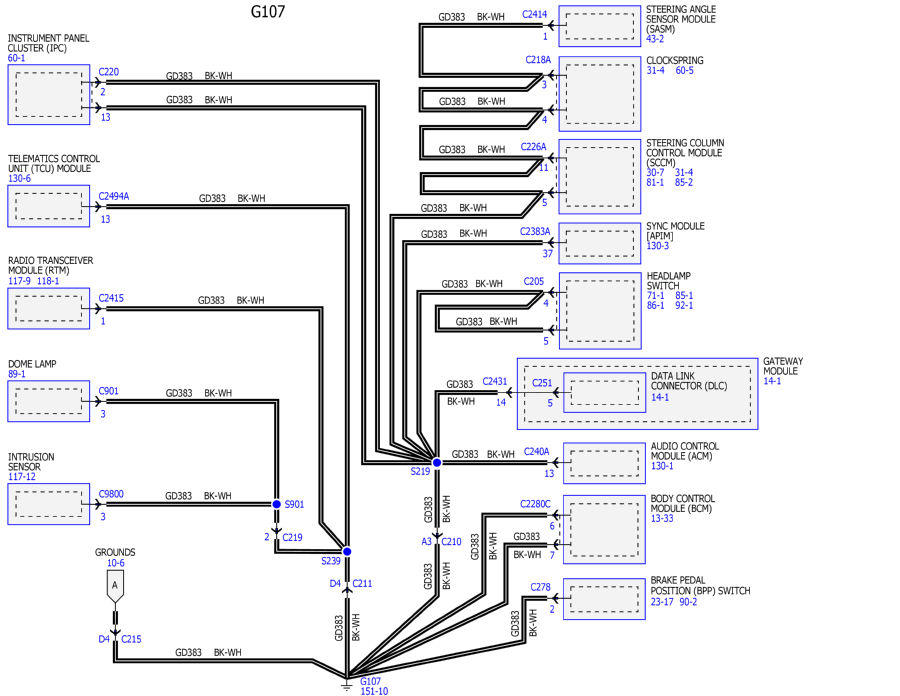

GFDWR31897Courtesy of FORD MOTOR COMPANY

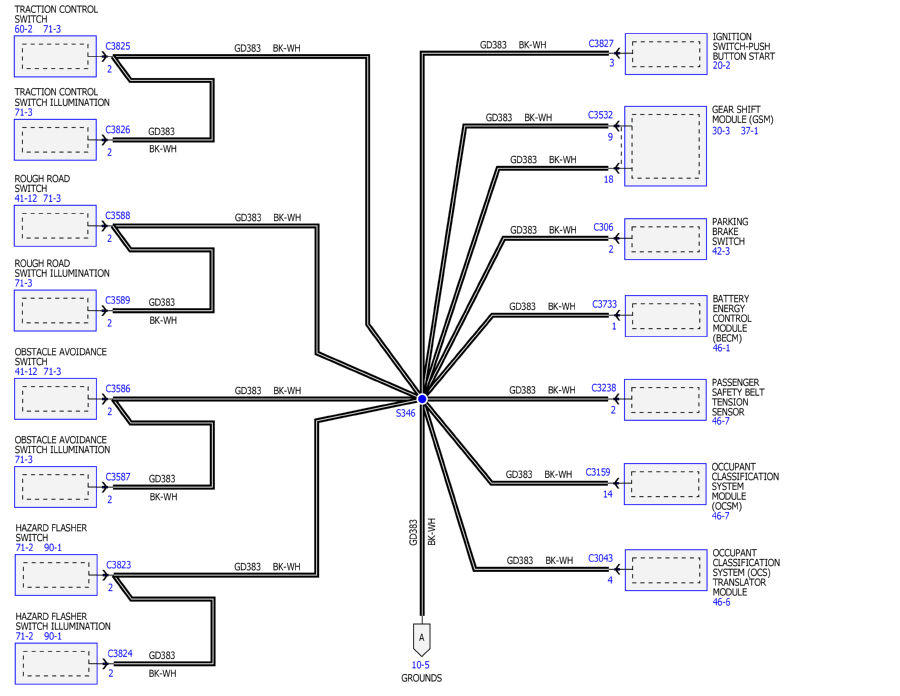

GFDWR31893Courtesy of FORD MOTOR COMPANY

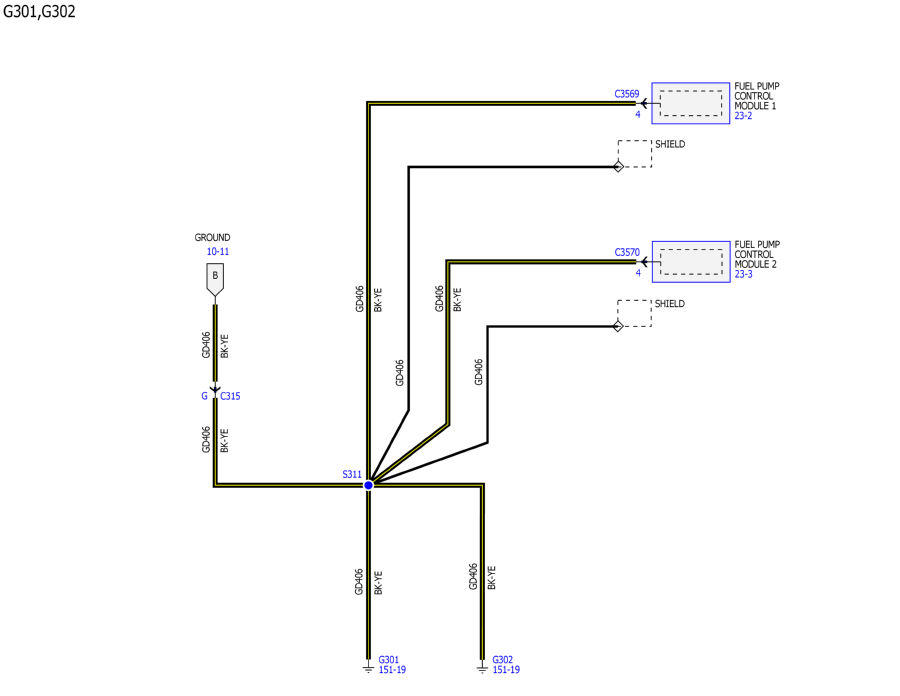

GFDWR31891Courtesy of FORD MOTOR COMPANY

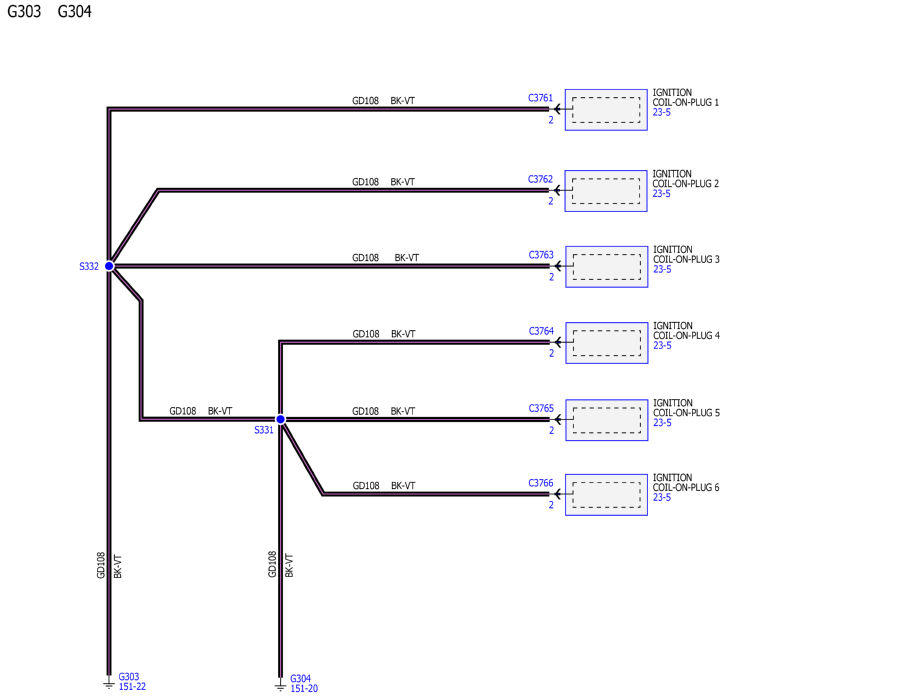

GFDWR31890Courtesy of FORD MOTOR COMPANY

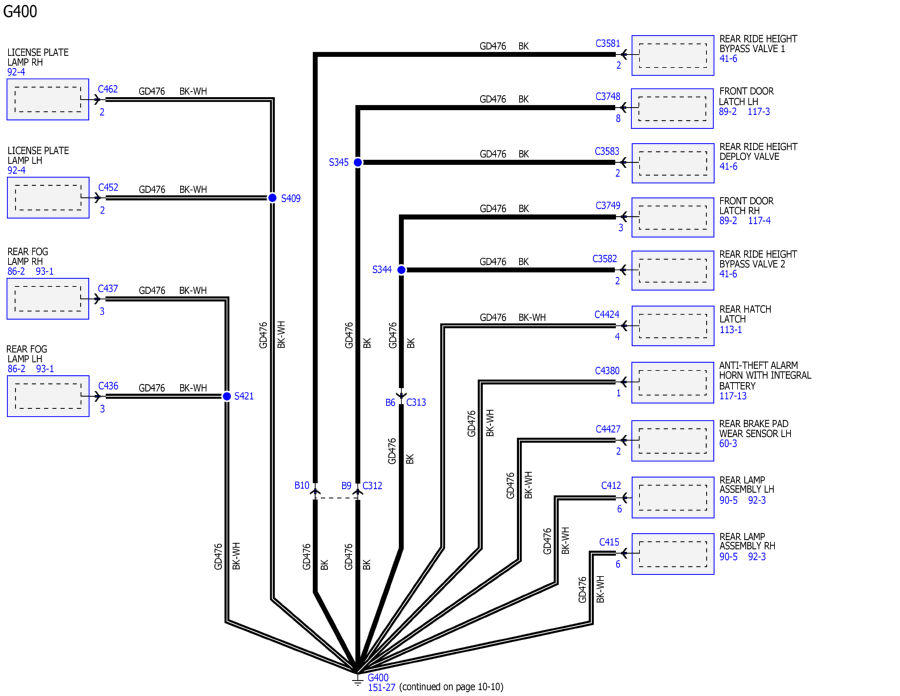

GFDWR31889Courtesy of FORD MOTOR COMPANY

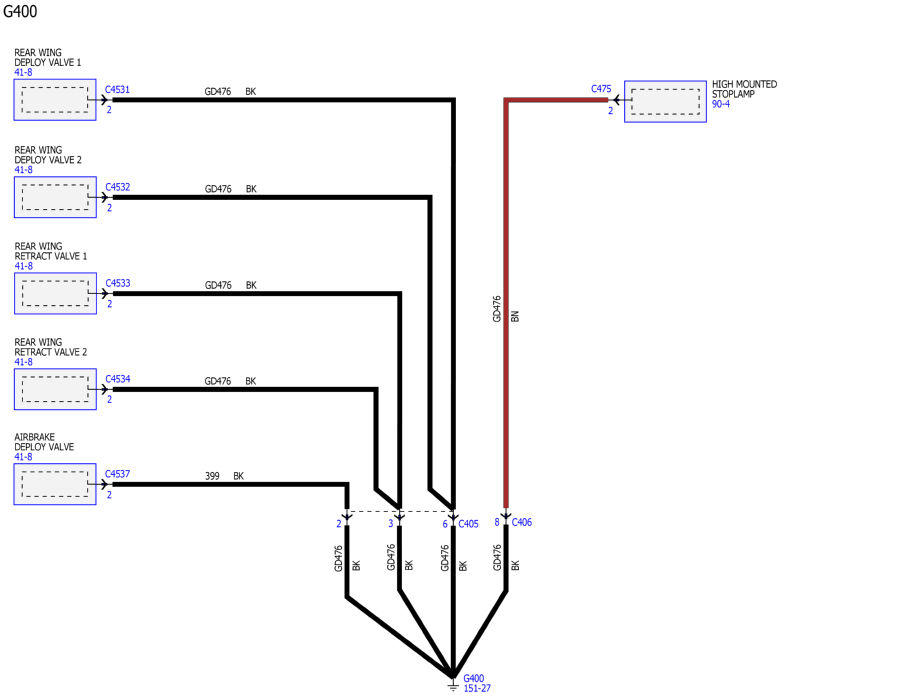

GFDWR31898Courtesy of FORD MOTOR COMPANY

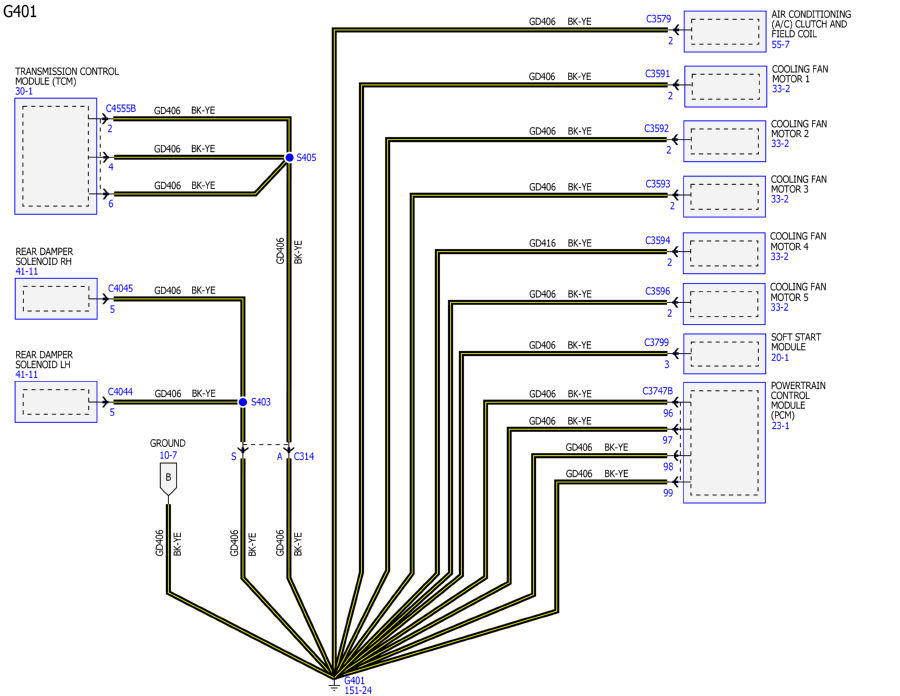

GFDWR31896Courtesy of FORD MOTOR COMPANY
