Connector Repair Procedures

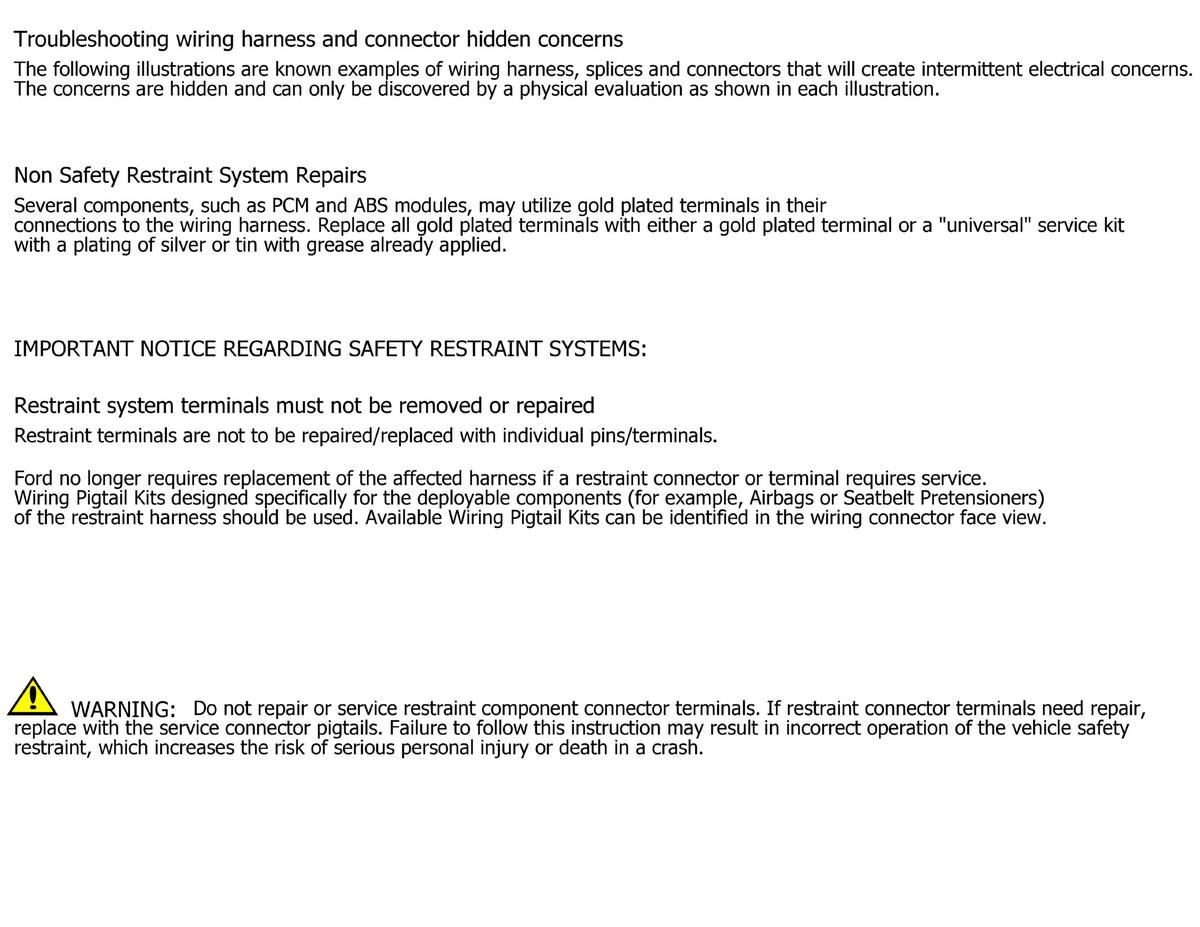

GFDWR130009Courtesy of FORD MOTOR COMPANY

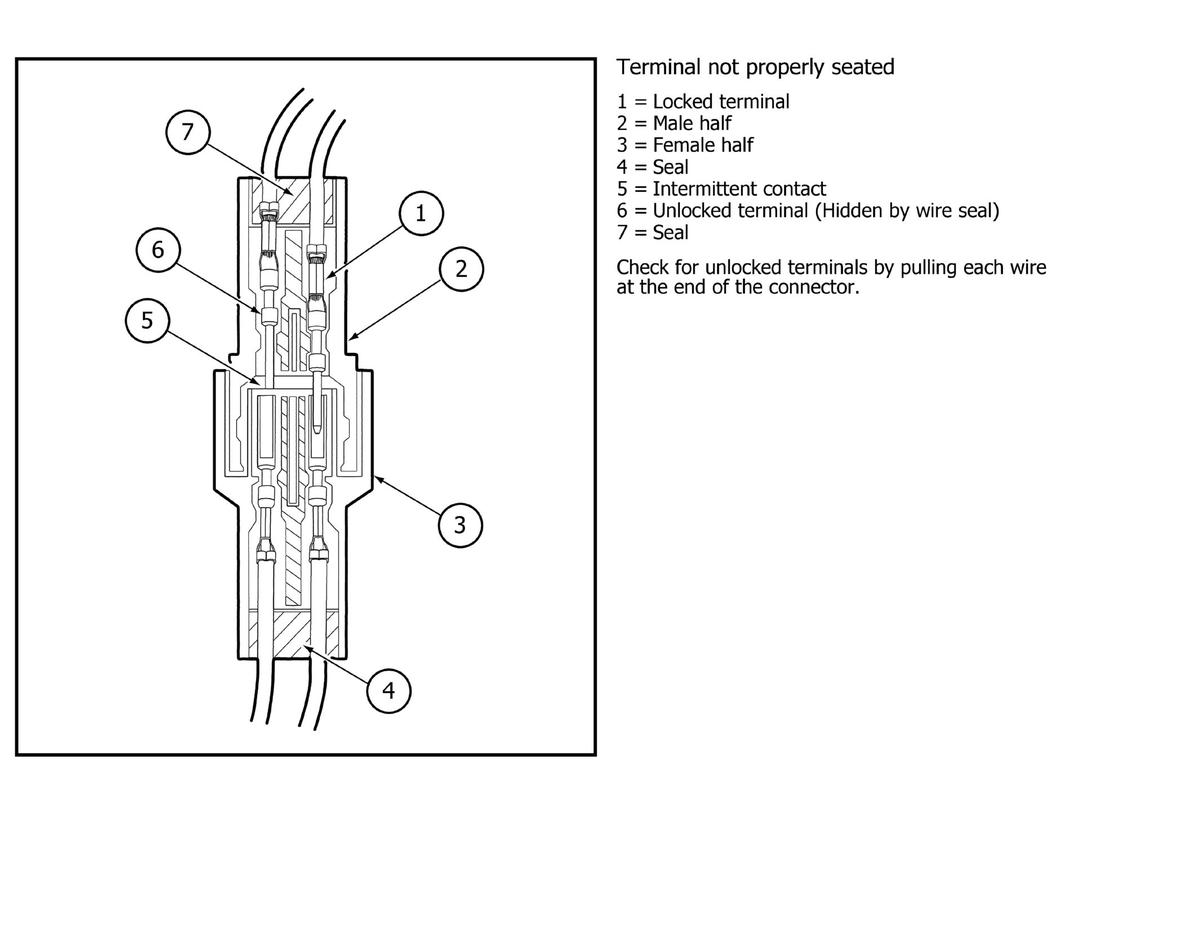

GFDWR130010Courtesy of FORD MOTOR COMPANY

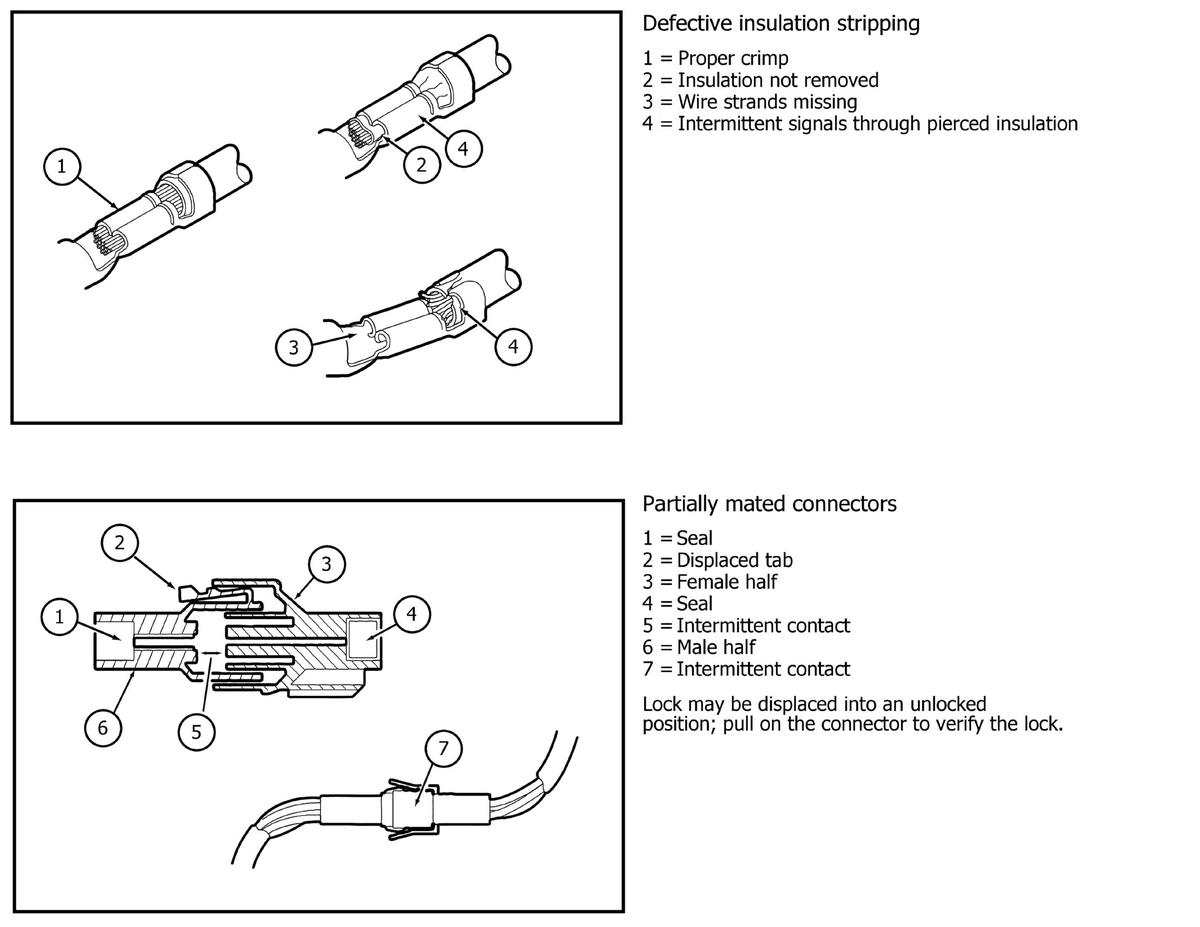

GFDWR130011Courtesy of FORD MOTOR COMPANY

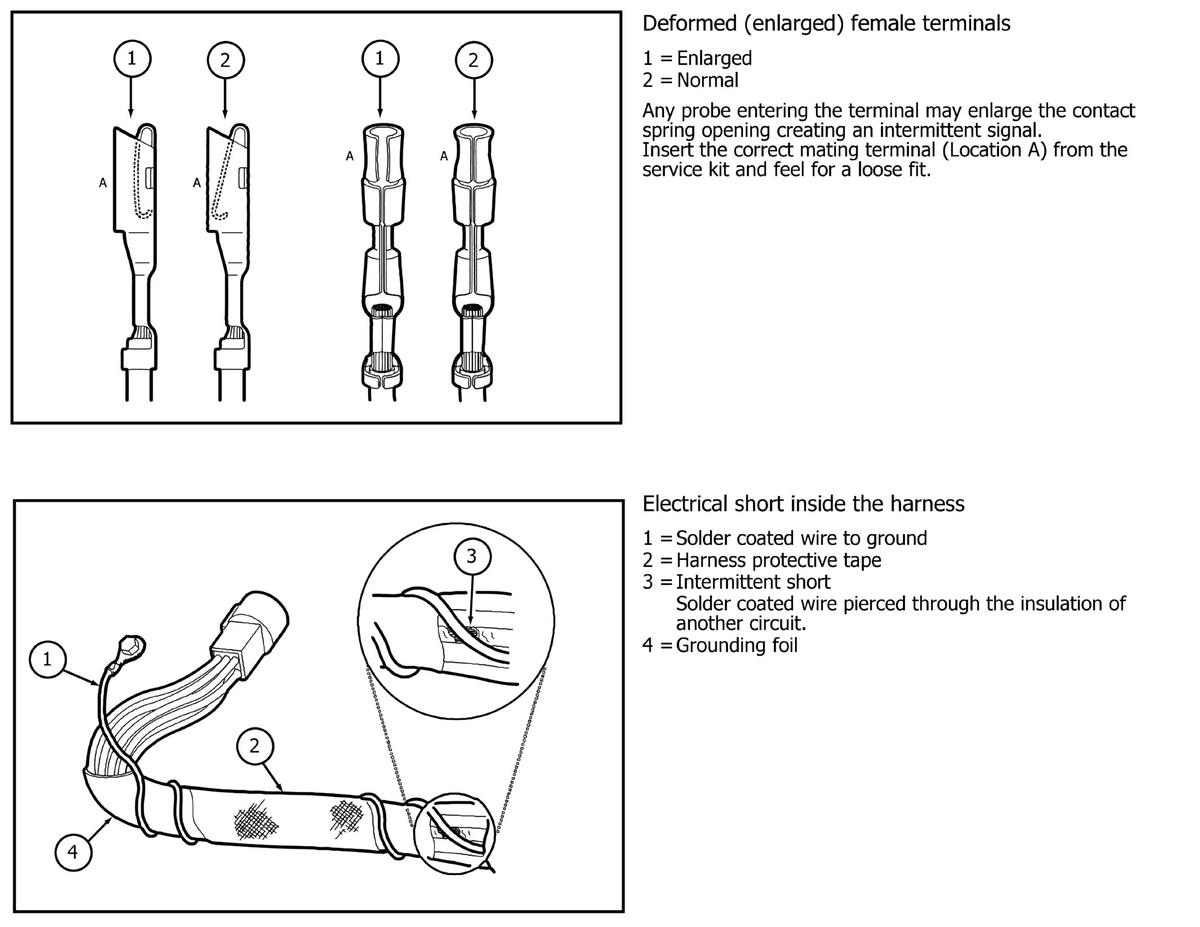

GFDWR130012Courtesy of FORD MOTOR COMPANY

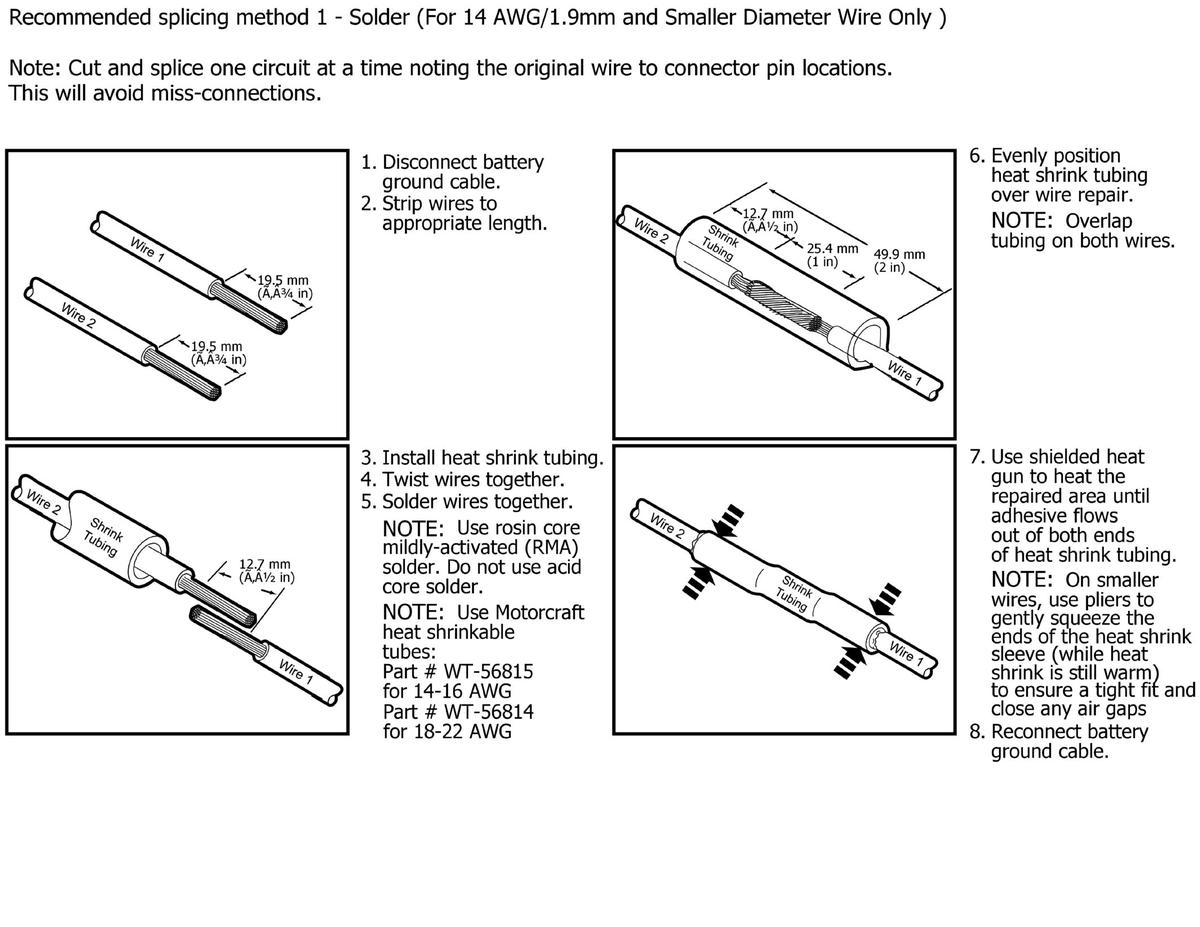

GFDWR130013Courtesy of FORD MOTOR COMPANY

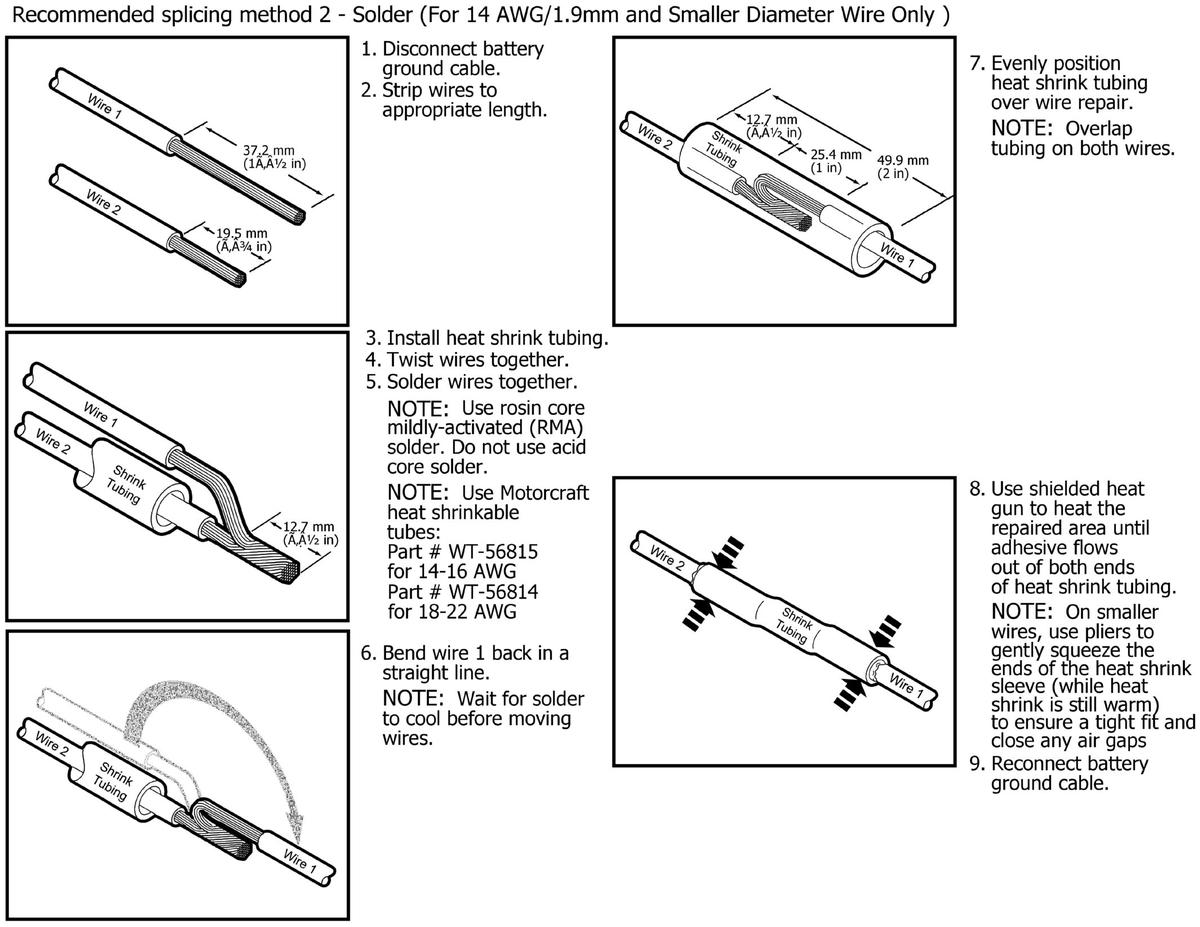

GFDWR130014Courtesy of FORD MOTOR COMPANY

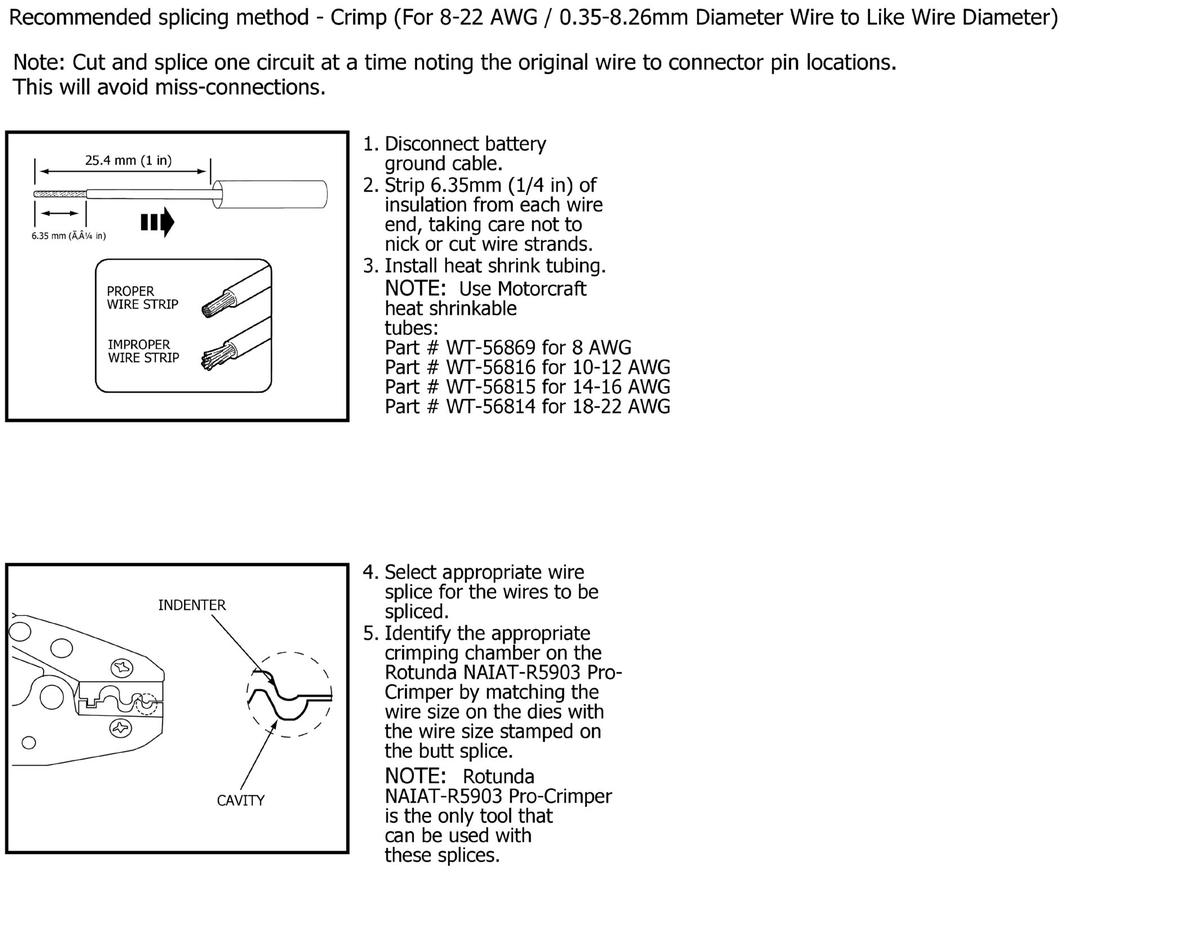

GFDWR130015Courtesy of FORD MOTOR COMPANY

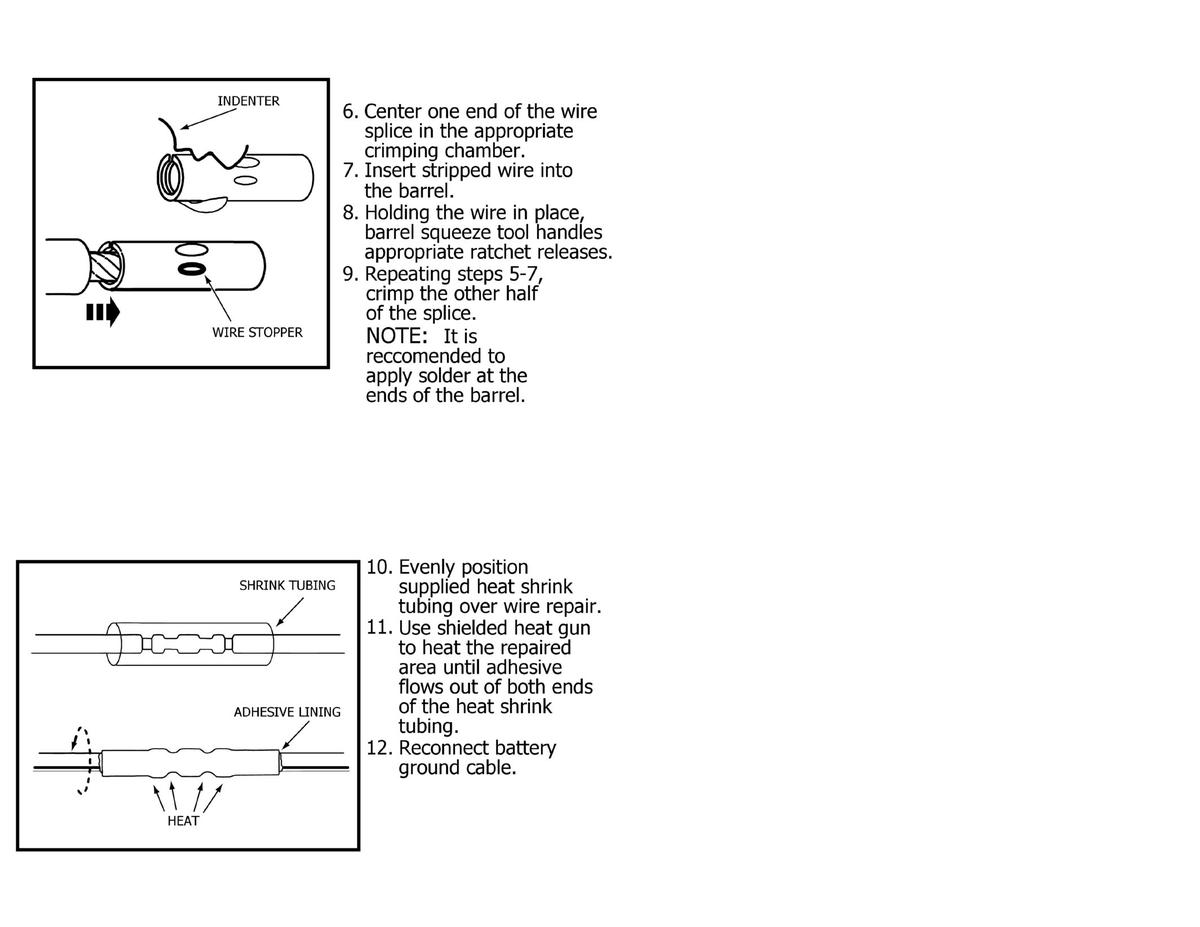

GFDWR130016Courtesy of FORD MOTOR COMPANY

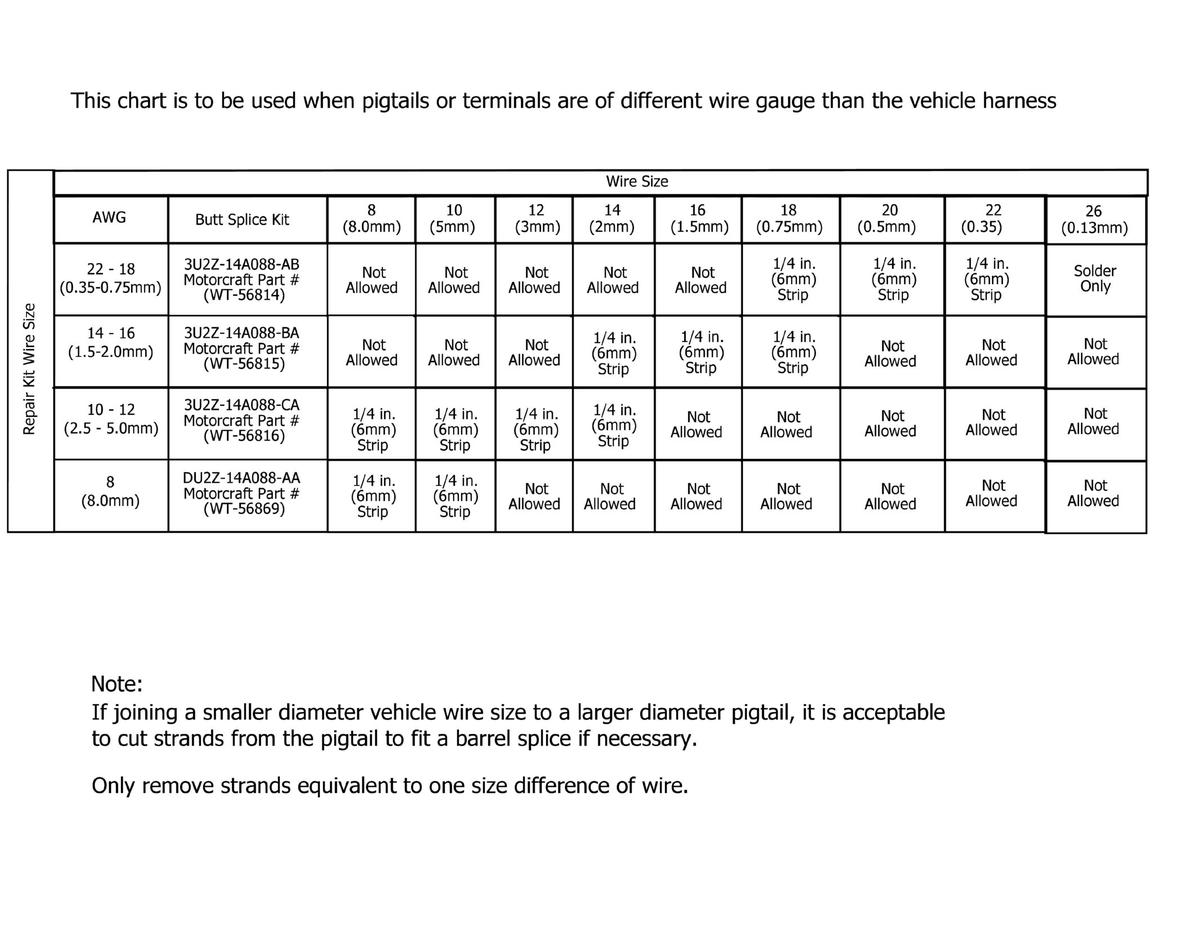

GFDWR130017Courtesy of FORD MOTOR COMPANY
