Fuel Pump Driver Module (FPDM): Installation

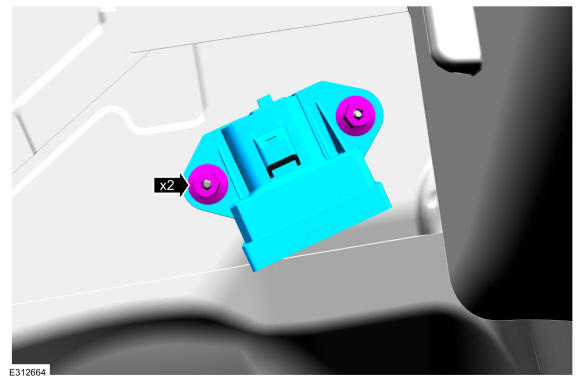

1. Install the fuel pump driver module, then install and tighten the nuts.

   Torque: 17 lb.in (1.9 Nm)

   Courtesy of FORD MOTOR COMPANY

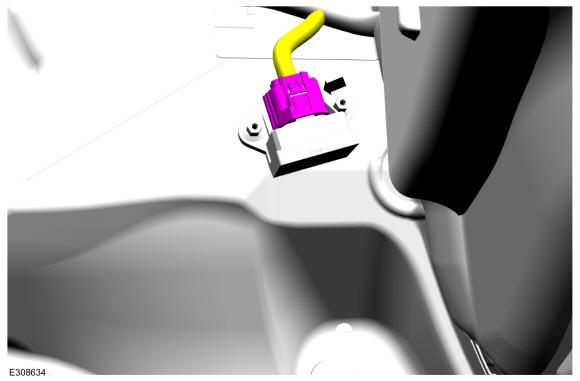

2. Connect the fuel pump driver module electrical connector.

   Courtesy of FORD MOTOR COMPANY

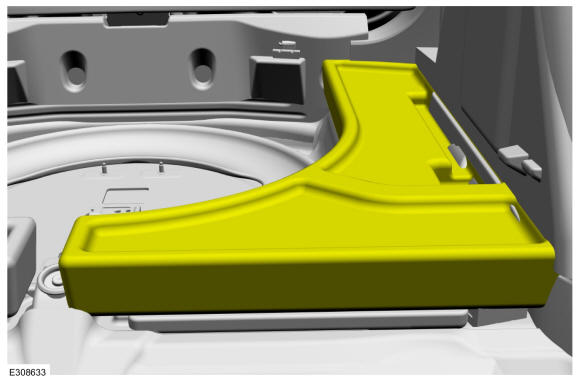

3. Install the left load compartment floor support.

   Courtesy of FORD MOTOR COMPANY

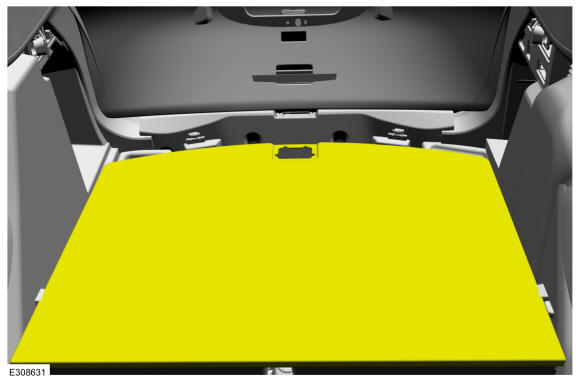

4. Install the rear load floor, then position the second row left seat back all the way up to the rear.

Courtesy of FORD MOTOR COMPANY
