Fuel Pump Driver Module (FPDM): Removal

  1. Position the second row left seat back all the way forward, then raise front of the rear load floor up and out of the way.
    GFD750817Courtesy of FORD MOTOR COMPANY

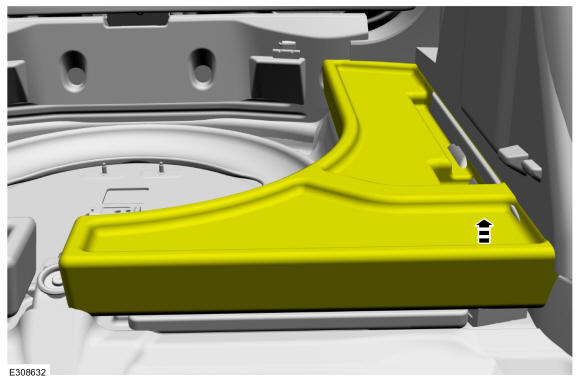

  2. Raise the left front corner of the left load compartment floor support up and out of the way.
    GFD750818Courtesy of FORD MOTOR COMPANY
  3. Disconnect the fuel pump driver module electrical connector.
    GFD750819Courtesy of FORD MOTOR COMPANY
  4. Remove the fuel pump driver module nuts, then remove the module.
GFD750820Courtesy of FORD MOTOR COMPANY
