Connector Repair Procedures

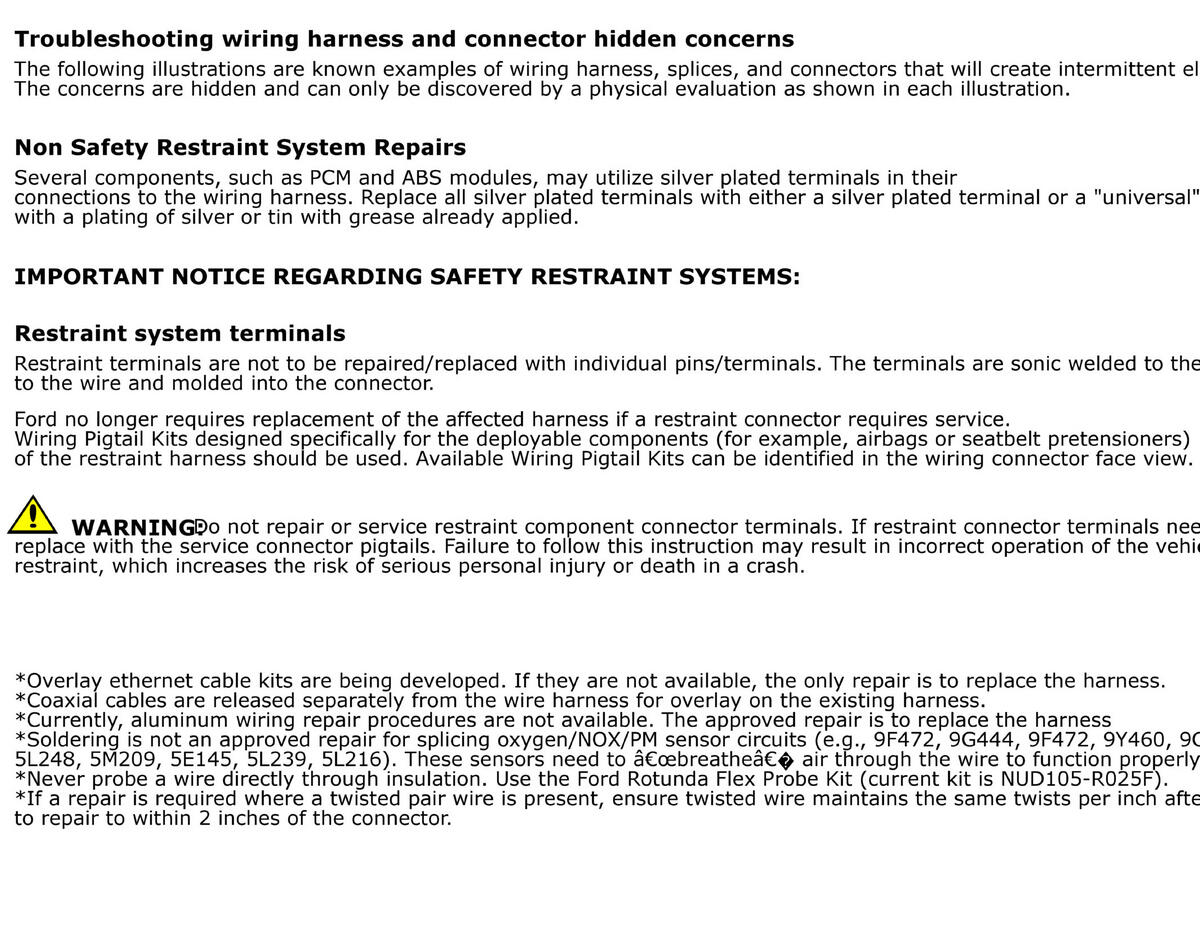

GFDWR221147Courtesy of FORD MOTOR COMPANY

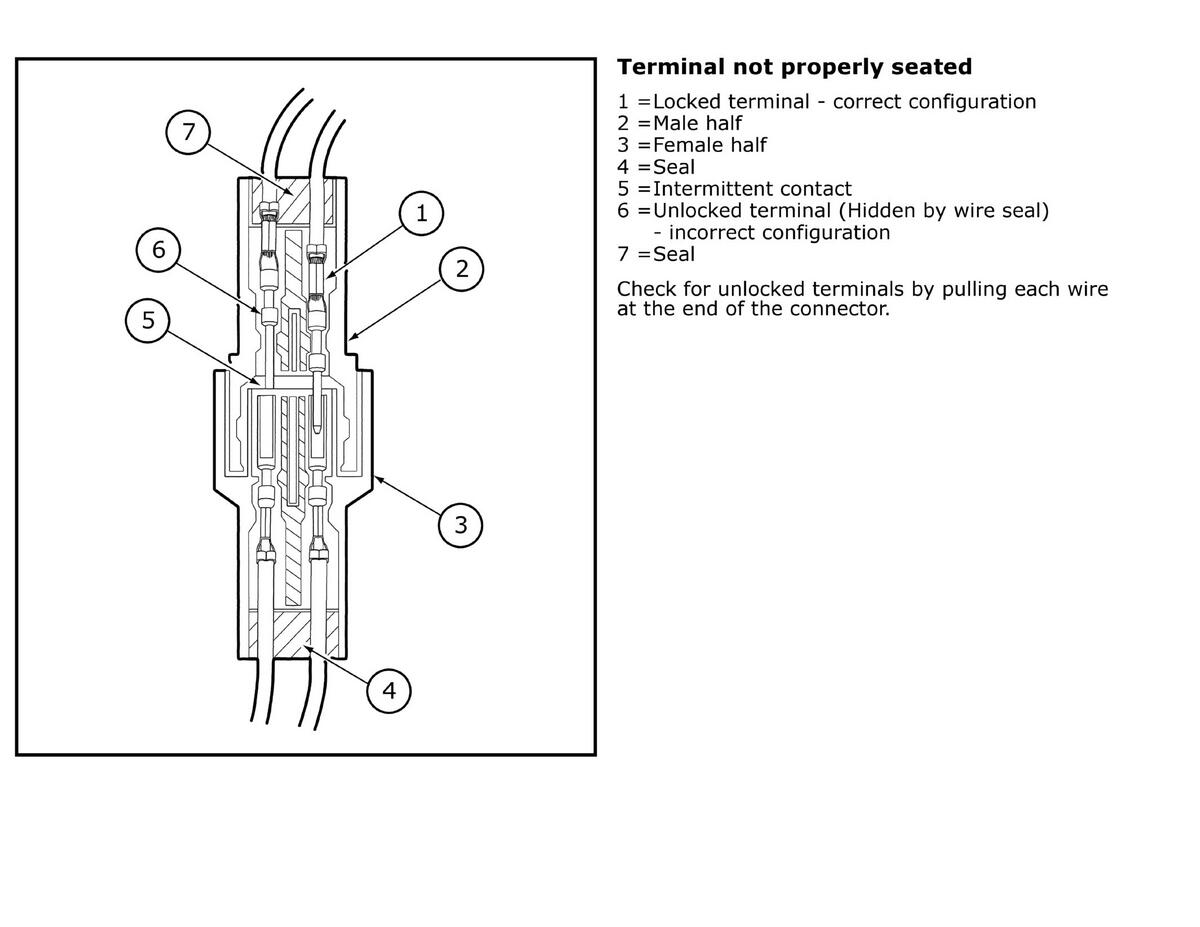

GFDWR221148Courtesy of FORD MOTOR COMPANY

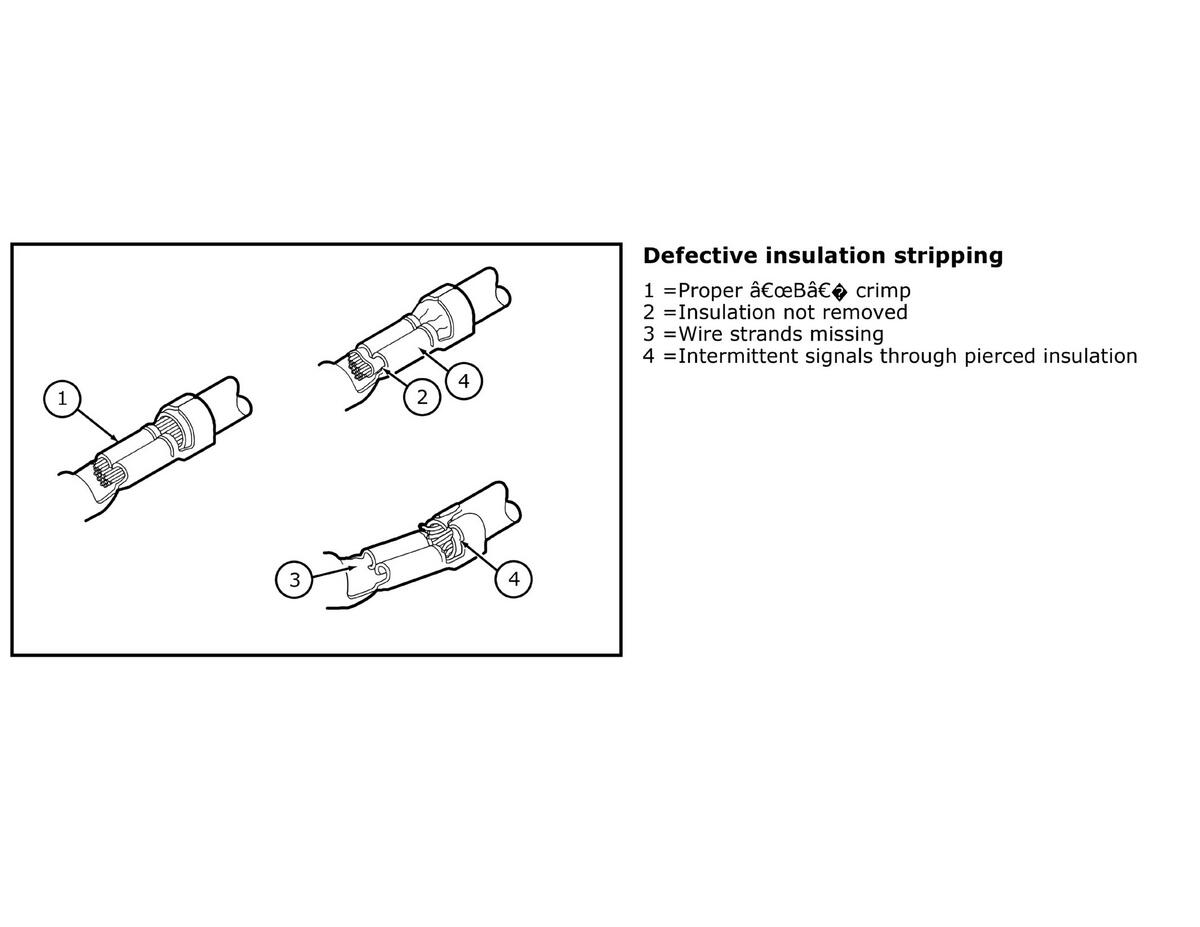

GFDWR221149Courtesy of FORD MOTOR COMPANY

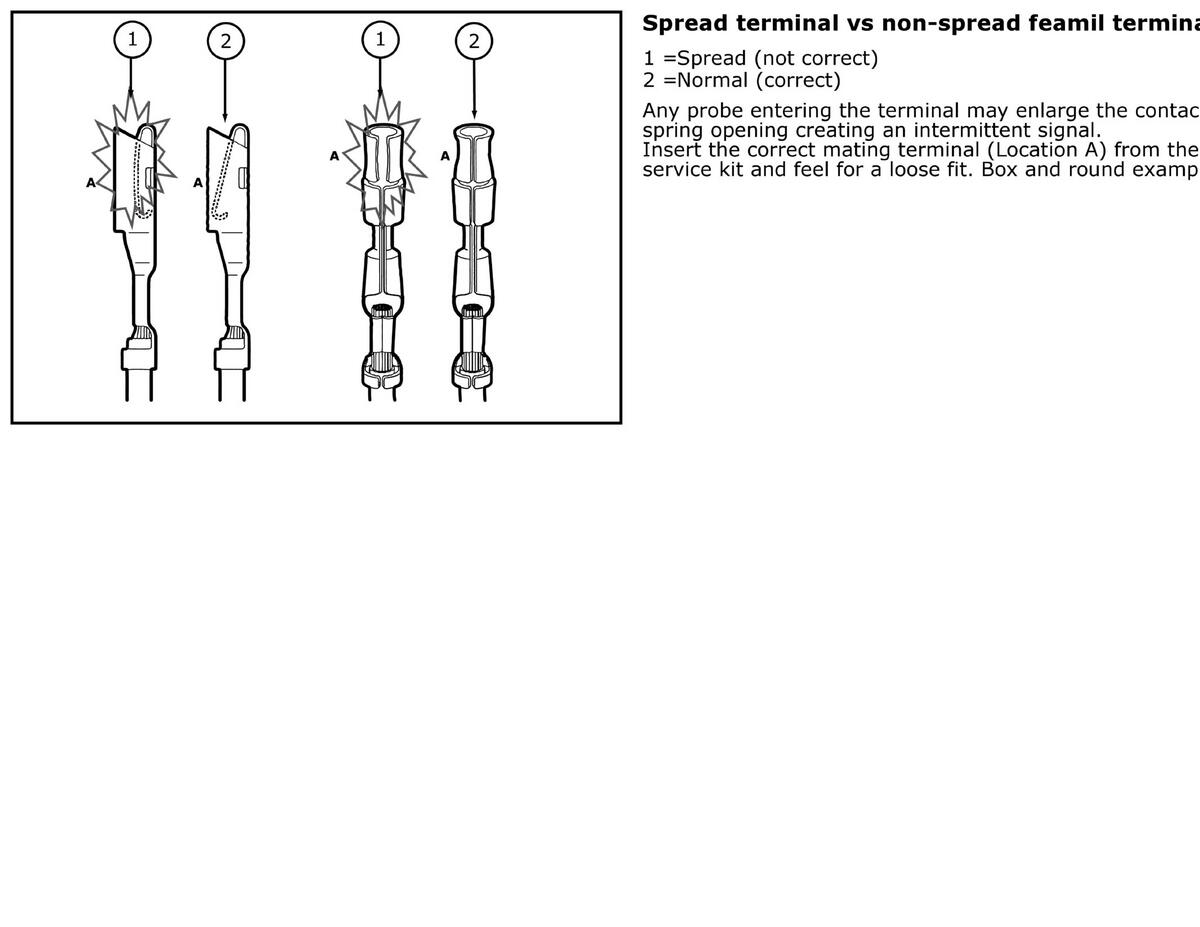

GFDWR221150Courtesy of FORD MOTOR COMPANY

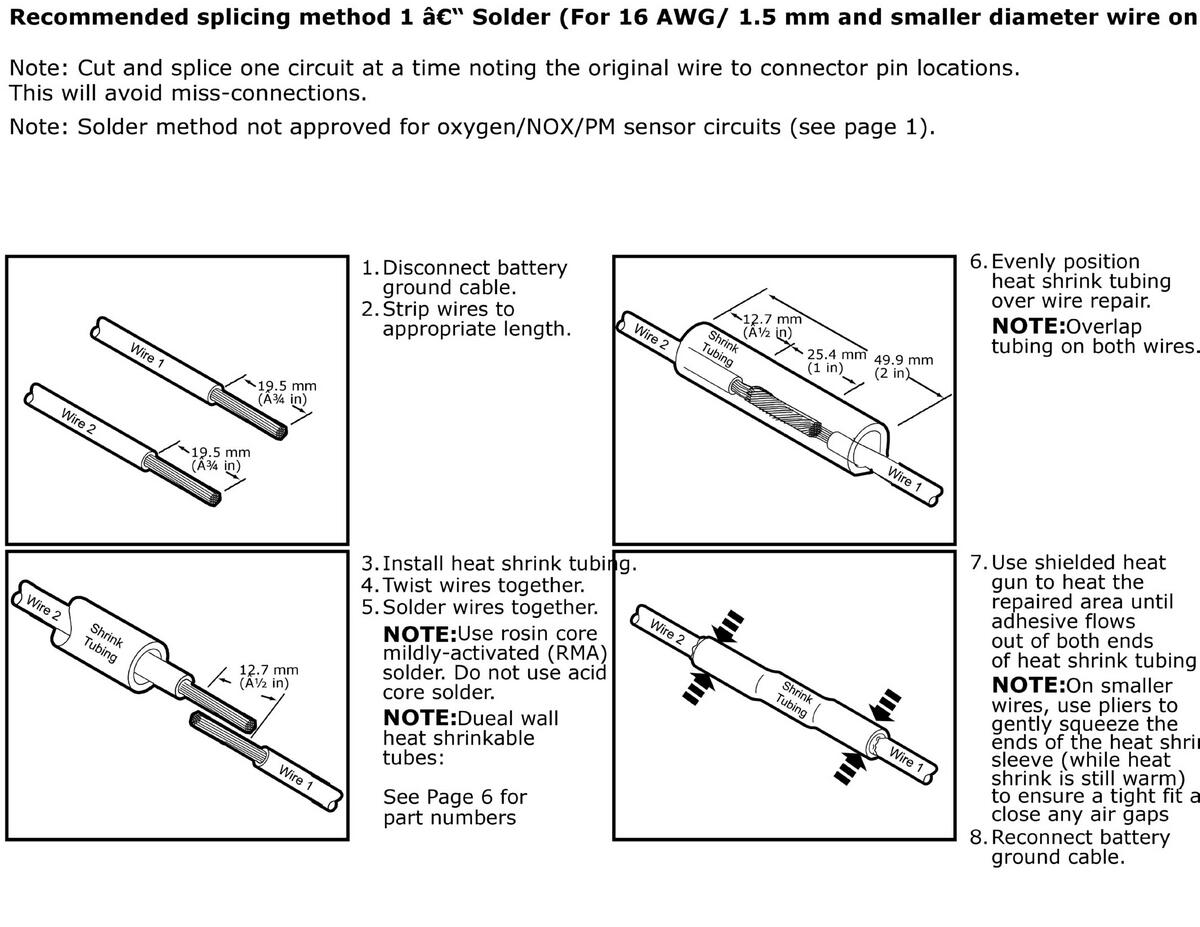

GFDWR221151Courtesy of FORD MOTOR COMPANY
GFDWR221152Courtesy of FORD MOTOR COMPANY

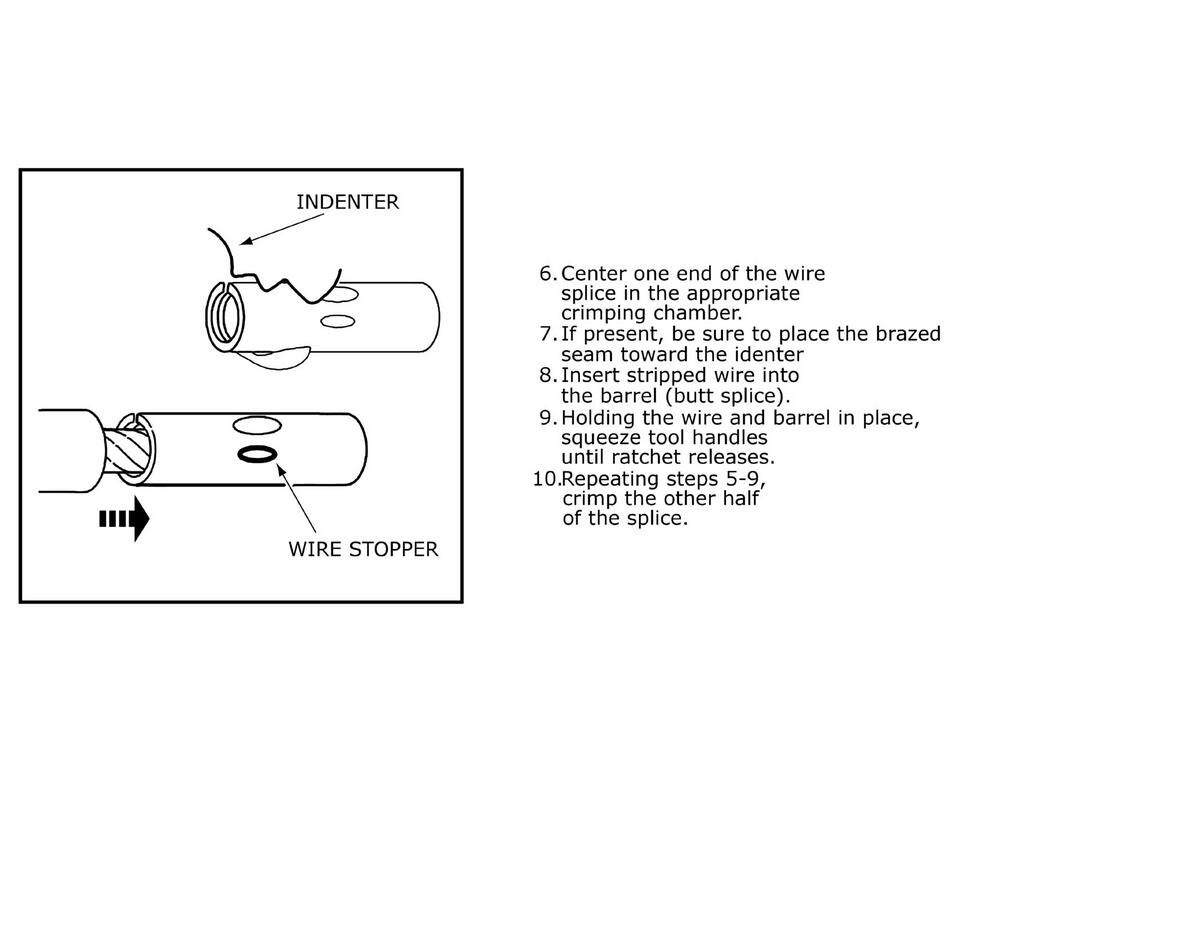

GFDWR221153Courtesy of FORD MOTOR COMPANY

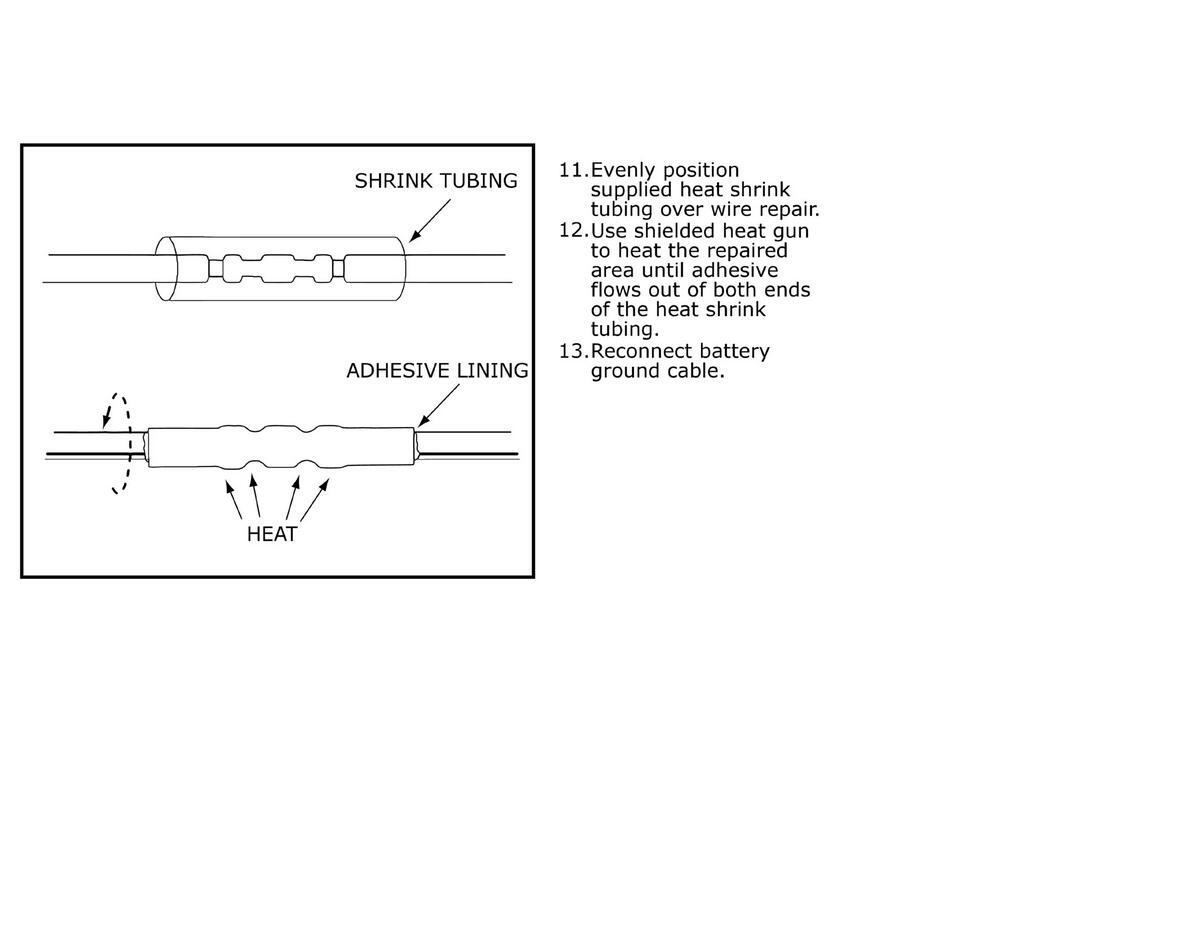

GFDWR221154Courtesy of FORD MOTOR COMPANY

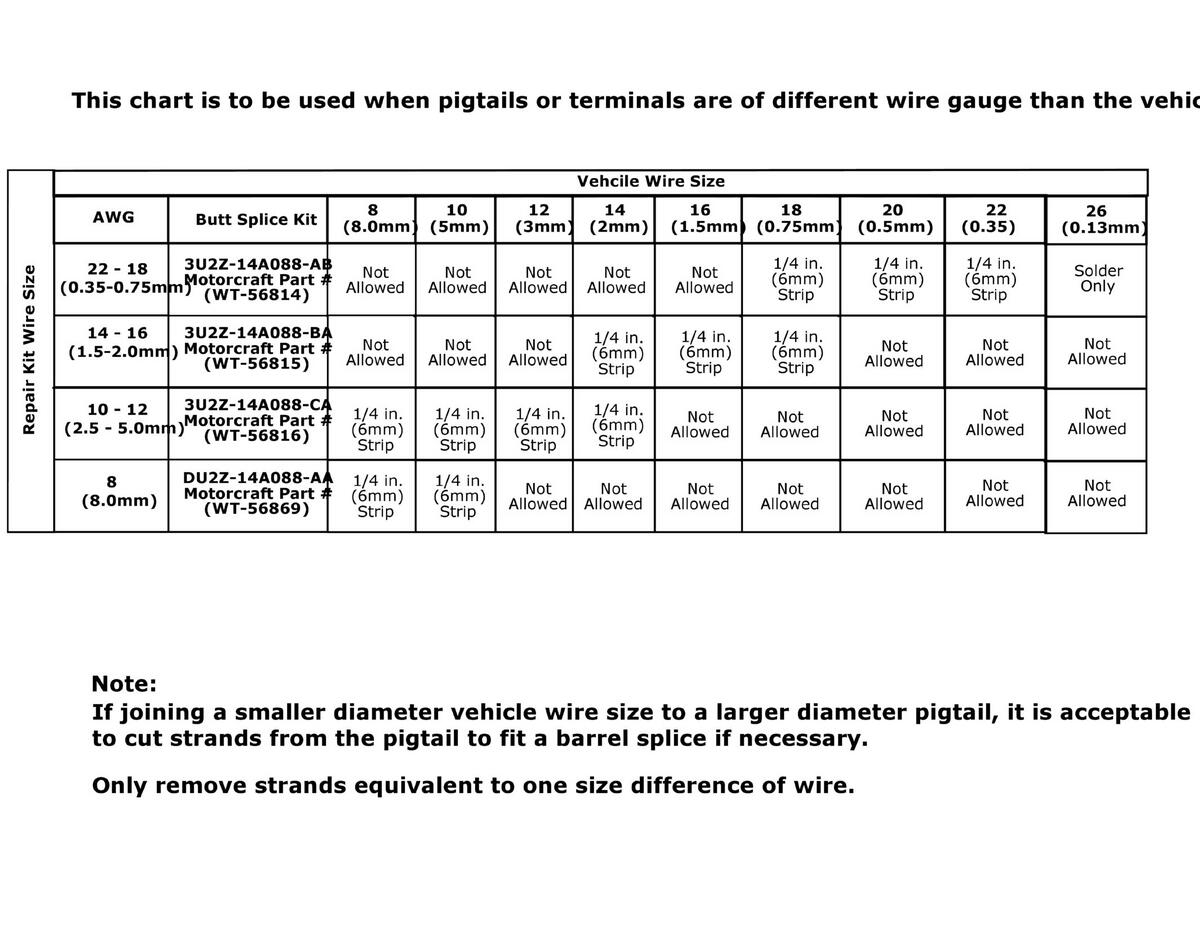

GFDWR221155Courtesy of FORD MOTOR COMPANY
