Float Level

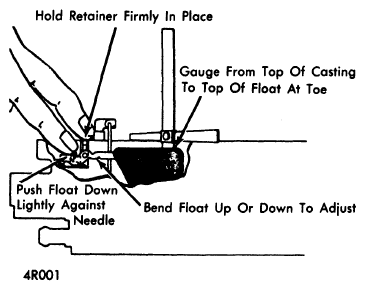

Hold retaining pin firmly in place with tang of float lightly seated on float needle. With adjustable T-scale, measure from top of float bowl gasket surface (gasket removed) to top of float at toe. Locate gauge point 1/16" from radius on toe. Bend float up or down to obtain specified clearance.
