Anti-Freeze Concentration

Test anti-freeze concentration using a suitable anti-freeze tester. The tester should have a temperature compensating feature, as failing to take temperature into consideration could cause an error as large as 30° F in freeze or overheating protection. Follow manufacturer's instructions for correct use of tester.

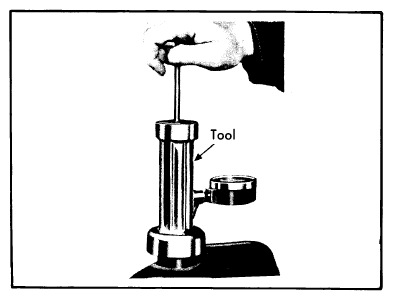

Fig 1: Pressure Testing Cooling System
G09330561Courtesy of GENERAL MOTORS COMPANY
