Radiator Cap

Visually inspect radiator cap, dip in water and connect to tester. Pump tester to bring pressure to upper limit of cap specification. Pressure cap specifications are given in appropriate manufacturer's article in this section.  If cap fails to hold pressure within given specification, replace cap.

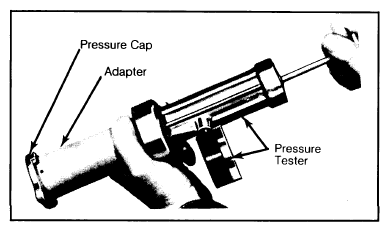

Fig 1: Testing Radiator Pressure Cap
G09347437Courtesy of NOT AVAILABLE

Attach cap to tester and apply pressure.
