Code 44 - Lean O2 Sensor Failure

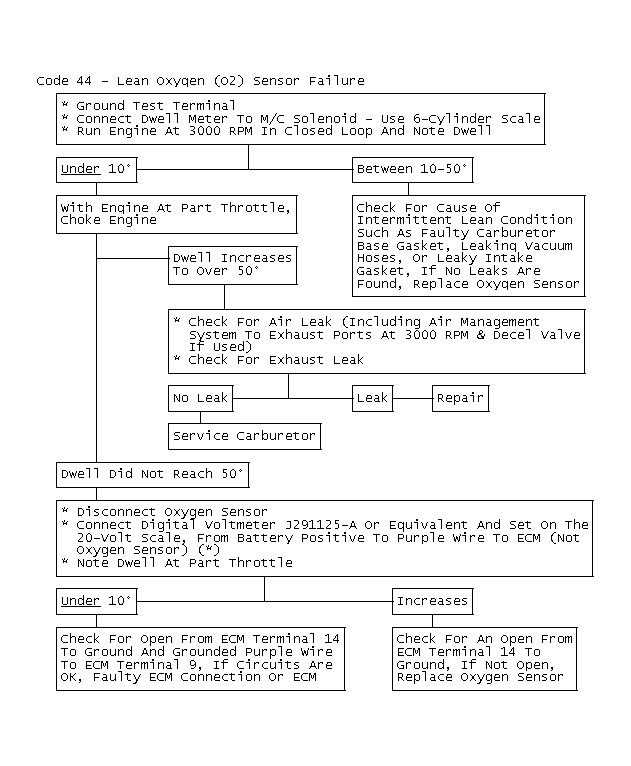

Fig 1: Flow Chart, Code 44 - Lean Oxygen (O2) Sensor Failure

NOTE: If M/C solenoid does not click with ignition ON and TEST terminal grounded, and there is no code 23 or 54, check for sticking M/C solenoid.

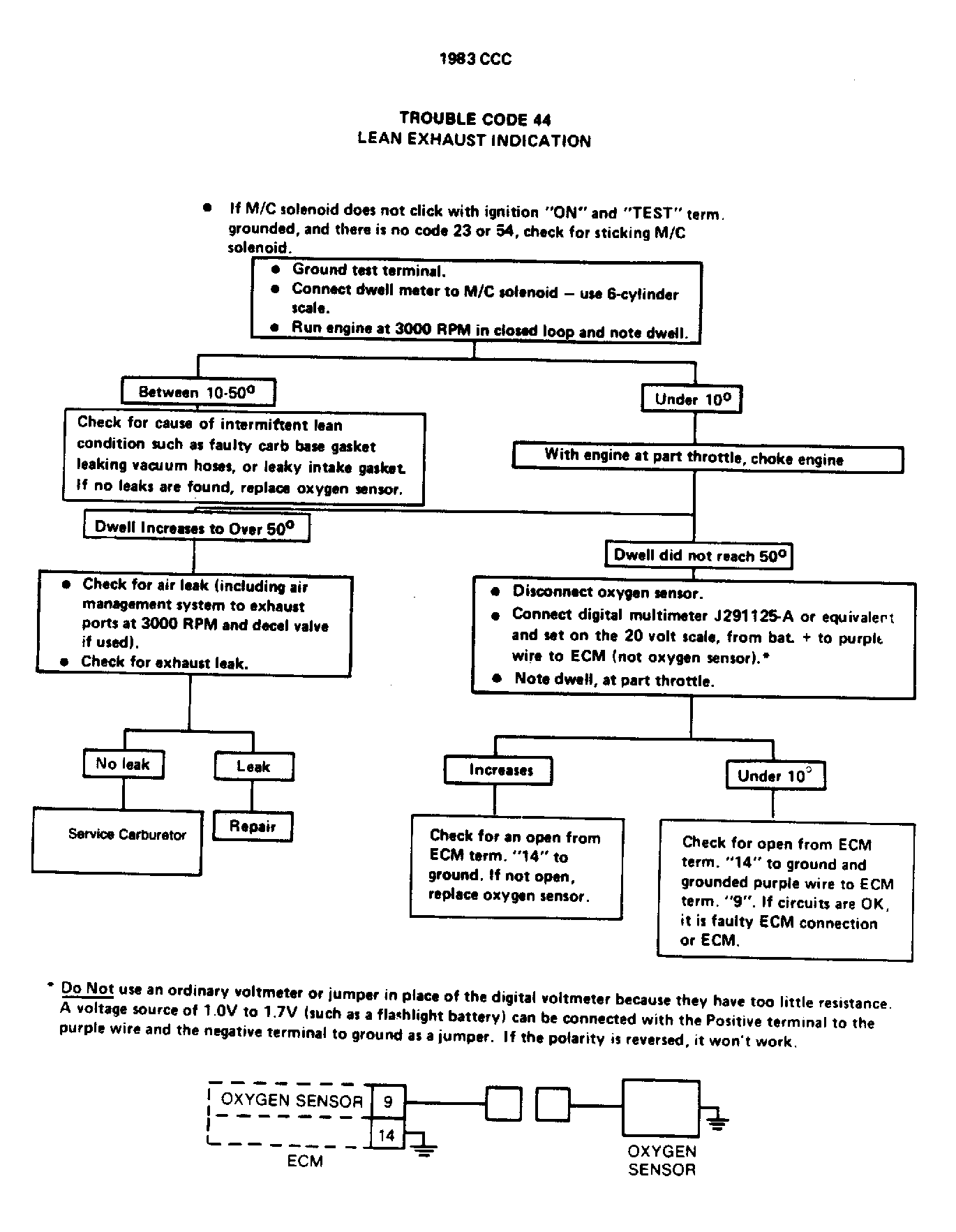

Fig 2: Flow Chart, Code 44 - Lean Oxygen (O2) Sensor Failure
