Electronic Spark Control (ESC) System Check

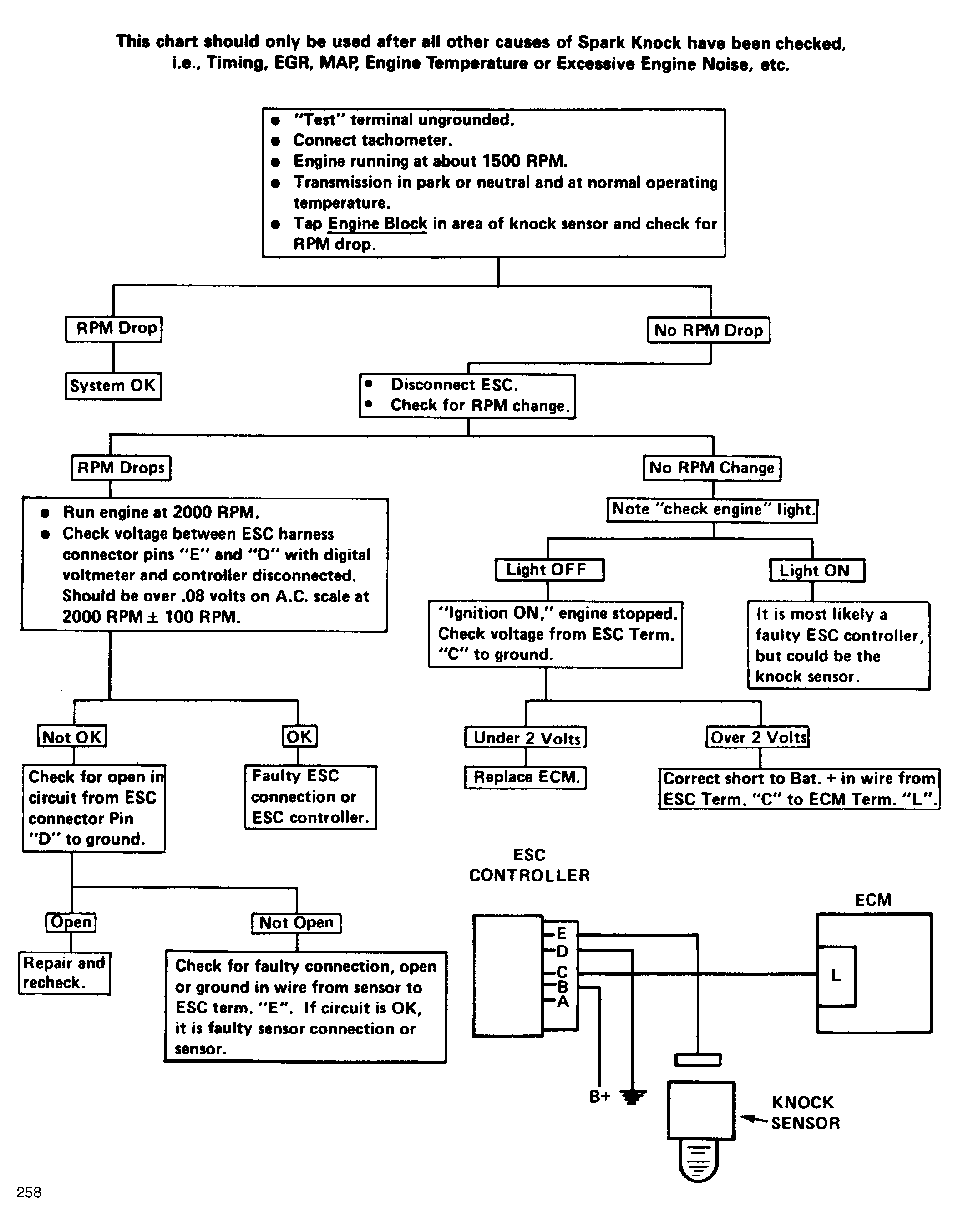

Fig 1: Flow Chart - Electronic Spark Control (ESC) System Check (Engine Knock, Poor Performance Or Poor Economy) - No Code 43
G258

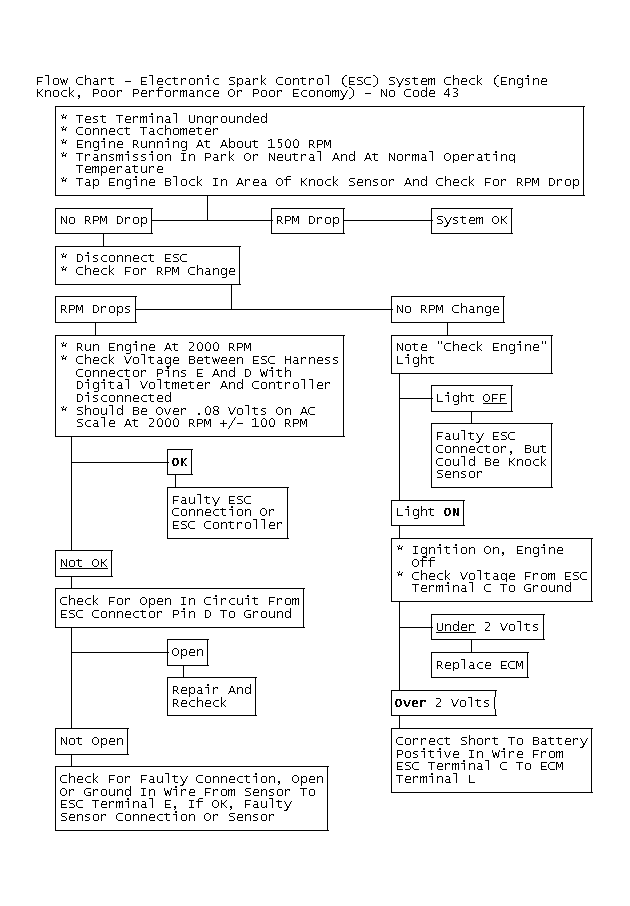

Fig 2: Flow Chart - Electronic Spark Control (ESC) System Check (Engine Knock, Poor Performance Or Poor Economy) - No Code 43
GB0046403
