Feedback Carburetor Tests W/Codes
>>
Code 12 - No Reference To ECM
Code 12 - No Reference To ECM

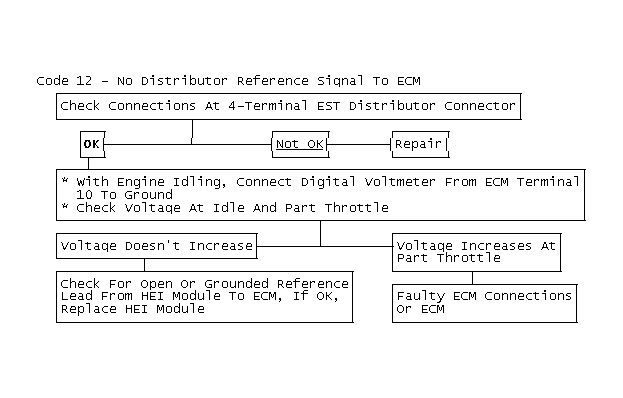

Fig 1: Flow Chart, Code 12 - No Distributor Reference Signal To ECM

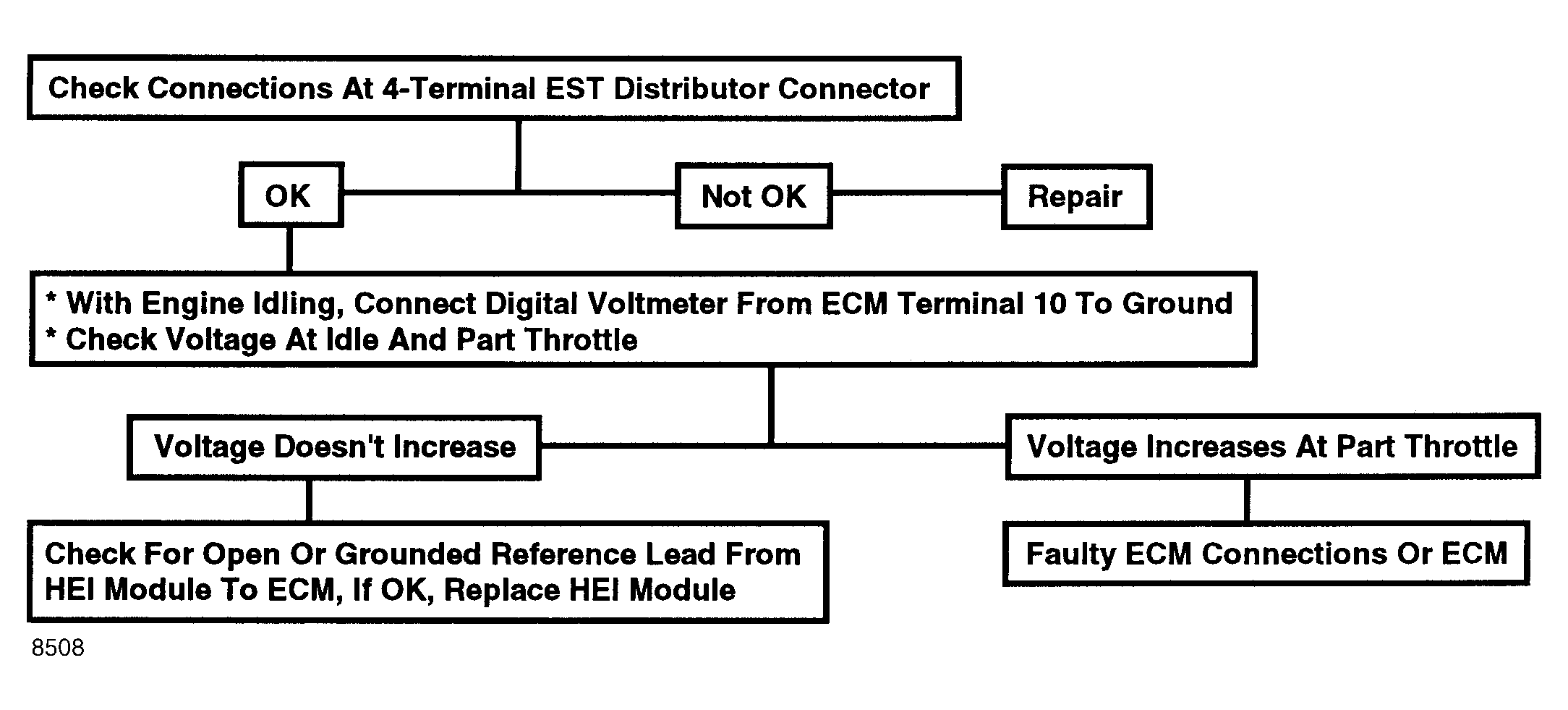

Fig 2: Flow Chart - Code 12 - No Distributor Reference Signal To ECM
