Component Locations

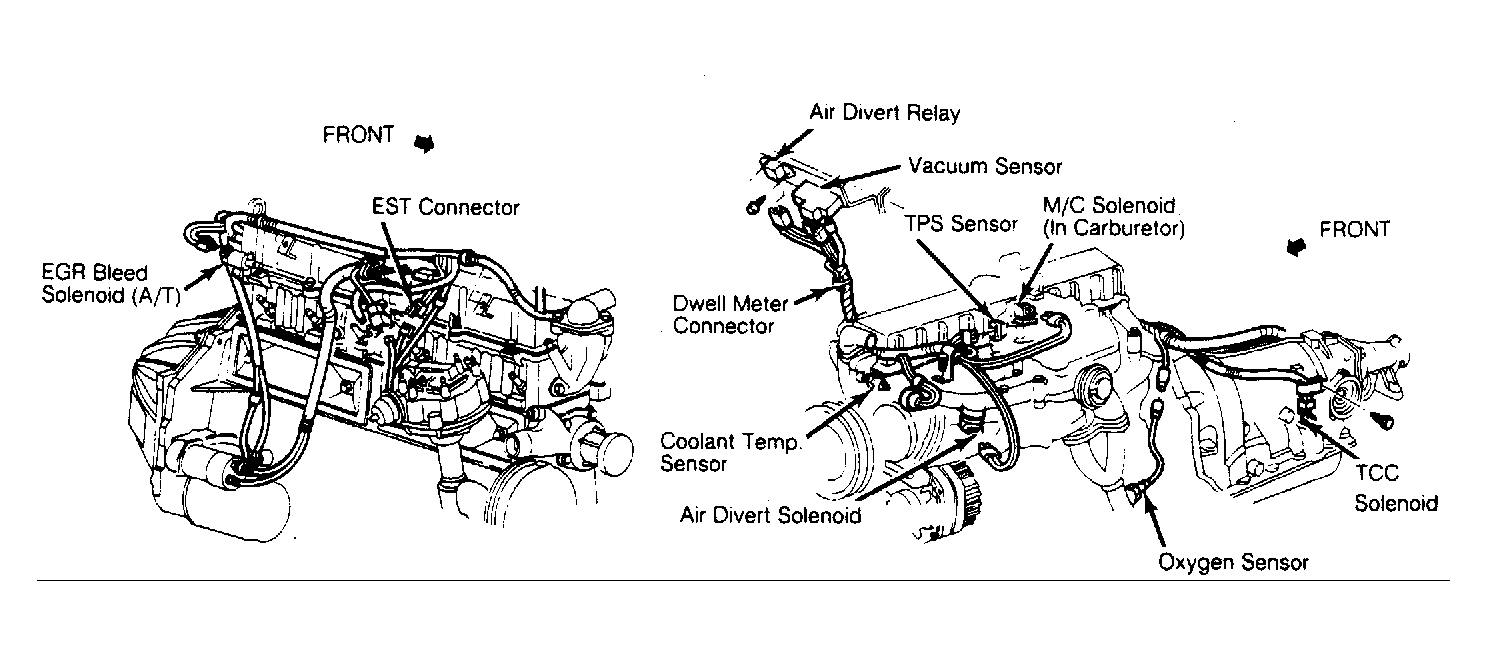

Fig 1: Component Locations ("C/K" Series Trucks With 4.1L Engine)

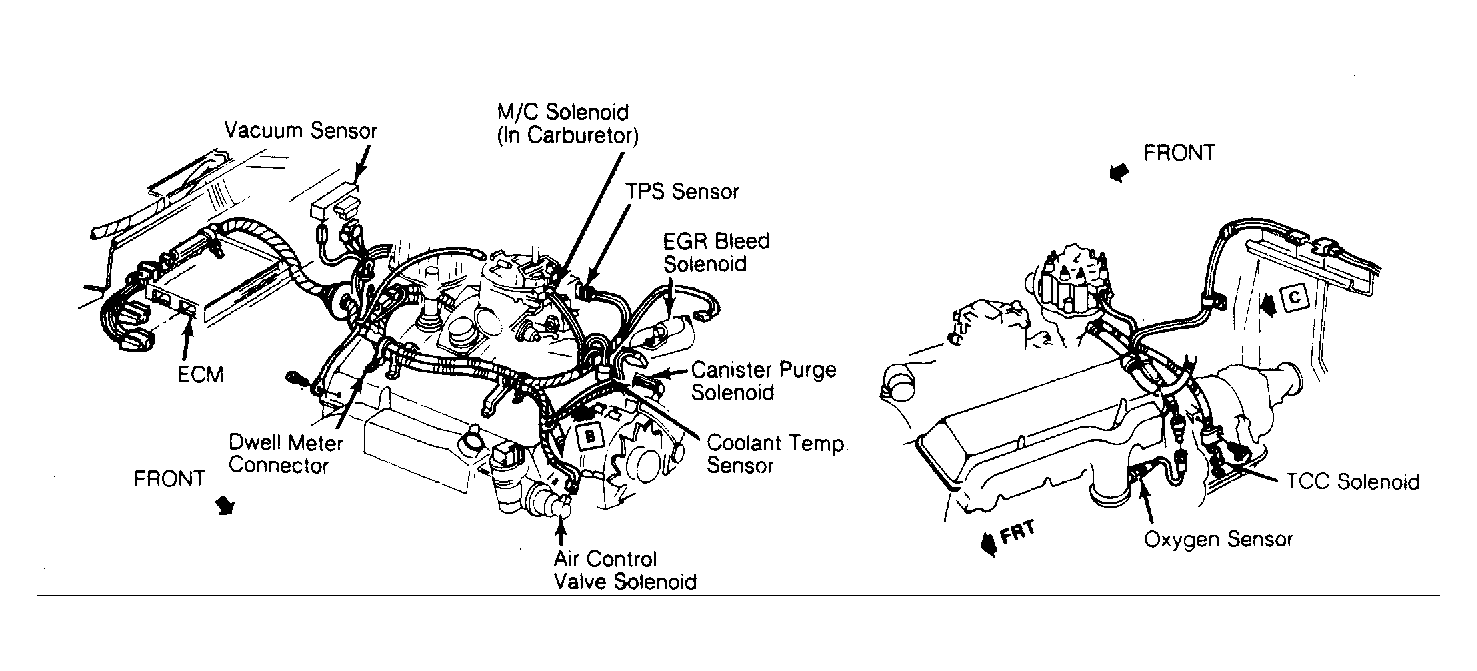

Fig 2: Component Locations ("C/K" Series Trucks With V8 Engines)

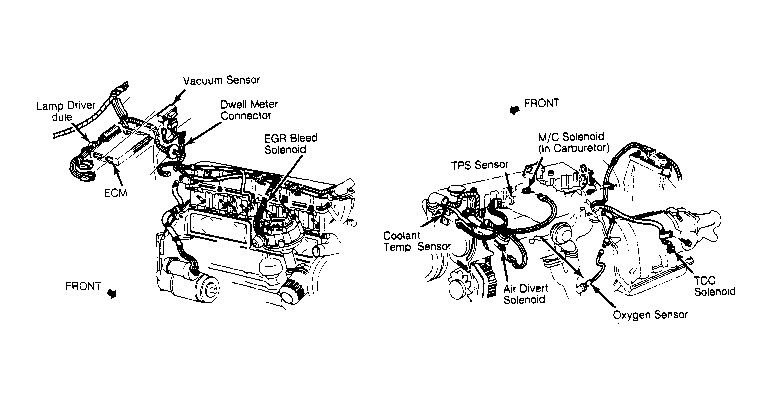

Fig 3: Component Locations ("G" Series Vans With 4.1L Engine)

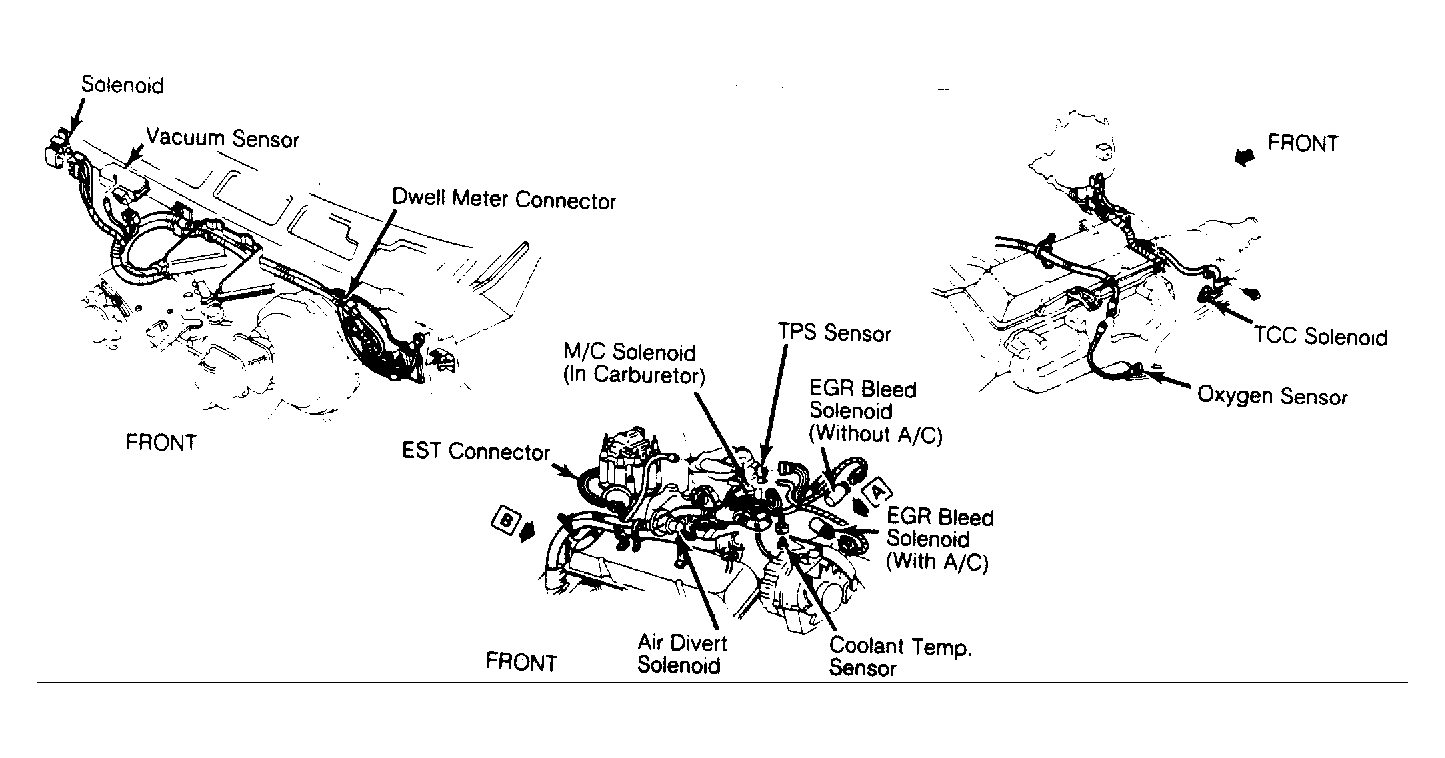

Fig 4: Component Locations ("G" Series Vans With V8 Engines)
